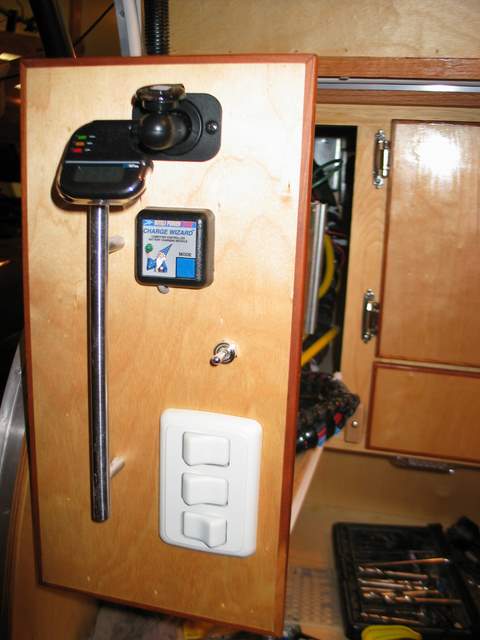

Slide Out Electrical Distibution Center, front view

Slide Out Electrical Distibution Center, front view


Fri Dec 29, 2006 12:05 am
1469

EXIF-Data

Thu Dec 28, 2006 4:25 pm
7.1875 mm
1/60 Sec
F/2
Flash fired, auto mode
0 EV
Pattern
User avatar
paddlehead
Donating Member

Posts: 41
Images: 63
Joined: Tue Jun 07, 2005 7:14 pm
Location: Washington, Camas

Image Description

Lower 3 gang switch controls galley lights: single toggle feeds thermo-electric cooler (down to run from battery / converter; up to run from car feed when traveling). Charge Wizard turns converter into 4 stage charger. Plug in digital voltmeter monitors state of batteries.
