Hatch latch assembled and attached

Hatch latch assembled and attached


Tue Nov 08, 2011 7:31 pm
3976

EXIF-Data

Sun Sep 18, 2011 12:15 pm
5.8 mm
1/500 Sec
F/8
80
Manual
Flash did not fire, auto mode
0 EV
Center-weighted average
User avatar
jonw
Titanium Donating Member

Posts: 525
Images: 163
Joined: Thu Oct 22, 2009 6:22 pm
Location: Marlboro, Mass.

Image Description

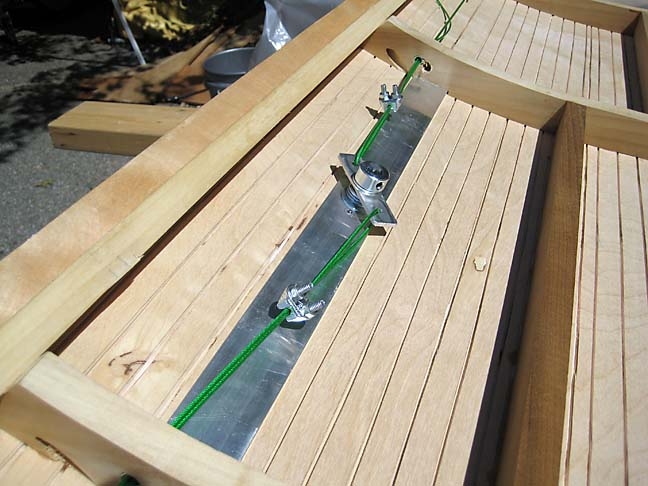

Cut down the T handle shaft so it was no longer than the hatch frame depth. I cut a piece of aluminum bar and drilled three holes in it, one I filed square to match the T handle shaft. Then used washers on either side with a threaded collar on the end to hold it all together. There is another picture of a close up of this assembly.
Turning the handle turns the aluminum which pulls the cable that pulls the door thingy in to unlatch the hatch.
