Postby stomperxj » Fri Aug 01, 2008 10:38 am

Hey all-

I wanted to post up a design i have been working on the last week or so. I saw a Grasshopper and loved it so I fired up Autocad and started in. This was drawn in Autocad and rendered in Sketchup.

Sleeping area is 76"x50", floor to ceiling is 42", overall height is roughly 5'5, and overall length of the body is 8'...

Let me know what you think.


Jess
Last edited by stomperxj on Mon Jun 27, 2011 11:19 pm, edited 46 times in total.
Check out my trailer build: SawTooth XL Off Road Trailer
Visit my site: http://www.sawtoothent.com
User avatar
stomperxj
The 300 Club

Posts: 394
Images: 1
Joined: Tue Jul 29, 2008 12:25 am
Location: Kuna ID

Postby planovet » Fri Aug 01, 2008 11:01 am

Nice job! :thumbsup: :thumbsup: I wish I knew enough about Autocad to be able to draw up something like that.
ImageMark (& Cindi)
Visit our website: Little Swiss Teardrop

I was wondering why the water balloon was getting bigger... and then it hit me.

User avatar
planovet
The Cat Man

Posts: 5580
Images: 3
Joined: Tue Nov 27, 2007 4:48 pm
Location: Plano, Texas

Postby schaney » Fri Aug 01, 2008 12:28 pm

Very nice lines, I really like it :applause:

I normally build softsided camp trailers, although I too like the Grasshopper profile. One of these days I'll do a hardsided one :thinking:
Scott
Camping the "Compact Way"
User avatar
schaney
500 Club

Posts: 803
Images: 262
Joined: Tue May 02, 2006 9:27 pm
Location: Salem, OR
Top

Postby TheDuke » Fri Aug 01, 2008 12:59 pm

Really like the shape. Excellent Sketchup work. It has more of the true "teardrop" attributes than mine, which is really a Tiny Travel Trailer.
TheDuke
User avatar
TheDuke
Teardrop Master

Posts: 207
Images: 68
Joined: Sun Mar 25, 2007 8:15 pm
Location: Lynden, WA
Top

Postby stomperxj » Fri Aug 01, 2008 2:03 pm

Thanks for the feedback guys...

As far as wall construction is concerned, I was thinking about doing 1/4" ply outer, 1/2" OSB skeleton with blue foam insulation and 1/4" ply inner for a 1" wall thickness. Does that sound good? also, can I get away with 1/2" for the floor or should I go 5/8-3/4"?
Check out my trailer build: SawTooth XL Off Road Trailer
Visit my site: http://www.sawtoothent.com
User avatar
stomperxj
The 300 Club

Posts: 394
Images: 1
Joined: Tue Jul 29, 2008 12:25 am
Location: Kuna ID
Top

Postby Tear Fan » Fri Aug 01, 2008 2:05 pm

stomperxj -

Two things -

Put two doors in. You'll never be sorry.

Think about a place for an A/C unit. The hatch below the galley could be one place.

Kudos on thinking big on the wheels. Less sway, better tracking and overall towing. Plus, they don't have to go around as fast.

Tear Fan
Life is so short, we should all move more slowly. - Thich Nhat Hanh

Photos - http://flickr.com/photos/47726343@N00/
User avatar
Tear Fan
The 300 Club

Posts: 469
Images: 70
Joined: Tue May 09, 2006 7:53 pm
Location: Georgia - Ellijay
Top

Postby stomperxj » Fri Aug 01, 2008 3:16 pm

Tear Fan wrote:stomperxj -

Two things -

Put two doors in. You'll never be sorry.

Think about a place for an A/C unit. The hatch below the galley could be one place.

Kudos on thinking big on the wheels. Less sway, better tracking and overall towing. Plus, they don't have to go around as fast.

Tear Fan


I thought about 2 doors, I'll have to explore that again and see how it looks... as far as a/c, I'll probably add that luxury later but i should make room for it now... good point

Yeah this will have about 20" of ground clearance to match the height of my Cherokee. 31" tires and wheels to match. Most likely will see some fire roads and some mild trails with it...
Check out my trailer build: SawTooth XL Off Road Trailer
Visit my site: http://www.sawtoothent.com
User avatar
stomperxj
The 300 Club

Posts: 394
Images: 1
Joined: Tue Jul 29, 2008 12:25 am
Location: Kuna ID
Top

Postby SuperTroll » Fri Aug 01, 2008 4:16 pm

AC (Think pet cool) then you need no space, just a place marked tor the hose inlets... and (I picture a luggage rack up on top) I like the whole Idea...I'm leaning towards a Desert Dawg built with a skeleton frame like the one you plan...less joining to do that way...brings the frame work down to a level i can handle...

So far I LIKE your design....
Keep thinking outside the box and all manner of ideas will become reality......

http://home-and-garden.webshots.com/alb ... Ul?start=0
SuperTroll
Teardrop Master

Posts: 166
Images: 8
Joined: Tue May 27, 2008 9:16 am
Location: Huntsville AL
Top

Postby mikeschn » Fri Aug 01, 2008 6:01 pm

Don't use OSB. The screws will rip right out of it. So will glued surfaces.

Use Plywood, or baltic birch plywood if you want to be "EXACTLY" 1/2 or 3/4".

Why the suicide doors?

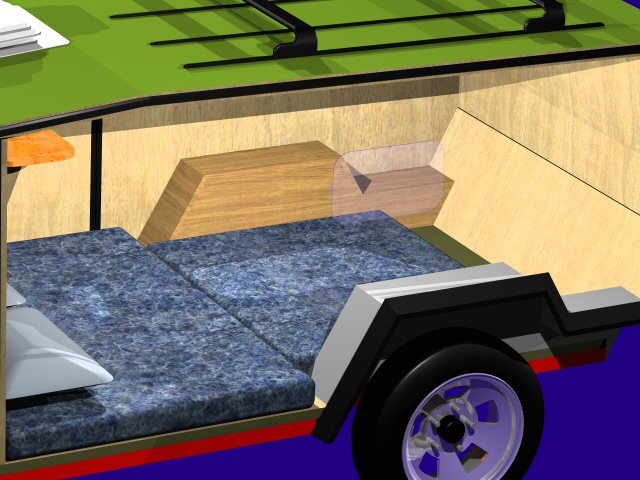

It's a real nice design though! How much space do you have inbetween the wheel wells? You wouldn't want it to be too tight, like this...


Mike...
Last edited by mikeschn on Fri Aug 01, 2008 7:16 pm, edited 1 time in total.
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19128
Images: 468
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby Greg M » Fri Aug 01, 2008 6:36 pm

I'm building something similar (pics in album) and my only warning would be to watch out for too tight a radius above the front window. I ended up having to get bendy ply to go around mine.

-Greg
Give a person a fish and you feed them for a day; teach a person to use the Internet and they won't bother you for weeks.
User avatar
Greg M
*Geek Extraordinaire

Posts: 1053
Images: 85
Joined: Mon Sep 12, 2005 12:40 am
Location: Victoria, BC, Canada
Top

Postby stomperxj » Fri Aug 01, 2008 9:27 pm

SuperTroll wrote:AC (Think pet cool) then you need no space, just a place marked tor the hose inlets... and (I picture a luggage rack up on top) I like the whole Idea...I'm leaning towards a Desert Dawg built with a skeleton frame like the one you plan...less joining to do that way...brings the frame work down to a level i can handle...

So far I LIKE your design....


Thanks. I saw another build similar to this on Expedition Portal and that's what inspired me to start drawing to see how feasible it is...

mikeschn wrote:Don't use OSB. The screws will rip right out of it. So will glued surfaces. Use Plywood, or baltic birch plywood if you want to be "EXACTLY" 1/2 or 3/4".
Why the suicide doors?
It's a real nice design though! How much space do you have inbetween the wheel wells? You wouldn't want it to be too tight, like this...

Mike...


No OSB? Even being sandwiched like that? I was picking that because of price alone. Suicide doors? I guess so the long side of the door has the hinge on it for more strength. No other reason really. There is about 48" in between the fender wells. Yes its a bit tight but I am matching the rear track width of my Cherokee so that's the constraint I'm working around.

Greg M wrote:I'm building something similar (pics in album) and my only warning would be to watch out for too tight a radius above the front window. I ended up having to get bendy ply to go around mine.
-Greg


That's another thing I'm a little skeptical about is the radii I have on the front. I like the look the way it is but if its too tight, I'll have to change it. I might have to do some test bends with some ply to see if they will work or not...

------------------------------------------------------------------------------

Here's a shot of the frame. The main rails will be 2x2 and the cross members and outrigger parts will be angle iron. I didnt show angle in my drawing though:


Drew some more framing around the galley area:


And punched some holes in the front shelf/bulkhead:


Thanks for the nice comments guys. Any feedback is appreciated, good or bad...

Jess
Last edited by stomperxj on Sat Aug 02, 2008 2:14 pm, edited 1 time in total.
Check out my trailer build: SawTooth XL Off Road Trailer
Visit my site: http://www.sawtoothent.com
User avatar
stomperxj
The 300 Club

Posts: 394
Images: 1
Joined: Tue Jul 29, 2008 12:25 am
Location: Kuna ID
Top

Postby Steve F » Sat Aug 02, 2008 2:33 am

I like it :) this could be why though ;)


And that head end storage ;)


Since these pics I've trimmed ll the outside edges with aluminum angle and will be plating the lower section with aluminium diamond plate tomorrow. Also bought my queen size mattress today.

My track matches my Cherokee and there is still 4 feet between the wheel wells, you don't need as much space at your knees as you do at the shoulders and in testing I don't find it a problem.

Suicide doors are harder to seal and, have the hinge on the short side and if they pop open on the freeway bye bye door.

Cheers
Steve
User avatar
Steve F
The 300 Club

Posts: 489
Images: 25
Joined: Fri Feb 02, 2007 8:12 am
Location: Sydney, Australia
Top

Postby stomperxj » Sat Aug 02, 2008 2:13 pm

Steve F wrote:I like it :) this could be why though ;)
And that head end storage ;)
Since these pics I've trimmed ll the outside edges with aluminum angle and will be plating the lower section with aluminium diamond plate tomorrow. Also bought my queen size mattress today.

My track matches my Cherokee and there is still 4 feet between the wheel wells, you don't need as much space at your knees as you do at the shoulders and in testing I don't find it a problem.

Suicide doors are harder to seal and, have the hinge on the short side and if they pop open on the freeway bye bye door.

Cheers
Steve


Steve - Your build was very insightful and a great read. Lots of info. You can see where I got some ideas. I agree on the 48" bed width. I layed down on the floor with my son over a tape measure and we had plenty of room. I just need to find a girlfriend the same size ;)...

Thats a good point about the doors. I'll switch sides with the hinges to see how it looks.

Here's a pic of the logo I came up with. The Sawtooth mountain range is pretty close to Boise and I have camped at a place called Trinity Lakes a few times and love it up there so that's where the name came from. The "XL" part is kind of a joke because the trailer is so small :)




Thanks for the help guys. Hopefully after I sell a motor home I have I can start buying some materials. Frame first and then start buyin some wood...

Jess
Check out my trailer build: SawTooth XL Off Road Trailer
Visit my site: http://www.sawtoothent.com
User avatar
stomperxj
The 300 Club

Posts: 394
Images: 1
Joined: Tue Jul 29, 2008 12:25 am
Location: Kuna ID
Top

Postby devigata » Sat Aug 02, 2008 4:57 pm

I layed down on the floor with my son over a tape measure and we had plenty of room. I just need to find a girlfriend the same size ;)...

Jess[/quote]

Don't forget that your son is going to grow and you'll need more room in just a couple of years. Just a thought, since my youngest just turned 18. *sigh*
User avatar
devigata
Donating Member

Posts: 282
Images: 82
Joined: Sun Apr 13, 2008 12:01 pm
Location: Orlando, Florida
Top

Postby grant whipp » Sun Aug 03, 2008 2:06 am

Jess!

Great looking design! Don't worry about the "suicide door" thing too much ... just make sure you have a good door latching mechanism, and run Drip Molding over the top and all the way down in front of the door/door-opening (and some might say even underneath) ...

Will be watching for this one to take solid form! Good Luck with it! In the meantime ...

CHEERS!

Grant
Celebrating Retirement after over 32 Years of Building, Promoting, Supporting, Supplying, Living the Lifestyle, and Loving Teardrop Trailers!
"Life Moves a Little Slower When You're On Teardrop Time"
The nature of Life, itself, is change ... "Those who matter, don't mind, and those who mind, don't matter."
User avatar
grant whipp
Teardrop Manufacturer

Posts: 1813
Images: 117
Joined: Sun Jan 16, 2005 2:00 pm
Location: Jefferson State ('tween CA & OR!)
Top
