Northern Lite Traveler

Did you just design your very own teardrop or tiny trailer? Want to discuss it? Here's the place to post your design for discussion!

Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 4:30 pm

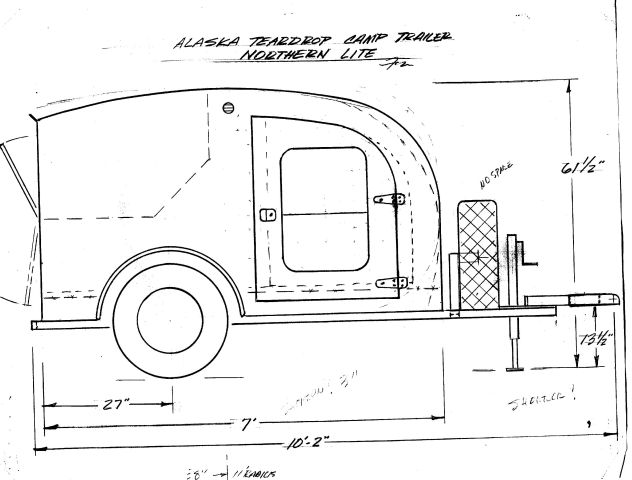

    This sketch is from a series drawn in the winter of 2006 under the Northern Lights in a small cabin on a ridge above Goldstream Valley, Alaska.
    The plan envisioned a light weight chassis, riveted aluminum cabin construction, strength, durability, low maintenance & a reasonable aerodynamic profile to be pulled with a small car.

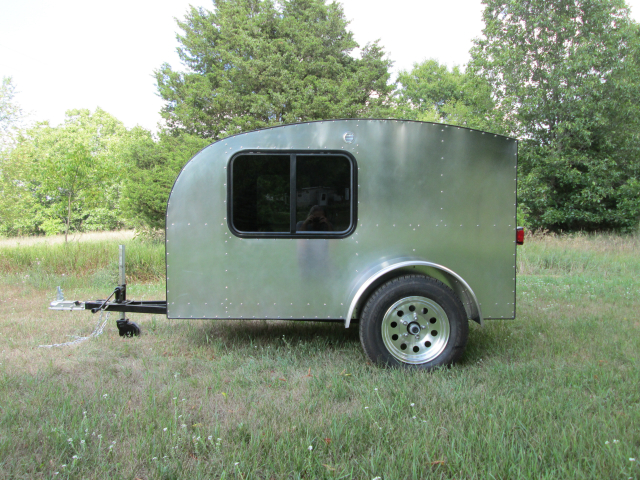

    Well, I finally made the mechanical drawings & built it in Greenville, Michigan. It came in at 525#. 900# GVW. Allowing 375# for gear. Hitch weight 90#. Ride height 10". Tire track 62".

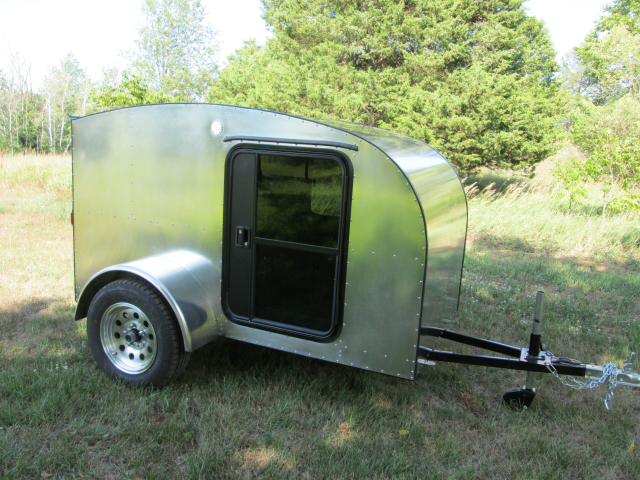

    Overall length 10'-4", width 5'-9", height 5'
    Interior length 80-1/2", width 45-1/2", height 42-1/2", footwell height 20"

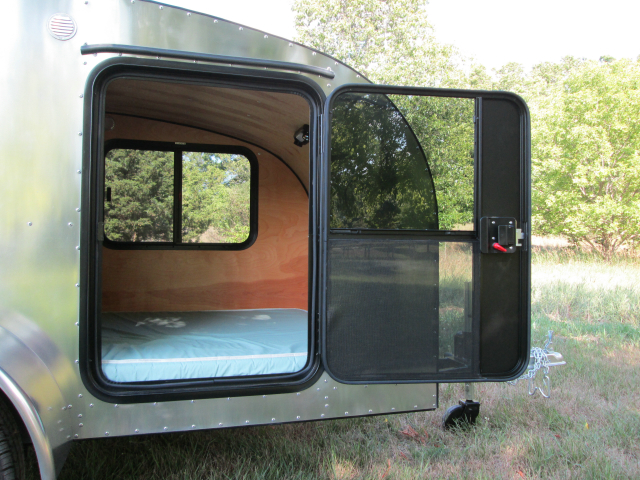

    Door with slider window 26"x36". Window with slider 30"x20". Tailgate 18"x46".
    Edit: added mechanical drawings on page 4.
    Sharing the experience:
    :peace: Fred
Last edited by alaska teardrop on Wed Dec 30, 2015 2:42 pm, edited 2 times in total.
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 4:40 pm

    The chassis & cabin floor frame were welded on a flat metal table with a 220A MIG welder. It was then sand blasted, acid dipped & powder coated. The cabin floor is .063" (1/16") aluminum tapped with VHB & riveted to the floor frame & two cross members.
    More on the chassis in this thread.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 5:08 pm

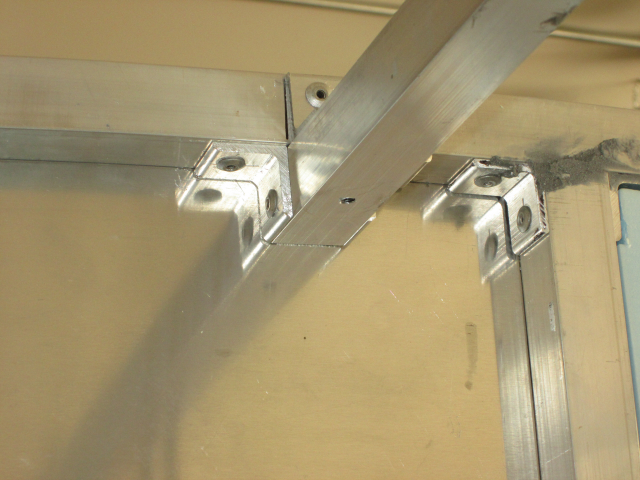

    The cabin is constructed using: .063" (1/16") 3003-H14 sheet aluminum. 16 gage (1/16") x 1" 6063-T52 square tubing. 1/8" x 1" angle cleats. 3M 4919F VHB tape. 3/16" *closed end* aluminum structural rivets (575# shear - 840# tensile).

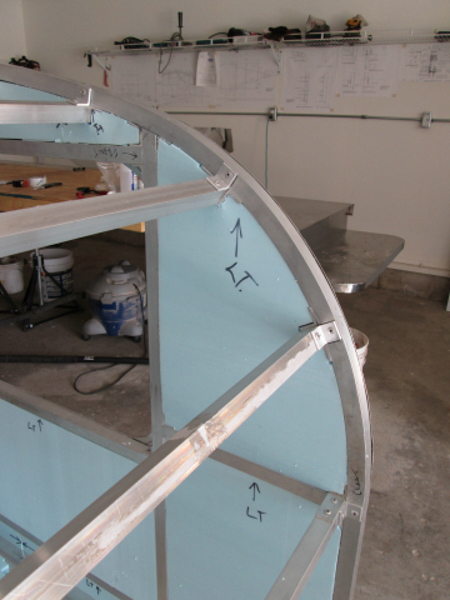

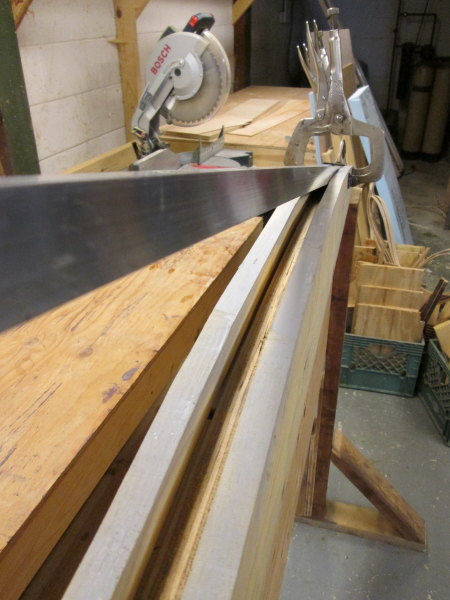

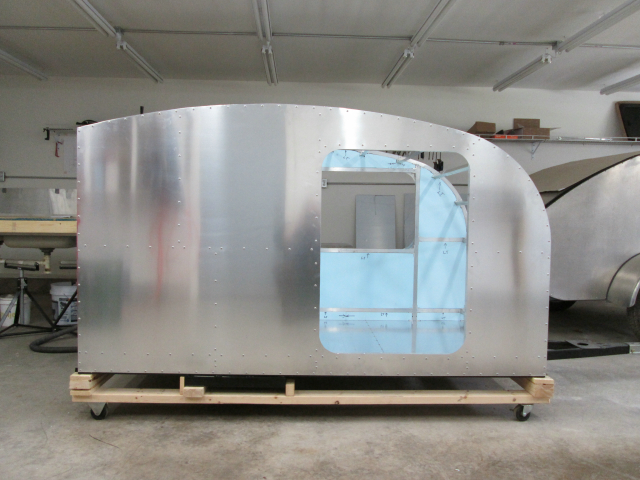

    The walls are made on the work table, outer film protected surface down. The side plan is layed out on the inner face of the sheet. The curve of the roof, window & door openings are cut. The rivet holes are punched or drilled. The hoop is cold formed by hand over a wooden buck. The tube framing is cut & secured in place with tape. The cleats are installed. The assembly is turned outside up. The tubing is drilled through the premade holes in the outer sheet & riveted with a pneumatic riveter.

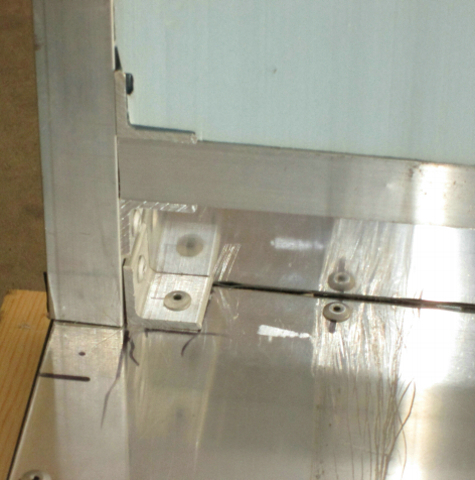

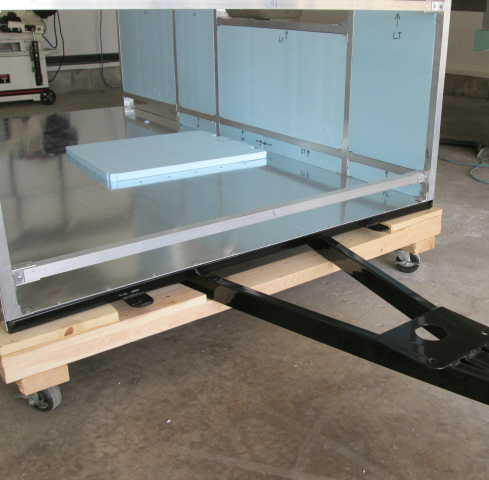

    The walls are installed to the steel floor frame with tape & rivets along the bottom. The ten vertical wall frame members are cleated to the top of the floor frame.

    The cross ribs are attached to the hoop with three cleats at each end.

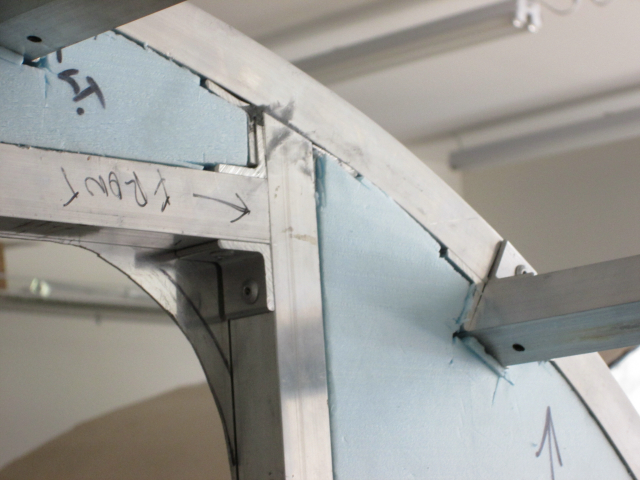

    The ribs are inset to allow for complete insulation sheathing of the front wall & roof.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby GRY GHST » Tue Aug 21, 2012 5:30 pm

nice looking trailer
John
my 5x9.5 build viewtopic.php?f=50&t=51618
User avatar
GRY GHST
Teardrop Advisor

Posts: 50
Joined: Sun Jul 22, 2012 7:37 pm
Location: Tampa Bay FL
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 5:31 pm

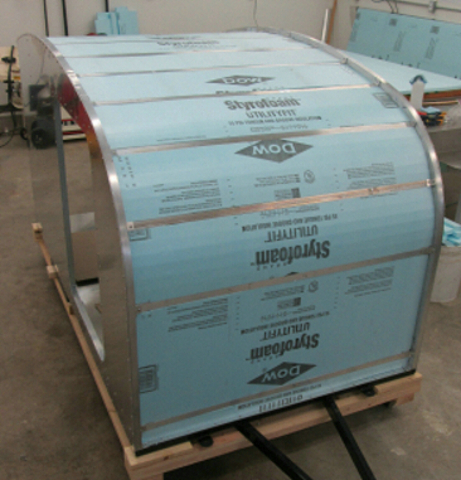

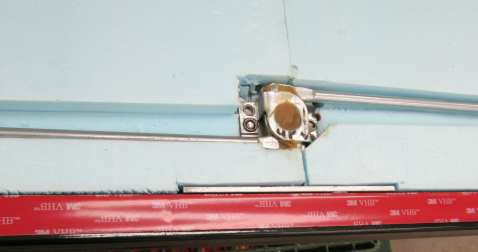

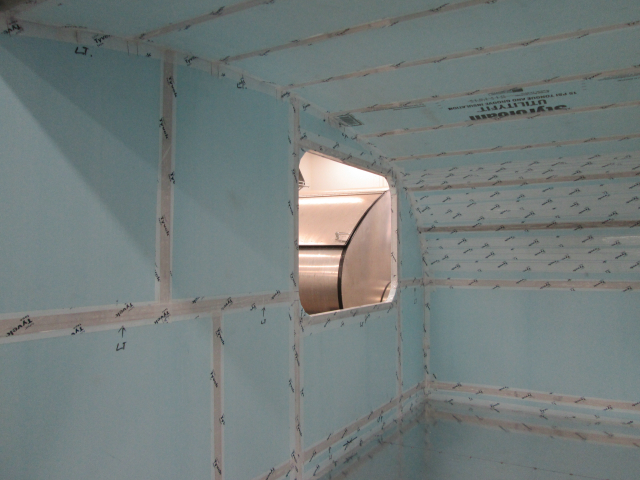

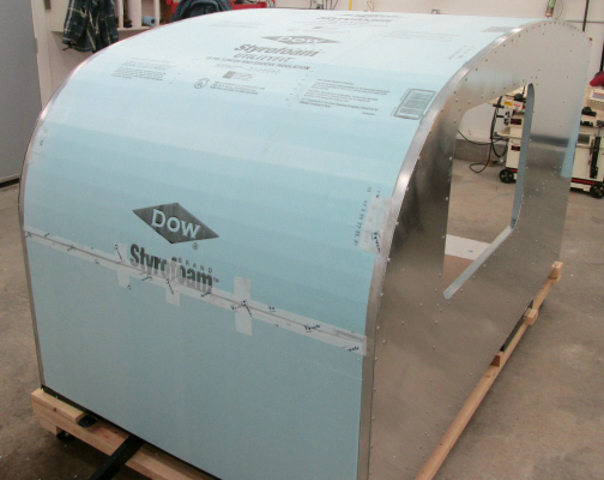

    The walls are fitted with one inch of *EXTRUDED* polystyrene insulation. The front & roof are fitted with one inch between the ribs & another inch of continuous insulation over the ribs. The floor has two inches of continuous insulation on the top side of the aluminum floor.
    It doesn't have to be freezing, but anytime the inside temperature is greater than the outside, moisture created inside will migrate to the cold side. *EXTRUDED* polystyrene doesn't absorb water. The surface & edges are a vapor barrier in & of itself. With the seams & openings taped with *made for* vapor barrier tape, the moisture barrier is complete.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 5:53 pm

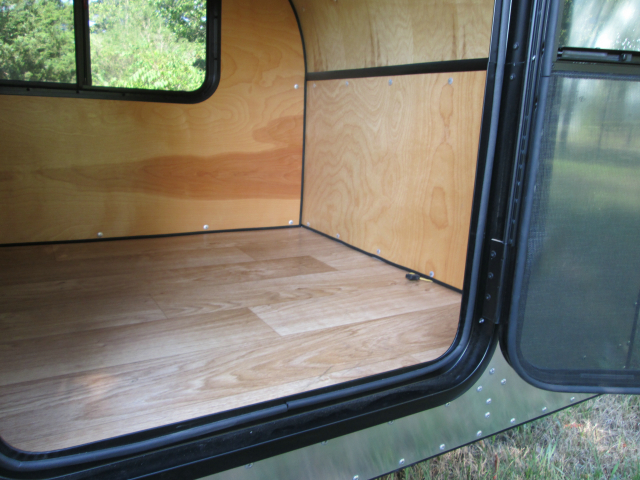

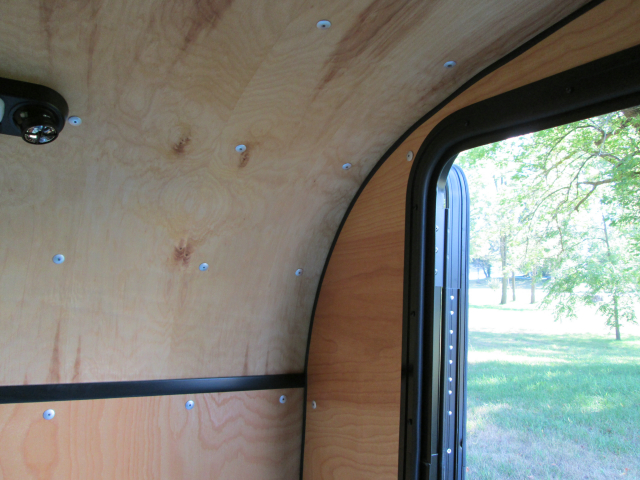

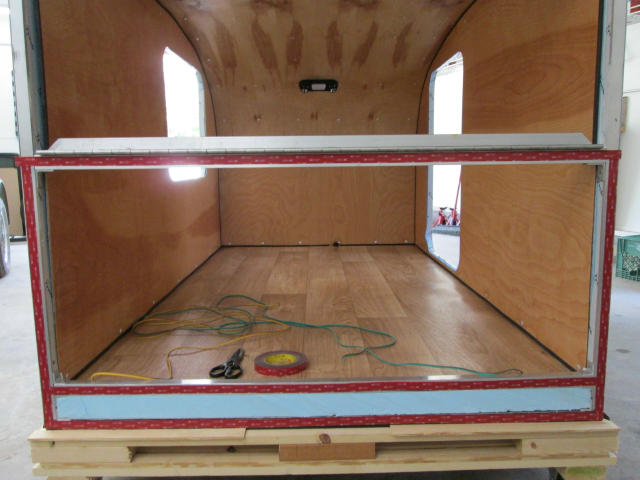

    The ceiling is barrel bend birch & the walls are 1/8" birch ply.
    The side panels were matched to the outer walls on the work table.
    Both sides of all the panels are coated with a sealing primer. The interior sides are finished with three layers of hand rub polyurethane.
    As an additional thermal barrier, all of the interior panels have an extruded polystyrene underlayment attached to the back sides.
    All the wall panels have a no glue rubber edge trim. The interior is installed in place with large head aluminum rivets.

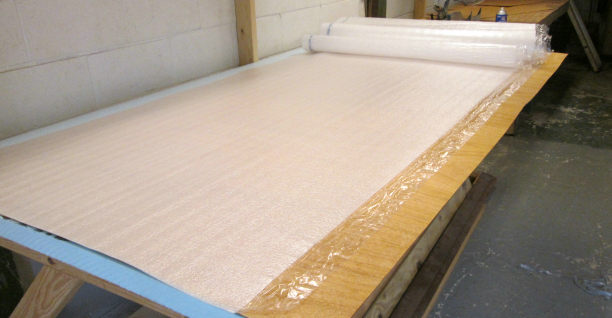

    The flooring is 'lay flat/no glue' vinyl on top of the 2" insulation.
    Note: In case of damage, the interior can be removed by drilling out the rivets & replaced.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 6:09 pm

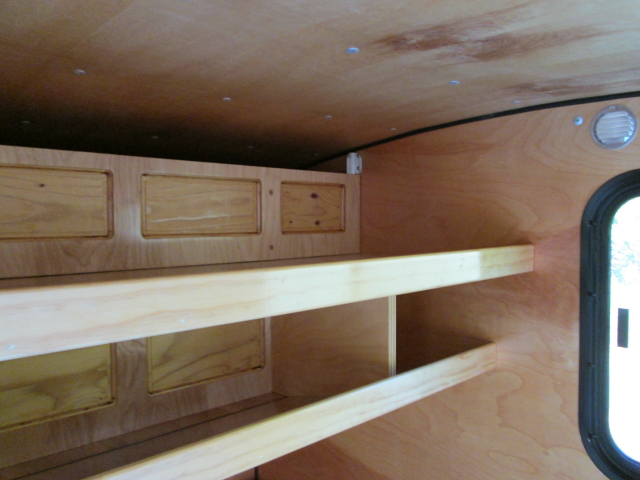

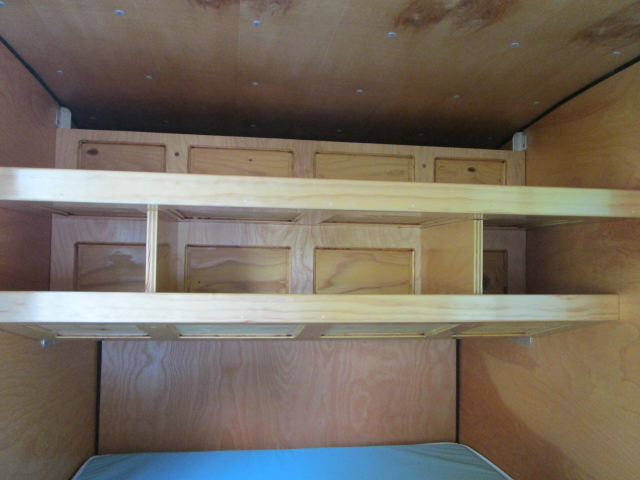

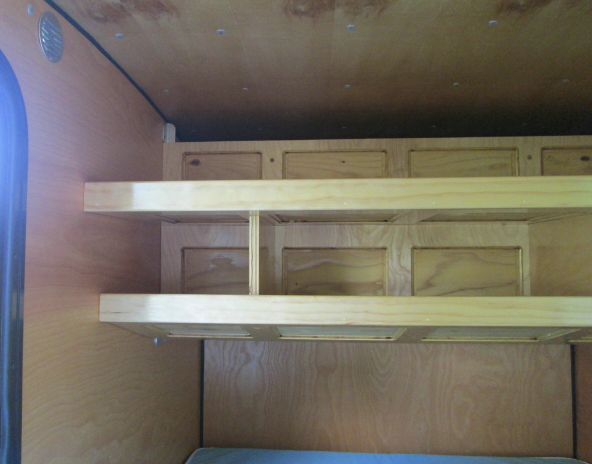

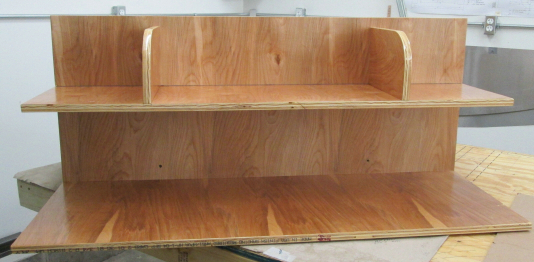

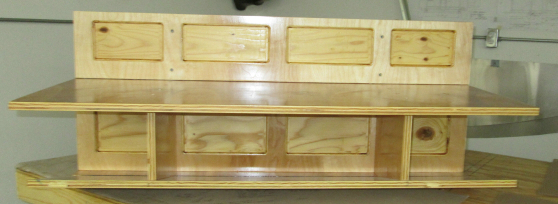

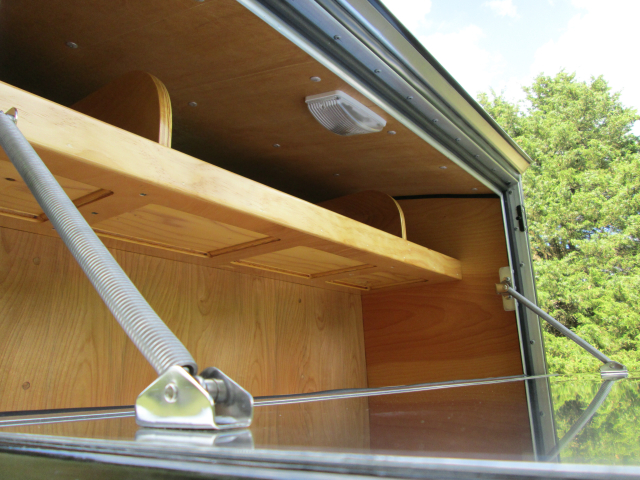

    The galley & cabin shelving is made with 3/4" birch ply. All the pieces are routered on one side in a pattern to half depth in order to reduce weight. Assembled on the bench.
    The assembly is secured to the wall framing with riveted aluminum angle.
    Note: Air flow over the top of the dividing wall if the tailgate is open & 2 1/2" double screened vents on both sides for cabin make-up air.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 6:19 pm

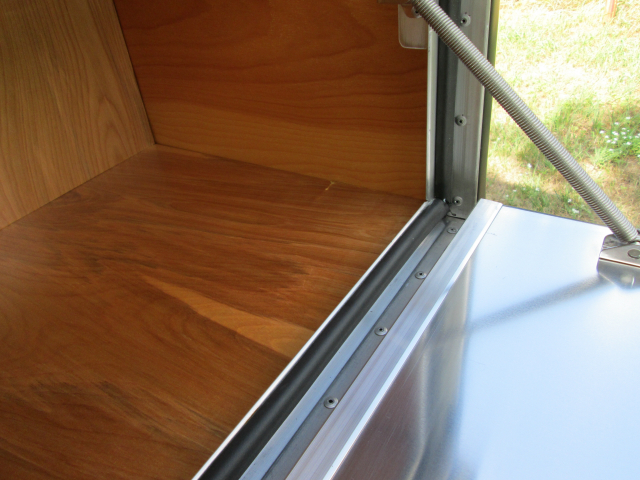

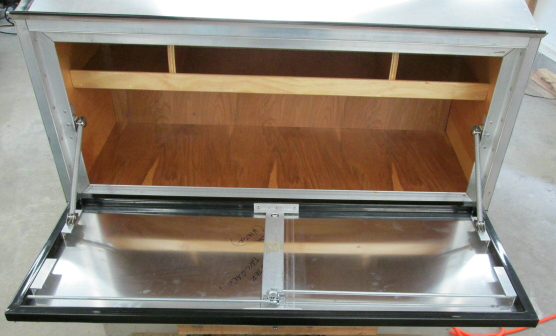

    The tailgate has a powder coated 16 gage steel perimeter frame with an aluminum piano hinge. The aluminum on both sides & outer trim are attached with VHB tape.
    It closes against a 1/8" x 1 1/2" aluminum angle outer frame with a 1" rubber 'D' seal.
    Edit: Corrected the size of the seal. BTW, all of the trim & seals made by Trim-Loc.
    :peace: Fred
Last edited by alaska teardrop on Sun Aug 26, 2012 6:57 am, edited 1 time in total.
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 6:41 pm

    The two brackets & the rear of the jack mounting plate could be used to attach a storage box without drilling or welding to the tongue rails.

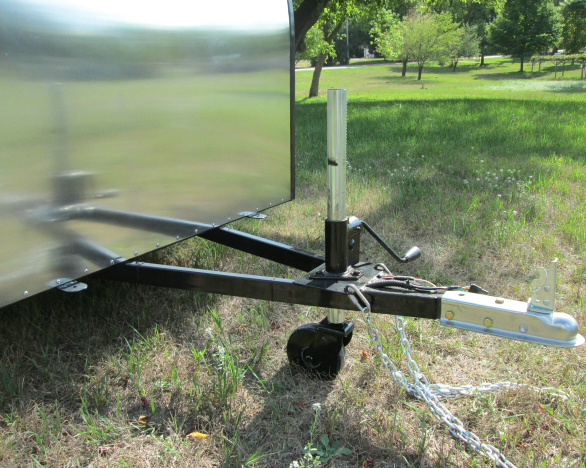

    The jack is a 750" Bulldog. The geared shaft retracts up flush to the frame & the wheel drops out, leaving nothing to hit on uneven ground. With the rear corners of the trailer blocked, the jack will lift the trailer tires off the ground.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Tue Aug 21, 2012 6:48 pm

    The tires are 195/70/14 all season radials mounted on aluminum trailer wheels run at 21 psi.

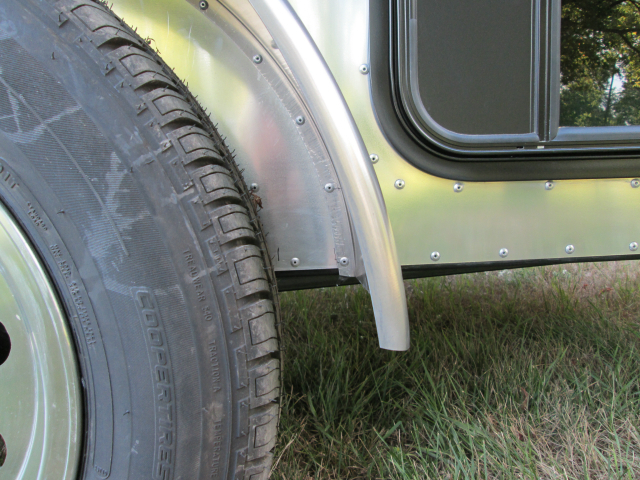

    The aluminum fenders are riveted to the cabin framing & side walls.
    That's all.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby High Desert » Tue Aug 21, 2012 11:48 pm

That is one heck of a nice build Fred! Thanks for sharing all the details.
Shaun

"it's not the years honey, it's the mileage"
High Desert
Platinum Donating Member

Posts: 8780
Images: 27
Joined: Wed Apr 08, 2009 1:46 pm
Location: SW Washington state
Top

Re: Northern Lite Traveler

Postby TJinPgh » Thu Aug 23, 2012 7:04 am

That is one sweet build. Of course, I do have a bias toward the reverse tears....

Amazing how light weight that is despite being all metal with all that aluminum being used.

Not an inexpensive build, I would imagine, but it should last forever.
-TJ
TJinPgh
The 300 Club

Posts: 441
Images: 90
Joined: Fri Oct 28, 2011 1:50 pm
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Sun Aug 26, 2012 7:11 am

    Thankyou John, Shaun & T.J. for your appreciation of the effort.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Re: Northern Lite Traveler

Postby Greg M » Sun Aug 26, 2012 12:02 pm

Fantastic job! I still have a printout of your original 2006 drawings in my idea file. The profile inspired my Deco tear.
How hard was bending the hoop? Did you use a full size buck or something smaller and adjust the radius as you went?

-Greg
Give a person a fish and you feed them for a day; teach a person to use the Internet and they won't bother you for weeks.
User avatar
Greg M
*Geek Extraordinaire

Posts: 1013
Images: 85
Joined: Mon Sep 12, 2005 12:40 am
Location: Victoria, BC, Canada
Top

Re: Northern Lite Traveler

Postby alaska teardrop » Mon Aug 27, 2012 8:24 pm

    Hi Greg, Cool, the shape worked for you. Are you asking because you're considering aluminum next time?

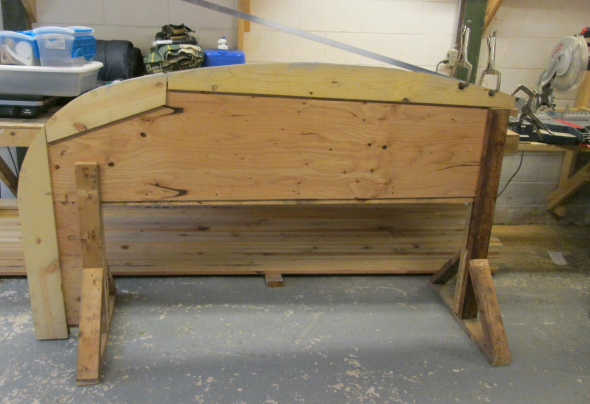

    Well anyway, the tubing is 16 ga. x1" sq. 6063-T52. The buck is made of two pieces of 1/2" ply sandwiched between the one-by flanges.

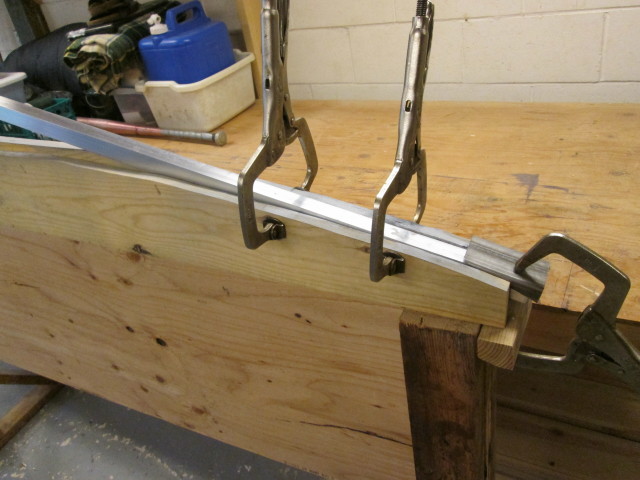

    Allowing for a cut-off, the tube is clamped at the end, pulled down by hand & clamped every 6" or so. It bends to the shape without distortion. It does spring back. If I use the buck again, I'll tighten up the radii to compensate.
    The smaller radius is 21" outside. Any lesser radius would probably require annealing.
    :peace: Fred
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1039
Images: 172
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Next
