Pleasant Valley; Yoder Toter wiring ?

[gassman]

Does any one have a wiring diagram for the Pleasant Valley/ Yoder Toter ? After seeing a pic on e-bay I figured this was about as bare bones as it gets for wiring your trailer. I'm just a little puzzled as to where all the wires go...can anyone help??

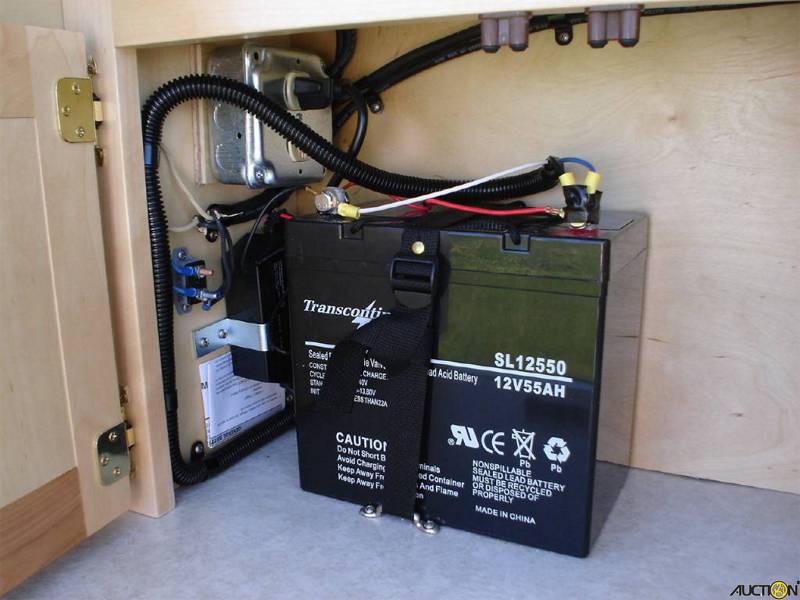

Here's the photo




Thanks
Rick

[DaytonaGTS]

I'll be able to tell you probably in a week or so, I'll be tearing into mine to wire in a new 7 prong pig tale as soon as it comes in

[gassman]

Ron;
That would be fabulous....Thank You !!!

Rick

[ob1canola]

Whats On the piece of paper tucked behind the trickle charger?

[toypusher]

Isn't there a fuse or breaker box somewhere? The main breaker/fuse is in that picture beside the charger, but there must be individual circuit fuses/breakers somewhere.

[gassman]

OB1;
The piece of paper is the users manual for the battery charger.

Kerry:
That does seem to be the only breaker we could find; there is a cooling fan located in the bulkhead wall; it is possible that is what it is for. Other than that we're puzzled....no other fuses available.

[DaytonaGTS]

OB1;
The piece of paper is the users manual for the battery charger.

Kerry:
That does seem to be the only breaker we could find; there is a cooling fan located in the bulkhead wall; it is possible that is what it is for. Other than that we're puzzled....no other fuses available.

There is a black box in the under bed storage area, I have yet to see what is in there as of yet, but I was expecting a little fuse block somewhere with as much wiring as is in these TD's....

[the3beers]

no black box in mine but my set up looks a little bit different.

[DaytonaGTS]

no black box in mine but my set up looks a little bit different.

Here is my battery and charger setup, I also just have the 15A fuse.....



Here is the Black box in the under the bed storage area..... it turns out to be a distribution box, what I figured it was........





I'm going to attempt to do a wiring schematic when I do my storage mod. I'm going to first make it a lot easier to access underneath and raise it up an inch to accommodate some storage boxes, and actually make the area usable......
