PD4045 Question

Anything electric, AC or DC

PD4045 Question

Postby springdew » Mon Apr 11, 2016 4:32 pm

The planning and prep work for the Waggon is coming right along. I saved so much money on the siding that I'm able to go ahead with electrical, and so here I am.

While I've lost track of all the conversations about connecting the PD4045, I feel pretty comfortable about how it's supposed to go together. But, assuming you use one of the AC breaker slots for the main breaker, and one for the breaker to converter, will it only permit two more breakers? I thought I saw mention of four or five, but I don't recall where. If I can support more individual circuits, it would be better for me than trying to divide my 8x16 footer into only two 120v zones, in addition to changing the lighting and device charging circuits to be supported by 12v.

Thanks, y'all!
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT

Re: PD4045 Question

Postby m.colley » Mon Apr 11, 2016 5:11 pm

You can use double/tandem 115V breakers to supply more circuits. They are essentially double 1/2 size breakers. This will give you atleast 4 circuits and only use up two spaces.
The breaker will look something like this Square D Homeline breaker
140875

Hope this helps


Martin
m.colley
The 300 Club

Posts: 439
Images: 83
Joined: Wed Feb 17, 2016 4:26 am
Location: Columbus Georgia

Re: PD4045 Question

Postby GuitarPhotog » Mon Apr 11, 2016 7:12 pm

Using the double breakers Martin shows in his post, you can get a Main and seven Branch circuits.

<Chas>
:beer:
GuitarPhotog
Silver Donating Member

Posts: 1653
Images: 55
Joined: Tue Feb 08, 2011 12:52 pm
Location: Grants Pass Oregon
Top

Re: PD4045 Question

Postby H.A. » Tue Apr 12, 2016 12:21 am

If .
Last edited by H.A. on Tue Jun 28, 2016 8:08 pm, edited 1 time in total.
H.A.
The 300 Club

Posts: 428
Images: 0
Joined: Tue Nov 15, 2011 8:16 pm
Top

Re: PD4045 Question

Postby springdew » Tue Apr 12, 2016 4:55 pm

This is really, really helpful. Thanks so much!

For GFCI protection, is it an either/or situation between using a GFCI breaker or GFCI outlet? (Or even a GFCI switch? I think I've seen that somewhere around here.) I remember reading that a GFCI will protect the rest of the circuit downstream of itself and wonder if I can put in a GFCI outlet as the first outlet in the circuit and forego using a special circuit breaker.

Thank you.
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT
Top

Re: PD4045 Question

Postby H.A. » Tue Apr 12, 2016 5:37 pm

mnbv
Last edited by H.A. on Wed Sep 07, 2016 8:14 pm, edited 1 time in total.
H.A.
The 300 Club

Posts: 428
Images: 0
Joined: Tue Nov 15, 2011 8:16 pm
Top

Re: PD4045 Question

Postby DaveMann » Tue Apr 12, 2016 10:46 pm

springdew wrote:This is really, really helpful. Thanks so much!

For GFCI protection, is it an either/or situation between using a GFCI breaker or GFCI outlet? (Or even a GFCI switch? I think I've seen that somewhere around here.)

I remember reading that a GFCI will protect the rest of the circuit downstream of itself and wonder if I can put in a GFCI outlet as the first outlet in the circuit and forego using a special circuit breaker.


Thank you.


Yes, like this.


And this is how you'd wire it.


DaveMann
Teardrop Inspector

Posts: 21
Joined: Mon Mar 28, 2016 5:43 pm
Location: Southwest Florida
Top

Re: PD4045 Question

Postby springdew » Tue Apr 12, 2016 11:29 pm

Okay I think I have a handle on how to do it. Thanks, guys! What a huge help.

Sent from my SM-T530NU using Tapatalk
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT
Top

Re: PD4045 Question

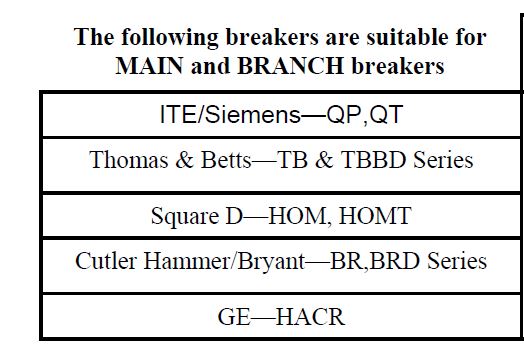

Postby springdew » Fri Apr 15, 2016 3:56 pm

When I went shopping for breakers, I quickly became confused about the various types. I was going to ask here what kind to use, but then I found the answer. Thought I would post it here for anyone else looking for this info.
Attachments
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT
Top

Re: PD4045 Question

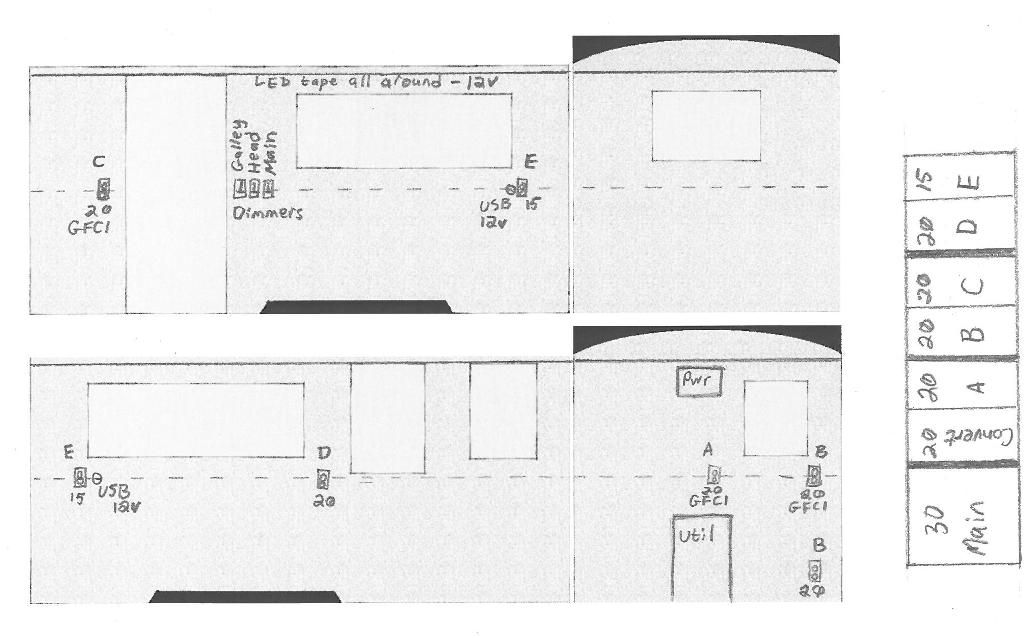

Postby springdew » Fri Apr 15, 2016 6:30 pm

Ok here is a diagram of what I'm thinking for electrical layout. On the one hand it looks like overkill how few outlets I'm putting on most of the circuits. On the other hand, almost ANYthing I plug into AC is a high-draw item - electric heater, kettle, toaster oven, microwave. I, for one, am very conscious about how many such things I run at once, but my spouse or others might not be. Then again, I've only got 30 amps to start with, so maybe it's all moot.
Attachments
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT
Top

Re: PD4045 Question

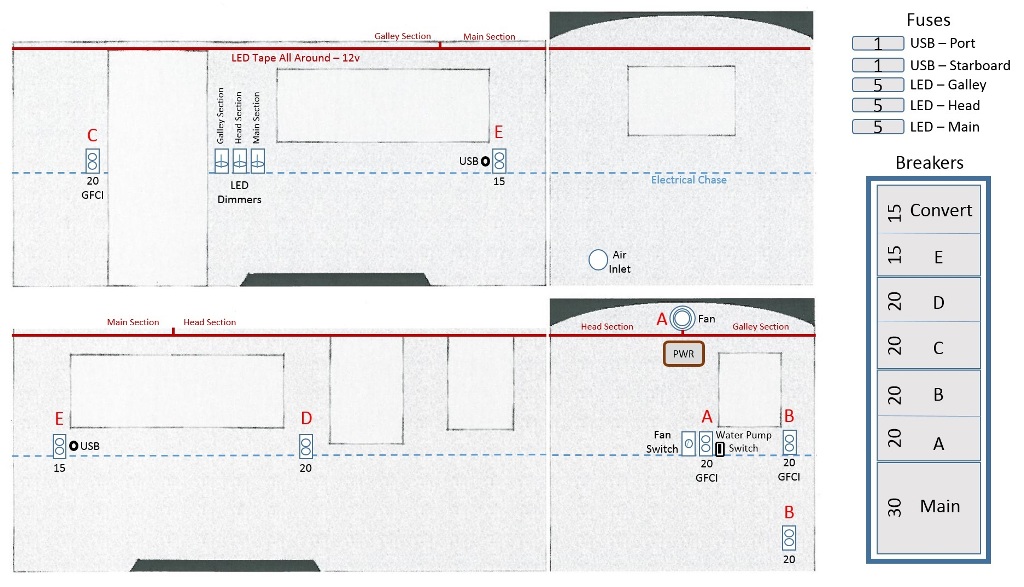

Postby springdew » Tue Apr 19, 2016 6:58 pm

I forgot that the converter needs a 15 amp breaker rather than a 20. I've already got the breakers, so maybe I can return the 15/20 for a 15/15 and do it this way.

Please ignore the water pump switch for now. I'm roughing in the switch and wiring, but all the plumbing is going to happen after August. That's also why the fuse is not represented.
Attachments
For everything there is in this world, there is someone who likes it.
Planning and build journal for Yiayia's Waggon: At Home on the Road

Spring Dew Foulger
User avatar
springdew
Teardrop Advisor

Posts: 69
Images: 9
Joined: Tue Jul 07, 2015 4:09 pm
Location: Springville, UT
Top
