Wiring Check

Postby RunnerDuck » Tue May 03, 2016 3:47 pm

I'm just starting to wire up my TD and would like to have a little check of my Ceiling Light/Porch lights plan.

I'm using three way switches for the ceiling light so I can switch them from either side.

Do you see anything wrong with this?

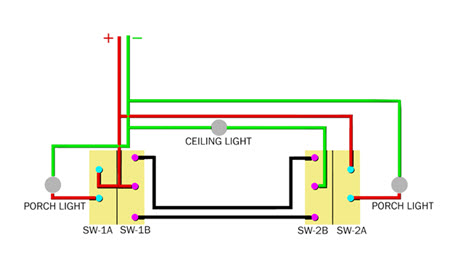

Ceiling - Porch Light Wiring.jpg
Ceiling - Porch Light Wiring.jpg (20.5 KiB) Viewed 429 times


Thank you,
User avatar
RunnerDuck
Teardrop Master

Posts: 161
Joined: Sat Aug 22, 2015 4:26 am
Location: Coupeville, Whidbey Island, Washington

Re: Wiring Check

Postby H.A. » Tue May 03, 2016 7:14 pm

.
:ead:
Last edited by H.A. on Tue Jun 28, 2016 8:14 pm, edited 1 time in total.
H.A.
The 300 Club

Posts: 428
Images: 0
Joined: Tue Nov 15, 2011 8:16 pm

Re: Wiring Check

Postby Shadow Catcher » Wed May 04, 2016 6:22 am

Our lights are marine LED and the switch is on the light, the outside porch lights also have their own switch. I have never thought it a problem. and it keeps the KISS principle :roll:
User avatar
Shadow Catcher
Donating Member

Posts: 5607
Images: 192
Joined: Sat Apr 11, 2009 8:26 pm
Location: Metamora, OH
Top

Re: Wiring Check

Postby blentz » Thu May 05, 2016 7:31 pm

3 way switches were hard for to understand until a old journeyman explained. On the comon terminals one get power the other, the switch to the light and the travlers between the switches. Never had trouble with them again. Looks like you have it.

Sent from my VS985 4G using Tapatalk
User avatar
blentz
Teardrop Builder

Posts: 43
Joined: Wed Sep 18, 2013 5:50 pm
Top
