PD4135 fuse question

Postby David Olson » Mon May 23, 2016 5:59 pm

I bought a PD 4135 converter/charger, it came with a 40 amp fuse the #1 DC fuse slot.
I tried calling the company but they were already closed.
My question is does the 40 amp fuse get removed after the initial startup then get replaced with another fuse not to exceed 30 amps?
Below is what is says in the owners manual. I don't understand what it means.
I got the DC side all wired up and gave it juice. Everything worked. Now do I remove the 40 amp fuse?
Thanks for any help.

REVERSE BATTERY PROTECTION CIRCUIT
If a battery is accidentally hooked up backwards, the converter will be protected. An easily accessible ATC
type fuse will blow when a battery is connected in reverse. Replace with same type and rating.
Amp/Model # of fuses Fuse size
35 l 40 (amps)
The DC Section:
The DC panel features 6 branch positions rated up to 30A for accessories. Each branch has an LED to
indicate which fuse has blown. See product labeling for actual DC fuse position ratings.
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE OR ELECTRICAL
SHOCK, REPLACE ONLY WITH SAME TYPE AND RATING FUSE.
Camp Inn 560 Raindrop #541
Out Back 13'


"Count Your Blessings Not Your Troubles"
User avatar
David Olson
Teardrop Inspector

Posts: 13
Images: 2
Joined: Sat Mar 31, 2012 6:14 am
Location: NW Illinois

Re: PD4135 fuse question

Postby markeyro » Fri Jul 08, 2016 3:41 pm

Did you ever get your answer on this? I'm curious too. I feel kind of like a big dummy, but the only place i see to connect the battery is off the big red lead and the big white lead both coming off the top of the dc section.

Sent from my SM-G900P using Tapatalk
Muncie, Indiana
2011 Silverado 1500 Crew Cab w/ Towing Package

Build Link: http://www.tnttt.com/viewtopic.php?f=50&t=66345&p=1175575#p1174775
Husband. Father. Jesus Lover. Backpacker. Hiker. Nerd. Gadgeteer. West Lover. Dreamer. Mistakemaker. Tryagainer.
User avatar
markeyro
Teardrop Builder

Posts: 33
Images: 4
Joined: Tue Jun 14, 2016 6:05 pm
Location: Muncie, IN

Re: PD4135 fuse question

Postby m.colley » Mon Jul 11, 2016 5:16 pm

David Olson wrote:I bought a PD 4135 converter/charger, it came with a 40 amp fuse the #1 DC fuse slot.
I tried calling the company but they were already closed.
My question is does the 40 amp fuse get removed after the initial startup then get replaced with another fuse not to exceed 30 amps?
Below is what is says in the owners manual. I don't understand what it means.
I got the DC side all wired up and gave it juice. Everything worked. Now do I remove the 40 amp fuse?
Thanks for any help.

REVERSE BATTERY PROTECTION CIRCUIT
If a battery is accidentally hooked up backwards, the converter will be protected. An easily accessible ATC
type fuse will blow when a battery is connected in reverse. Replace with same type and rating.
Amp/Model # of fuses Fuse size
35 l 40 (amps)
The DC Section:
The DC panel features 6 branch positions rated up to 30A for accessories. Each branch has an LED to
indicate which fuse has blown. See product labeling for actual DC fuse position ratings.
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE OR ELECTRICAL
SHOCK, REPLACE ONLY WITH SAME TYPE AND RATING FUSE.


No do not replace it. The 40A fuse your talking about is there to protect your PD4135 in case you were to accidentally cross your battery wiring up, ie: crossing the negative and positive.

Martin
m.colley
The 300 Club

Posts: 452
Images: 83
Joined: Wed Feb 17, 2016 4:26 am
Location: Columbus Georgia
Top

Re: PD4135 fuse question

Postby markeyro » Thu Jul 14, 2016 4:13 pm

Thanks Martin.

Sent from my SM-G900P using Tapatalk
Muncie, Indiana
2011 Silverado 1500 Crew Cab w/ Towing Package

Build Link: http://www.tnttt.com/viewtopic.php?f=50&t=66345&p=1175575#p1174775
Husband. Father. Jesus Lover. Backpacker. Hiker. Nerd. Gadgeteer. West Lover. Dreamer. Mistakemaker. Tryagainer.
User avatar
markeyro
Teardrop Builder

Posts: 33
Images: 4
Joined: Tue Jun 14, 2016 6:05 pm
Location: Muncie, IN
Top

Re: PD4135 fuse question

Postby tommytraining » Sat Sep 10, 2016 8:18 am

Hi guys. Bumping this thread to try and figure out a question within it.


I have the pd4135 also and I'm probably an idiot, but I cannot figure out where the battery positive comes in??


Does it get sent in from the first red wire on DC circuit 1? Other then that I can't fathom what connects it?
tommytraining
Teardrop Inspector

Posts: 6
Joined: Thu Sep 03, 2015 12:51 pm
Top

Re: PD4135 fuse question

Postby lwc » Sat Sep 10, 2016 12:44 pm

tommytraining wrote:Hi guys. Bumping this thread to try and figure out a question within it.


I have the pd4135 also and I'm probably an idiot, but I cannot figure out where the battery positive comes in??


Does it get sent in from the first red wire on DC circuit 1? Other then that I can't fathom what connects it?

Here is the link to the manual: https://www.progressivedyn.com/pdfs/110856A%20English.pdf
and specifically the wiring diagram:Image
lwc
Teardrop Inspector

Posts: 3
Joined: Sat Feb 11, 2012 9:50 pm
Top

Re: PD4135 fuse question

Postby tommytraining » Sat Sep 10, 2016 1:15 pm

Thanks. I have that. The piece is unclear however.. no actually spot for battery pos..
tommytraining
Teardrop Inspector

Posts: 6
Joined: Thu Sep 03, 2015 12:51 pm
Top

Re: PD4135 fuse question

Postby m.colley » Sun Sep 11, 2016 8:01 am

tommytraining wrote:Thanks. I have that. The piece is unclear however.. no actually spot for battery pos..


Hey tommy,
If you look at the back side of the circuit board there should be a wire pigtail coming from the spot noted on your wiring diagram. Your "battery positive" will hook to that pigtail. Same thing goes for your (battery negative) there will be a wire pigtail off the back of the board for it as well.

Your right though, the wiring diagrams leave a lot to be desired.
My PD4045 actually has lugs that feed the DC side of the board.


Martin
m.colley
The 300 Club

Posts: 452
Images: 83
Joined: Wed Feb 17, 2016 4:26 am
Location: Columbus Georgia
Top

Re: PD4135 fuse question

Postby aggie79 » Sun Sep 11, 2016 8:14 am

The 4135 I recently installed does not have the battery positive lead labeled. If you're looking at the back of the unit it is the red lead that is the furthest to the right (furthest outside). To confirm, look at the circuit board / fuse block on the front of the unit. Above the fuse block on the left you should see "battery positive +" or something like that silk screened in the circuit board. This is also the fuse location for the 40 amp fuse.


Sent from my iPhone using Tapatalk
Last edited by aggie79 on Mon Sep 12, 2016 9:36 am, edited 1 time in total.
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 4857
Images: 668
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas
Top

Re: PD4135 fuse question

Postby tommytraining » Sun Sep 11, 2016 8:57 am

Awesome . Thanks alot. That's what I was figuring, but the Guage wasn't super thick , slightly misleading hehe..

What did u use for your trailer charging hot for the pd4135?
tommytraining
Teardrop Inspector

Posts: 6
Joined: Thu Sep 03, 2015 12:51 pm
Top

Re: PD4135 fuse question

Postby m.colley » Sun Sep 11, 2016 5:06 pm

tommytraining wrote:Awesome . Thanks alot. That's what I was figuring, but the Guage wasn't super thick , slightly misleading hehe..

What did u use for your trailer charging hot for the pd4135?



Hey tommy,
Even though I have the PD4045 which is slightly different then yours, I used two runs of #8 gauge which roughly equals a single #6 gauge wire. I used the 8 gauge because I had it on hand and my run from the battery to the PD4045 is very short, less then 3 foot each way.


Martin
m.colley
The 300 Club

Posts: 452
Images: 83
Joined: Wed Feb 17, 2016 4:26 am
Location: Columbus Georgia
Top

Re: PD4135 fuse question

Postby tommytraining » Sun Sep 11, 2016 5:11 pm

Thanks!! Yeah the pd4135 provides what looks like 8 or 10 Guage with a 10 inch lead from the board to connect to battery. . That's why it was confusing. But I'm guessing it will be fine.. I'll keep run as short as possible.


The instructions are truly terrible. Doesn't say much just a that picture. Trying to figure my trailer charging system now hah
tommytraining
Teardrop Inspector

Posts: 6
Joined: Thu Sep 03, 2015 12:51 pm
Top

Re: PD4135 fuse question

Postby aggie79 » Sun Sep 11, 2016 8:09 pm

I used 10 gauge to my battery. The run is less than 3 feet. Before the PD4135 I had a WFCO. The 10 gauge worked fine until the WFCO died.


Sent from my iPhone using Tapatalk
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 4857
Images: 668
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas
Top

Re: PD4135 fuse question

Postby rflowers82 » Thu Mar 09, 2017 6:39 pm

Hello,

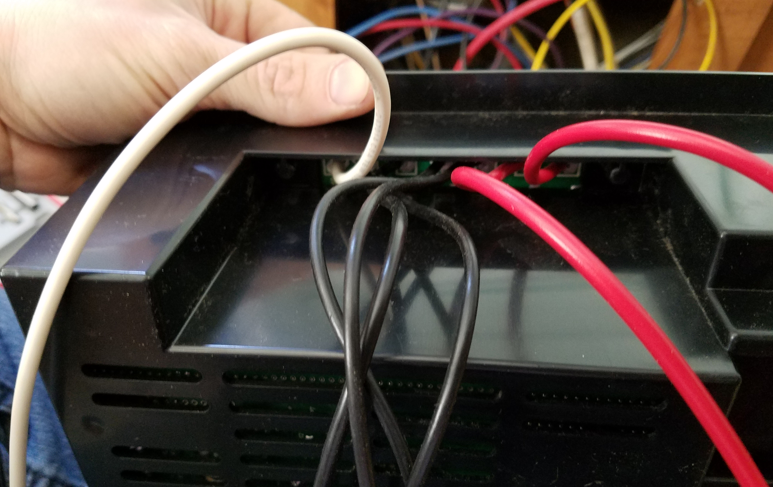

I'm installing a PD 4135 into my trailer and I have some questions regarding the wiring. On the back of the unit they're is 7 lead wires. I understand the white wire on the far left is ground and the red wire on the far right is positive. What is confusing is the remaining 5 wires in the middle, 4 black wires and one red wire. The red wire appears to be the same gauge as the positive wire. What is that red wire for? Is it just a bigger wire that can hold a larger amperage load compared to the black wires. Your help in this matter is appreciated. I tried to attach a photo so you could see you visually but the photo would not attach.

Thank You,
Ryan
rflowers82
Teardrop Inspector

Posts: 3
Joined: Thu Mar 09, 2017 4:08 pm
Top

Re: PD4135 fuse question

Postby rflowers82 » Thu Mar 09, 2017 7:16 pm

Screenshot (5).png
Screenshot (5).png (565.98 KiB) Viewed 366 times
rflowers82
Teardrop Inspector

Posts: 3
Joined: Thu Mar 09, 2017 4:08 pm
Top
