Minimalist Torsion Axle Frame

Postby alaska teardrop » Wed Nov 01, 2006 11:34 pm

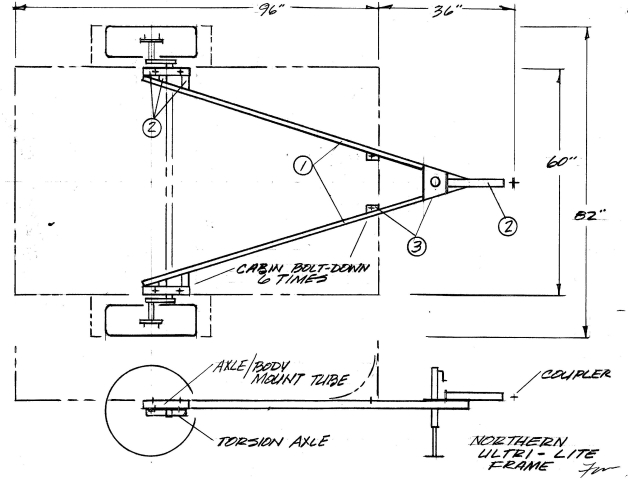

    :designing:
Last edited by alaska teardrop on Thu Jul 19, 2012 1:14 pm, edited 4 times in total.
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1112
Images: 177
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan

Postby Juneaudave » Thu Nov 02, 2006 2:06 am

I've only got one Alaska criteria...if you build it, would you haul it down McCarthy Road to Kennecott? McCarthy Road

Of course, your destination would be the Kennecott Mine in the Wrangle St.Elias Nat. Park...Cool place

I'm a thinking that if you can haul the McCarthy Road....your gold for the Tok, the Dalton, or potholed Anchorage streets!!!

:thumbsup: :thumbsup: :thumbsup:
User avatar
Juneaudave
Super Duper Lifetime Member

Posts: 3237
Images: 380
Joined: Sun Jul 03, 2005 12:11 pm
Location: Juneau, Alaska

Postby madjack » Thu Nov 02, 2006 2:51 am

I like it Fred...functionally light...are you envisioning a solid ply floor or a sandwich floor.............................. 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby angib » Thu Nov 02, 2006 10:38 am

Fred,

Looks good - that's exactly the amount of connection to/support of the body that I also think is needed.

Here is some more weight estimating data for you:

Wheel and tire (source: Northern Tool)
205/70x15, D range - 1710lb capacity, each 44lb
205/70x14, D range - 1710lb capacity, each 37lb
175/70x13, C range - 1360lb capacity, each 32lb
175/70x13, B range - 1100lb capacity, each 29lb
5.30x12, C range - 1045lb capacity, each 24lb
4.80x12, B range - 780lb capacity, each 20lb
4.80x8, C range - 745lb capacity, each 12lb
Note: capacities and weights are PER WHEEL/TIRE

Axles (incl hubs)
Rubber torsion axle, #8, no brakes, 1100lb capacity, 60" over hubfaces: 53lb
Rubber torsion axle, #8, electric brakes, 1100lb capacity, 60" over hubfaces: 75lb
Rubber torsion axle, #9, no brakes, 2200lb capacity, 60" over hubfaces: 68lb
Rubber torsion axle, #9, electric brakes, 2200lb capacity, 60" over hubfaces: 89lb
Leaf sprung tube axle, no brakes, 2000lb capacity, 60" track, complete: 65lb
Note: thanks to Dexter who provided weight data for the examples above

Andrew
User avatar
angib
5000 Club
5000 Club

Posts: 5783
Images: 231
Joined: Fri Apr 30, 2004 2:04 pm
Location: (Olde) England
Top

Postby subtearanean » Thu Nov 02, 2006 11:02 am

What would need to be done to the floor at the bolt through area to strengthen the connection? I would think that enough bouncing around just with normal highway use would start to undermine the plywood floor?
subtearanean
Teardrop Master

Posts: 188
Joined: Tue Aug 17, 2004 2:10 pm
Top

Postby alaska teardrop » Thu Nov 02, 2006 8:13 pm

Juneaudave wrote:I've only got one Alaska criteria...if you build it, would you haul it down McCarthy Road to Kennecott? McCarthy Road

Of course, your destination would be the Kennecott Mine in the Wrangle St.Elias Nat. Park...Cool place

I'm a thinking that if you can haul the McCarthy Road....your gold for the Tok, the Dalton, or potholed Anchorage streets!!!

:thumbsup: :thumbsup: :thumbsup:
    :lol: Gotta admit that a trip to McCarthy would be a true "shake-down" cruise. Broke a rear control arm on the old Volvo last trip. :roll: But, Dave, didn't you fix that road since then?
    I heard that the foot bridge was washed out in last months' flood. Another road to no bridge to nowhere! :lol: Back to pulling ourselves across the Chitina on that cable contraption. ;) At least you'll never run out of work making & fixing Alaska roads. :shhh:
    Madjack, I should explain. Mike's 'Ultra-Light' discussion lead me to adapt my Northern Lite frame design to a minimal towbar, but with a torsion axle, in order to contribute to the idea.
    In Alaska reality, as Dave points out, support extended full length with a bumper & spare tire would be more practical. What I have in mind (and need to finish the drawings), is a floor with no wood, steel or perimeter frame, as such.
    Andrew, Thanks for the compliment, the additional information and, again, your explanation of the Australian rules. Your info points to the variety of choices available with a torsion axle. Weights, wheel size, ride height, ect.
    Sub, I made a stronger attachment change in the cabin mount example. But that choice would really be dependent on the type of cabin construction. Guess, there would be several choices. :thumbsup:
      Sunshine & 17* :)
    Northern Lite Traveler design: viewtopic.php?f=27&t=51991
    Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
    Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
    Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
    User avatar
    alaska teardrop
    Platinum Donating Member

    Posts: 1112
    Images: 177
    Joined: Wed Aug 24, 2005 1:41 pm
    Location: Greenville, Michigan
    Top

    Re: Minimalist Torsion Axle Frame

    Postby alaska teardrop » Thu Jul 19, 2012 1:47 pm

      After some major life's changes, I've finally been able to implement this chassis concept.
          The design allows for different widths, cabin length and tongue length. The torsion axle is the main chassis crossmember. It assumes a cabin with torsional integrity. The #3 tie together parts are 1/8" flat bar. The #2 parts are 1/8"x2" square tubes for the coupler and axle mounting. The weight and tongue length of the trailer determine the #1 main rails. With a 36" tongue for example, the gross capacity would be 980# using 1/8"x2"x1" rectangular tube. 1341# using 1/8"x2"x1-1/2" rect. tube. 1701# using 1/8"x2"x2" square tube.

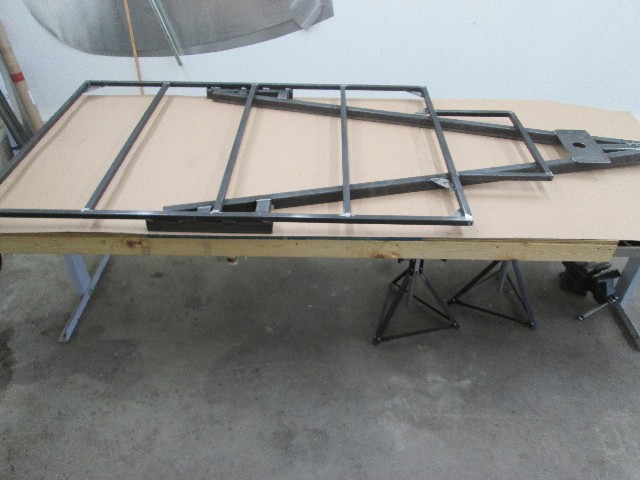

          This chassis is for a 4'x7' cabin, 39" tongue, 905# gross weight and #8 - 900# Dexter axle. For simplicity, instead of bolting on the all aluminum body, it has a perimeter and two crossmembers of 16 gage (1/16") 1" square tube welded to the chassis in order to integrate the floor and walls to the chassis using VHB tape and rivets. Total steel weight of 81#
          The axle location and balance can be adjusted when the trailer is finished, but before the fenders are installed.

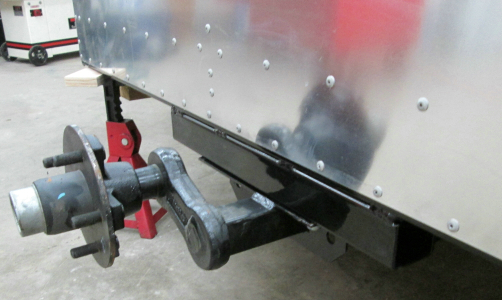

          The four axle mounting bolts are offered up at the open ends of the 2" sq. tube and through the bottom of the tube.

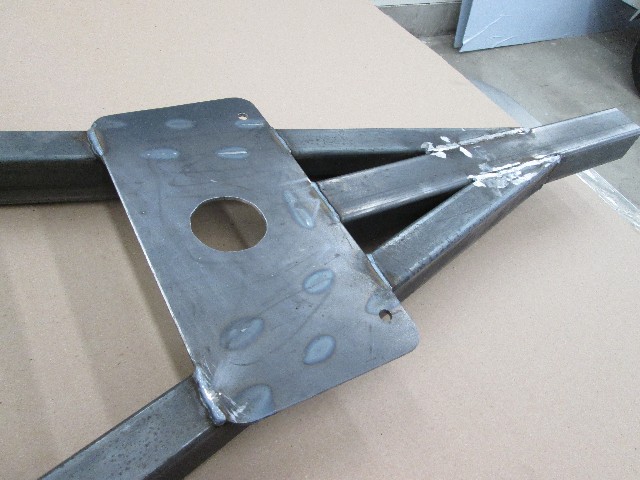

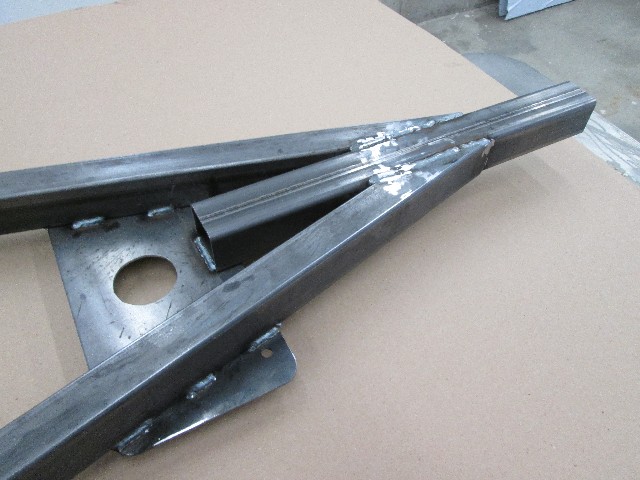

          Jack, chains and coupler mount.
          :peace: Fred
      Guess you have to click on gallery for full size pictures.
    Last edited by alaska teardrop on Mon Aug 06, 2012 9:52 am, edited 1 time in total.
    Northern Lite Traveler design: viewtopic.php?f=27&t=51991
    Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
    Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
    Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
    User avatar
    alaska teardrop
    Platinum Donating Member

    Posts: 1112
    Images: 177
    Joined: Wed Aug 24, 2005 1:41 pm
    Location: Greenville, Michigan
    Top

    Re: Minimalist Torsion Axle Frame

    Postby alaska teardrop » Sat Jul 28, 2012 7:38 am

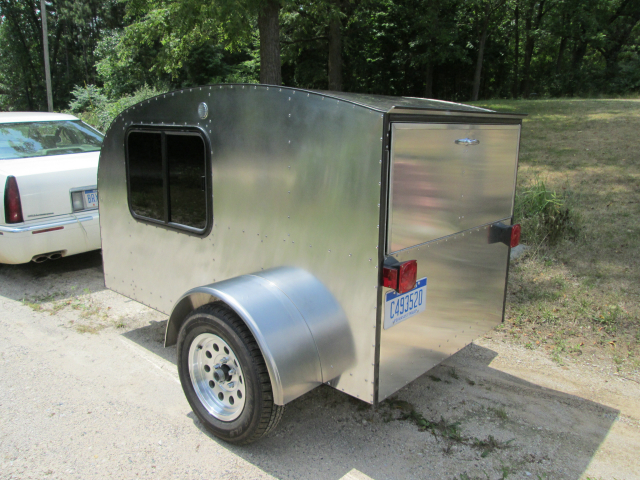

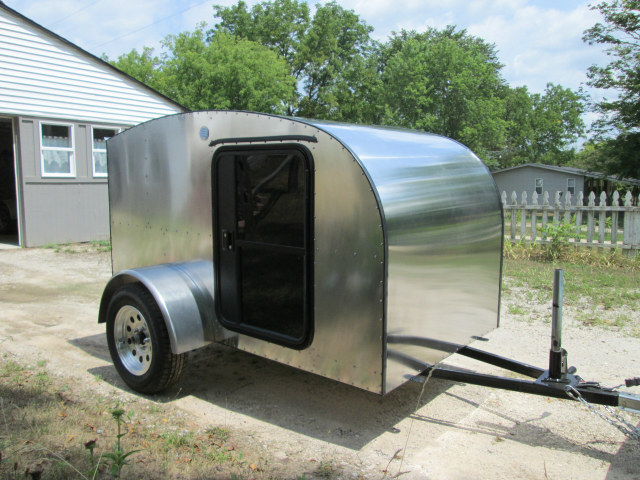

      Well, this trailer is completed. 525# dry weight. 90# tongue weight. Pulls smooth & steady, even at 90 mph.
      :peace: Fred
    Northern Lite Traveler design: viewtopic.php?f=27&t=51991
    Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
    Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
    Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
    User avatar
    alaska teardrop
    Platinum Donating Member

    Posts: 1112
    Images: 177
    Joined: Wed Aug 24, 2005 1:41 pm
    Location: Greenville, Michigan
    Top

    Re: Minimalist Torsion Axle Frame

    Postby KCStudly » Sat Jul 28, 2012 8:10 am

    Nice! :thumbsup:
    KC
    My Build: The Poet Creek Express Hybrid Foamie

    Poet Creek Or Bust
    Engineering the TLAR way - "That Looks About Right"
    TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
    Green Lantern Corpsmen
    User avatar
    KCStudly
    Donating Member

    Posts: 9607
    Images: 8169
    Joined: Mon Feb 06, 2012 10:18 pm
    Location: Southeastern CT, USA
    Top

    Re: Minimalist Torsion Axle Frame

    Postby Lgboro » Sat Jul 28, 2012 1:14 pm

    Just awesome!!!... is your design a mini toy hauler?

    Edit: Stupid question as upon further viewing I see the hinge for your galley, however, your design would be perfect for a mini toy hauler.
    User avatar
    Lgboro
    500 Club

    Posts: 708
    Images: 53
    Joined: Sun Apr 06, 2008 7:57 am
    Location: Dudley, NC
    Top

    Re: Minimalist Torsion Axle Frame

    Postby 48Rob » Sat Jul 28, 2012 6:34 pm

    6 year build?

    You have way more patience than me :?

    Looks nice!

    Rob
    Waiting for "someday" will leave you on your deathbed wondering why you didn't just rearrange your priorities and enjoy the time you had, instead of waiting for a "better" time to come along...
    User avatar
    48Rob
    Super Lifetime Member

    Posts: 3882
    Images: 4
    Joined: Thu Nov 17, 2005 6:47 pm
    Location: Central Illinois
    Top

    Re: Minimalist Torsion Axle Frame

    Postby alaska teardrop » Sun Jul 29, 2012 10:32 am

      Thanks guys. The sketches laid on the drawing board until this spring when I was able to make detailed mechanical drawings and start building. It is designed to be a light weight traveler. It has a galley & sleeping interior.
      I'll get a thread going on how it is constructed and then offer it for sale.
      :peace: Fred
    Last edited by alaska teardrop on Sat Nov 03, 2012 7:20 pm, edited 1 time in total.
    Northern Lite Traveler design: viewtopic.php?f=27&t=51991
    Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
    Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
    Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
    User avatar
    alaska teardrop
    Platinum Donating Member

    Posts: 1112
    Images: 177
    Joined: Wed Aug 24, 2005 1:41 pm
    Location: Greenville, Michigan
    Top

    Re: Minimalist Torsion Axle Frame

    Postby WesGrimes » Thu Oct 25, 2012 5:36 pm

    Looks great! Well done!
    User avatar
    WesGrimes
    Teardrop Master

    Posts: 289
    Images: 31
    Joined: Mon Jun 22, 2009 5:41 pm
    Location: Garland, TX
    Top

    Re: Minimalist Torsion Axle Frame

    Postby alaska teardrop » Sat Nov 03, 2012 7:45 pm

      Thanks Wes,
      But to get back on track, this thread began as a light weight tow bar & torsion axle concept that could be adjusted for cabin length - width, tongue length, weight & axle location. A wood builder such as yourself could attach a well constructed cabin to just the tow bar & axle. Or add a light weight steel or aluminum perimeter floor frame to build from.
      This particular trailer has aluminum sheet attached to the perimeter floor frame & cross members. The continuous floor insulation is installed in the last stages of the build. This approach to the floor construction eliminates the need for insulating & undercoating the bottom side, heavy sandwiched floors with thermal bridges & potential wood rot, ect. The idea could also be applied to other chassis, including bolt together types.
      As an example of what I mean, imagine this trailer with aluminum floor & insulation built with wooden walls, roof, ect.
      :peace: Fred
    Northern Lite Traveler design: viewtopic.php?f=27&t=51991
    Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
    Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
    Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
    User avatar
    alaska teardrop
    Platinum Donating Member

    Posts: 1112
    Images: 177
    Joined: Wed Aug 24, 2005 1:41 pm
    Location: Greenville, Michigan
    Top

    Re: Minimalist Torsion Axle Frame

    Postby alaska teardrop » Wed Dec 19, 2012 2:34 pm

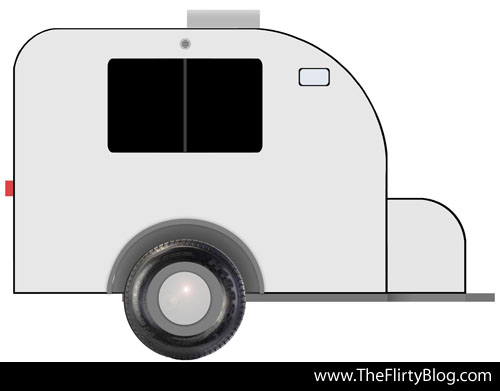

      This design & rendering of her new trailer is by Stacie Tamaki in San Jose, Ca.
      It will have a 6' L x 4' W x 4.5' H aluminum cabin with the door at the rear - framing a combination of steel & aluminum tubing. The tongue is 48". The main rails are 2" x 1-1/2" x 11 gage (1/8") rectangular steel tubing, allowing for a GVW rating of 1005#. The frame weighs 83#.

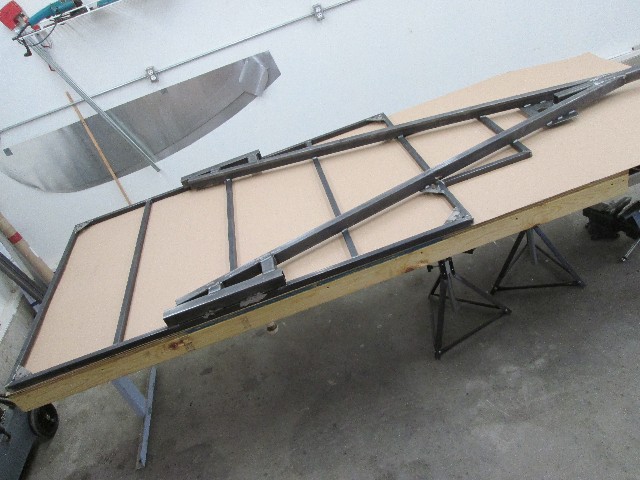

      Topside
      Underside

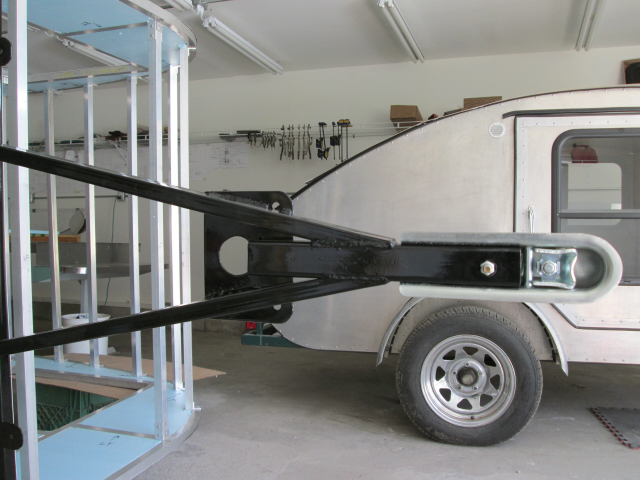

      Tongue

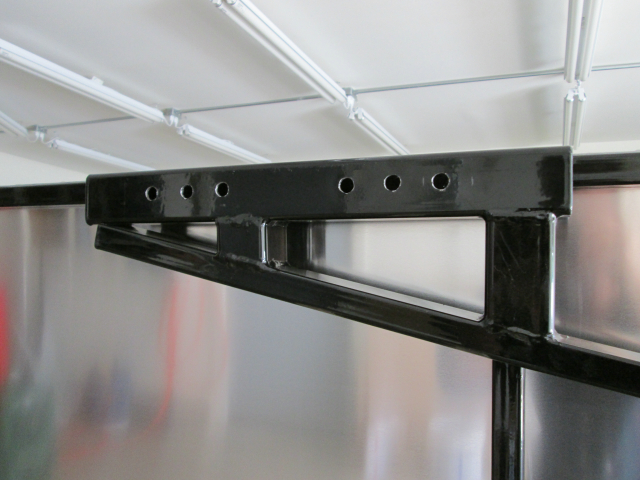

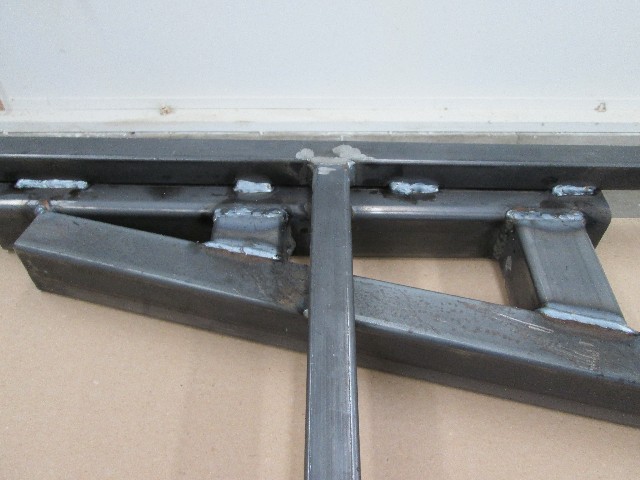

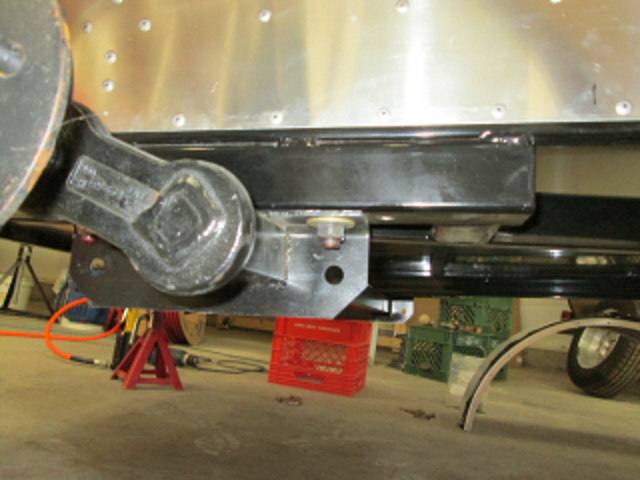

      Axle mount
      :peace: Fred
