Question: Clearance from frame to axle

Ask questions about Harbor Freight trailers, or questions about building your own...

Question: Clearance from frame to axle

Postby little green pea » Sun Apr 17, 2016 11:07 am

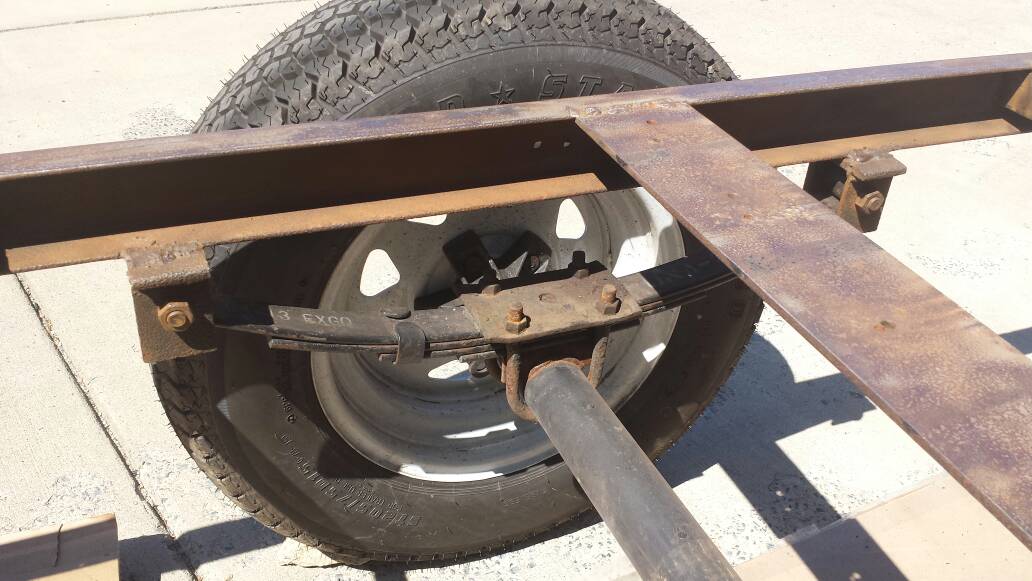

Currently the axle is overslung and I'd like to switch to underslung to be a better match for my TV and to bring the overall finished height down.

My question is about the amount of clearance needed for an underslung axle to the bottom of the frame. How many inches are recommended? This is a cambered axle, so I'll have new spring perches welded to the bottom, will it be necessary to remove the current spring perches to give more clearance to the underside of the frame?

Is it easier to just order a new axle than to mess with new perches? I've got a guy doing some other weld work for me and will have him move this at the same time if it's an easy thing to do.

Thanks in advance!

- AJ and the little green pea crew



Sent from my SCH-I545 using Tapatalk
little green pea
Teardrop Inspector

Posts: 9
Images: 11
Joined: Sun Jan 31, 2016 2:13 pm

Re: Question: Clearance from frame to axle

Postby aggie79 » Sun Apr 17, 2016 2:45 pm

If staying with the current leaf springs, I'd take a measurement to see how much suspension travel you will end up with if you reverse the axle position. It doesn't look like there will be enough room.
Tom (& Linda)
For more on our Silver Beatle teardrop:
Build Thread

93503
User avatar
aggie79
Super Duper Lifetime Member

Posts: 4965
Images: 670
Joined: Tue Aug 07, 2007 5:42 pm
Location: Fort Worth, Texas

Re: Question: Clearance from frame to axle

Postby H.A. » Sun Apr 17, 2016 2:46 pm

I ...
Last edited by H.A. on Tue Jun 28, 2016 8:07 pm, edited 1 time in total.
H.A.
The 300 Club

Posts: 430
Images: 0
Joined: Tue Nov 15, 2011 8:16 pm
Top

Re: Question: Clearance from frame to axle

Postby little green pea » Sun Apr 17, 2016 7:06 pm

aggie79 wrote:If staying with the current leaf springs, I'd take a measurement to see how much suspension travel you will end up with if you reverse the axle position. It doesn't look like there will be enough room.

I measured everything, I think there will be less than an inch of clearance.

I guess my option is to switch out the wheels for something smaller. Bummer these are brand new and were part of why this trailer was such a deal.

Sent from my SCH-I545 using Tapatalk
little green pea
Teardrop Inspector

Posts: 9
Images: 11
Joined: Sun Jan 31, 2016 2:13 pm
Top

Re: Question: Clearance from frame to axle

Postby little green pea » Sun Apr 17, 2016 7:08 pm

H.A. wrote:Btw, GoPro cameras can be handy test instruments...


I like the way you think! I can justify spending money on a GoPro because it's 'for the build'


Sent from my SCH-I545 using Tapatalk
little green pea
Teardrop Inspector

Posts: 9
Images: 11
Joined: Sun Jan 31, 2016 2:13 pm
Top
