lenghting tounge of HF trailer with no welding?

Ask questions about Harbor Freight trailers, or questions about building your own...

lenghting tounge of HF trailer with no welding?

Postby nemoskull » Sat Dec 10, 2016 11:51 pm

im looking to lengthen the tounge of the HF trailer about 12 inch. can this be done with bolt together, or do i need to weld it.
(i learned to weld self taught on a 80 amp stick from HF, using mostly 1/16. so i dont really trust my welding skills.)
nemoskull
Teardrop Inspector

Posts: 12
Joined: Fri Nov 25, 2016 5:04 am

Re: lenghting tounge of HF trailer with no welding?

Postby MtnDon » Sun Dec 11, 2016 1:16 am

Buy new steel for the new extended tongue and you don't need to weld. Is it a single piece tongue? That would be simpler than an a-frame model, but neither should be difficult. I have extended the tongue of a single tube by buying the required length of new tubing as well as upgrading to a heavier wall square tube. I have also extended an A-frame tongue. Both could have been done w/o welding although I welded pieces to also provide a coupler height change.
Our 6x12 deep vee nose cargo trailer camper conversion... viewtopic.php?f=42&t=58336

We have a small off grid cabin we built ourselves in the NM mountains; small PV solar system; 624 watts PV, Outback CC & inverter/charger ... http://countryplans.com/smf/index.php?topic=2335.0
User avatar
MtnDon
1000 Club
1000 Club

Posts: 1939
Images: 6
Joined: Sun Aug 19, 2012 10:57 pm
Location: New Mexico

Re: lenghting tounge of HF trailer with no welding?

Postby mikeschn » Sun Dec 11, 2016 7:32 am

I agree with Don.

But you can not use the existing brackets on the side and still make the tongue longer. It changes the angle.

So you might investigate getting a longer piece of tube, with at least a 3/16" wall, or even 1/4" depending on length, and have it welded on in the center. Then get one of these...


Your end result might be something like this...


If you don't trust your welding skills, go to your muffler guy. ;)

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19128
Images: 468
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Re: lenghting tounge of HF trailer with no welding?

Postby MadMango » Sun Dec 11, 2016 8:40 am

Is a 12" or 18" receiver extension a viable, no-weld option?

https://www.amazon.com/gp/product/B01H6 ... UTF8&psc=1
MadMango
"Art without engineering is dreaming; Engineering without art is calculating." ~Quentin Stafford-Fraser

You can see my design planning, The Mobile Mango.
You can follow my TTT build here, The Mobile Mango
User avatar
MadMango
Teardrop Master

Posts: 152
Joined: Wed Aug 24, 2016 3:40 am
Location: Space Coast, FL
Top

Re: lenghting tounge of HF trailer with no welding?

Postby daveesl77 » Sun Dec 11, 2016 9:09 am

While you can do the hitch extension, it is far better to extend the tongue by adding in a strong center member. The HF trailer tongues are kind of lightweight in their stock configuration.

I extended Conch Fritter's tongue by 18". Was pretty simple, as I just got a 2x2" 3/16" square tube that was long enough to go from the second cross member back on the trailer to the desired length (something like 7 feet long). Turn the standard tongue holder (the angled platform that the normal hitch attaches to) upside down and run the new tube through it. I'm a belt/suspenders guy, so the tube is both through-bolted and welded at all attachment points. This leaves the "A" frame and the tube, creating a very strong composite tongue. Oh, and on all through bolt areas, on the HF frame member sides, I added in 1/4" thick x 3" long x 1" wide aluminum pieces to displace the loading (think big, rectangular washers) inside the C channel. I think the entire thing cost me about $25 and that was for the tube.

The extension makes it a bunch easier to back up, as the distance between the trailer ball and the most forward area of the tongue box is greater than 1/2 the width of the van. It is easier to tow and a convenient place for my flip up lift wheel that doesn't get in the way of anything when traveling and I don't have to worry about it twisting the frame the way some have. Took maybe an hour to fully mount, but now the tongue loading is almost no concern.

Before I forget, you may have seen that some have had problems with the HF trailer on the attachment point between that weird flip-pin holder and the tongue. Simple fix is to once again through bolt the tongue through the attachment and the frame. No more worries about the cheap foreign welds failing.

dave
*******
Dave and Regina - Enjoying old age, a LOT!

Build Journal - http://www.tnttt.com/viewtopic.php?f=50&t=62386
User avatar
daveesl77
Donating Member

Posts: 783
Images: 271
Joined: Tue Jan 27, 2015 4:33 pm
Location: Central Florida
Top

Re: lenghting tounge of HF trailer with no welding?

Postby Dale M. » Sun Dec 11, 2016 10:25 am

Might look here...

viewtopic.php?p=1186508#p1186508

Dale
Lives his life vicariously through his own self.

Any statement made by me are strictly my own opinion.
You are free to ignore anything I say if you do not agree.

User avatar
Dale M.
2000 Club
2000 Club

Posts: 2647
Images: 18
Joined: Thu Jun 09, 2005 8:50 pm
Location: Just a tiny bit west of Yosemite National Park
Top

Re: lenghting tounge of HF trailer with no welding?

Postby tac422 » Sun Dec 11, 2016 8:15 pm

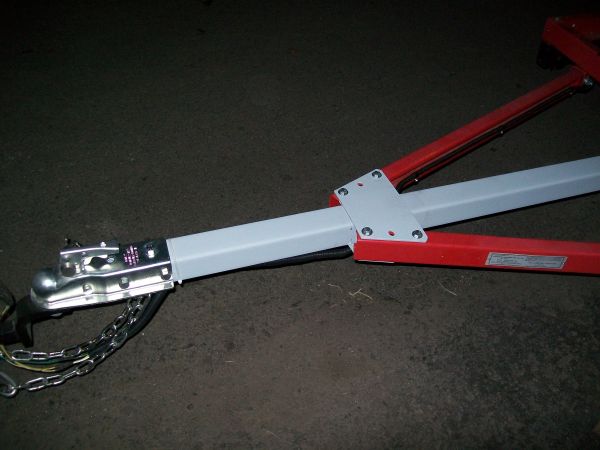

I took a piece of 2" square tube, and drilled and bolted one end to the first cross member. You could run it all the way to the end of the trailer, but I have a dropped floor.
I then turned the "u" shaped piece upside down and ran the 2" tube through it ( and bolted it to that piece, as well.)
You can then make the tongue as long as you want. You will have to drill and bolt the hitch piece on the end.
(My apologies to the picture owner, I don't know who to give credit to)
see here : viewtopic.php?f=55&t=56441&start=135
Attachments
trailer extension.jpg
trailer extension.jpg (70.45 KiB) Viewed 568 times
User avatar
tac422
500 Club

Posts: 564
Images: 217
Joined: Sun Mar 17, 2013 11:39 am
Top

Re: lenghting tounge of HF trailer with no welding?

Postby pchast » Sun Dec 11, 2016 8:43 pm

I bolted through th e back of the new center tube and
through the a frame connector to the center tube.
Both done with grade 8 bolts.
It should have been fine.

Later welds were added.
pchast
Platinum Donating Member

Posts: 1277
Images: 96
Joined: Mon Jan 28, 2013 5:47 pm
Location: Athens, NY
Top


Return to Trailer and Chassis Secrets
