Postby TallyTear » Sat Jan 30, 2016 5:18 pm

I was hoping to get some ideas on finishing out the edge of the outside wall in the galley. My walls are 1 1/2. Most of what I see is trim for 3/4 walls. I would really like to see some detail pics of what other have done with the 1 1/2 walls.
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl

Re: Pictures of different ways to trim and seal galley

Postby ibbowhunting » Sat Jan 30, 2016 5:49 pm

check out teardrop garage I think episode 5 on you tube len talks about building the hatch in alittle that seems to be a good idea to me, there is picture of his work on here also
ibbowhunting
Teardrop Advisor

Posts: 62
Joined: Sun Mar 22, 2015 12:12 pm

Re: Pictures of different ways to trim and seal galley

Postby TallyTear » Tue Feb 02, 2016 6:37 am

Thanks for the response. I watch that episode and he has a interesting way of water proofing. It is to late for me to thicken side that much. I kinda know how I want to do it l just thought somebody might be proud to show there's off. I think it would be helpful to have a thread on galley sealing, hurricane hinges, etc.
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: Pictures of different ways to trim and seal galley

Postby dmdc411 » Tue Feb 02, 2016 9:53 am

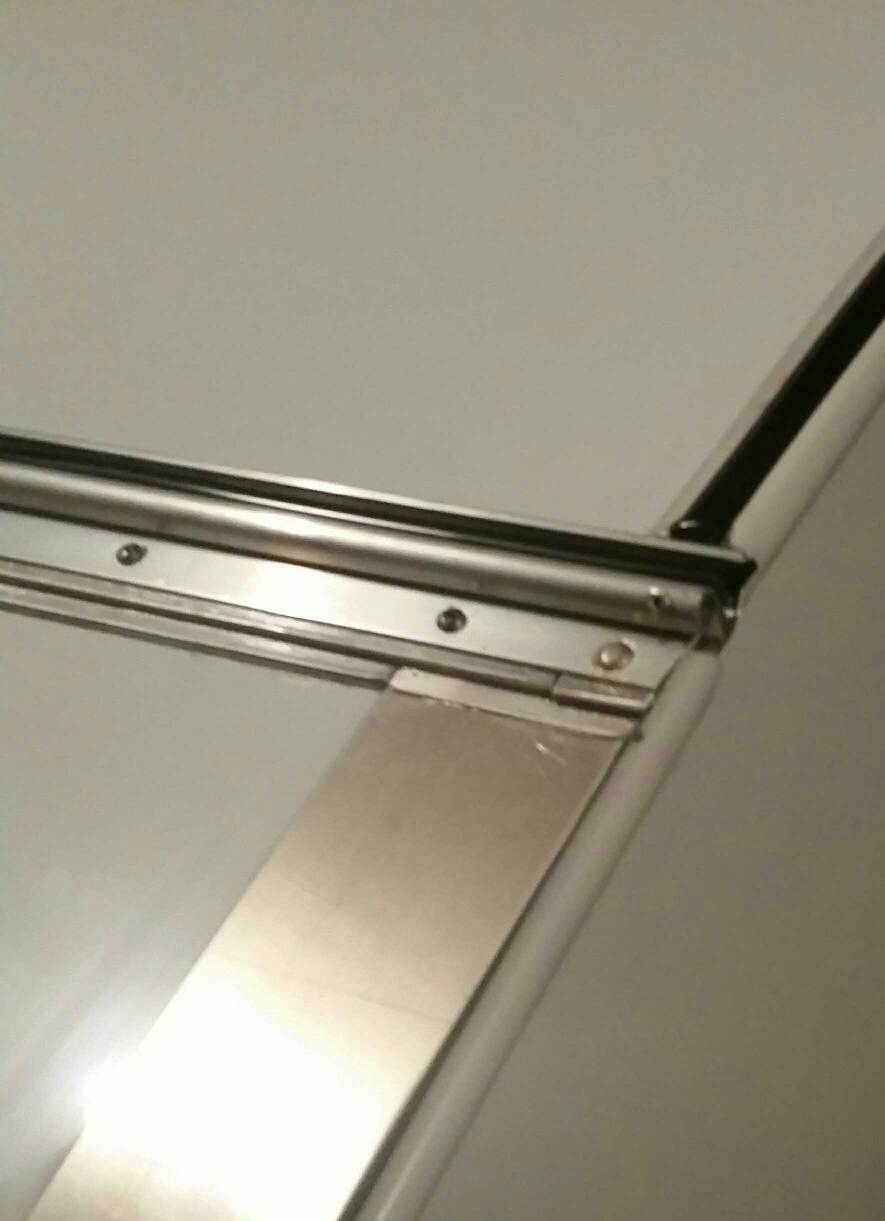

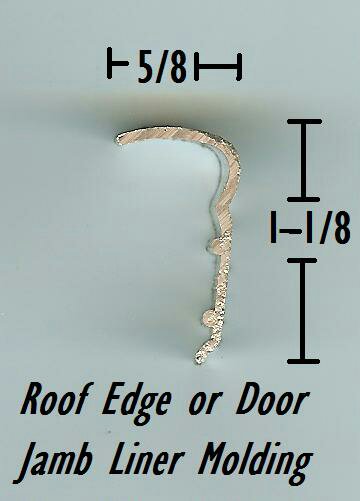

Here's how I finished my galley edge. First I installed the inner strip of edging. Trimmed the inner flange to allow me to format it to the contour. Then I installed the finished RV edging that matches the roof edges. They do overlap on top of the inner strip. These are the only pics I have at the moment.
dmdc411
Teardrop Master

Posts: 192
Joined: Wed Feb 02, 2011 1:39 am
Location: Nfld, Minn
Top

Re: Pictures of different ways to trim and seal galley

Postby dmdc411 » Tue Feb 02, 2016 9:54 am

I forgot to say, the galley seal I'm using is a D shaped bulb seal that is stuck down inside the channel of the roof edging.
dmdc411
Teardrop Master

Posts: 192
Joined: Wed Feb 02, 2011 1:39 am
Location: Nfld, Minn
Top

Re: Pictures of different ways to trim and seal galley

Postby TallyTear » Tue Feb 02, 2016 4:20 pm

It looks awesome. Thank you for the response. Where did you get the T bar? It would a great help to see the some pictures with it open.
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: Pictures of different ways to trim and seal galley

Postby dmdc411 » Tue Feb 02, 2016 8:29 pm

No Tee, it's .050 flat attached with angle cleats. All glued up with the skin running right to the edgeImage
dmdc411
Teardrop Master

Posts: 192
Joined: Wed Feb 02, 2011 1:39 am
Location: Nfld, Minn
Top

Re: Pictures of different ways to trim and seal galley

Postby TallyTear » Thu Feb 04, 2016 5:27 pm

The way you did your looks great. Is there a concern with the raw .050 edge?
TallyTear
Teardrop Builder

Posts: 40
Joined: Mon Jan 11, 2016 4:25 pm
Location: Tallahassee, Fl
Top

Re: Pictures of different ways to trim and seal galley

Postby dmdc411 » Thu Feb 04, 2016 6:40 pm

It's thick enough to be strong. Has no flex. I put a strip down each side, plus across the bottom. It's been a figure it out as you go type of build. That's why it's taken 5 years to complete! I mostly work during the winter on this project.
