Postby InternetPilot » Fri Mar 25, 2011 3:59 pm

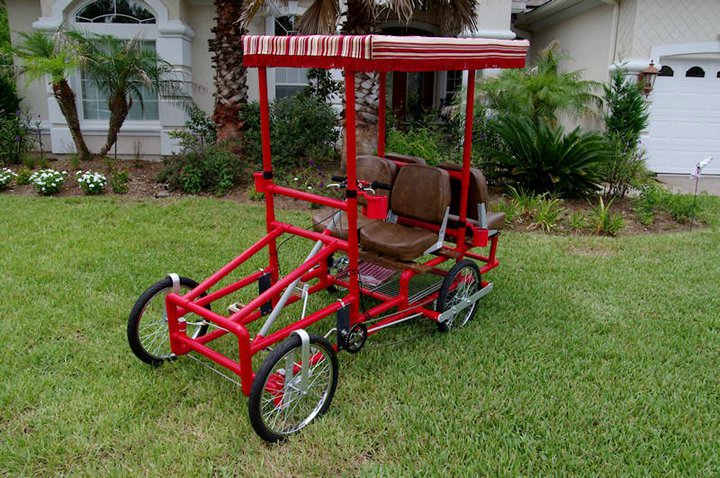

Okay, I'm admittedly getting jealous over all the teardrop builds, but since I can't really get going on one of those at this time, I'd thought I'd share another project:


It's a significantly modified version of the Side-Kick model using plans from AmericanSpeedster.com.

It has 20" wheels all around and 6 speed gearing. There are chainlink fence toprails in the bottom pipes, and the rear "axle" pipe and seat pipes have wooden dowels in them for extra support (easily handles a 500lb family of four).

The modifications included stretching the chassis a little (I'm tall), turning it into a 4-seater, changed it to more of a Model T look (instead of the original dune buggy style), and extended the surrey top. Quite a few build pics are in my album.

My kids love it, and it's great exercise for me. I get quite a few looks wherever I go in it (haven't caused any wrecks yet, but come close). Maybe one day I'll get around to building a teardrop. I have the plumbing part down (haha) -- I think my teardrop will have a full shower, toilet, etc., with all my PVC experience.

-- Chris
User avatar
InternetPilot
Teardrop Master

Posts: 160
Images: 16
Joined: Sun Apr 05, 2009 10:34 pm
Location: NE Florida

Postby GuitarPhotog » Fri Mar 25, 2011 7:25 pm

Nice!

<Chas>
GuitarPhotog
Silver Donating Member

Posts: 1657
Images: 55
Joined: Tue Feb 08, 2011 12:52 pm
Location: Grants Pass Oregon

Postby Steve_Cox » Fri Mar 25, 2011 7:43 pm

Chris,

Very nice job! :thumbsup:

I was just talking to a friend yesterday and we agreed that we should build a quadcycle. You have certainly raised the bar on design and given us a worthy goal to achieve. Did you build with all new parts?
Steve
User avatar
Steve_Cox
4000 Club
4000 Club

Posts: 4903
Images: 196
Joined: Sun Apr 03, 2005 8:46 am
Location: Albuquerque New Mexico
Top

Postby InternetPilot » Fri Mar 25, 2011 9:14 pm

Thanks, Steve & Chas.

Steve, I'm trying to get some time one of these weekends to trailer the pedal car down to St. Augustine to cruise around the Oldest City (give the locals something to hate other than the horse carriages). I've been increasing my range on it, but I don't think I could pedal it from Ponte Vedra to St. Augustine.

I did build it with all new parts. Dan @ American Speedster sells a bicycle part kit for $150 that includes all the actual bicycle parts that you'll need. I figure that's a pretty good deal since these days you can barely get a new beach cruiser for that, and I didn't want to end up with mix-matched wheels and such by going the salvaged route.

It was a lot of fun to build. Compared to your trailer builds, it would be a piece-o-cake to you! I modified the design A LOT on the fly -- it's so easy to do with the PVC. Just do all the mods before you glue! I built it last Summer and my twp younger sons and I have been riding it almost every evening since unless it was just bitterly cold.

It really gave me the build-bug -- I imagine I'd be in heaven building my own camper.
User avatar
InternetPilot
Teardrop Master

Posts: 160
Images: 16
Joined: Sun Apr 05, 2009 10:34 pm
Location: NE Florida
Top

Postby S. Heisley » Sat Mar 26, 2011 11:51 pm

I, too, have considered building a quadcycle as my next project. Yours is quite nice! Thanks for sharing the picture and the tips! Glad to hear you are enjoying it so much. :thumbsup: :applause:
User avatar
S. Heisley
Super Lifetime Member

Posts: 8056
Images: 488
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Postby Wimperdink » Sun Mar 27, 2011 12:06 am

I meant to comment on this earlier but got very lost at the link you provided, drooling.

Very cool. Add +1 to my list of possible future projects if I can get the first part of the list completed. :)
Image You know a man is on the level if his bubble is in the middle.
User avatar
Wimperdink
1000 Club
1000 Club

Posts: 1058
Images: 33
Joined: Mon Sep 17, 2007 8:29 pm
Location: East TN
Top

Postby greekspeedoman » Sun Mar 27, 2011 10:58 am

That rocks! Now you need a PVC tear behind it and you can go travel across the nation (seriously).
User avatar
greekspeedoman
Donating Member

Posts: 306
Images: 12
Joined: Fri Jul 11, 2008 9:35 am
Location: Spokane, Washington
Top

Postby Noob » Sun Mar 27, 2011 7:33 pm

Would you have any ( better ) pics of the pedals / drive train ?

Looks like the pass has one pedal/leg outside the "car" , while the driver is inside with both feet ?

.
.
.
Bend the knees, watch the trees, 5$ please.
User avatar
Noob
The 300 Club

Posts: 367
Joined: Sat Apr 08, 2006 9:10 pm
Location: Columbus, Ohio.
Top

Postby starleen2 » Sun Mar 27, 2011 8:30 pm

any plans to electrify your version??
User avatar
starleen2
5th Teardrop Club

Posts: 16256
Images: 48
Joined: Sat May 12, 2007 8:26 pm
Location: Pea Ridge ,AR
Top

Postby InternetPilot » Sun Mar 27, 2011 9:38 pm

Noob wrote:Would you have any ( better ) pics of the pedals / drive train ?

Looks like the pass has one pedal/leg outside the "car" , while the driver is inside with both feet ?

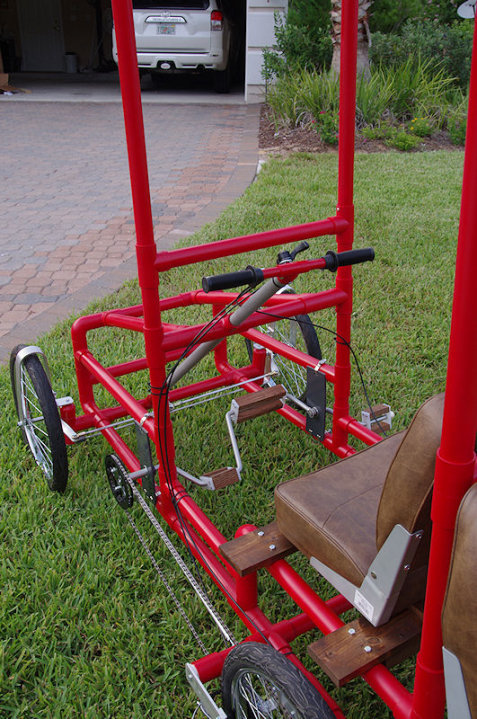

This is about the best I have without taking another photo:


It's kind of a three-pedal system -- the middle pedal is double sized and shared by the driver and front passenger.

You are correct -- the front passenger is straddling the right side frame. This was done by the original designer in order to keep the pedal car narrow enough to fit in a standard bicycle lane. It really doesn't feel weird or like you're going to fall off (or tip the car, even for a big fellow like me). Because it can be pedaled from either front seat, I frequently sit in the front passenger seat and pedal while letting either of my two younger son's steer. The front seats are adjustable (slide front and back) a few inches, but they would have to be unbolted and then rebolted. That would allow for a smaller front seat passenger to help pedal (which the older I get the more I'll need the help, I'm sure).
User avatar
InternetPilot
Teardrop Master

Posts: 160
Images: 16
Joined: Sun Apr 05, 2009 10:34 pm
Location: NE Florida
Top

Postby InternetPilot » Sun Mar 27, 2011 9:50 pm

starleen2 wrote:any plans to electrify your version??


Yes! I do plan to install a electric hub motor on the right rear wheel sometime.

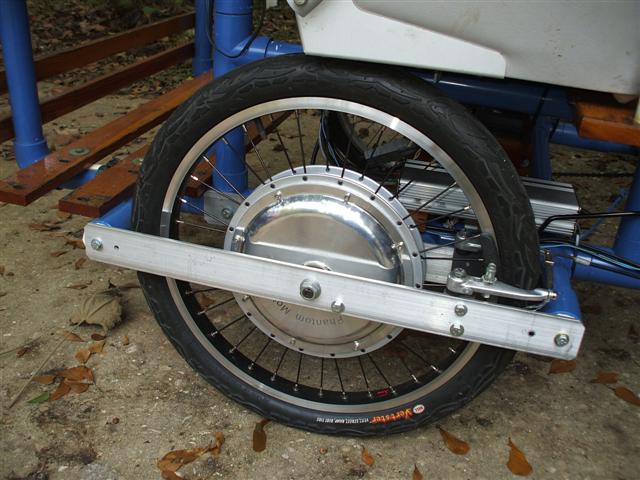

For those that have never heard of this type of motor (like me until a year ago) I think those hub motors are incredible -- they look almost like regular bicycle wheels and the motor is actually built-in to the wheel itself.
