Bob's caboose build

Lets talk tiny houses, tumbleweeds etc on wheels

Re: Bob's caboose build

Postby bobhenry » Thu Jun 28, 2012 6:11 am

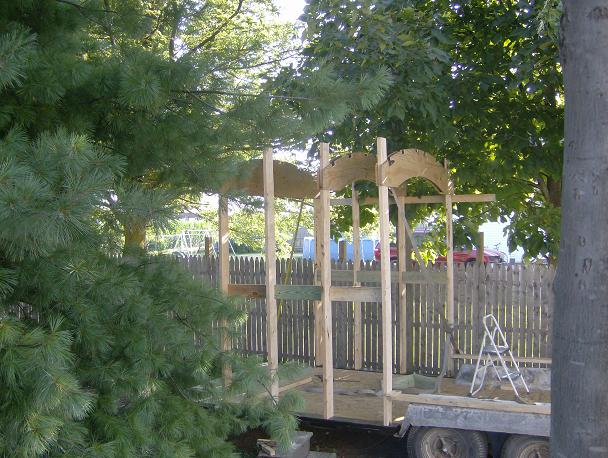

Here are a few more pics. It's kinda sorta starting to look like something.



This little guy was dubbed Handy Andy after dropping a truss top on my head I decided I needed a 3rd hand.



Growing older but not up !
User avatar
bobhenry
Ten Grand Club
Ten Grand Club

Posts: 10359
Images: 2623
Joined: Fri Feb 09, 2007 7:49 am
Location: INDIANA, LINDEN

Re: Bob's caboose build

Postby bobhenry » Mon Jul 02, 2012 8:51 am

Two days of work and you can barely tell that anything was done. Mid-ninty all weekend and every time I went in for a beer and a cool down in the AC I changed shirts. As each hit the floor they sounded as if they just came out of the washing machine. They were just soaked with sweat.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

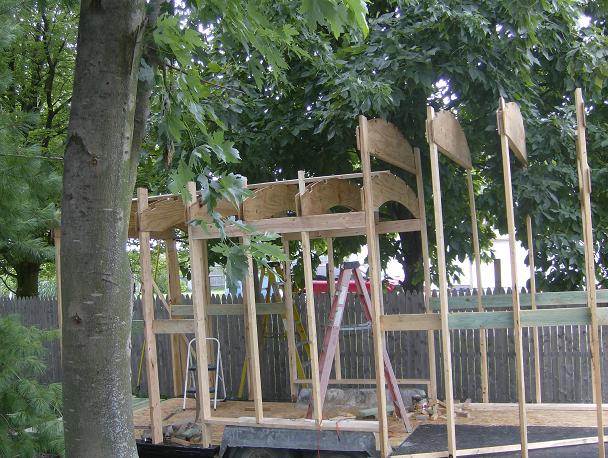

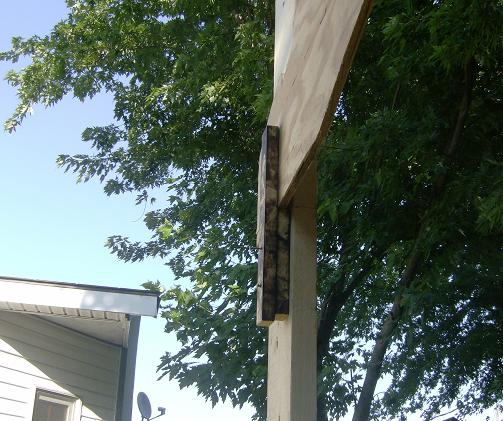

This side shot shows the fender areas now headered off with double 2x6’s and the two intermediate studs were notched 2x4’s to allow the cabinets to set back into the wall a couple extra inches. Also the two intermediate truss pairs are now installed.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

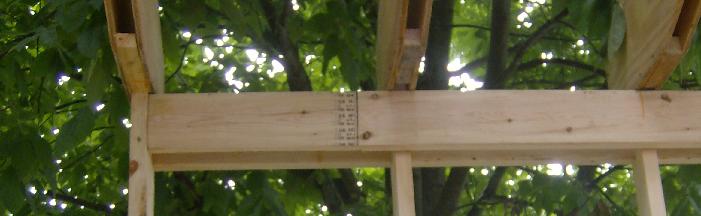

This one shows the a few of the ninty three blocking/nailers that have to be added. I think I installed about 30 of them so far. The purlins alone will require over 60.


~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

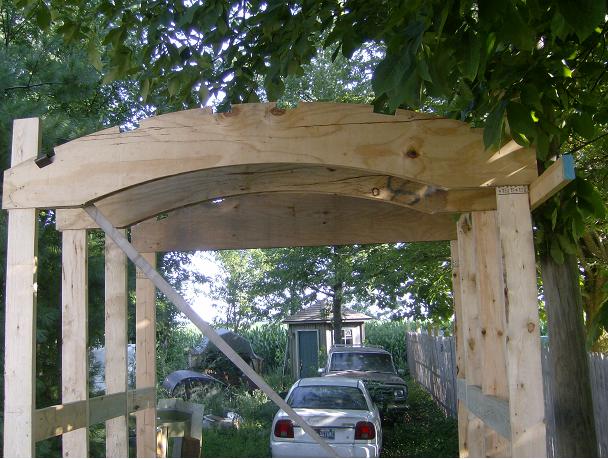

This pics shows the purlin going into place. No I didn’t get lucky they do not line up perfectly but they were within an 1/8 “ to 3/16 “ , a little jig saw work and all will be well.
Growing older but not up !
User avatar
bobhenry
Ten Grand Club
Ten Grand Club

Posts: 10359
Images: 2623
Joined: Fri Feb 09, 2007 7:49 am
Location: INDIANA, LINDEN

Re: Bob's caboose build

Postby 101camper » Mon Jul 02, 2012 5:37 pm

Bob, this is fantastic. We anxiously await every installment of your most ambitious build thread!
Denise
User avatar
101camper
Gold Donating Member

Posts: 24
Images: 80
Joined: Sun Oct 03, 2010 6:18 pm
Location: Virginia
Top

Re: Bob's caboose build

Postby S. Heisley » Mon Jul 02, 2012 8:03 pm

Looking through my "crystal ball," I see a lot of work in your future. But then, if it is a work of love and interest, is it really work?
What do you expect your new home will weigh when completed?
Will you take it places or is it meant to be your "stationary" home on wheels?
User avatar
S. Heisley
Super Lifetime Member

Posts: 8813
Images: 495
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: Bob's caboose build

Postby Juneaudave » Mon Jul 02, 2012 8:27 pm

Really looking good Bob!!!! :applause:
User avatar
Juneaudave
Super Duper Lifetime Member

Posts: 3237
Images: 380
Joined: Sun Jul 03, 2005 12:11 pm
Location: Juneau, Alaska
Top

Re: Bob's caboose build

Postby mezmo » Tue Jul 03, 2012 12:34 am

Hi Bob,

Just wondering how you are keeping things square and plumb
when installing everything - one of the many challenges of alfresco construction.

You must be like me when working and building - especially in the heat -
Gallons Of Sweat Equity !!!

Cheers,
Norm/mezmo
If you have a house - you have a hobby.
User avatar
mezmo
1000 Club
1000 Club

Posts: 1817
Images: 194
Joined: Fri Jan 01, 2010 4:11 am
Location: Columbia, SC
Top

Re: Bob's caboose build

Postby bobhenry » Tue Jul 03, 2012 7:38 am

Thanks Guys ( and gals)

I was beginning to think I was talking to myself :lol:

A have built hundreds yes hundreds of mini barns and yes it is a challenge to keep a build square and true when the floor may or may not be dead level. I was extremely impressed that the long purlin runs were as accurate as they were only being off 3/16 or less, (yep just enough ya can't bend a 2x4).

During building I use a half sheet of plywood and use the factory edges only as a 4 foot framing square to keep all verticals true plumb to the floor. The use of a properly checked and adjusted power miter saw helps to keep all end cuts true and square as well. The liberal use of a tape measure checking top middle and bottom of all verticals in each bay helps keep things as designed. I even made measurements from front to rear to be certain I remain on true two foot centers always being careful to check top middle and bottom measurements. The installation of the 22 1/2" drywall nailers helps keep my interior verticals on 2 foot centers as well. P.S the corners blocks are 21 3/4 just an FYI. In one of the previous pictures you see a heavy duty load cinch strap diagonal across a bent. I had a bowed stud leg and didn't catch it until it was installed so I took several days to train it. When I released it it was not perfect but acceptable. Side to side measurments were checked as well. All in all it is within 1/4" of being right on and some of that can be reclaimed with the aid of the cinch strap to persuade the members to better alignment as the siding goes on. Tommorrow is the 4th and a day off from work so I hope to get the purlins in and the plywood roof deck installed so I can tarp the beast from the weather. So as a public opinion poll what color are we gonna paint it ? (remembering I have a red and white barn already). Green, yellow, blue ,white, and burgandy have all ran thru my mind. I am actually gonna test Kabota orange with a linen white trim package. My only fear is it will look like a giant halloween lawn ornament. :roll:
Last edited by bobhenry on Tue Jul 03, 2012 8:02 am, edited 2 times in total.
Growing older but not up !
User avatar
bobhenry
Ten Grand Club
Ten Grand Club

Posts: 10359
Images: 2623
Joined: Fri Feb 09, 2007 7:49 am
Location: INDIANA, LINDEN
Top

Re: Bob's caboose build

Postby S. Heisley » Tue Jul 03, 2012 7:51 am

:thinking: What color? It's probably too soon to say; but, I'm thinking yellow because it gives you color while still being light enough to help fight the effects of the sun.
User avatar
S. Heisley
Super Lifetime Member

Posts: 8813
Images: 495
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: Bob's caboose build

Postby Ned B » Tue Jul 03, 2012 8:31 am

Bob,
sheer idle curiosity here, but what's that sucker going to weigh in at?
User avatar
Ned B
1000 Club
1000 Club

Posts: 1036
Joined: Sat Apr 16, 2011 10:25 am
Location: Syracuse NY (ish)
Top

Re: Bob's caboose build

Postby bobhenry » Tue Jul 03, 2012 9:40 am

I'm at 1598 pounds of lumber at this time. This does not including the frame.
With siding and rubber roof in place I will be at approx. 2504 pounds
The weight of the windows and doors will be offset somewhat by the sheathing and stud removal.

I am realistically thinking 5,000 pounds when livable.

Before I started the build I loaded the frame with 2 units of 2x4x16 at the plant and towed it thru the lot that's 588 boards at 21# each , that's 12,348 pounds so I am not worried yet.

The Tumbleweed fencl is 7 x 18 and dry weight completed on it is approx 5700 pounds. This unit has stick built truses and a loft floor that mine does not. The light weight plywood dome truss tops on the caboose weigh about 10 - 12 pound each far less than a stick built truss. I know the 2x6 legs look over designed but I wanted some in the wall storage and still be able to over insulate the wall cavities. A new commercial 26 - 28 foot travel trailer goes 6000 to 7000 dry and over 5 ton loaded.
Last edited by bobhenry on Tue Jul 03, 2012 12:47 pm, edited 1 time in total.
Growing older but not up !
User avatar
bobhenry
Ten Grand Club
Ten Grand Club

Posts: 10359
Images: 2623
Joined: Fri Feb 09, 2007 7:49 am
Location: INDIANA, LINDEN
Top

Re: Bob's caboose build

Postby pappaw » Tue Jul 03, 2012 11:47 am

wow Bob, really has a shape now. :thumbsup:

Cheers! :beer:
Image Cheers from Granny, Pappaw, and Cocoa (the Dachshund) Image
pappaw
Teardrop Master

Posts: 240
Images: 14
Joined: Mon Nov 22, 2010 12:15 pm
Location: S.W.Ohio
Top

Re: Bob's caboose build

Postby bobhenry » Thu Jul 05, 2012 10:23 am

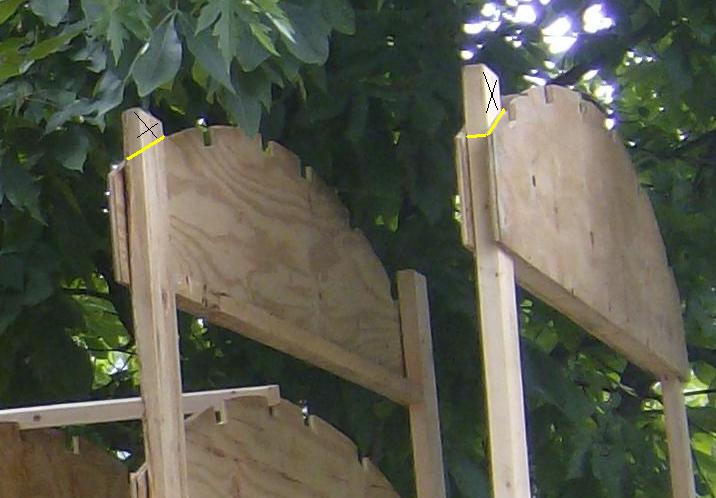

Got outside on the 4th at 7:30 am and started installing purlins and making a couple corrections to some boo-boos I had made. I cut off the 2x6 legs that extended above the plywood domed truss material
