Pop-n-Slide

Postby jeep_bluetj » Fri Nov 23, 2007 3:17 pm

I've been obsessing about trailer #2 for awhile. Trailer #1 was fun to build, and we've had it out dozens of times. But mistakes were made... So I've been thinking about starting over.

All the pics I've got of Trailer #1 are in my profile.

So, requirements are...

Musthaves:
1. Offroad ability -- gotta be dragged over 18" or so rocks.
2. Sleeps 4.
3. Quick setup
4. 15 gal water tanks
5. Standing room
6. TTB < 60 seconds. (Total Time To Beer. The time from getting to the site to when I've got a beer in my hand)
7. Nothing goes in the jeep. It's all in the trailer (this affects TTB, as it means I need to be able to get to a cooler fast)

Pretty much what I designed trailer #1 for. But I hate the tent. Setup is really long, All cargo is inside, so I have to throw everything out, then reload. Takes too long to get to a cooler. The tent (being non-insulated) has some nasty condensation problems.

I'd like:
1. Real heat
2. Outside galley
3. Queen bed for Wife and I.

So what worked well I want to keep? The pnumatic lifts are dabomb. Top goes up/down without any effort. It's nice to have air available at the campsite for air matteresses, bike tires, etc.. (And jeep tires in the desert) Big PVC water tanks worked well (Pumped by air pressure). The 6x5 form factor with the same track width as the jeep worked well too.

So, after much thinking, I've arrived at a pop-up-slide-out leaksalot. Had to extend to 8' which is really about as long as I can go and have any hope of decent offroad capability.

Sides permanately attached. plastic hinges all around. No real bad leak points except around the lifts. Top raises/loweres with pnumatic lifts and the bed slide will be powered with another pnumatic ram.

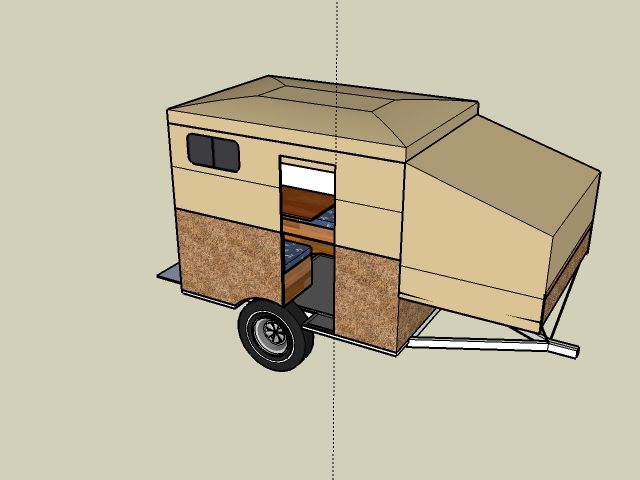

My attempt at some sketchup, fully opened view:

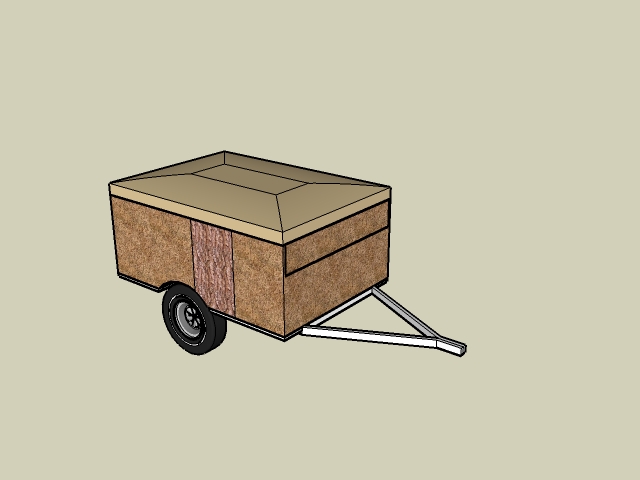

All closed up:

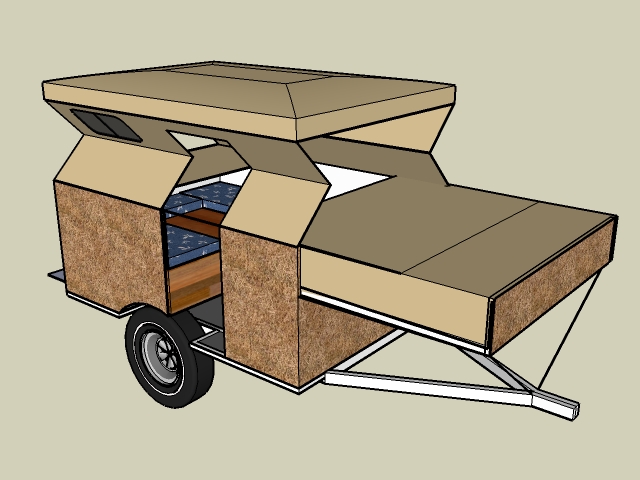

How it all folds:

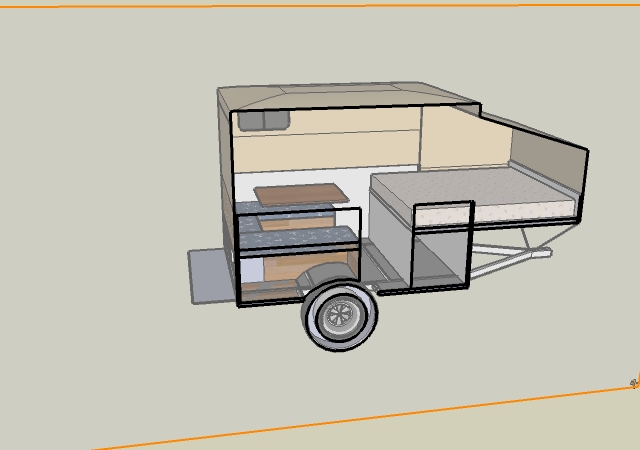

What's inside:


(More angles in my album)

I'll have a tounge box on there that will help support the slide out bed. The bed is a queen, the dinette is 48". Overall width is 5'8" with a 5'6" interior. 8' long box. Box is 3' tall, roof is 6-8" or so Clearance is 22-24 inches or so - it'll be up there. All panels insulated. The galley is in the rear (makes a kind of counter when open) and the coolers (I bring 2) slide under the setee benches. Middle area for stove and whatnot. Large storage area under the big bed is for camp chairs, ez-up, etc. Water tanks beneath it (Water weight offsets cooler weight)

I can get the mechanicals to work ok, It rarely rains here so I'm not too concerned with seals. The problem: It's a box. Not too attractive. I could add some rounded areas, but then I start to lose room. Any ideas out there?
-- Jeff --
User avatar
jeep_bluetj
Teardrop Master

Posts: 274
Images: 17
Joined: Tue Oct 23, 2007 4:13 pm
Location: SoCal

Postby sseaman » Fri Nov 23, 2007 7:22 pm

be interesting to see it built
sseaman
Teardrop Advisor

Posts: 85
Images: 3
Joined: Thu Oct 11, 2007 5:15 pm

Postby mmocken » Fri Nov 23, 2007 10:36 pm

great looking and very well thought out!

- looks like it might get heavy for offroad use
- can you modify #1 instead of starting from scratch?
mmocken
Teardrop Inspector

Posts: 12
Images: 1
Joined: Sun Aug 05, 2007 4:41 pm
Top

Postby bve » Fri Nov 23, 2007 11:19 pm

Nice design, pnumatics are a cool idea too.

For # 6 TTB - that's easy, grab one before setup :)
Burke

KISS > COMPLEX

Build threads converted to PDFs.
As of 2008-08-08 I have added more build threads to the pdf collection
User avatar
bve
500 Club

Posts: 694
Images: 98
Joined: Sat Aug 25, 2007 1:44 am
Location: Edmonton, Alberta, Canada
Top

Postby jeep_bluetj » Sat Nov 24, 2007 10:47 am

mmocken wrote:great looking and very well thought out!

- looks like it might get heavy for offroad use
- can you modify #1 instead of starting from scratch?


Current frame estimates are <300 lbs (3x1.5 x 1/8" square and 2x1 square tubing) Add another 200 for axle and tires, should end up < 1K dry.

Don't want to take the first one apart -- want to camp in it. I'll take the compressor, brakes, battery, etc off of it to move to the new one.

bve wrote:For # 6 TTB - that's easy, grab one before setup :)


The 'real' requirement is that I need to get to a cooler right away. It can't be buried or hard to get to. The galley in the back of this one solves that. I'm thinking with slide out shelves for the coolers so weight never gets put on the drop down door.
-- Jeff --
User avatar
jeep_bluetj
Teardrop Master

Posts: 274
Images: 17
Joined: Tue Oct 23, 2007 4:13 pm
Location: SoCal
Top

wow

Postby Jeeper92 » Sat Nov 24, 2007 11:17 am

wow thats one hell of a design, id love to see how it comes out for you. Im still towing around my 6x10 box. Id like to get into something lighter
Jeeper92
500 Club

Posts: 529
Joined: Thu May 17, 2007 8:03 pm
Top
