Tip Top Tier Drop

Design & Construction of anything that's not a teardrop e.g. Grasshoppers or Sunspots

Tip Top Tier Drop

Postby WizardOfOdds » Wed Jun 19, 2013 9:37 pm

edit 2 Oct 2015 -- Old title was "Tier Drop 50 Experimental Testbed"

My first trailer was a used 1964 Apache Buffalo pop-up and ever since I have been fascinated with the idea of building an expanding trailer. I finally had my fill of drawings and cardboard models and decided to experiment with three designs:
  • TD-100 (100% increase in interior volume, like a Hi-Lo),
  • TD-75 (elevates 100% in rear but only 50% in front) and
  • TD-50 (elevates 100% in rear but only a few percent in the front).
The TD stands for "Tier Drop" because the upper tier drops over the lower tier for travel.

My primary goals were to
  • Be able to see over the top when traveling and backing up
  • Have as much head room as my pickup camper shell
  • Adequate door entry height
  • Elevated bed (storage under bed, no sleeping on the floor)
  • Target weight 600#, Max 700#
  • At least 4.5 feet wide


edit 2 Oct 2015 -- I failed to mention a major requirement I had to meet: the entire operations of opening and closing had to be accomplished by an elderly 135# weakling (me) without any assistance.

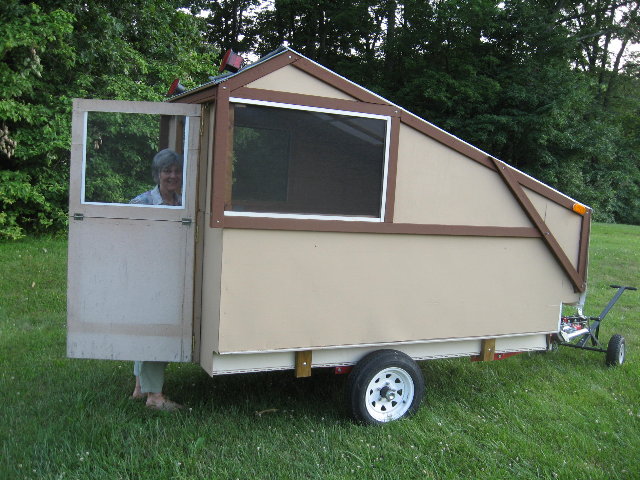

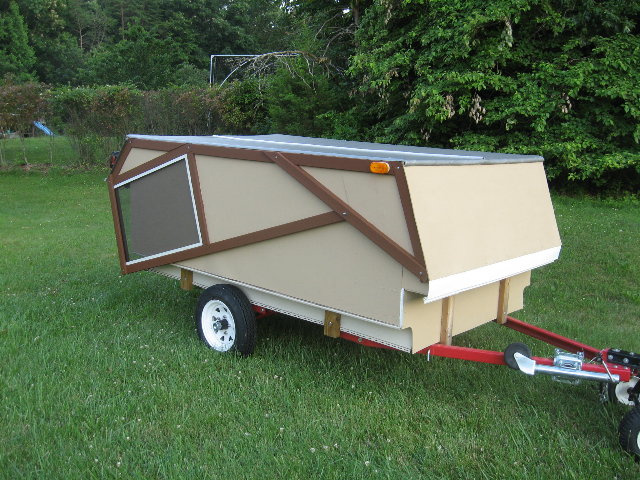

I built a rectangular base about 32 inches high (above the frame) and then 'framed' the different tops with firing strips using an overlap and bolt method to allow for the many many experimental modifications. All 3 designs worked out pretty well but our truck became unreliable and the wife got tired of the experiments chewing up our vacation time, and encouraged me to finish the TD-50 so we could do some camping. So I put a floor in the base, sealed the space between the walls and floor, and used what plywood and masonite I had left for the top skin and roof. When I ran out of ply, the rest became windows.

The TD-50 worked out pretty well, I think it is just about 600#, is about 4'-9" wide at the bed, but I had to elevate the base walls about 1.5 inches to meet my lowest point headroom goal. We've taken it out on eight trips, in several different experimental configurations. In the first, the rear panel doubled as the door, in the latest the roof is a tarp. I even tried a foam door -- remember this is a test bed for trying crazy ideas, not a build. Once I get our next tow vehicle, I will probably opt for a real build and it just might be a TD-50.
