Postby Gduck24 » Wed Sep 06, 2017 12:54 pm

New guy, first post. I think this is the spot for it.

Couldn't find an out of the box solution for my needs so I decided to build a trailer that checked all the boxes. I wanted AC, room for 3-4 (2 adults and 2 kiddos), had to fit in the garage and lastly, be really cool. Converted a 5x8 flatbed to a 6x10x5' tall mini toy hauler. This post will be mainly a barrage of pictures. I tried to label most, but if you have questions please let me know. This was a learning experience. I was a carpenter for most my life, and a self taught welder over the last decade or so. I am proud of how the trailer turned out and honestly a little surprised that it turned out this good. I did not make plans for measurements, but I did create a concept mainly for proportions in sketchup.

Trailer is metal frame, plywood substrate, .40 aluminum prefinished skin, 1" insulation in walls, 2" in floor and ceiling. FRP panels on the inside with custom cubbie hole cabinets and AC ducted through the floor and side. LED lights separated by switch for ceiling, downlights in cubbies and exterior lights. TV with iOS input for watching movies from your phone. I had help from a friend with a metal brake for some of the back skin pieces around the ramp. Queensize couch bed, smittybilt awning, step and led exterior turn/brake lights. Probably more that I am forgetting. We have used this several times and it gets down to 68 degrees quick, and is really easy to get set up! I have a small 2000w inverter generator that runs everything no problem.

Anybody have any idea what one of these guys might bring on the market? I really like this trailer but would like to recoup and reinvest what I have in it to the next trailer.
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 12:57 pm

First pics are frame work. Trailer was overbuilt with a 3500# axle and heavy steel. Went back with tub steel and the same angle around the perimeter.
150918150917
150919150921
150920150923
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 12:59 pm

This is the substrate and framing continued
150924150925
150926150927
150928150929
150930150931
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm
Top

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 1:00 pm

Insulation and exterior skin
150932150933
150934150935
150936150937
150938150939
150940150942
150943150945
150948150946
150949
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm
Top

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 1:03 pm

inside finishes
150944150941
150947150952
150953150953
150955150957
150958150959
150960150961
150964150963
150962
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm
Top

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 1:04 pm

Exterior finishes
150969150970
150973150972
150971150974
150975150954
150951150950
150948150946
150945
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm
Top

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 1:05 pm

Pretty much done!

150968150976
Gduck24
Teardrop Inspector

Posts: 10
Images: 60
Joined: Tue Sep 05, 2017 3:34 pm
Top

Re: Mini Toy Hauler

Postby greygoos » Wed Sep 06, 2017 1:41 pm

Nice build. Looks familiar. I built the mini version. I wish you luck in your adventures.
Attachments
greygoos
Silver Donating Member

Posts: 630
Joined: Sun Sep 27, 2015 6:15 am
Location: Syracuse NY
Top

Re: Mini Toy Hauler

Postby Padilen » Wed Sep 06, 2017 2:02 pm

Nice

Sent from my XT1635-01 using Tapatalk
Padilen
Donating Member

Posts: 1536
Joined: Fri Jan 30, 2015 4:20 pm
Top

Re: Mini Toy Hauler

Postby Gduck24 » Wed Sep 06, 2017 4:31 pm

greygoos wrote:Nice build. Looks familiar. I built the mini version. I wish you luck in your adventures.

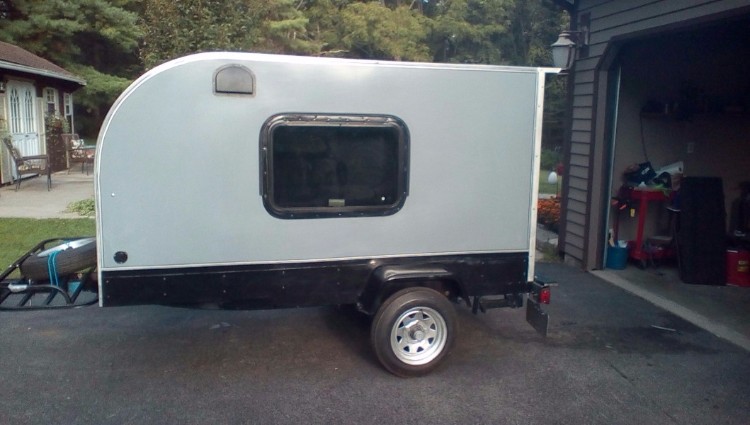

The dimensions on mine were terrible for waste. If something 4x8 would work for me that would be a dream to work with. I needed 5' ceiling to get my bikes in there.
