Ultralight Stripper Build Journal:

My plan is a light as possible 5X8 Teardrop. I have chosen Mike's Ultralight profile as the foundation of my build. 500-600# is my goal. I want a tear that can be towed by a small car/truck.
I will use techniques I know. I have built several strip kayaks. I am comfortable with fiberglass/epoxy. So.... I will build a wood strip sided Ultralight, encapsulated in fiberglass/epoxy. However, I will not strip the top. I will use either silver colored fiberglass or colored carbon/kevlar cloth over 1/8" Plywood. spartan galley and cabin.

As of 3/09/10:

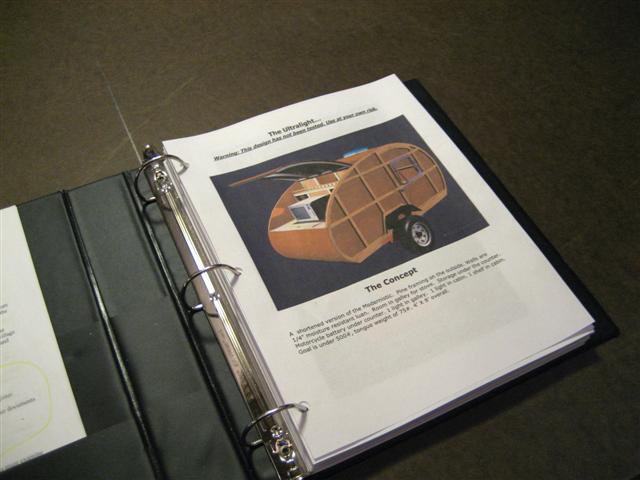

THE DESIGN. THANKS, MIKE! :thumbsup:

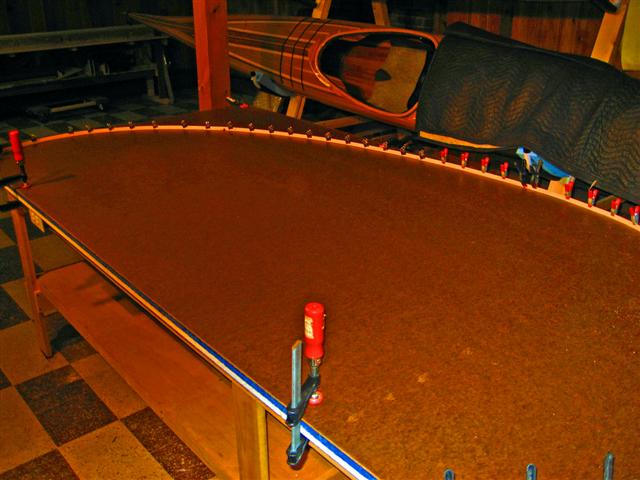

PROFILE LAYOUT ON MASONITE. BRADS AT xy POINTS. BATTEN CLAMPED TO BRADS. WORKED GREAT FOR PROFILE LAYOUT..

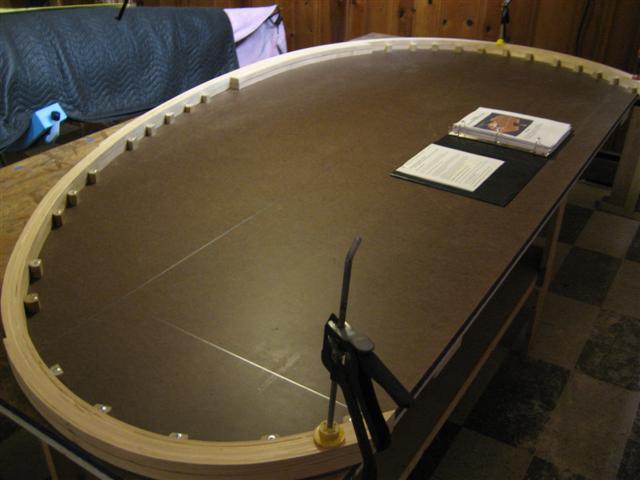

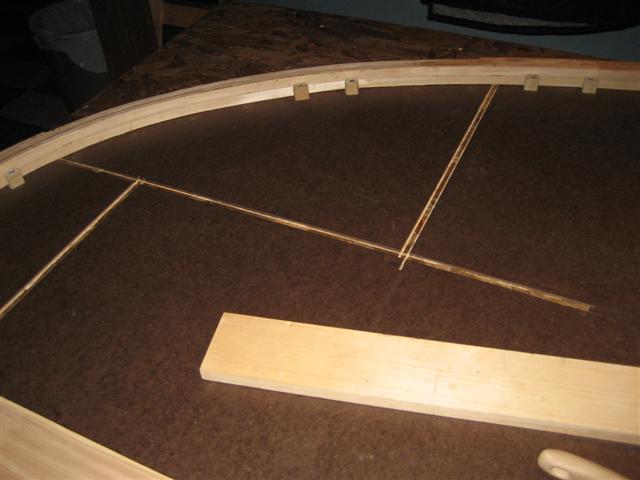

PROFILE LAMINATIONS GLUED (BOTH SIDES SHOWN ON TOP OF EACH OTHER)

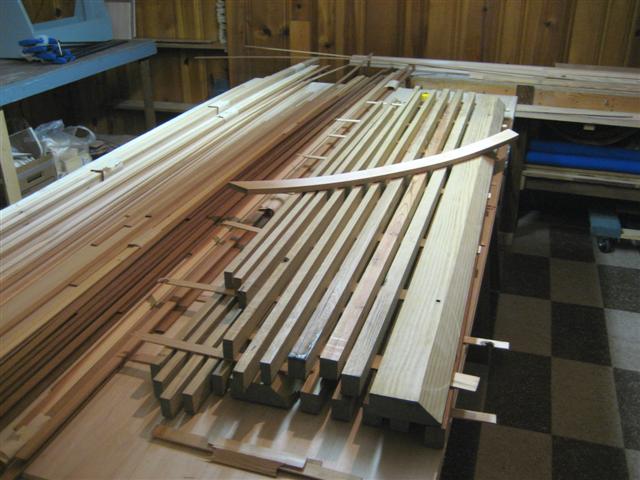

20 YEAR OLD PRESSURE TREATED PICNIC TABLE LUMBER

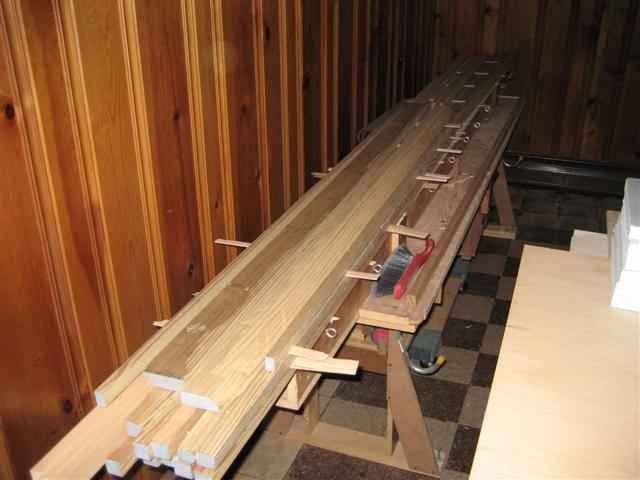

RECYCLED INTO FLOOR LUMBER. PICTURE ALSO SHOWS SOME STRIPS FOR SIDE WALLS, AND FIRST HATCH FORM CUT FROM DISCARDED PLYWOOD (10 PLY) HOSE REEL.

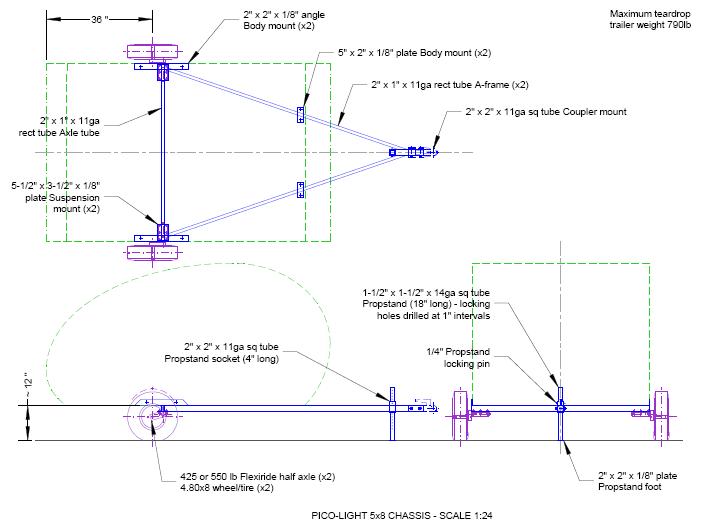

THIS IS MY PLANNED FRAME. IT'S ANDREW'S PICO LIGHT REDRAWN FOR A 5X8 WITH 12" WHEELS AND MAYBE A 935# AXLES. THANKS, ANDREW! :thumbsup:






Larry C
Last edited by Larry C on Sat Aug 03, 2013 8:47 am, edited 12 times in total.
"If its worth doing it's worth doing Light"

http://www.tnttt.com/viewtopic.php?f=50&t=35852
Larry C
500 Club

Posts: 732
Images: 78
Joined: Sun Dec 27, 2009 9:37 am
Location: Finger Lakes

Postby Shadow Catcher » Tue Mar 09, 2010 7:38 pm

Should be a stunning teardrop, I look forward to following this one. I have always admired wood stripper canoes but we tend to hit lots of rocks, Hard!
User avatar
Shadow Catcher
Donating Member

Posts: 5993
Images: 234
Joined: Sat Apr 11, 2009 8:26 pm
Location: Metamora, OH

Postby dwgriff1 » Tue Mar 09, 2010 8:53 pm

There are several of those Mikes Ultra light under construction. I think it has a great profile.

Work carefully you should be able to beat mine at 580. I think 500 is possible without undue problems.

Looks very good.

dave
User avatar
dwgriff1
500 Club

Posts: 947
Images: 4
Joined: Mon Jul 04, 2005 4:20 pm
Location: SW Idaho
Top

Postby Juneaudave » Tue Mar 09, 2010 9:22 pm

I sure like your plan!!! Keep the pics coming!!
:thumbsup: :thumbsup: :thumbsup:
User avatar
Juneaudave
Super Duper Lifetime Member

Posts: 3237
Images: 380
Joined: Sun Jul 03, 2005 12:11 pm
Location: Juneau, Alaska
Top

Postby bve » Tue Mar 09, 2010 9:30 pm

Great introduction to your build. I'm looking forward to seeing the progress.

Burke
Burke

KISS > COMPLEX

Build threads converted to PDFs.
As of 2008-08-08 I have added more build threads to the pdf collection
User avatar
bve
500 Club

Posts: 694
Images: 98
Joined: Sat Aug 25, 2007 1:44 am
Location: Edmonton, Alberta, Canada
Top

A little more progress

Postby Larry C » Sun Mar 21, 2010 7:35 pm

Did some work on my build this weekend. I decided to further cut some weight off my floor. I had originally milled my old picnic table lumber to 1-1/2" x 1-1/8" to use for my floor framing. The ends were milled to 1-1/2" x 4" taperd to 3" to match profile. All this old lumber is pressure treated Southern Yellow Pine. It is strong and heavy.
I remilled it to 1" X 1-1/8" and reduced the ends pieces to 1" X 3" taper to 2" My goal is a floor that is 1-3/8" thick with 1/8 Luan bottom and 1/4" on top. I hope the SYP on 12" centers is going to be strong enough for the 5X8 as my trailer frame is just a triangle and the torsion box floor is mostly self supporting. The bottom will also be fiberglass/Epoxy.

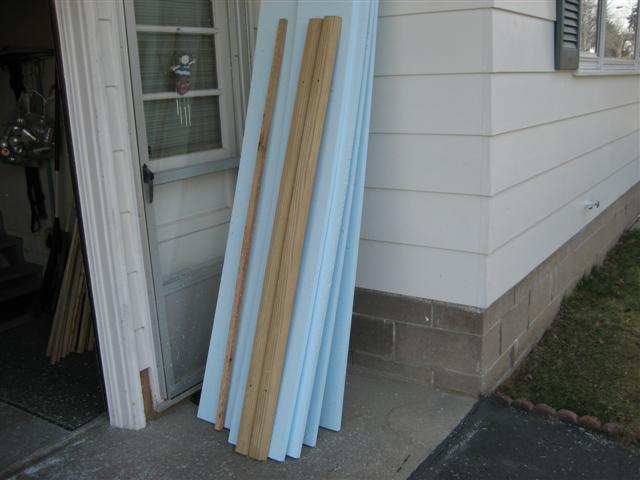

I found some 1" blue foam at Lowes. After measuring it in several locations, I found the thickness was inconsistent. I decided to mill the foam to the exact thickness of my wood framing. It worked very well, but created a big mess :(

No....... That ain't snow

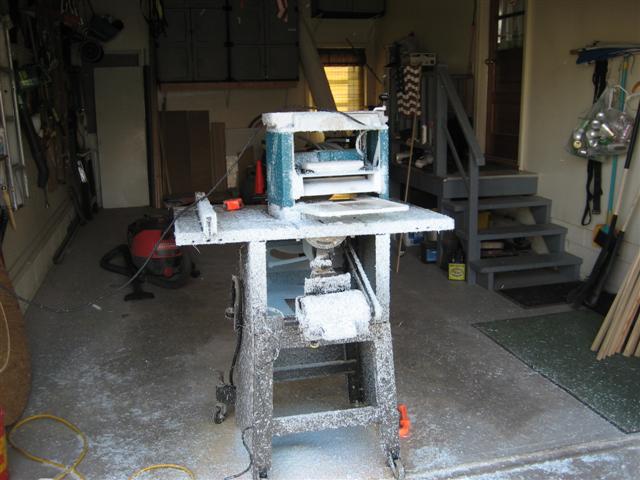

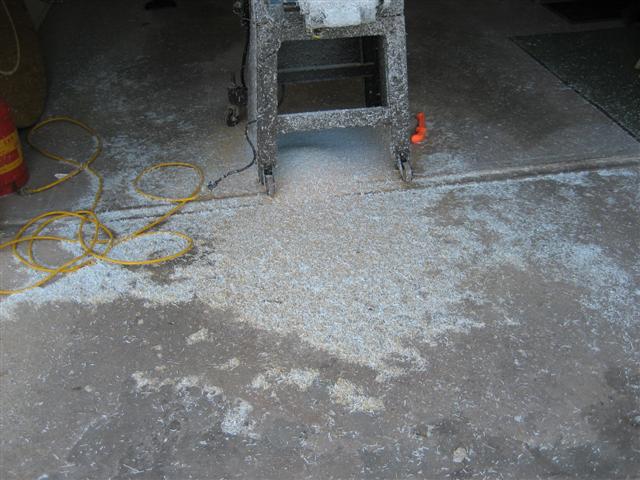

Big mess blowing all over my garage/yard

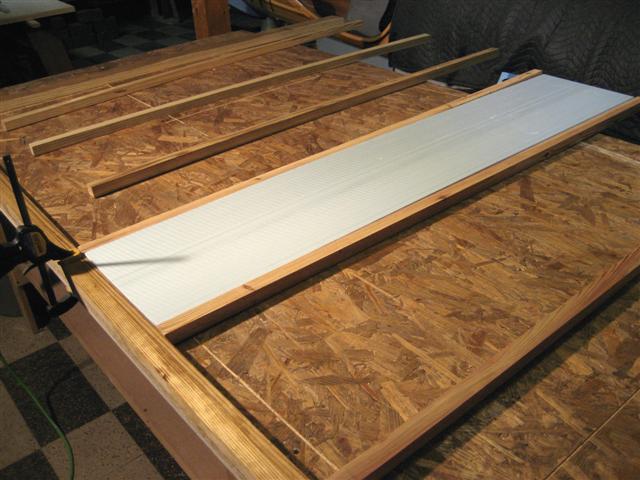

Everything being planed to 1"

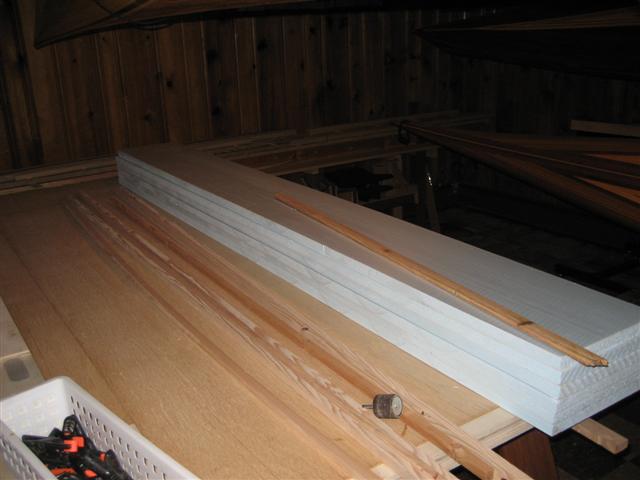

materials for build piling up

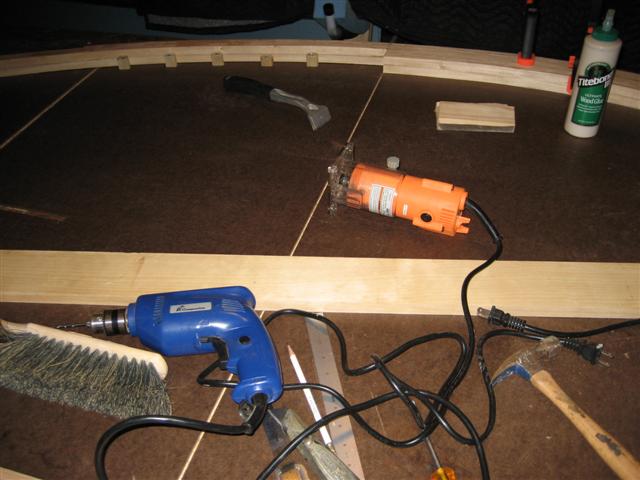

My first use of the HF Trim Router I bought a couple years ago for $20.
I really like it because the starting torque is very mild compared to my fixed base Bosch. I used a 1/8" solid carbide bit with a 1x4 as a guide to cut the door profile and the bulkheads/shelves inset into my template.

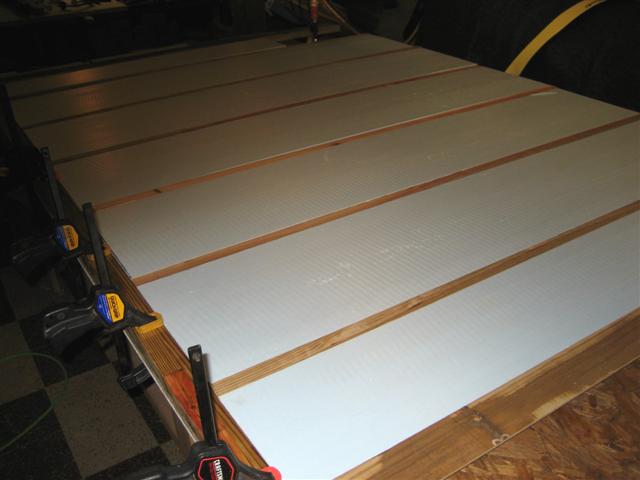

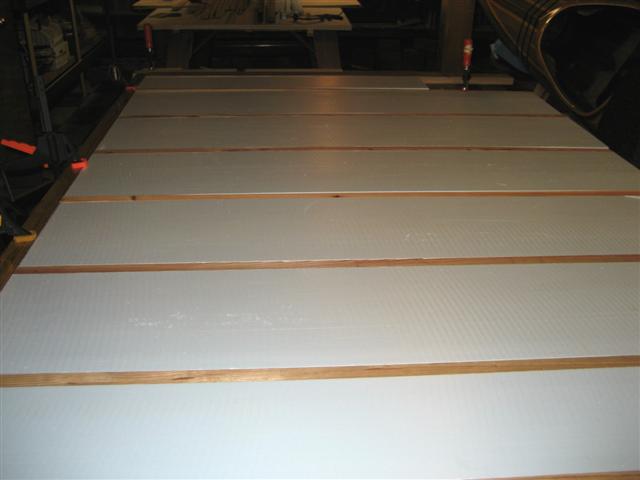

Floor framing planed to 1"

Larry
"If its worth doing it's worth doing Light"

http://www.tnttt.com/viewtopic.php?f=50&t=35852
Larry C
500 Club

Posts: 732
Images: 78
Joined: Sun Dec 27, 2009 9:37 am
Location: Finger Lakes
Top

Postby Juneaudave » Sun Mar 21, 2010 7:44 pm

There is a new one, planing foam!!! :lol:

Keep those pics coming, I think I'm going to learn alot here!
:thumbsup: :thumbsup: :thumbsup:
User avatar
Juneaudave
Super Duper Lifetime Member

Posts: 3237
Images: 380
Joined: Sun Jul 03, 2005 12:11 pm
Location: Juneau, Alaska
Top

Postby 2bits » Sun Mar 21, 2010 8:07 pm

I love the frame, I will be doing a simliar kind of frame if/when I build the next one. So simple and proportioned.
Thomas

User avatar
2bits
2bit Member

Posts: 5130
Images: 8
Joined: Thu Dec 27, 2007 6:04 pm
Location: Lake Tawakoni, TX
Top

Postby Larry C » Mon Mar 22, 2010 4:34 pm

Juneaudave wrote:There is a new one, planing foam!!! :lol:

Keep those pics coming, I think I'm going to learn alot here!
:thumbsup: :thumbsup: :thumbsup:


Dave,I don't know what you will learn from me that you don't already know.
Your build sets the bar for "woodies" I constantly check your pics for inspiration and ideas. Mine won't be anyway near your Teardrop's quality.

Larry
"If its worth doing it's worth doing Light"

http://www.tnttt.com/viewtopic.php?f=50&t=35852
Larry C
500 Club

Posts: 732
Images: 78
Joined: Sun Dec 27, 2009 9:37 am
Location: Finger Lakes
Top

Postby Larry C » Mon Mar 22, 2010 5:33 pm

2bits wrote:I love the frame, I will be doing a simliar kind of frame if/when I build the next one. So simple and proportioned.


I agree, Andrew really came up with a great design. I think it is elegant!
I especially like the adjustable prop stand incorporated into the coupler tube.
I don't know what my build will end up weighing so I will build the triangle for now and see what everything weighs before buying my stub axles. They are availalbe 425#;550#,and 935#. I am hoping to use the 550. I want my axles loaded close to their rating.

BTW/ your build is one of my favorites...........

Larry








"If its worth doing it's worth doing Light"

http://www.tnttt.com/viewtopic.php?f=50&t=35852
Larry C
500 Club

Posts: 732
Images: 78
Joined: Sun Dec 27, 2009 9:37 am
Location: Finger Lakes
Top

Postby 2bits » Mon Mar 22, 2010 10:22 pm

Oh I like that stand that you mentioned! Just seeing the frame makes me want to start another one already, and thank you too!
Thomas

User avatar
2bits
2bit Member

Posts: 5130
Images: 8
Joined: Thu Dec 27, 2007 6:04 pm
Location: Lake Tawakoni, TX
Top

Build update June

Postby Larry C » Sun Jun 06, 2010 5:55 pm

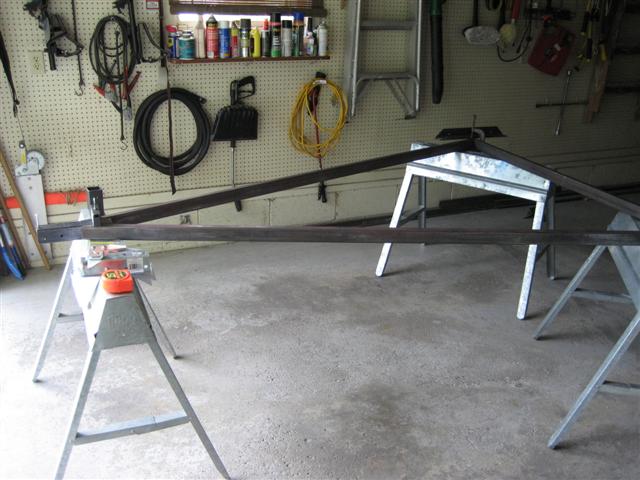

I finally got the steel I need for the frame. Everything is cut and ready for my welder friend. The tongue angles were a lot of fun to cut as the angles were beyond the capability of my old miter saw converted to a metal cutting chop saw. I cut them with a hack saw which took awhile, but came they out good. All other cuts, the chop saw worked great.
