D.I.Y Light weight sleeper using D.I.Y rail top components

...ask your questions in the appropriate forums BUT document your build here...preferably in a single thread...dates for updates, are appreciated....

D.I.Y Light weight sleeper using D.I.Y rail top components

Postby saywhatthat » Tue Aug 02, 2016 12:41 am

D.I.Y Light weight sleeper using D.I.Y rail top components. Making my own profile of top rail. Will need to make one piece of tooling. This will be for a box trailer . Like the Weekender, Nano It will be 1320 Wide 2159 MM Long 1244.6 MM High. This will be for a box trailer with rear door. For the tooling. It will be the best to use something that has an inside curve with a flat bottom and side for tooling . Ponder a storage tub. The recesses will be 6.35 MM . Will use lot of photos.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Tue Aug 02, 2016 11:01 pm

What is fiberglass rail top modular fiberglass component framework? The simple answer is external framework pieces, with tabs. The tabs are at 90-degree to each other.

Think of a box. The rail top modular fiberglass components will be used to fasten top and sides together.

The best way to picture this is look at a You Hall trailer.

There are several places to buy from. What if you like to build a trailer where the external frame matches the top of your truck bed? Maybe you like the look of an external frame trailer. I will post a bit about making some tooling it not hard to do . The trailer I will be building is a very light weight box sleeper.
gallery/image.php?album_id=4395&image_id=143841
gallery/image.php?album_id=4395&image_id=143844
143954
Last edited by saywhatthat on Mon Aug 08, 2016 11:14 pm, edited 2 times in total.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Wed Aug 03, 2016 11:00 pm

.

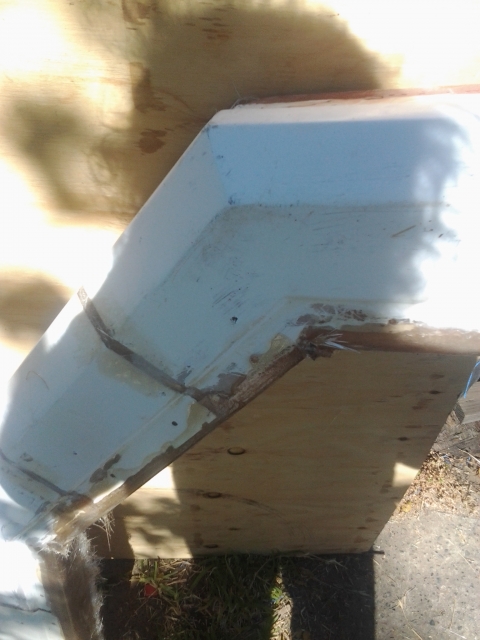

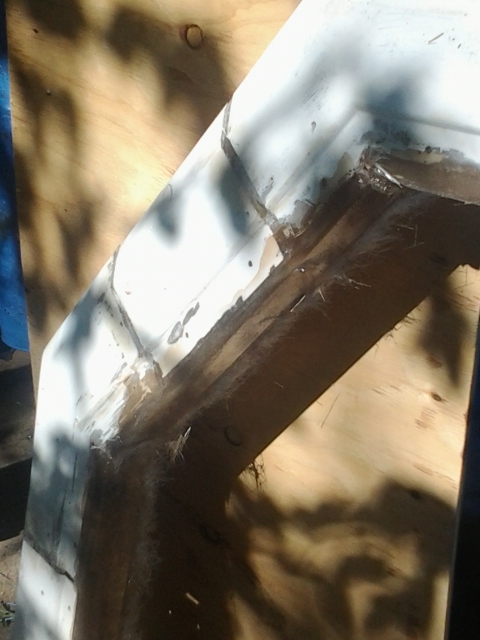

What I've done is use one piece of rail top .Cut it to the shape I planed to use. bonded it together ,Then blocked sand . I don't know why the pictures are dark .
The tooling dose not have to use a inside curve .Just easier
143856
143857
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Mon Aug 08, 2016 12:04 am

When making any tooling that need a 1/4 inch lip and using an inside are outside curve on the tooling. You will find the fastest and best costing is using this. http://www.homedepot.com/p/Woodgrain-Di ... /206178822
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Mon Aug 08, 2016 7:53 am

If you found a tub with an inside curve that you are planning to use as tooling. Using some sandpaper to rough up where the reset need to be placed. Using a glue gun. Glue the Lattice Molding where you need the lip to be. You need to add a filet on the Lattice Molding using some modeling clay. Using a dime coin. Runing down to shape the clay for a smooth transition. That way you do not get any air pockets in the gel-coat.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Tue Aug 09, 2016 11:12 pm

This Friday I'll start the tooling for the rear back header. The construction will be from a four-by-four Vinyl Fence Post cut in half. Using the inside curve.
On a different forum . Some engagement from three posters twenty five of them.
So will try to address them
"It cannot be done''
Done everyday even your 'friend' has been successful .
"Molds are hard to build and must be highly polished."
You will be bonding all joints that will need to be blocked sanded. So why do you need a polished part? Just to rough up so body filler has bit.
"All the joints will be weak"
The joints have a greater number of layers . I did a big mistake on the joints. Time was negatively affected. Will go in to detail soon.

"There no way to make a Foam Core Composite beam without a Vacuum Pump".
This is compelled everyday with no Vacuum Pump.

."Your friend invented this & their invention has been stolen" Could it be your friend likes to get $250.00 to $300 for every gallon of resin they use?

Yes here on J-1 Visa to Oct 12
Last edited by saywhatthat on Wed Aug 24, 2016 9:27 pm, edited 1 time in total.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby S. Heisley » Wed Aug 10, 2016 8:42 pm

Keep going and don't get discouraged. You've gotten almost 500 'looks' since you started. You'll probably start seeing more comments after you done more and posted more pictures.

We're watching! :SG
User avatar
S. Heisley
Super Lifetime Member

Posts: 8767
Images: 495
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Sat Aug 20, 2016 9:38 pm

Thank you Heisley .


Sorry been lacking. Here's a few pictures on how an inside curve will perform. Say you like the style of your truck bed top. You just make a plaster cast .Then add http://www.homedepot.com/p/Woodgrain-Di ... /206178822 to the plaster cast


The paint sticks will be the tabs you need for your finish part. The tabs are at 90-degree to each other. This is using dish washer tub


Trying to get a list of 3.5'' things you can use as tooling for the jeep people
144114

144113

144112
Last edited by saywhatthat on Wed Aug 24, 2016 9:25 pm, edited 1 time in total.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Sun Aug 21, 2016 7:57 am

This is tooling for the Explorer Box /chuck wagon / hard cover for a trailer. If you look at the bottom . You can see where 2''-by-1/4'' has been added .This creates the tab for the roof. If you look at the top . There's holes for adding 2-by- what ever to make side tabs.
By using an inside curve of something that made will save time, cost. This the same as the so called "TrailTop" modular trailer topper building components
144116
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby Ron Dickey » Sun Aug 21, 2016 5:34 pm

do you have any sketches you can take a photo of. you talk in milometers
you say it will be 1320 Wide 2159 MM Long 1244.6 MM High.
we say it will be 51 31/32 in Wide 85 in Long 49 + in High. The calculator I found would not take .6 so I rounded up.
Here at the lumber yard plywood comes in 4x8 foot pcs.
I am putting in terms I can grab. mm is so much more exacting then feet and inches.
I am rounding off or averaging the amount.

4 foot 4 in wide x 7 foot 1 in long x 4 foot 1 inch approximately high . and we can google a u-houl.
Are you building the frame or buying or using an old one. If old inspect it very closely and fix what needs to be fixed now.
sounds like you are moving right along can you take a shot of what you have done from far so we can see where the close shots are.

:thumbsup: keep going,
Ron
121377......134179
Inside almost done--Trolly top has opening windows & roof.doors need assembling--pictured above waley windows..galley 1/3 done
Cross Bow in Build Journals....http://www.tnttt.com/viewtopic.php?f=50&t=54108
User avatar
Ron Dickey
Silver Donating Member

Posts: 3067
Images: 711
Joined: Tue Apr 20, 2004 5:56 pm
Location: Central Coast, CA
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Sun Aug 21, 2016 10:22 pm

Using milometers I can count without removing my shoes .

The Rail top uses a side wall to add height . If you need a greater height . You can use on the bottom, through the center.

I've not chosen the style. As Rail top uses enclosed foam. There on the strong Side. So may install tilt-up roof in the back .That way I shall have standing room.


144122
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Tue Aug 23, 2016 3:18 am

As I’m planing for this first trailer to be a very light trailer. To assist that plan. To use one door in the rear. The uses of wiley windows. Up in the air for the flooring . .If I should use wood are bound fiberglass, foam floor. At first thought was to use the SUPERLIGHT CHASSIS – WELDED. I have the desire of an offered to be sold
So the better to use THE PICO-LIGHT frame.
In the shop we have a TRA Panel Test System. I placed one rail top 12 inches in length that had been foamed injected. With sheet foam & foam in a can. With a 2.54-cm die. One inch. Received sounds at 106 pounds, bulging at 135, cracking at 157, failure at 186.
As I plan to be as detail that possible. After reading over three hundred pages over the last few months. Found very little about using the fiberglass rail form of building. Most were a never ending advertisement for some trailers. There was nothing about how the fiberglass wants to distort. Making the part it shelf .Use of rail top pieces as semi- monocoque compressive structure to build a trailer
Last edited by saywhatthat on Sat Aug 27, 2016 10:02 am, edited 1 time in total.
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Fri Aug 26, 2016 9:38 am

TRA Panel Test System is a destructive test. Pressure is applied to one inch, then measured . Failure at 186 PSI consisted of the top tap moved a half of an inch. As the trailer is - monocoque structure .You should be able to install A 500 pound load on the roof
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Sat Aug 27, 2016 12:26 pm

Larger parts.
144314

144311

144313
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Re: D.I.Y Light weight sleeper using D.I.Y rail top componen

Postby saywhatthat » Tue Aug 30, 2016 8:36 pm

I have received the question . Can this form of building be used to do a more traditional trailer. Yes .Make your rail top from just two layers of 1.5 OZ mat. then cut reliefs . Then bend to profile you need.

144384

144383
Il suffit de le faire
fast, cheap, fiberglass/ foam stressed skin panels
viewtopic.php?f=50&t=73945

Build 4.5 by 8' using Trailtop fiberglass Components
http://tnttt.com/viewtopic.php?f=50&t=70729
User avatar
saywhatthat
The 300 Club

Posts: 498
Images: 135
Joined: Sat Jun 11, 2016 3:31 am
Top

Next

Return to Build Journals
