Working with flashing and beading

Postby ghcoe » Fri Jul 04, 2014 6:07 pm

I have been working with flashing and beading for some time now. I realized that it takes a bit of finess to work with. So thought I would start a thread on how I work with it.

I have been mainly using 2x3 and 2x2 flashing that is available at HD and Lowe's. Flashing can be found in the roofing section. The dimensions of the flashing are exact, unlike wood, so a piece of 2x2 flashing is actually 2" by 2". This works great with the 2" foam since you do not have to worry about material thickness differences.

The beading is used with dry wall. There are quite a few different types of beading. There is plastic, metal, paper covered metal, corner, bull nose (rounded), ect. I have found the best selection at HD, but Lowe's carries the one I have been using which is paper covered metal.

Some examples of how I have used the flashing and beading.

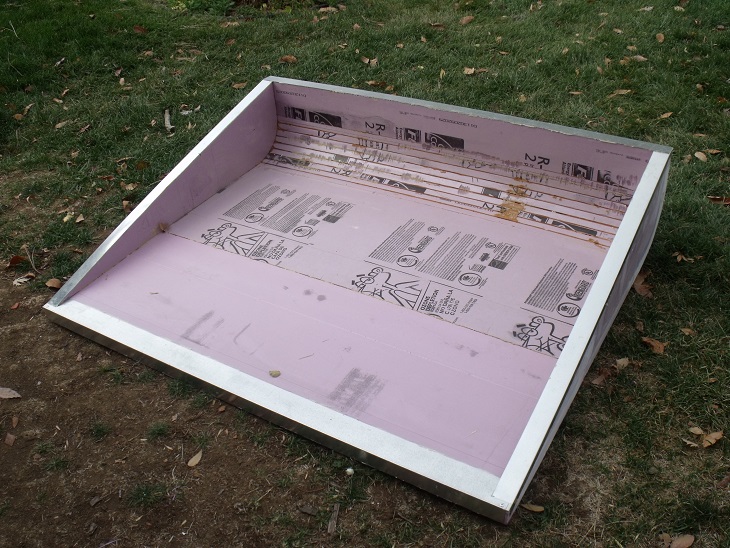

DSCF2207 small.jpg
Flashing used as front edge support/protection
DSCF2207 small.jpg (87.45 KiB) Viewed 2602 times


DSCF2854 small.jpg

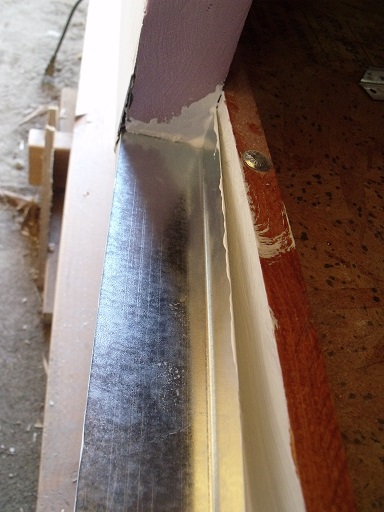

Flashing used as door threshold/frame
DSCF2854 small.jpg (114.44 KiB) Viewed 2602 times


DSCF2110 small.jpg
Papered drywall beading used in hatch edge protection
DSCF2110 small.jpg (122.77 KiB) Viewed 2602 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho

Re: Working with flashing and beading

Postby ghcoe » Sun Jul 06, 2014 9:02 am

A few more applications.

DSCF2403 small.jpg
Flashing used for galley door edge protection and hard points for latch and hinge
DSCF2403 small.jpg (224.16 KiB) Viewed 2557 times

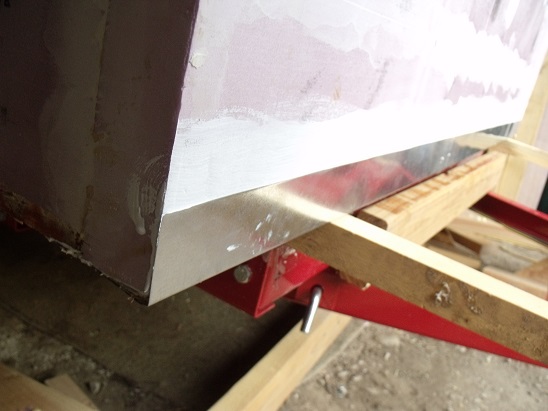

DSCF2217 small.jpg

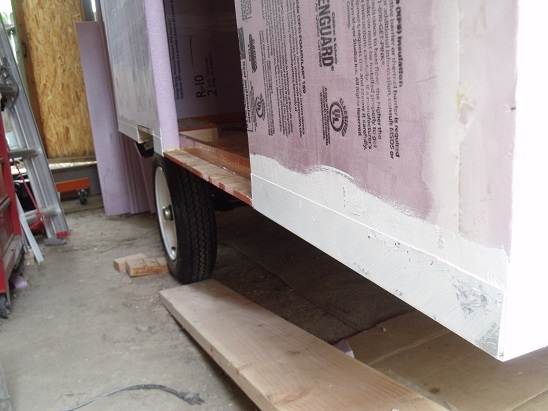

Flashing for bottom edge protection. Beading for galley hatch protection
DSCF2217 small.jpg (102.45 KiB) Viewed 2557 times


DSCF2224 small.jpg

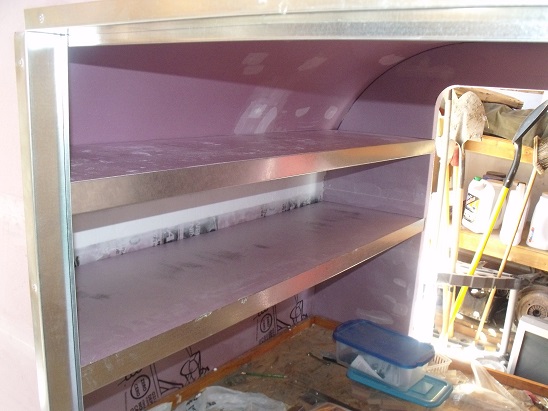

Flashing used for shelf edge protection and extra span strength
DSCF2224 small.jpg (106.86 KiB) Viewed 2557 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho

Re: Working with flashing and beading

Postby Olddog1 » Sun Jul 06, 2014 9:33 pm

ghcoe, I can't see but a few mechanical fasteners and they seem to be at joints. Is the beading attached with adhesive and if so what type?
User avatar
Olddog1
Teardrop Advisor

Posts: 69
Images: 11
Joined: Sat May 25, 2013 8:13 am
Location: Lakeland, Fl
Top

Re: Working with flashing and beading

Postby atahoekid » Mon Jul 07, 2014 12:01 am

As logical an application as that is, I can't believe that I never thought about it as I built the Road Foamie. It would have certainly made certain parts of the build easier.... I'll store this in the back of my skull somewhere for use the next time!!!!
Mel

"Believe in your abilities... Remember amateurs built the ark, professionals built the Titanic"

"Indecision may or may not be my problem" Jimmy Buffet


The Road Foamie Build Thread: viewtopic.php?t=45698
User avatar
atahoekid
Platinum Donating Member

Posts: 1773
Images: 158
Joined: Sat Jul 24, 2010 2:49 am
Location: Incline Village, NV
Top

Re: Working with flashing and beading

Postby pchast » Mon Jul 07, 2014 11:46 am

I think flashing used on my door edges may have
improved gasketing on my unit...
pchast
Platinum Donating Member

Posts: 1245
Images: 96
Joined: Mon Jan 28, 2013 5:47 pm
Location: Athens, NY
Top

Re: Working with flashing and beading

Postby atahoekid » Mon Jul 07, 2014 6:02 pm

You're probably right. One of the things that I think helps create a good seal is a defect free surface. The flashing certainly provides that...
Mel

"Believe in your abilities... Remember amateurs built the ark, professionals built the Titanic"

"Indecision may or may not be my problem" Jimmy Buffet


The Road Foamie Build Thread: viewtopic.php?t=45698
User avatar
atahoekid
Platinum Donating Member

Posts: 1773
Images: 158
Joined: Sat Jul 24, 2010 2:49 am
Location: Incline Village, NV
Top

Re: Working with flashing and beading

Postby ghcoe » Mon Jul 07, 2014 6:25 pm

Olddog1 wrote:ghcoe, I can't see but a few mechanical fasteners and they seem to be at joints. Is the beading attached with adhesive and if so what type?


I am using mostly using Great Stuff for flashing attachment. Seems to hold quite well unless you forget to clean off the flashing with alcohol first. I try to handle the flashing with gloves on once cleaned off to keep from reapplying more oils.

For the beading I have been using Gripper, although that may change.

I am using pop rivets at key locations.
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Working with flashing and beading

Postby ghcoe » Mon Jul 07, 2014 8:09 pm

So to start measure the length you need. Once the length is measured I use a small square to make my cut line. Then take a straight cut tin snip and make the cuts. Quick and easy.

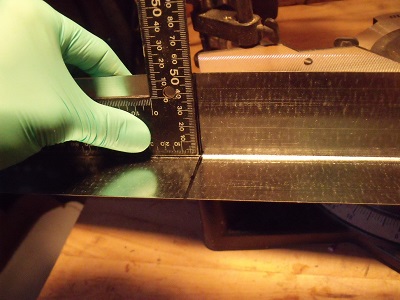

DSCF3152 small.jpg

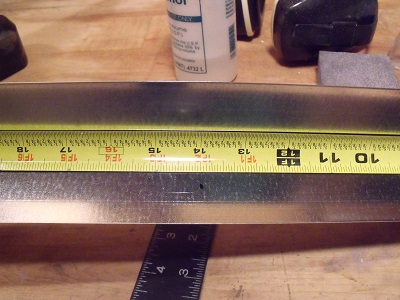

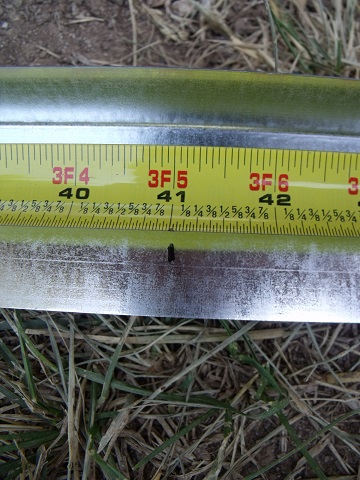

Measure
DSCF3152 small.jpg (132.48 KiB) Viewed 2470 times


DSCF3155 small.jpg
Mark with square
DSCF3155 small.jpg (124.65 KiB) Viewed 2470 times


DSCF3158 small.jpg

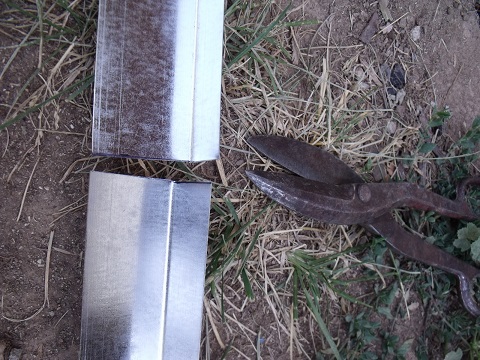

Cut with tin snips
DSCF3158 small.jpg (71.84 KiB) Viewed 2470 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Working with flashing and beading

Postby ghcoe » Mon Jul 07, 2014 8:24 pm

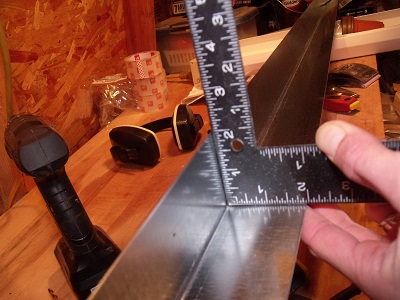

Once cut I check to see how the angle of the flashing looks.

DSCF3159 small.jpg
Piece cut
DSCF3159 small.jpg (131.89 KiB) Viewed 2468 times

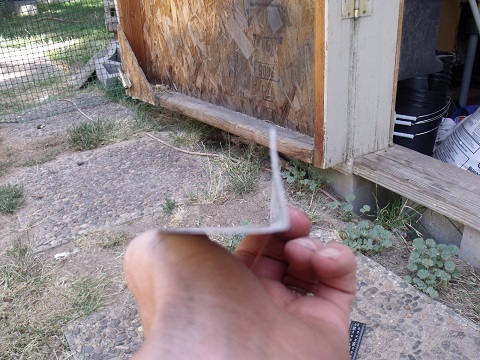

Usually the angle is a bit obtuse. This will work fine for inside corners. You want a little bit of presser from the angle to keep the outer edges down along the surface you are applying to.

DSCF3160 small.jpg

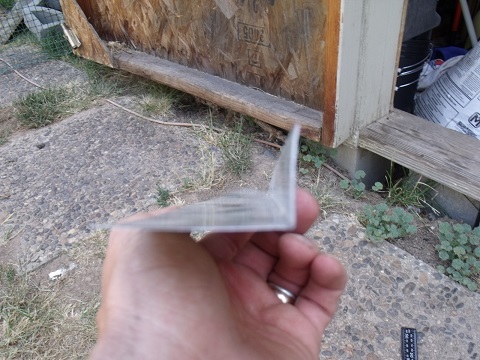

Obtuse angle
DSCF3160 small.jpg (112.81 KiB) Viewed 2468 times


If you are going around a outside corner you will want to bend the flashing a bit acute so that the same idea applies. A slight spring pressure to keep the edges down along the surface your applying to.

DSCF3162 small.jpg
Acute angle
DSCF3162 small.jpg (120.18 KiB) Viewed 2468 times


I also try to make the edges as straight as possible. Usually they are straight, but sometimes you will find that they will be bent.
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Working with flashing and beading

Postby tac422 » Mon Jul 07, 2014 8:29 pm

This is a GREAT idea !! :applause:
I copied this for The Big Pink, but I used the plastic moldings. They worked really well with Gripper.

110038

109916
User avatar
tac422
500 Club

Posts: 558
Images: 217
Joined: Sun Mar 17, 2013 11:39 am
Top

Re: Working with flashing and beading

Postby ghcoe » Thu Jul 10, 2014 7:52 pm

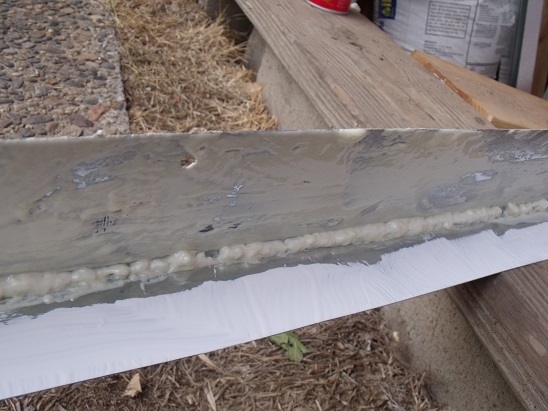

I have used both Gripper and Great Stuff to attach the flashing and beading. I have found that I like the Great Stuff better for the flashing. Usually I will spray the Great Stuff onto the flashing and then take a piece of scrap foam and mash it down and spread it to cover the entire side of the flashing being glued down. By spreading the Great Stuff it will cut down on the hydraulic effect of the foam as it cures. It will still foam up, but is much more controllable. When applying make sure that the flashing is seated all the way down to the corner. This is were the slight spring action of the obtuse or acute angle needs to be just right. Pictured below is a piece of flashing with both Gripper and Great Stuff applied.

DSCF2204 small.jpg
Glue
DSCF2204 small.jpg (109.92 KiB) Viewed 2392 times

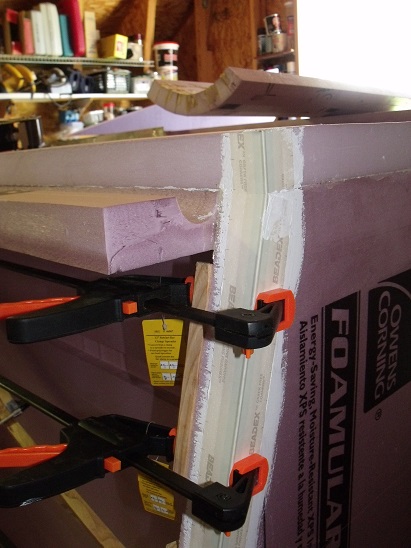

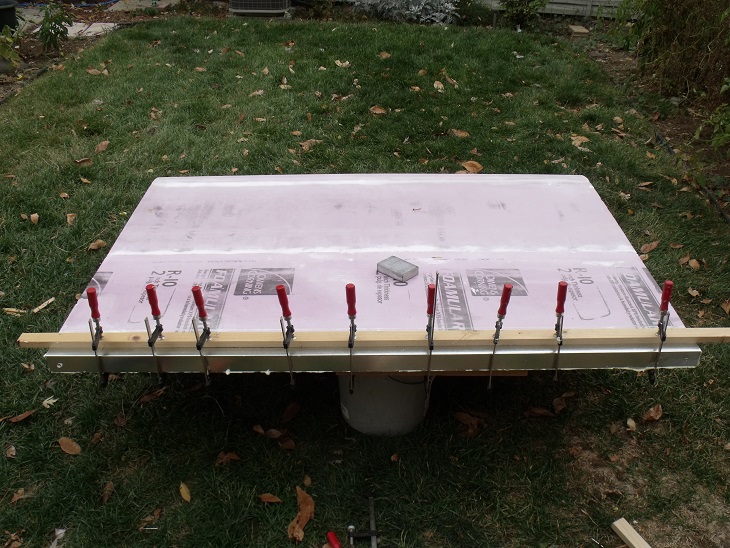

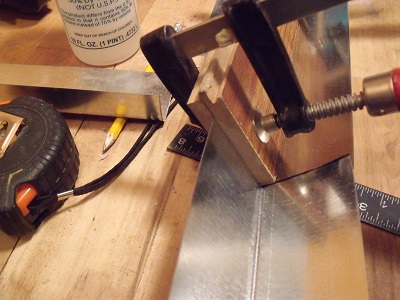

Clamps are applied. I only need to apply clamps to one side since the spring action of the angle will hold the opposite side down to the surface.

DSCF2406 small.jpg
Clamps
DSCF2406 small.jpg (215.9 KiB) Viewed 2392 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Vent installation

Postby ghcoe » Sat Dec 13, 2014 10:08 pm

I am going to walk through a vent reinforcement/hard point installation using flashing.

So I have a cutout in the foam for a roof vent and I have a roof vent. The dilemma? I need hard points to screw the vent to on the roof and inside for the garnish. Also in cutting a hole for the vent it has weakened the roof some in that area.

DSCF3338 s.jpg
Vent cutout
DSCF3338 s.jpg (83.41 KiB) Viewed 2105 times


The cure....... 2"X2" flashing.

DSCF3339 s.jpg
2"X2" flashing
DSCF3339 s.jpg (84.33 KiB) Viewed 2105 times

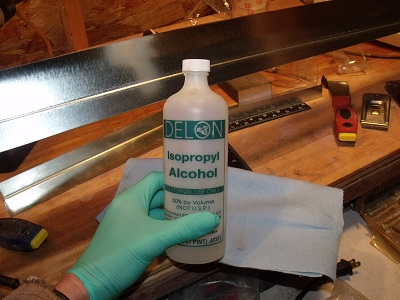

First I put on gloves and then wipe down the flashing with alcohol to remove any oily residue that may be present. The gloves protect my hands and keep me from getting more oil on the flashing. This will help with glue and paint bonding later.

DSCF3340 s.jpg
Gloves and Alcohol
DSCF3340 s.jpg (83.14 KiB) Viewed 2105 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Re: Vent installation

Postby ghcoe » Sat Dec 13, 2014 10:22 pm

So the vent is made for a 14"X14" hole. I take my measuring tape and measure and make a mark every 14" to make a square.

DSCF3343 s.jpg
Marking for the cuts
DSCF3343 s.jpg (79.54 KiB) Viewed 2105 times


Then I take a small square and make the cut lines on one side of the angle.

DSCF3344 s.jpg
Marking the cut lines
DSCF3344 s.jpg (79.38 KiB) Viewed 2105 times


On the last cut I mark a cut line on both sides of the angle.

DSCF3345 s.jpg
Cut for both sides of angle
DSCF3345 s.jpg (77.64 KiB) Viewed 2105 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Vent installation

Postby ghcoe » Sat Dec 13, 2014 10:32 pm

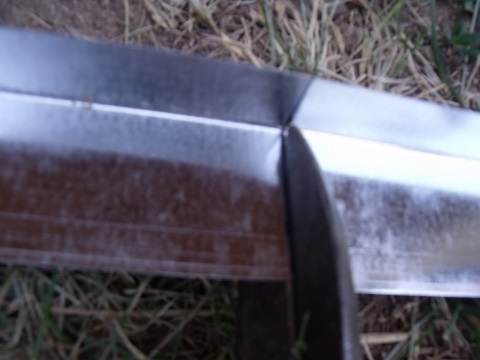

Now I take a straight cutting sheet metal cutting shear and make the cuts along the cut lines.

DSCF3346 s.jpg

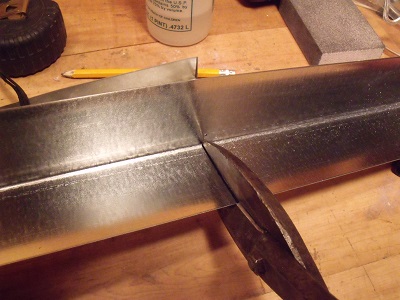

Making the cuts
DSCF3346 s.jpg (79.15 KiB) Viewed 2102 times

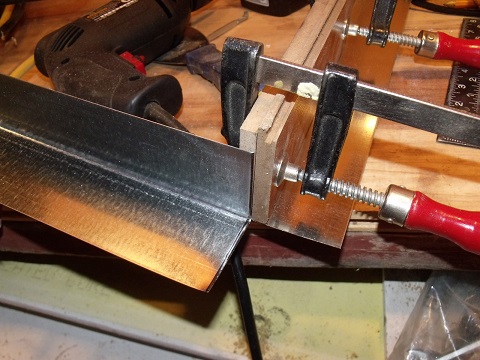

After the cuts I then need to make the bends. I used some scrap 1/4" flooring I had laying around to make a simple sheet metal break. I placed a piece on each side of the angle opposite of the cut and clamped them down. Make sure the ends are even with the opposite cut on both sides of the metal.

DSCF3347 s.jpg

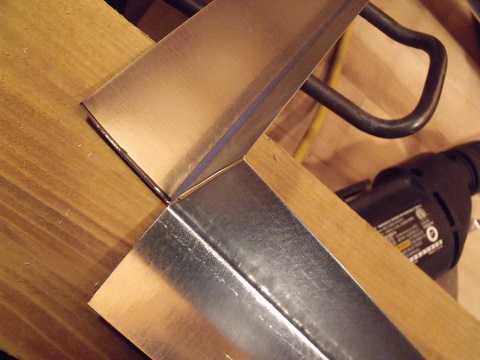

Simple sheet metal break
DSCF3347 s.jpg (82.42 KiB) Viewed 2102 times


Then I place another piece of the 1/4" flooring on the other side of the cut butting it up to the wood I had already clamped down. Now using the flooring as leverage at the bend I bent the metal over.

DSCF3348 s.jpg

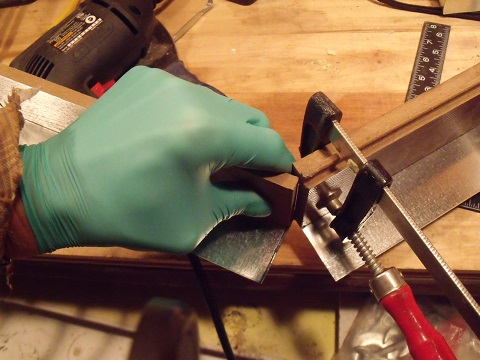

Making the bend
DSCF3348 s.jpg (97.63 KiB) Viewed 2102 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top

Vent installation

Postby ghcoe » Sat Dec 13, 2014 10:39 pm

So not being a perfect sheet metal break you will not get a nice crisp bend. :(

DSCF3349 s.jpg
Not a perfect bend
DSCF3349 s.jpg (108.6 KiB) Viewed 2099 times

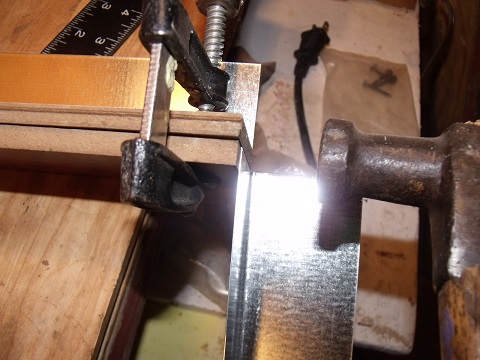

But, if you take a flat faced hammer and lightly tap the metal against the wood clamped for the break you can make it crisp. 8) Tap very lightly and evenly so you do not get any hammer marks in the flashing.

DSCF3351 s.jpg
Perfect
DSCF3351 s.jpg (96.35 KiB) Viewed 2099 times


You should get something like this. :thumbsup:

DSCF3355 s.jpg
Finished bend
DSCF3355 s.jpg (91.86 KiB) Viewed 2099 times
George.

Gorrilla Glue, Great Stuff and Gripper. The three G's of foamie construction.

My build viewtopic.php?t=54099
Working with flashing for foamie construction viewtopic.php?f=55&t=60303
Making a hot wire http://tnttt.com/viewtopic.php?f=55&t=55323
User avatar
ghcoe
1000 Club
1000 Club

Posts: 1051
Joined: Fri Dec 11, 2009 11:20 pm
Location: SW Idaho
Top
