And so it begins!!...

Postby MatBirch » Wed Mar 20, 2019 10:42 pm

The sun came out this week, so I was able to catch up a few things, make a dump run, and clear some space to get my trailer in to get started on my build. I picked up this gem over the winter for $100. The axle is straight, tires are good, steel is rusty, but sound.
As you can see, it was truly a gem in the condition I acquired it in- someone had turned an old camp trailer frame into a peach of a flatbed.

It took me about 45 minutes to strip all the crap off of it. Now I need to make another dump run! :lol:

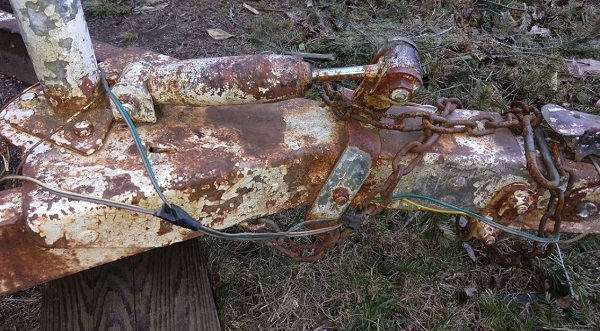

Anybody ever seen a hitch coupler like this? Surge brake? Stabilizer? Trailer has electric brakes...

MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm

Re: And so it begins!!...

Postby GPW » Thu Mar 21, 2019 5:28 am

Nice Find !!! Just a little cleanup and some paint … :thumbsup:
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14419
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans

Re: And so it begins!!...

Postby swoody126 » Thu Mar 21, 2019 7:09 am

GREAT SCORE

w/ some elbow grease a wire brush and a slathering of OSPHO it will be ready for another 50 years

:thumbsup:

sw
"we are the people our parents warned us about" jb
swoody126
The 300 Club

Posts: 481
Joined: Mon Feb 22, 2016 6:11 pm
Location: north of Ft Worth
Top

Re: And so it begins!!...

Postby tony.latham » Thu Mar 21, 2019 8:16 am

Is that a shock absorber on the coupler??? What’s it supposed to do??

T


Sent from my iPad using Tapatalk
User avatar
tony.latham
Gold Donating Member

Posts: 4138
Images: 17
Joined: Mon Jul 08, 2013 4:03 pm
Location: Middle of Idaho on the edge of nowhere
Top

Re: And so it begins!!...

Postby working on it » Thu Mar 21, 2019 8:33 am

MatBirch wrote:...Anybody ever seen a hitch coupler like this? Surge brake? Stabilizer? Trailer has electric brakes...
surge brake shock absorber.JPG
surge brake shock absorber.JPG (133.76 KiB) Viewed 1119 times

* Looks like the trailer had surge brakes (hydraulic), but was changed to electric brakes later on. I don't see where the old master cylinder was mounted (maybe underneath the tongue?). Perhaps the brake system rusted-out, and it was easier to convert to electric.
2013 HHRv "squareback/squaredrop", rugged, 4x8 TTT, 2220 lbs
  • *3500 lb Dexter EZ-Lube braked axle, 3000 lb.springs, active-progressive bumpstop suspension
  • *27 x 8.5-14LT AT tires (x 3) *Weight Distribution system for single-beam tongue
  • *100% LED's & GFCI outlets, 3x fans, AM/FM/CD/Aux. *A/C & heat, Optima AGM, inverter & charger(s)
  • *extended-run, on-board, 2500w generator *Coleman dual-fuel stove & lantern, Ikea grill, vintage skillet
  • *zinc/stainless front & side racks *98"L x 6" diameter rod & reel carrier tube on roof
156215157958148599
User avatar
working on it
1000 Club
1000 Club

Posts: 1966
Images: 455
Joined: Tue Oct 04, 2011 9:05 pm
Location: DFW Texas
Top

Re: And so it begins!!...

Postby MatBirch » Thu Mar 21, 2019 10:36 am

working on it wrote:
MatBirch wrote:...Anybody ever seen a hitch coupler like this? Surge brake? Stabilizer? Trailer has electric brakes...
surge brake shock absorber.JPG

* Looks like the trailer had surge brakes (hydraulic), but was changed to electric brakes later on. I don't see where the old master cylinder was mounted (maybe underneath the tongue?). Perhaps the brake system rusted-out, and it was easier to convert to electric.


My first thought was surge brake as well, but in thinking about it, it’s the wrong orientation? Also, there would have to be moving connection between the ball/coupler and the tongue. It is all solid, and shows no sign of being modified. There is also nothing under the frame. There is an old propane line, but nothing that could have headed to wheel cylinders or anything.
My guess is some sort of anti-sway or equalizing attachment :thinking:

Actually, just found this- appears to be the same, or at least was at one time... 1972 Jayco pop up
MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top

Re: And so it begins!!...

Postby MatBirch » Sun Mar 24, 2019 7:18 pm

So, I didn’t bother with a bunch of pics, since you’ve all seen plenty. I did a couple of experiments on some adhesion, materials, and fairing compound.
For the canvas on foam, I tried one with the old standard of thinned TB2, and one with gripper primer. I did the same for both- paint the surface, paint the back side of the canvas, then place it and smooth it in with a gloved hand. (Foam was sanded to break the shine and cleaned.) after a couple of hours, I top coated 1/2 of each sample.
I wasn’t planning to test at the end of the day, but when I was fiddling with it, the TB2 piece fell off in my hand! Like dollar store masking tape on waxed glass... I don’t know what I did wrong. That led me to go ahead and test the gripper piece. It was really impressive! I only pulled a little bit to opt for full cure. After 24 hours, I pulled a bit more and it was about 1/2 again better yet! Very impressed. I went back and put another TB2 sample together, and this time went with full strength TB2. My thought is that maybe I was too thin on the last one??? I’ll give it a day or two, but I’m sold on the gripper and am planning using it.

For fairing compound, I mixed up a batch of Red Devil ultralight spackle with a bit of gripper. I didn’t have a good way to measure, so I just sort of winged it. I made it so it was thick enough not to flow out, and dribbles would hold a form. It spreads with a spreader, but you’re not gonna brush it. I think I could have gone even thicker with a little less gripper. My goal was easy sanding but with better stick and flexibility than the spackle alone. I had an old test I’d done with gripper on plywood where I’d put a second layer of canvas on 1/2, creating a seam. I spread a nice thick layer, smoothing out the seam trying to hide it. I also put some damage in a hunk of foam to try it as a repair filler. I left it overnight to dry. It did shrink a bit, and seemed like maybe it wasn’t cured throughout. It seemed pretty soft. I went ahead and tried sanding it, expecting it to just gum up and get messsy. Turns out it was indeed dry throughout, and just flexible. It sanded quite well and didn’t gum up at all. Exactly what I was hoping for. I went to the foam piece and expected to break chunks off like you would with a pile of dried spackle. It would not. It will not come off the foam at all. Little bits of foam just come away with it. Again, very impressive! Lastly, I peeled the second layer of canvas off of the plywood sample. It peeled off down to the overlap, and finally came off. The compound stayed stuck strong to the canvas, even doubled back while peeling! There are micro cracks in it now, but it’s all still one homogenous piece of canvas/gripper/gripper&spackle.
Next I plan on trying it as a gap filling adhesive for corner joints and butt joints on foam. If the sample on the bare foam is any indication, it will provide a super strong (relative term) joint with a level of flexibility allowing for some forgiveness during construction.
MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top

Re: And so it begins!!...

Postby rjgimp » Mon Mar 25, 2019 2:41 am

MatBirch wrote:
Anybody ever seen a hitch coupler like this? Surge brake? Stabilizer? Trailer has electric brakes...



I have a late 60s Steury popup frame I am intending to build on. It has surge brakes and a separate similar shock absorber looking thingy. I don't recall if it is part of the surge mechanism or not. It's in a storage unit, I'll be up there in a few days and I can get a better look at it and maybe a picture.
-Rob


I hope to make it to a Procrastinators Anonymous meeting someday...
just as soon as the steering committee gets around to scheduling one!
User avatar
rjgimp
Teardrop Master

Posts: 189
Images: 1
Joined: Fri Feb 22, 2019 3:59 am
Location: Saint Paul MN
Top

Re: And so it begins!!...

Postby MatBirch » Sun Mar 31, 2019 8:53 pm

Got some good work done this weekend around helping my daughter load up and move out of the house to her first apartment.

I got the junk hitch and surge brake cut off, all the random bits and bolts cut out, the old bed frame angle iron cut off. I also dropped the axle out to make it easier to handle the frame mods. Spent a couple hours with the wire wheel and the pressure washer so I could get it all rust treated and primed.



MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top

Re: And so it begins!!...

Postby GPW » Mon Apr 01, 2019 5:01 am

Looks like new !!! ish !!! :thumbsup: Good save !!!
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14419
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top

Re: And so it begins!!...

Postby MatBirch » Tue Apr 02, 2019 10:10 pm

GPW wrote:Looks like new !!! ish !!! :thumbsup: Good save !!!


Thanks!

Foam question- I have some areas in my plans that I could save some money by using EPS beadboard for inner layers. I can’t find anything locally other than the stuff at the box stores with the plastic and foil layers. Anyone peeled those layers off to allow proper gluing and workability? Does it just tear up the foam?
MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top

Re: And so it begins!!...

Postby GPW » Wed Apr 03, 2019 5:02 am

Maybe while at the store , just could peel a little sample off a corner , see what happens … And then considering how everything else sticks to foam , it “should” come off easily ( maybe ? ) …. Testing is the only way to tell … unless someone here has tried it already ...
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14419
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top

Re: And so it begins!!...

Postby MatBirch » Wed Apr 03, 2019 8:54 pm

GPW wrote:Maybe while at the store , just could peel a little sample off a corner , see what happens … And then considering how everything else sticks to foam , it “should” come off easily ( maybe ? ) …. Testing is the only way to tell … unless someone here has tried it already ...


Well, I should have thought of that myself, lol.
And the answer is... Yes, it peels right off. They don’t get any better bond than any of the rest of us.
MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top

Re: And so it begins!!...

Postby GPW » Thu Apr 04, 2019 5:28 am

MB, The Foam itself is the weakest part of all the gluing ( well tested here ) …. Why we go for the “Sock” effect , the canvas skin holding everything together rather than depending on an iffy glue join … Canvas glues to canvas VERY well … becomes strong and leathery …Certainly no durability problem , mine lives outside All the time … ;)
Probably the hardest part of building the Foamie is sourcing the XPS Foam we like … Sometimes we find something readily available , but not the optimal material … like my Trailer made of the beaded EPS Foam which doesn’t even glue as good as others , but has worked Fine for many years now … It’s what I could readily find … and it was about a fourth of the price of the Blu/Pink Foam we wanted to use …( we did use some Blu foam on the back …naturally after we had everything together , we found an easy/cheaper source of the Blue Foam … ) Which we’ll use for our next trailer … :D

My first EPS foam source was a fella on the Bayou , had a bunch of it … Big blocks we had to hot wire sheets out of … We used what we could get … and afford ...
There’s no place like Foam !
User avatar
GPW
Gold Donating Member

Posts: 14419
Images: 546
Joined: Thu Feb 09, 2006 7:58 pm
Location: New Orleans
Top

Re: And so it begins!!...

Postby MatBirch » Sat Jul 06, 2019 10:17 pm

Got a little update finally! It’s been a busy spring and start to the summer, and money is short. I finally got two nickels to rub together and got a little bit done on the trailer.
First however, I needed a place out of the weather so I built a quick and dirty shelter. It’s been working out very well. The garage tent things never last anyway, and this gives me more height to work.

I picked up a length of steel angle to add to my scraps, and was able to get all the repairs and additions to the frame done.



Tomorrow I should be able to get the tongue replaced and welded up. Then I’ll fab up some fender wells, so I can see about that floor! 8)
MatBirch
Teardrop Advisor

Posts: 65
Images: 0
Joined: Mon Feb 11, 2019 3:54 pm
Top
