2 Person Standy

Member designs created in Sketchup or other cad program

2 Person Standy

Postby danlott » Wed Feb 29, 2012 4:52 pm

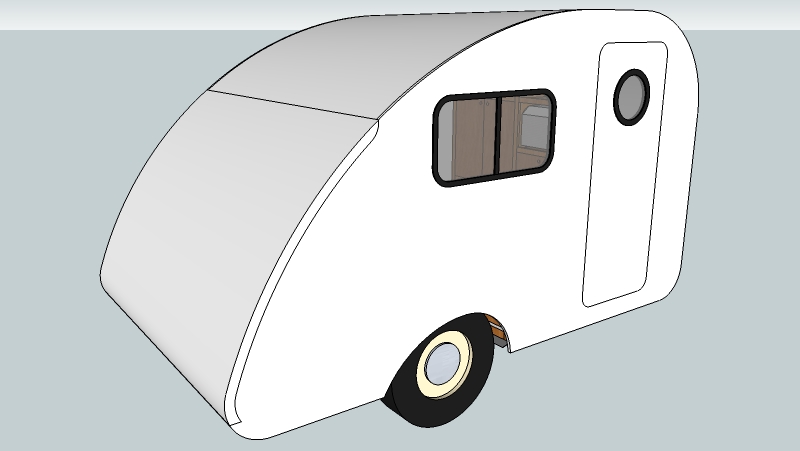

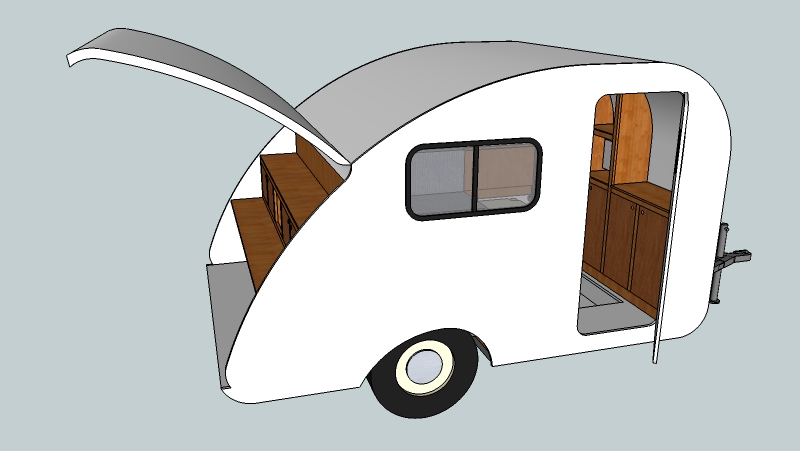

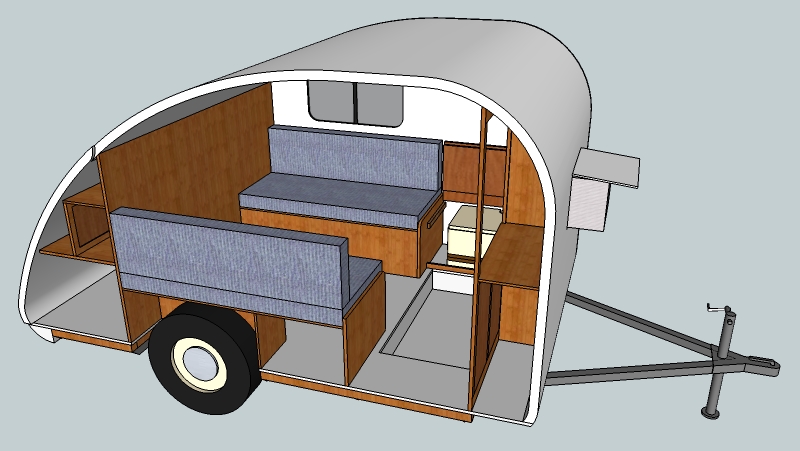

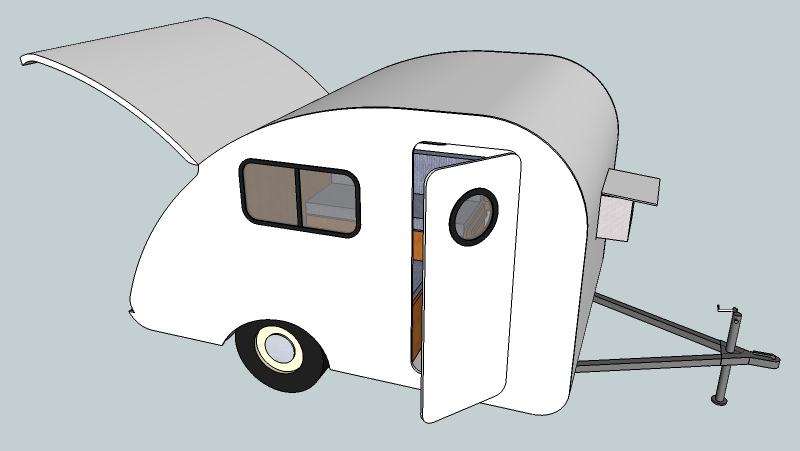

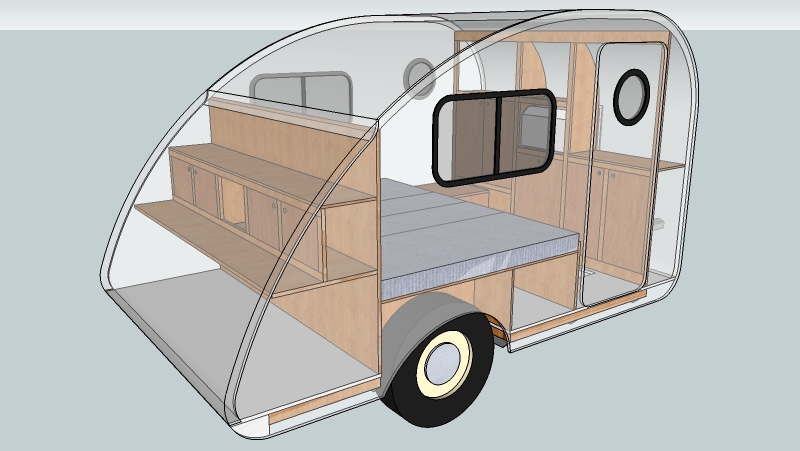

Here is one that I did a little while back. It has a rear galley kitchen. An air conditioner that slides out the front. It also has a porta potty.

2 person standy.skp
2 person standy
(1.26 MiB) Downloaded 1303 times








2 person standy.skp
2 person standy
(1.26 MiB) Downloaded 1303 times


Dan
Hoplite Traveler Build thread
Image Image
Life is what happens to you while you're busy making other plans.
User avatar
danlott
Donating Member

Posts: 869
Images: 261
Joined: Fri Mar 06, 2009 2:18 pm
Location: Winnemucca, Nevada

Re: 2 Person Standy

Postby jonw » Wed Feb 29, 2012 6:45 pm

Dan -

Nice design. I've been having thoughts in that direction as well, but am debating whether to have a rear external galley or just have it in the inside where I can take the stove outside for cooking (most of the time).

Thanks for posting.
User avatar
jonw
Titanium Donating Member

Posts: 525
Images: 163
Joined: Thu Oct 22, 2009 6:22 pm
Location: Marlboro, Mass.

Re: 2 Person Standy

Postby Alfie » Fri Mar 02, 2012 11:04 am

I think this is a very fine design. Keep us posted.
User avatar
Alfie
Teardrop Builder

Posts: 39
Images: 61
Joined: Wed Feb 22, 2012 2:45 am
Location: Sierra Mountains, California
Top

Re: 2 Person Standy

Postby djdawg » Sat Nov 17, 2012 8:17 pm

This is awesome! I just don't know how to take these CAD drawings and turn them into a an actual unit....how does a person start adding correct dimensions to these CAD drawings? I'm such a newbie...ha ha.
Kevin
Bellingham, WA
User avatar
djdawg
Teardrop Master

Posts: 129
Joined: Wed Nov 14, 2012 11:36 am
Top

Re: 2 Person Standy

Postby Steve Frederick » Sun Nov 18, 2012 6:13 pm

djdawg wrote:This is awesome! I just don't know how to take these CAD drawings and turn them into a an actual unit....how does a person start adding correct dimensions to these CAD drawings? I'm such a newbie...ha ha.


You don't need CAD! Just print the side view on graph paper. Once you set the length, you can then assign a dimension to the squares. Lay out squares in full size on a pattern. Then layout where the profile intersects the squares. Search Lofting.
Blessings, Steve
Adirondacks, Upstate New York
Building Journals
The Shop Manual's 8-years old!! Thank's everyone!
New! 'Rondack Lodge Plans!Order Here!
User avatar
Steve Frederick
Custom Teardrop Builder

Posts: 1979
Images: 29
Joined: Thu Apr 15, 2004 5:02 pm
Location: Upstate New York, Adirondacks (Great Sacandaga Lake)
Top

Re: 2 Person Standy

Postby danlott » Mon Nov 19, 2012 1:04 am

All the dimensions are in the file. You just need to download the free program. You can overlay a grid on the side in the program and get all the measurements you need. You can also use the tape measuretool to get all the measurements.

Dan
Hoplite Traveler Build thread
Image Image
Life is what happens to you while you're busy making other plans.
User avatar
danlott
Donating Member

Posts: 869
Images: 261
Joined: Fri Mar 06, 2009 2:18 pm
Location: Winnemucca, Nevada
Top

Re: 2 Person Standy

Postby Mark72 » Wed Dec 12, 2012 8:34 pm

Dan, I love your little standy. I am having a hard time figuring out the rear arc on that drawing with the measuring tape. Also no luck trying to figure out how to get a grid on the drawing.I am a little cad chalenged.

Mark
User avatar
Mark72
Donating Member

Posts: 997
Images: 127
Joined: Sun Dec 10, 2006 5:35 pm
Location: Indiana-Fredericksburg
Top

Re: 2 Person Standy

Postby webbaldo » Thu Feb 28, 2013 8:26 am

I really like this design.

Im waiting till my first td is finished and ive used it for at least 1 season so see what I need to change, happy with etc.

Your design seems very good though!
Likes to think he's Norm from New Yankee Workshop

In reality, hes a average DIY'er with a 18x16ft Wooden shed
webbaldo
Teardrop Master

Posts: 243
Images: 0
Joined: Tue Jun 12, 2012 1:51 pm
Location: Europe
Top

Re: 2 Person Standy

Postby Dean in Ct. » Thu Feb 28, 2013 4:49 pm

I like this a lot and I haven't even finished my 1st! Your drawings are bookmarked and when I start #2 I'll be revisiting them!
Dean in Ct.
Teardrop Master

Posts: 161
Images: 32
Joined: Sat Dec 17, 2011 2:27 pm
Location: S.E. Connecticut U.S.A.
Top

Re: 2 Person Standy

Postby Fyddler » Tue Mar 19, 2013 9:28 am

I really like this design. Has anyone built this have an approximate idea on the weight? I'm looking to tow with a vehicle with a 1500 pound tow capacity.
To err is human, to really foul up requires a computer

Build Log: http://www.tnttt.com/viewtopic.php?f=50&t=55017
User avatar
Fyddler
The 300 Club

Posts: 349
Joined: Sat Sep 01, 2012 9:52 am
Location: Port Orchard, WA
Top

Re: 2 Person Standy

Postby danlott » Tue Mar 19, 2013 8:10 pm

Fyddler wrote:I really like this design. Has anyone built this have an approximate idea on the weight? I'm looking to tow with a vehicle with a 1500 pound tow capacity.


I am not sure what it would weigh, but I think 1400 pounds would be close. You would want brakes on anything that is close to your tow capacity.

Dan
Hoplite Traveler Build thread
Image Image
Life is what happens to you while you're busy making other plans.
User avatar
danlott
Donating Member

Posts: 869
Images: 261
Joined: Fri Mar 06, 2009 2:18 pm
Location: Winnemucca, Nevada
Top

Re: 2 Person Standy

Postby Fyddler » Wed Mar 20, 2013 12:52 am

Thanks! I actually found some better data from ford and I'm good to 3,400. I'm modifying the design for a boat trailer I have, and adding a foot in length for a bit more room and a queen size bed.
To err is human, to really foul up requires a computer

Build Log: http://www.tnttt.com/viewtopic.php?f=50&t=55017
User avatar
Fyddler
The 300 Club

Posts: 349
Joined: Sat Sep 01, 2012 9:52 am
Location: Port Orchard, WA
Top

Re: 2 Person Standy

Postby down under tech » Mon Mar 25, 2013 12:15 am

Hello Dan: Do you have these plans in a PDF? I can't open this on my Apple. I like this standy you have come up with. Thanks,
Johnny D.

"If you think you can, you can. If you think you can't, your right !" ... Henry Ford

"The Silver Nugget" Build
viewtopic.php?t=35314&postdays=0&postorder=asc&start=0
User avatar
down under tech
Silver Donating Member

Posts: 565
Images: 571
Joined: Sat Feb 06, 2010 10:01 pm
Location: Reno, Nevada
Top

Re: 2 Person Standy

Postby mezmo » Mon Mar 25, 2013 11:56 pm

This, very similar, rebuilt 1950 Trail Feather slouchy TD is currently on ebay:

http://cgi.ebay.com/ebaymotors/VINTAGE- ... 1109288676

Cheers,
Norm/mezmo
If you have a house - you have a hobby.
User avatar
mezmo
1000 Club
1000 Club

Posts: 1817
Images: 194
Joined: Fri Jan 01, 2010 4:11 am
Location: Columbia, SC
Top

Re: 2 Person Standy

Postby donnan » Wed May 15, 2013 3:58 am

This is a really nice trailer Dan. I applaude you for the design. :applause: Thank you so much.

Is there any way to convert the measurements over to metric easily?

I may build one of these. :D

Cheers
Paul
Life is too short not to enjoy it :)
When I gamble I like to win.
http://www.realpayers.com
User avatar
donnan
Teardrop Advisor

Posts: 64
Images: 8
Joined: Sun May 12, 2013 12:18 pm
Location: Tamworth Australia
Top
