Re: CNC Build

Postby capnTelescope » Sat Feb 08, 2014 11:18 am

tac422 wrote:PS: walls are looking great !
looks like you built the wiring in ?

Thanks TAC. Yes, the wiring is built in. I don't want exposed wiring, so it runs inside the wall along the top. This post shows how I did it. Basically, the left wall brings power forward from the galley and the right wall mostly brings power back from the TV. All connections will be made in the galley.

RandyG wrote:A granite countertop... might as well say to hell with light weight and build the whole thing out of stone. :lol:

I know. :( I'd need an anti-gravity unit $> or I'd have to move the axle back a couple of extra feet. At least it would be solid as a rock. :roll:

OTOH, Rustoleum has a granite-looking Countertop Transformations product that looks kinda like granite. I used their similar garage floor product once. It worked out real good. Hey! I could do the exterior with that and it would look like a Flintstone Drop! :thumbsup:

AlgoDan wrote:Hey Brad its looking good, I will keep watching if you keep building lol...

Thanks, Dan. I'll keep forging ahead. Stay tuned!

Thanks, everyone, for stopping by!
I'll burn that bridge when I come to it.

Brad

My Build
User avatar
capnTelescope
Lifetime member

Posts: 1089
Images: 360
Joined: Sun Jun 27, 2004 3:44 pm
Location: Round Rock, TX

Re: CNC Build

Postby capnTelescope » Sun Feb 09, 2014 12:21 pm

Lots of router dust!

Yesterday I went to work on the starboard wall, and finished all the cuts on the front end. Both walls are now at the same level of done-ness, not counting some detail work that should get done today.

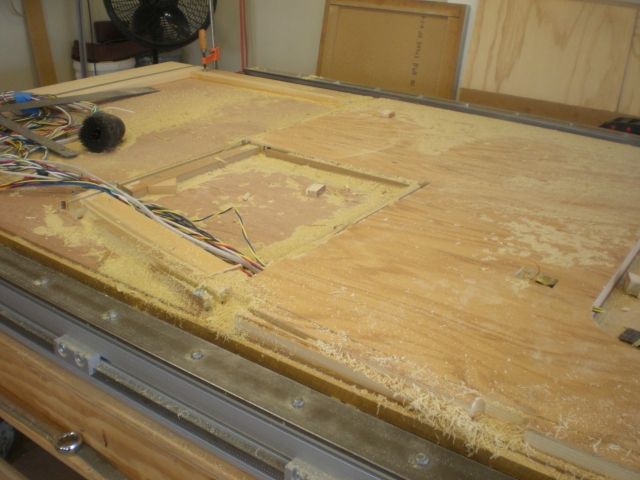

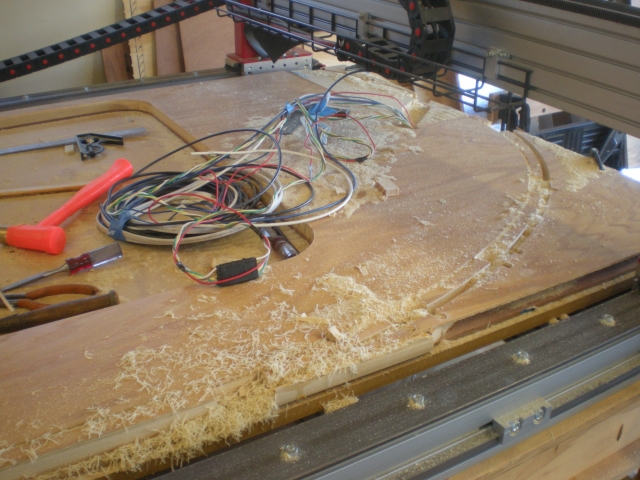

Here's some shots before cleanup:

I need to do some inspection with photos. I'll be reporting back. Lots of video to edit down. Stay tuned!
I'll burn that bridge when I come to it.

Brad

My Build
User avatar
capnTelescope
Lifetime member

Posts: 1089
Images: 360
Joined: Sun Jun 27, 2004 3:44 pm
Location: Round Rock, TX

Re: CNC Build

Postby capnTelescope » Sun Feb 09, 2014 7:26 pm

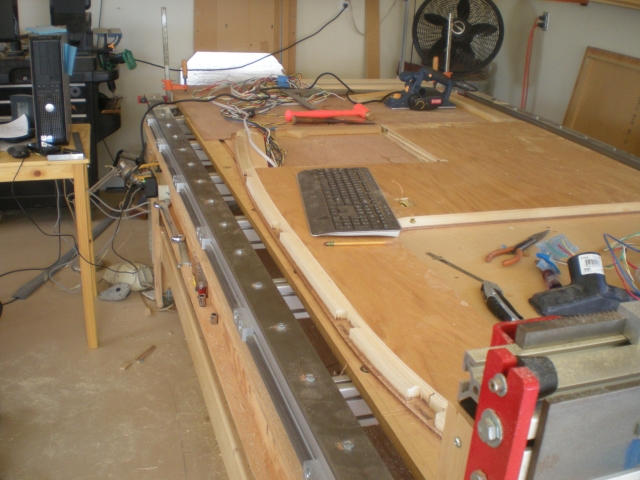

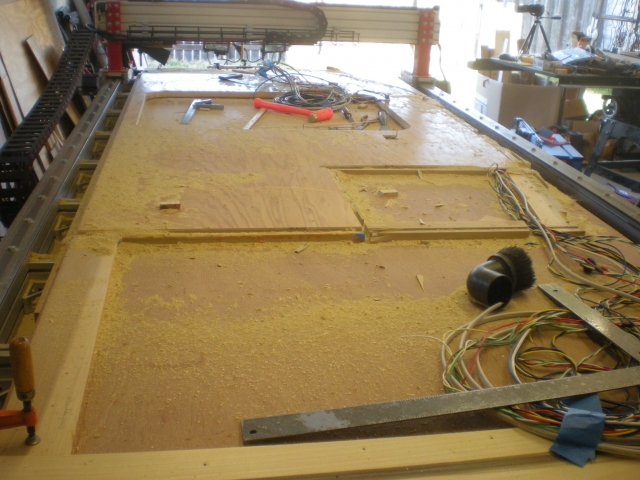

Small steps today. First, a couple more shots from yesterday, showing the semi-finished wall after cleanup.

Next, I did some inspection.

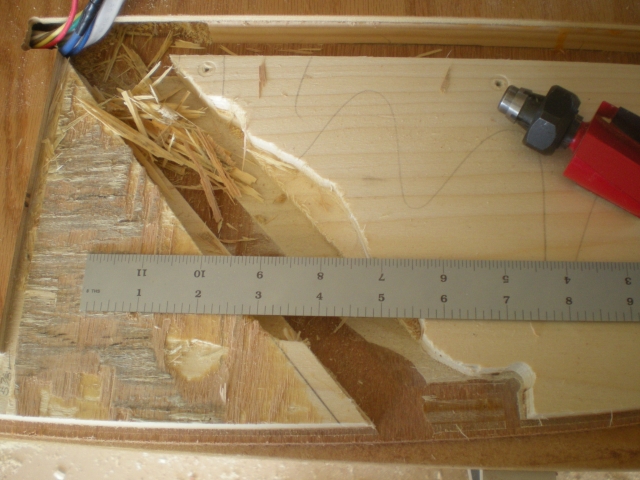

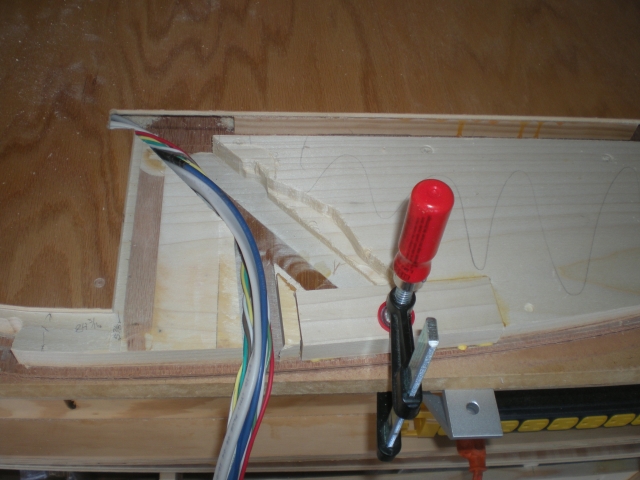

A channel I freehand routed in the nose to let wiring into the tongue box blasted through one of the spar pockets. Repair is required. :(

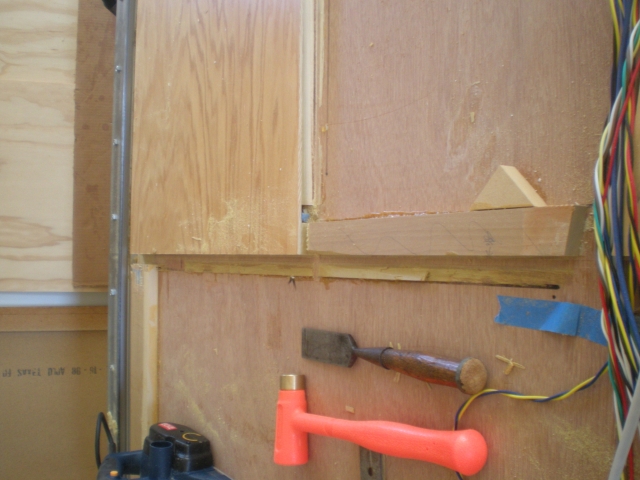

The aft bulkhead framing was off a bit, and left a big chunk of wood to be removed. Turn your head to the left and the pic makes more sense. Sorry 'bout that. :oops:

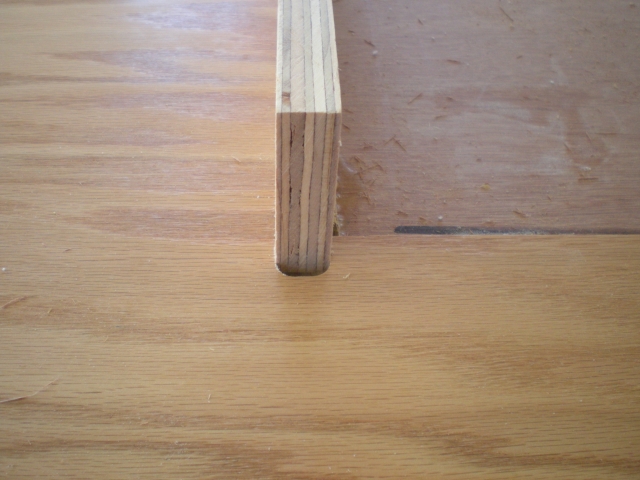

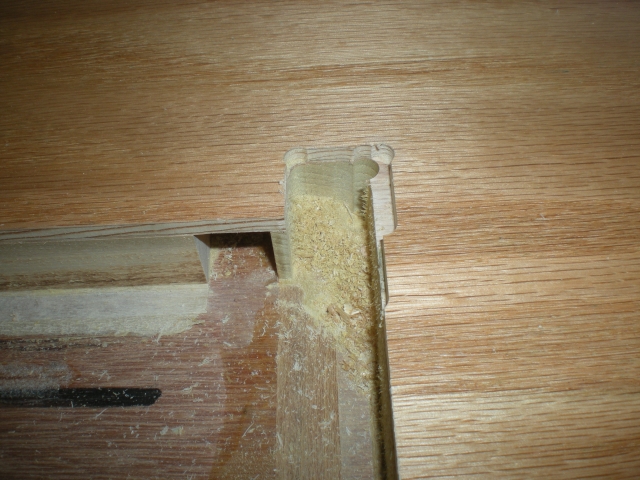

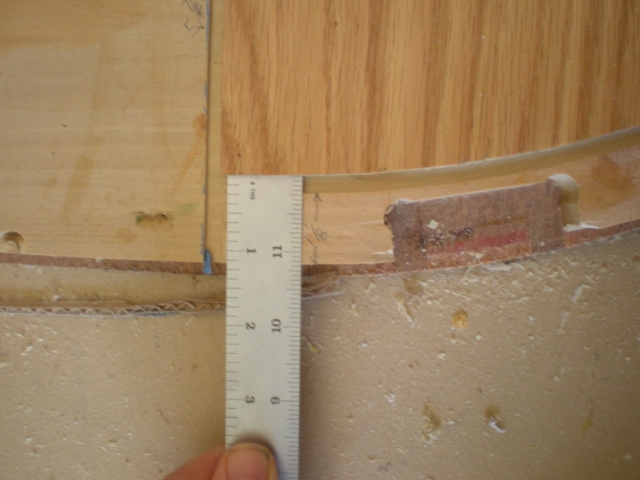

I used the 1/2" bit to rout the cabin cabinet's faceplate framer, which left gaposis at the bottom. I should have used the 1/4 and corner relief here, as well as on the left wall.

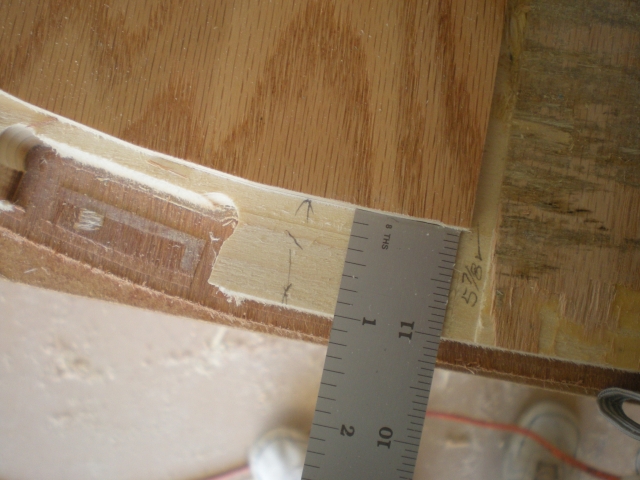

The space between the ceiling and the roof (the attic? :laughter: ) turned out just right on the right wall,
but is off by 1/8" on the left wall.
I don't think this will be a big deal, but it just annoys me. This is undoubtedly due to the earlier problems I was having with the router. BTW, the router is working semi-flawlessly since the upgrade. There are a couple of new idiosyncrasies, but the bad old ones are gone. :thumbsup: :D It's so much easier to get work done when you can trust the machine not to wander around on its own.

On to the repair work:

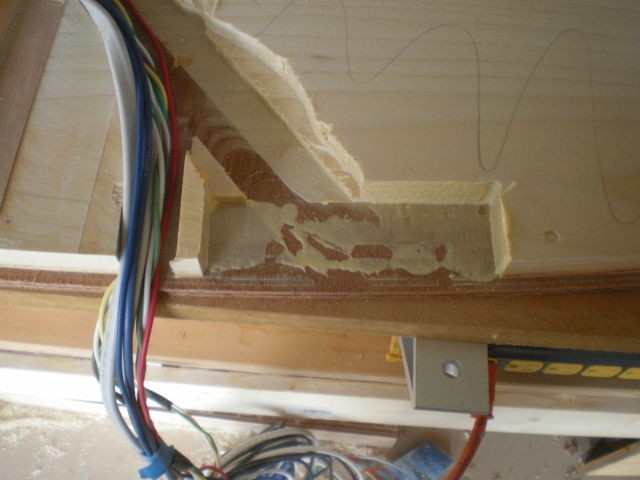

Fixing the zit on the nose is fairly straightforward. Rout out an area for a patch piece and reroute the wiring:

Glue in a patch piece to be machined later:

Trying to fix the issue with the cabinet faceplate cut, I added a zit and made matters worse. This is when I discovered that some of the cut planning doesn't agree with the drawings. Blame falls on the Engineering Department. GIGO. :x

It's beer thirty, and I have a big video backlog. Thanks for stopping by! :beer:
