"The X-Cubed" C.T.T.

...ask your questions in the appropriate forums BUT document your build here...preferably in a single thread...dates for updates, are appreciated....

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Wed Mar 19, 2014 9:35 pm

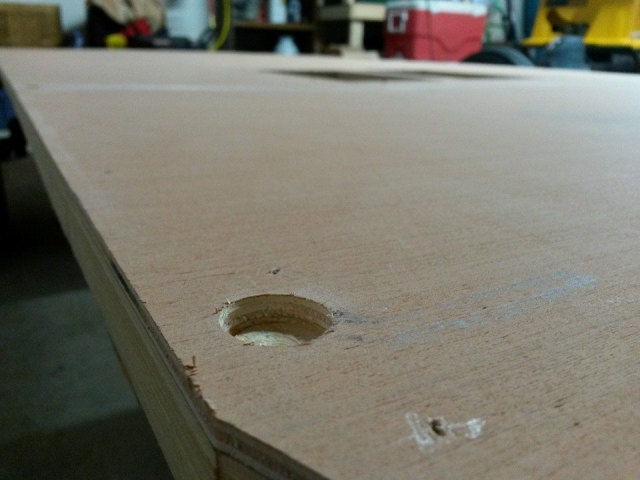

As I mentioned previously, the bottom of the floor needed to have recesses drilled in it at all the frames bolts. I picked up a set of forstner bits after work today, which gave my recesses a nice flat clean finish. After drilling them, I flipped the floor over and they all aligned perfectly!

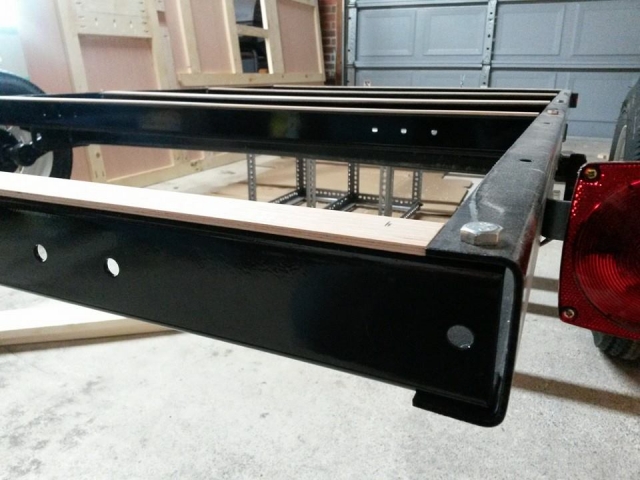

Also, because of the way the trailer kits fit together, skinny spacers needed to be cut to go on top of the crossmembers so the floor sits completely flat. I used the same 5.0mm (3/16") plywood underlayment that I'm using everywhere else.

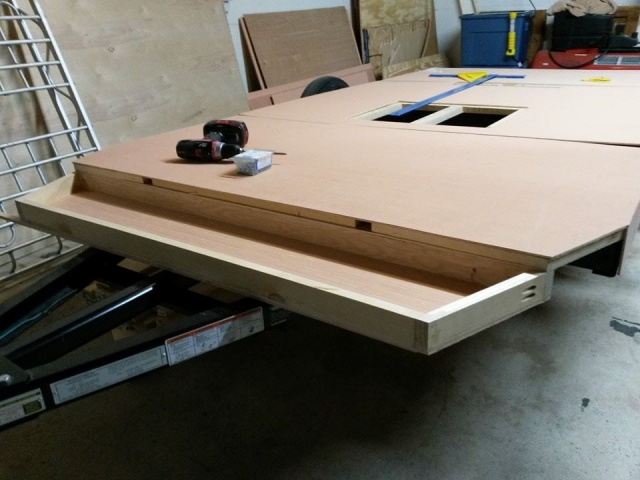

Once I got the floor fitted back in place, I worked on the rear section of the floor. Its hard to see whats going on here, but this is the angled bottom edge of the galley floor, where the hatch seals against. Better pictures to come.

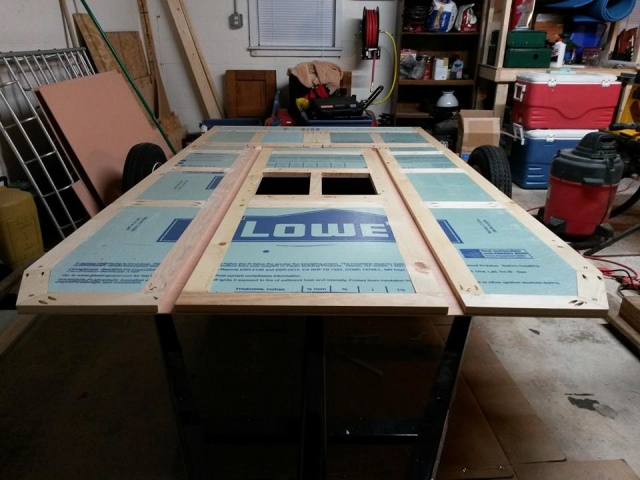

And after the rear section of the floor was finished, I could move on to insulation!


All thats left to do is skin the top, paint the underside with asphalt fence post paint, and then its onto the wall framing. :twisted:
Last edited by absolutsnwbrdr on Mon Nov 21, 2016 12:47 pm, edited 2 times in total.
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Thu Mar 20, 2014 11:11 pm

More progress tonight!

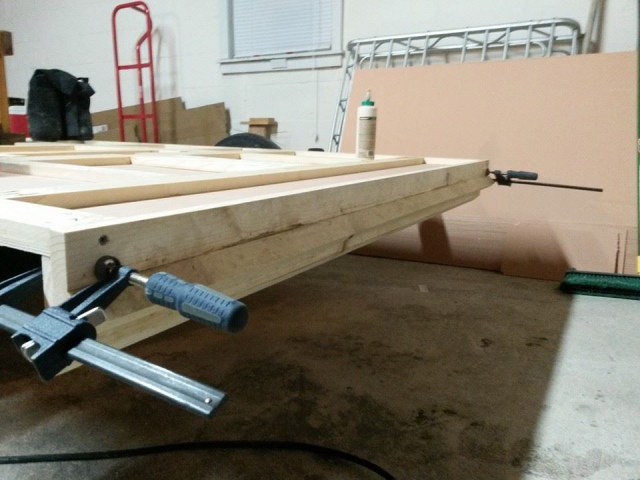

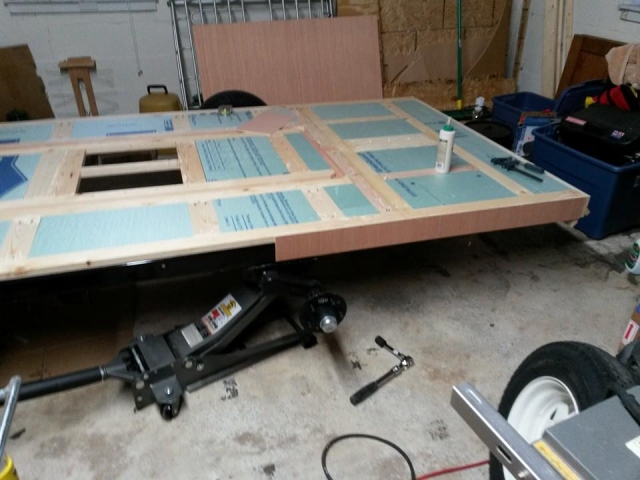

I pulled the wheels and started the "skirt" panels around the edge of the floor. These help space the walls out from the frame and will end up giving me an extra 3/8" width inside the cabin. It also helps the walls miss the end of the tongue rails where they stick out from the side just a little bit. These pieces get put on before the top skin, because the top skin will be routed out to the full size of the cabin floor.

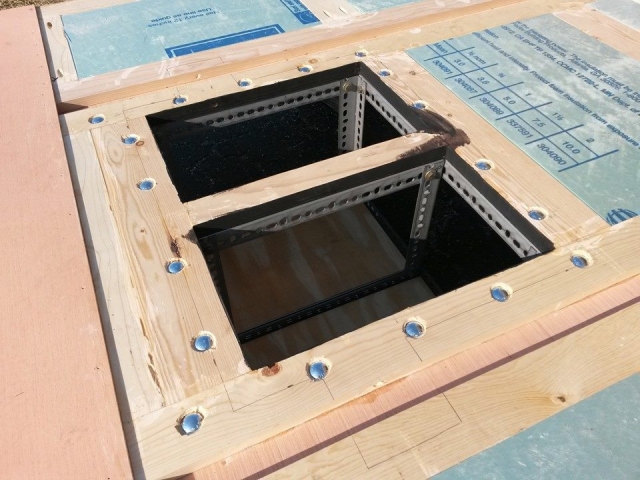

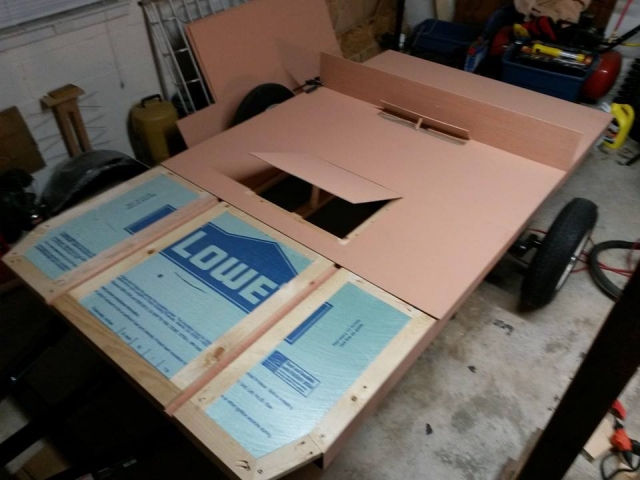

Once the "skirt" panels were finished, it was finally time to skin! After the galley floor was glued and brad-nailed in place, I mocked up the galley wall (3/16" ply, 3/4" framing", 3/16" ply) so I could be sure the cabin floor sections would be in the right place. Once I was satisfied I cut the panel openings for the battery and wire access.


Then I glued and brad-nailed the front section of the cabin floor into place, clamped the middle section in place, and ran the router around the outside edge of all the floor panels. The middle section of floor (with the panel openings) isn't glued down quite yet. I need to coat the bottom of the floor with the asphalt paint before I can install the battery cage. And the battery cage needs to be bolted to the floor before I install that section of skin.


Just might have to start framing the walls this weekend. :thinking:
Last edited by absolutsnwbrdr on Mon Nov 21, 2016 12:54 pm, edited 3 times in total.
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA

Re: "The X-Cubed" C.T.T.

Postby KCStudly » Fri Mar 21, 2014 7:20 am

Rapid pace. Great planning. Good job. Keep at it. :thumbsup:
KC
My Build: The Poet Creek Express Hybrid Foamie

Poet Creek Or Bust
Engineering the TLAR way - "That Looks About Right"
TnTTT ORIGINAL 200A LANTERN CLUB = "The 200A Gang"
Green Lantern Corpsmen
User avatar
KCStudly
Donating Member

Posts: 9194
Images: 8116
Joined: Mon Feb 06, 2012 10:18 pm
Location: Southeastern CT, USA
Top

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Fri Mar 21, 2014 8:27 am

Thanks KC! Most people don't realize how much time I spend planning. This thing has been in the design phase since the end of August and the drawings have been revised and refined constantly up until about 3 weeks ago. I'm definitely not one to just go out and wing-it. I have a lot of respect for those who can do that, but that's definitely not me!

When I was helping my buddy design and build his, we never drew up a tongue box for it. Once the build was underway, he decided he wanted to add one on the fly. I about had a panic attack. :lol: :lol:
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA
Top

Re: "The X-Cubed" C.T.T.

Postby jbyrd » Fri Mar 21, 2014 8:53 am

You can really tell how much planning you put into this, just by looking at the floor.
I am really looking forward to seeing your trailer take shape. It's a very interesting design.
Til later, See ya
Jeremy

My build journal #1 "SOLD" : viewtopic.php?t=45945
my build journal #2 "SOLD": viewtopic.php?f=50&t=59216
User avatar
jbyrd
Teardrop Master

Posts: 146
Images: 172
Joined: Sun Aug 28, 2011 8:24 pm
Location: marianna, Florida
Top

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Fri Mar 21, 2014 1:06 pm

jbyrd wrote:You can really tell how much planning you put into this, just by looking at the floor.
I am really looking forward to seeing your trailer take shape. It's a very interesting design.


Thanks Jeremy :thumbsup:
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA
Top

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Fri Mar 21, 2014 1:07 pm

Did a little shopping at Home Depot on my lunch break today. This should keep me busy for at least a little while. :twisted:


Should be enough wood there for both side walls, the trolley-top sections, and the bulkhead.
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA
Top

Re: "The X-Cubed" C.T.T.

Postby jbyrd » Fri Mar 21, 2014 4:45 pm

Dat's a nice pile of wood!!!! :thumbsup:
Til later, See ya
Jeremy

My build journal #1 "SOLD" : viewtopic.php?t=45945
my build journal #2 "SOLD": viewtopic.php?f=50&t=59216
User avatar
jbyrd
Teardrop Master

Posts: 146
Images: 172
Joined: Sun Aug 28, 2011 8:24 pm
Location: marianna, Florida
Top

Re: "The X-Cubed" C.T.T.

Postby pohukai » Fri Mar 21, 2014 7:56 pm

Are those 1x3s oak or poplar? They look nice and clear.
pohukai
Teardrop Master

Posts: 182
Images: 9
Joined: Mon Aug 22, 2011 10:39 am
Location: Fontana CA
Top

Re: "The X-Cubed" C.T.T.

Postby Kharn » Fri Mar 21, 2014 8:12 pm

You make working with angle iron sound so easy. :thumbdown:
I'll give it another go in the morning when I can use my angle grinder to cut it in my driveway vs my jigsaw that just shook my workbench half to death. Dan convinced me to go for dual batteries under the floor.

ETA: Angle grinder beats angle iron every time. :lol:
Also I found out my other big mistake was cutting at the exact measured location, instead of always cutting through the middle of a hole or slot and living with being a little long, which made none of the holes line up.
User avatar
Kharn
500 Club

Posts: 655
Images: 1
Joined: Sun Jul 17, 2011 1:54 pm
Top

Re: "The X-Cubed" C.T.T.

Postby be_a_jayhawk » Sat Mar 22, 2014 9:51 am

Wow you move so fast but have such an eye for details! It's going to be a sweet trailer for sure.
User avatar
be_a_jayhawk
Teardrop Master

Posts: 213
Images: 2
Joined: Wed Jun 19, 2013 6:32 pm
Top

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Sat Mar 22, 2014 10:15 pm

pohukai wrote:Are those 1x3s oak or poplar? They look nice and clear.


Nope, they're just the cheap "whitewood" from Home Depot. They're a step above the furring strips, but not quite the finished pine boards. It was tough to find straight ones, and they do have quite a few knots. They're all going to be covered with the plywood skins so I wasn't too concerned about the appearance.

Kharn wrote:You make working with angle iron sound so easy. :thumbdown:
I'll give it another go in the morning when I can use my angle grinder to cut it in my driveway vs my jigsaw that just shook my workbench half to death. Dan convinced me to go for dual batteries under the floor.

ETA: Angle grinder beats angle iron every time. :lol:
Also I found out my other big mistake was cutting at the exact measured location, instead of always cutting through the middle of a hole or slot and living with being a little long, which made none of the holes line up.


If you get a metal blade for the jigsaw and hold it still with a vice it should cut just fine. Yeah I guess I should have mentioned cutting in the middle of holes or slots. Definitely makes assembly a lot easier.

be_a_jayhawk wrote:Wow you move so fast but have such an eye for details! It's going to be a sweet trailer for sure.


Thanks! Planning ahead definitely make things move faster. This is also my third build (not including helping my friend and his wife build one) so a little experience helps too.
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA
Top

Re: "The X-Cubed" C.T.T.

Postby absolutsnwbrdr » Sat Mar 22, 2014 10:25 pm

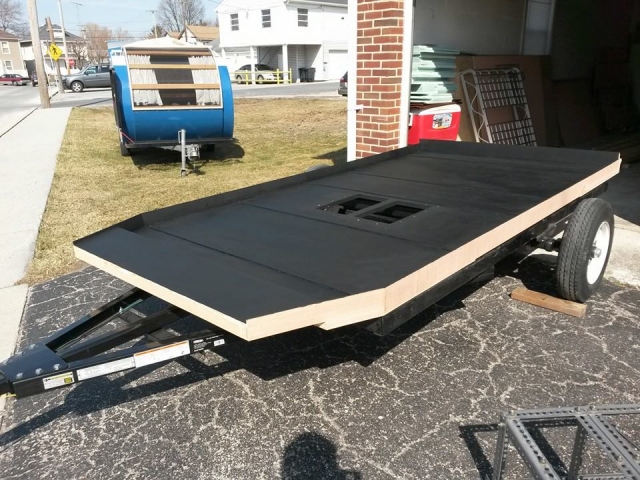

Such a nice day today! Pulled the trailer out of the garage and got the bottom covered in 3 coats of the Black Beauty asphalt fence post paint. It dried really fast since it was in the sun and so warm.


After it was dry, my buddy helped flip the floor and we adhered it to the frame using an asphalt based flashing caulk. No mechanical fasteners hold the floor on the frame.

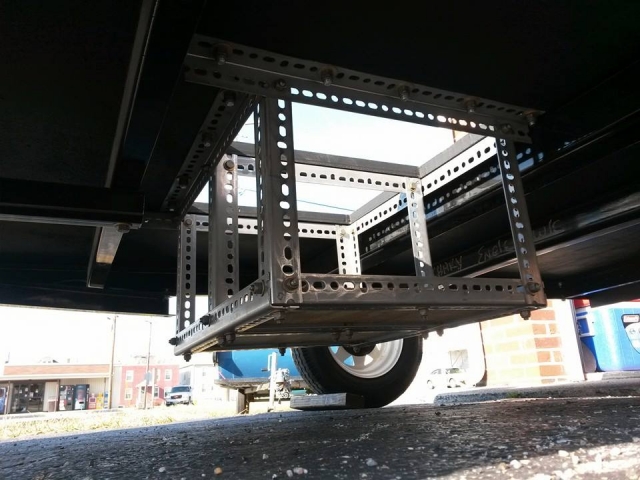

Then we bolted the battery cage to the underside with carriage bolts. Perfect fit. 8)


Right now, its only about 6" from the ground, but once I get the 15" wheels then I'll end up with about 9.5" of ground clearance.


Once the battery cage was bolted in place, we put the last piece of the floor skin in place.

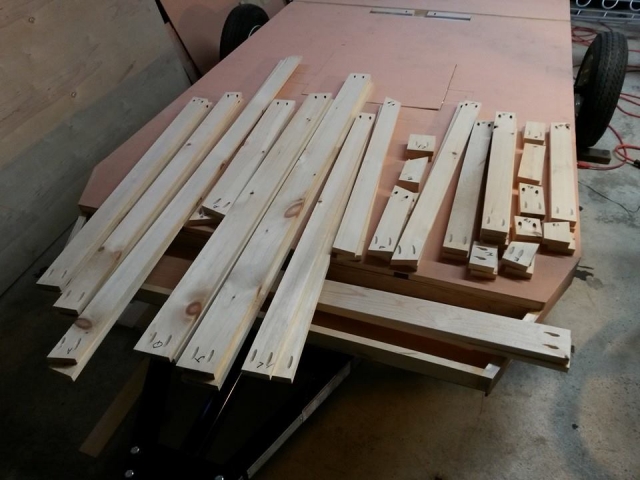

Then tonight we got most of the wall framing pieces cut. Might start assembly tomorrow, but now its time for a beer or 4. :beer:

Last edited by absolutsnwbrdr on Mon Nov 21, 2016 12:56 pm, edited 2 times in total.
Zach

User avatar
absolutsnwbrdr
Donating Member

Posts: 2628
Images: 405
Joined: Mon Jan 25, 2010 6:10 pm
Location: Hanover, PA
Top

Re: "The X-Cubed" C.T.T.

Postby Kharn » Sun Mar 23, 2014 6:32 am

I'd really think about using some carriage bolts to hold the deck down on the frame. :shock:
User avatar
Kharn
500 Club

Posts: 655
Images: 1
Joined: Sun Jul 17, 2011 1:54 pm
Top

Re: "The X-Cubed" C.T.T.

Postby wisdan92 » Sun Mar 23, 2014 7:05 am

Carriage bolts on the deck are unnecessary. It is adhered to the frame with asphalt caulk for roof flashing. The floor will be trapped in place by the rear galley bulkhead and side walls which will be bolted to the frame rails.
wisdan92
Teardrop Inspector

Posts: 3
Joined: Sat Feb 18, 2012 8:34 am
Top
