Long time lurker with a New design

Did you just design your very own teardrop or tiny trailer? Want to discuss it? Here's the place to post your design for discussion!

Long time lurker with a New design

Postby mikefowler » Tue Apr 24, 2007 2:14 pm

Well I have been hanging around this board for probably about 2-3 Years now. :? Last week harbor freight had there 399 trailer on Sale for 299 And I have time AFTER I side the house that I could construct A teardrop. So I took the plunge. I have a good idea as to what I Want and need in a trailer. The tow Vehicle is a Scion XB. Topping the consideration List will be weight. I consistantly tow 600 lbs with this scion all the time with NO problems But still I want to keep it low.

The trailer will have these features:
1. Built on a HF trailer.
2. Be 8x4x5 want the width
3. Be able to Seat & Sleep my 6'1" wife
4. Have a dining area with a drop down floor that raises for travel
5. Be of a light weight design - the roof and wall panels will be of 1/8 inside and outside with framing and insulation of 3/4 thickness.I
the Floor will be 1/2 plywood on a 1 to 1 1/2 frame with insulation

I have uploaded to my gallery Some 3d drawings and 2d Blueprints please Check them out and give me your feedback
http://tnttt.com/album_ ... er_id=1521

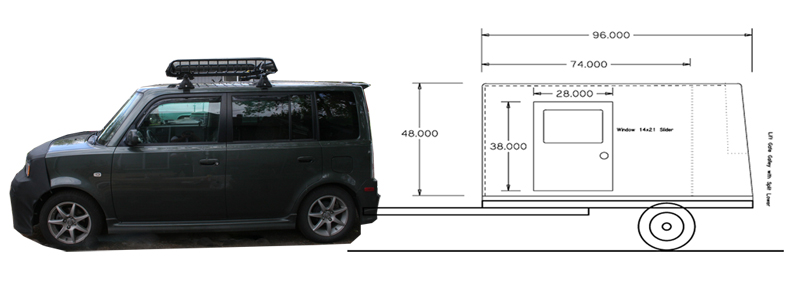

Here is a tickler:


As you can see I wanted something boxy that was along the same design concept of the Scion I will paint it the Same color.

TIA,
Mike
:applause: Well there it is my FIRST Post!
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon

Re: Long time lurker with a New design

Postby Joanne » Tue Apr 24, 2007 2:46 pm

Hey Mike!

Welcome to the madness. It took you long enough to come over to the "dark side"! :lol:

Two thoughts:

- copy the rear air deflector from your Scion to the rear of the trailer. That would tie the two designs together.

- less practical would be to use Scion wheels on your trailer.


If you've seen Gaston's PT Snoozer you'll understand where I'm going with my suggestions. It's a real sleek look that ties the trailer to the tow vehicle.

Again, welcome aboard! :thumbsup: Don't wait two years for your next post. :lol:

Joanne
New! My Camp Cooking Forum

Project Desert Dawg website


Universal Health Care
Health care with the efficiency of the Department of Motor Vehicles
and the compassion of the Internal Revenue Service.
User avatar
Joanne
Queen of Cast Iron

Posts: 2110
Joined: Thu Jul 01, 2004 9:43 pm
Location: Las Vegas, NV

Postby Miriam C. » Tue Apr 24, 2007 2:51 pm

:applause: :thumbsup: Great CAD. It looks like you will have a beautiful TTT. I am not sure I would paint dark but others have. I would insulate the ceiling and add Air. Small spaces get hot fast. 8)
“Forgiveness means giving up all hope for a better past.â€
User avatar
Miriam C.
our Aunti M

Posts: 19673
Images: 149
Joined: Wed Feb 15, 2006 3:14 pm
Location: Southwest MO
Top

Postby mikefowler » Tue Apr 24, 2007 4:05 pm

Joanne Yea I thought about the rear deflector thing thought I could add it later -
:thinking: And UH PINK! - No way! :thumbdown:

Aunti M I have tought more along the lines of a portable swamp cooler home built and Yes to the insulation :thumbsup:
I had a tent trailer years ago and it was dark too! I sewed a front porch for it out out white duck canvas and threw the rest over the top it REALLY made a difference I was think of doing something simular but more refined 8)
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon
Top

Postby bledsoe3 » Wed Apr 25, 2007 12:38 am

Mike, now that you've taken the first step it will become an obsession. Not a bad thing really, but an obsession none the less. Keep us updated with your progress and pictures of course.
If you do what you've always done, you'll get what you've always got.
User avatar
bledsoe3
3000 Club
3000 Club

Posts: 3694
Images: 112
Joined: Tue Jun 07, 2005 5:55 am
Location: Oregon, Portland
Top

Postby madjack » Wed Apr 25, 2007 1:48 am

Mike, angle the front corner back a bit to mimic the windshield...add a tongue box to mimic the hood and with the rear spoiler you will have a serious match....have ya seen "sunny16's" camper in the HoF........
madjack 8)
A computer lets you make more mistakes faster than any invention in human history - with the possible exceptions of handguns and tequila.
most all personal problems can be solved with the proper application of high explosives
User avatar
madjack
Site Admin

Posts: 15125
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby billydj » Wed Apr 25, 2007 4:17 pm

been lurking forever myself but what I would like to know is this.

I was looking at the scion x/b, still love em but my dealer said I couldnt even tow my small aluminum fishing boat......so I reluctantly bought a minivan...... the x/b offered a roomy interior for such a small car....

when I see one I think that could be me driving it.....

luck on your project :thumbsup:

bill
billydj
Teardrop Inspector

Posts: 14
Images: 1
Joined: Fri Oct 20, 2006 1:54 pm
Location: ripon, wisconsin
Top

Postby bledsoe3 » Wed Apr 25, 2007 11:07 pm

Mike, You should come down to the Dam Gathering http://www.teardrops.net/14thDG.html It's only about 2 1/2 hours from Medford and you'll see between 50 & 60 teardrops. You could pick up some ideas, ask questions and meet some of the nicest people you'll ever meet.
If you do what you've always done, you'll get what you've always got.
User avatar
bledsoe3
3000 Club
3000 Club

Posts: 3694
Images: 112
Joined: Tue Jun 07, 2005 5:55 am
Location: Oregon, Portland
Top

Postby Ron Dickey » Thu Apr 26, 2007 5:37 pm

simple design..... not far from a tear drop I put a little rounding on the fop of mine just to give it the traditioal touch!!

looks like it will fit you and the Galley looks intriging.

Ron D.
121377.............134179.........134805
both side walls are up...cabinet needs stain.......ongoing 2.5 yr bld build as i find time..... Cross Bow in Build Journals....viewtopic.php?f=50&t=54108
User avatar
Ron Dickey
Silver Donating Member

Posts: 2930
Images: 701
Joined: Tue Apr 20, 2004 5:56 pm
Location: Central Coast, CA
Top

Postby mikefowler » Fri Apr 27, 2007 11:09 pm

Ron Dickey thanks for the compliments

bledsoe3 Thanks for the invite I have been considering it.
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon
Top

Postby mikefowler » Fri Apr 27, 2007 11:37 pm

BillyDJ The toyota dealer pretty much has to Say that. The Scion has a no factory rating on towing. If you Compare it to the mini Cooper you can get a pretty good idea what you can and Can Not tow. I do contracting and landscape work for National Mortgage Companies and have a trailer on just about every day of the week. My standard trailer set up runs about 650#. I can run up and down the freeway all daylong at 75 mph up and down hills etc. No Prob and our freeway system has three narly passes with 7-6 1/2% Grades I go over all the time. I do Shift into 4th on the climbs. I really don't have to but why Stress stuff out. I would not do this with a automatic. I will probably only get 200,000 out of it instead of the typical 350,000- 400,000 miles and will probably have to get a clutch sooner and brakes more often. BUT I LOVE my car. I have to date towed a trailer that weighed in at 1580# -I DID NOT Like it a bit - slow and Steady that day. Was'n't that I did Not have enough power it was just that the trailer pushed me around. With my 650# back there I hardly Know its there when I get over 1200# I really start to notice it. Especilly if I am light on the tounge weight.
If you are ever in Medford and want a Test Drive Send me an e-mail
:thumbsup: I
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon
Top

Postby mikefowler » Sat Apr 28, 2007 12:11 am

Well I have found lots of goodies this Week
Scored a Brand New Aluminum Vent for $5
A complete Electric converter system out of a wrecked camper for $15
A 8 gallon freshwater tank out of the same Camper for $10
the guy GAVE me the the Sureflow pump - SCORE
I went down and bought all my plywood today at our Local hardwood Distributor and as I was picking up the plywood they GunKed a pile of poplar - I thought No way! I was looking at doing all my framing with doug fir Not No more - Check it out!

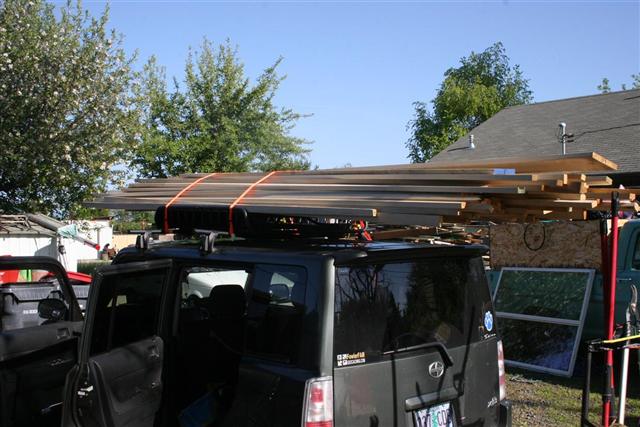

put a serious workout on my Yakima rack but it sprung right back

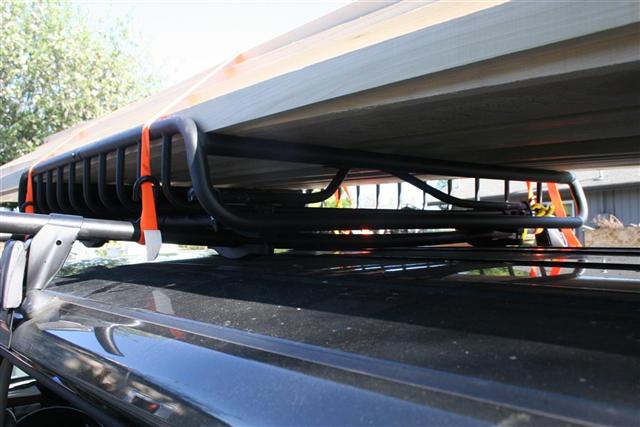

Awesome product - to give you an Idea of now much poplar I got the Rack is Rated at 500# I think I MAXED that! :roll:

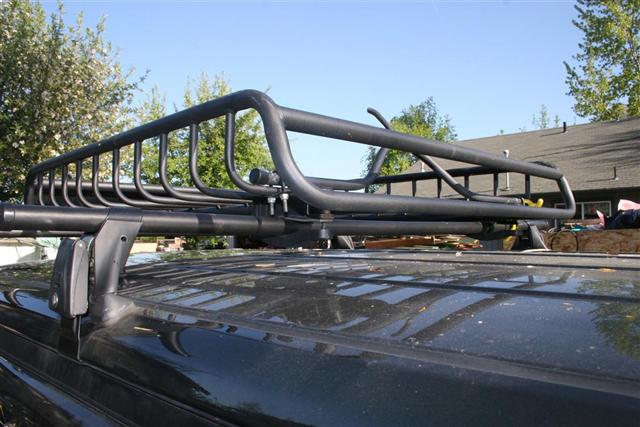

Fully loaded - Bars Bent :shock:
Bar went Back Straight Yeah! ;)

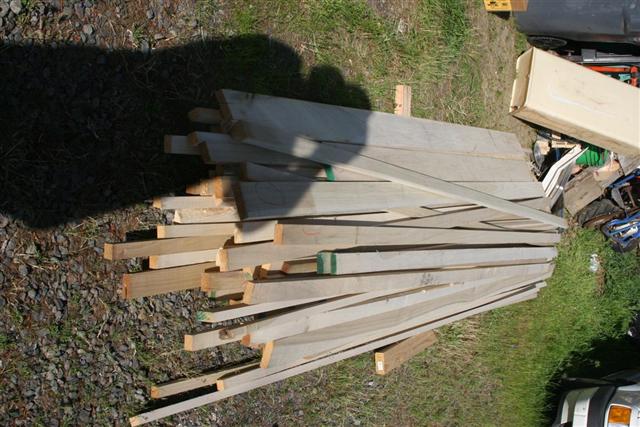

The Spoils :twisted:

Going to try to Un-box the HF trailer and get it together the first of next Week. Or maybe this weekend :twisted:
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon
Top

Postby bledsoe3 » Sat Apr 28, 2007 12:23 am

Nice score on the poplar. I'm glad your rack sprung back. So, are you coming to Shasta?
If you do what you've always done, you'll get what you've always got.
User avatar
bledsoe3
3000 Club
3000 Club

Posts: 3694
Images: 112
Joined: Tue Jun 07, 2005 5:55 am
Location: Oregon, Portland
Top

Postby martha24 » Sat Apr 28, 2007 2:36 am

Looks like you are on your way!! :designing: Good luck on your build and keep us all posted with your progess and lots of :pictures:

If you haven't ever visited a gathering, you really should come to Shasta. Best way to look at a variety of TDs up close and see what you like or don't like.
Martha ;)
Martha ;)

User avatar
martha24
1000 Club
1000 Club

Posts: 1353
Images: 237
Joined: Thu Aug 03, 2006 4:32 am
Location: Calif., Goleta
Top

Postby mikefowler » Sat Apr 28, 2007 10:45 am

I really want to come down to the dam gathering but have to see what next week holds.
Aerodynamics are over rated!
I DRIVE A BOX!
Scion XB 2006 - 5 speed Manual
My continuing saga of 'As the TTT is built"
User avatar
mikefowler
Teardrop Advisor

Posts: 56
Images: 36
Joined: Thu Sep 01, 2005 1:52 pm
Location: Medford, Oregon
Top
