Postby john » Sat May 02, 2009 11:55 am

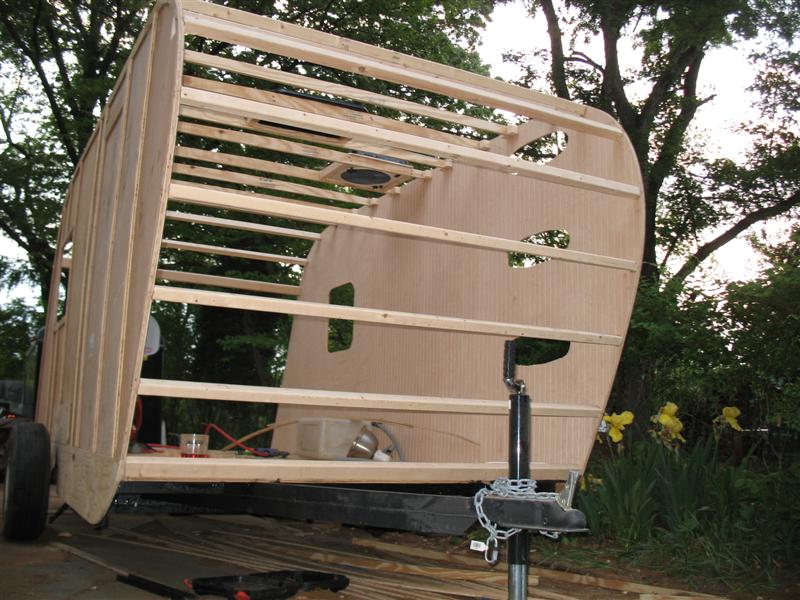

I welded up the frame last month and was able to start the working the wood last week.

It will have a couch/bed and two roll away canvas cots in the front (cots similar to my first build) above the couch. I need room for the three kids. I also will give them each a window.

There is also a larger bed for my wife and myself toward the rear.

I simply could not give up an exterior galley in the rear.

so....

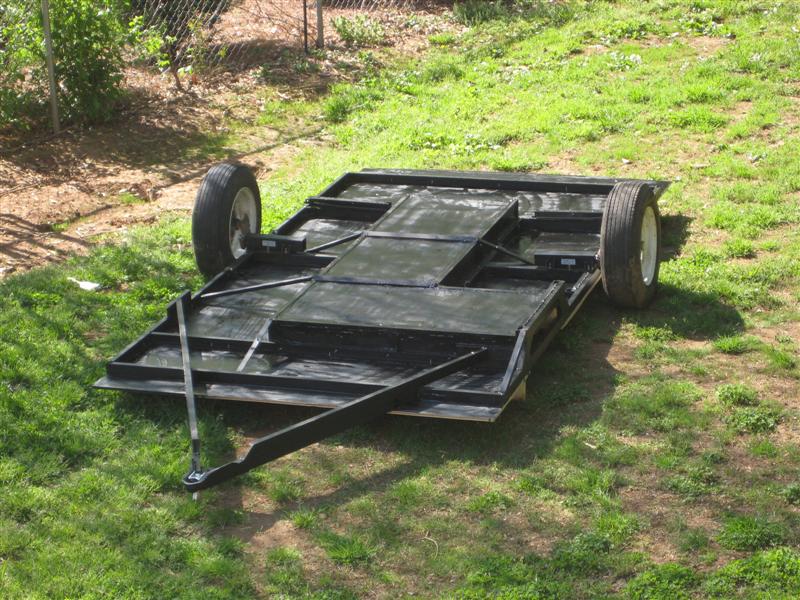

Frame

Upside down

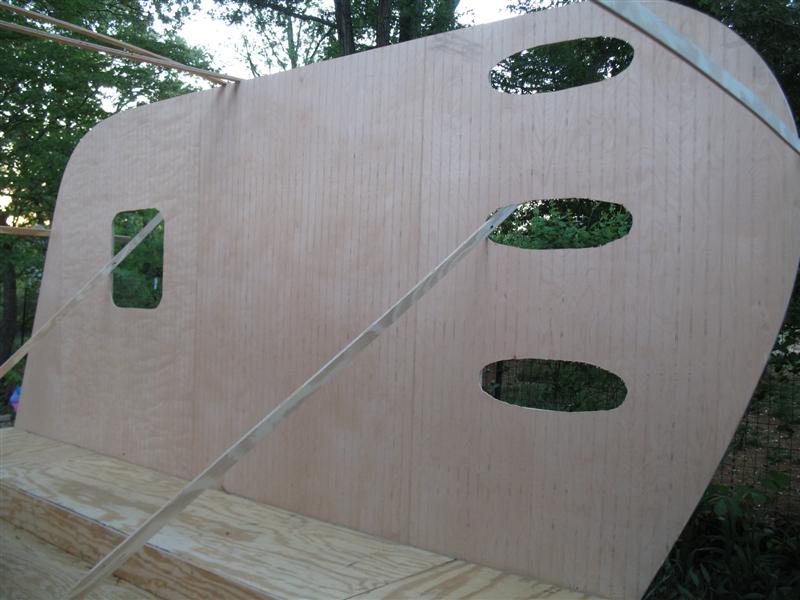

Driver's side (inside)

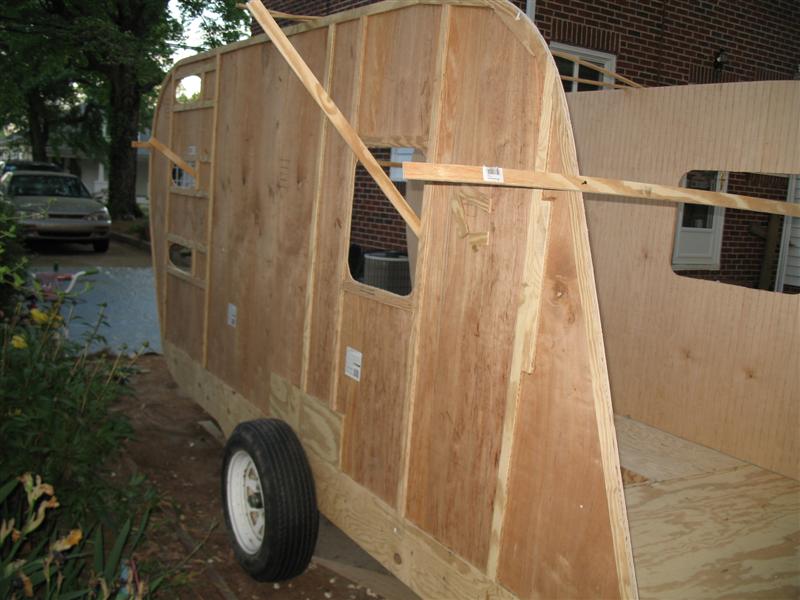

Driver's side (outside)

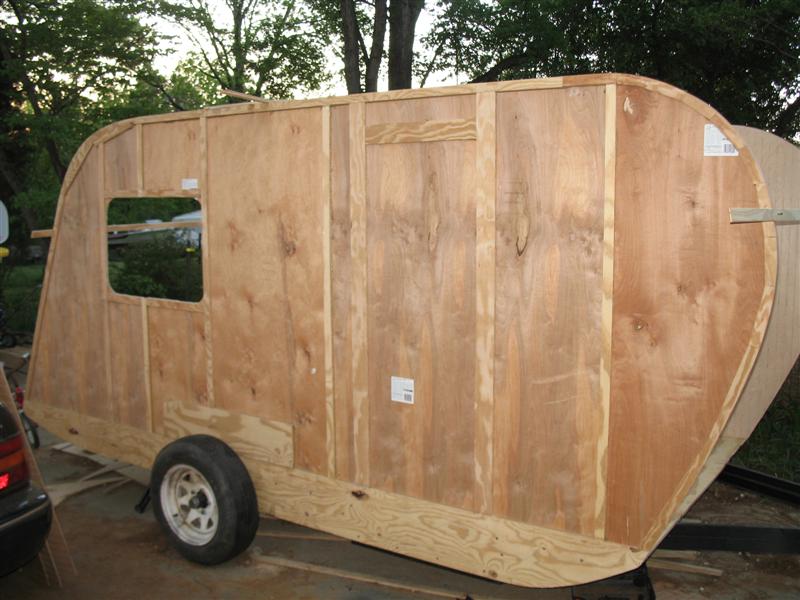

Passenger Side (No door.....yet)

Spars in and fantastic vent and sunroof fitted

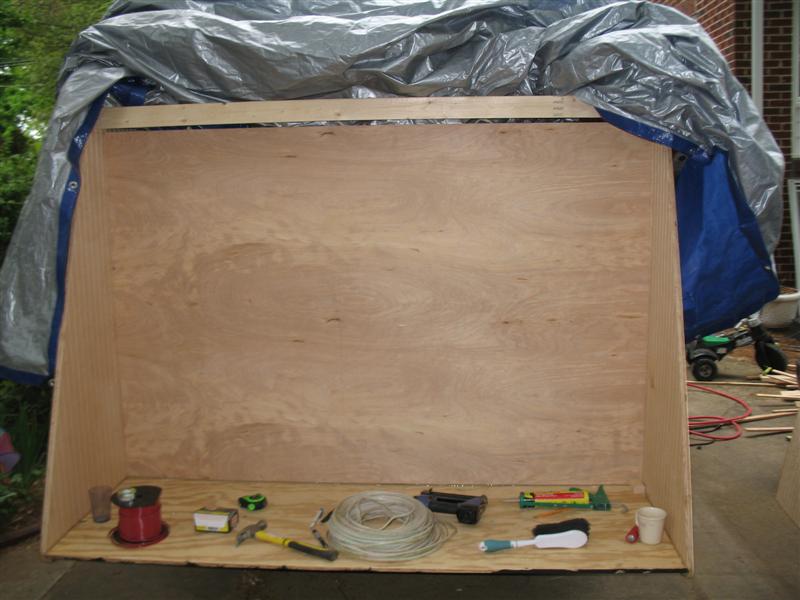

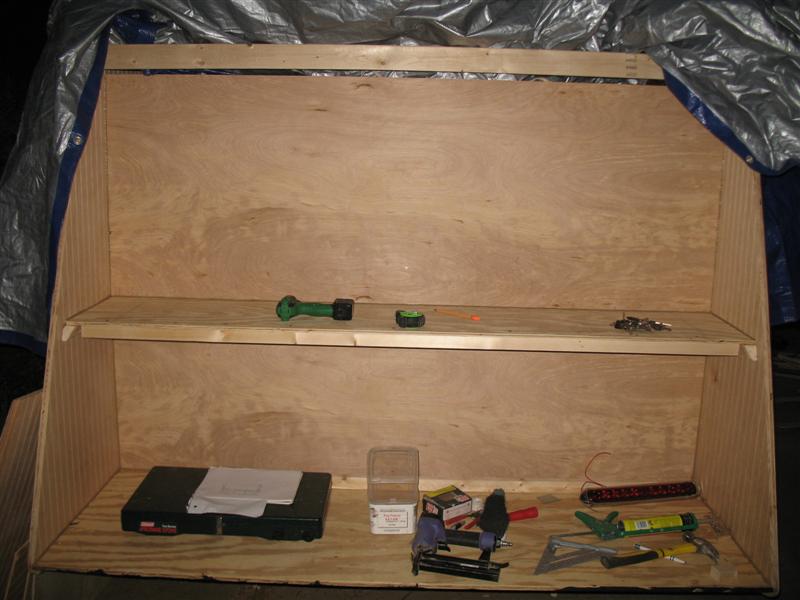

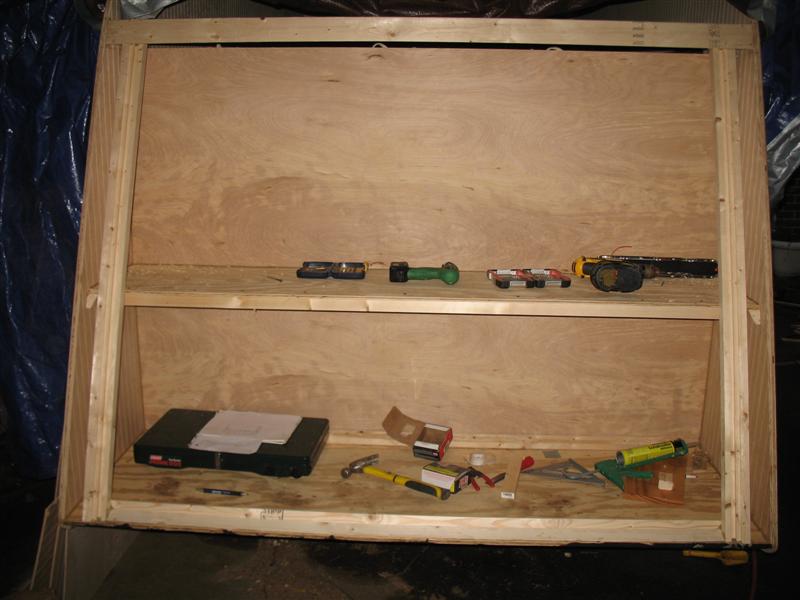

As of yesterday...Bulkhead and bed frame
Last edited by john on Fri Apr 09, 2010 8:42 pm, edited 12 times in total.
Build I -- Scenic ---
http://www.flickr.com/photos/8121727@N04/
Goto the Tear Build file

Build II -- Scenic II ---
viewtopic.php?t=29603

Build III -- Scenic Solo---
viewtopic.php?f=50&t=50324

Travel Blog----Now without Political Commentary
http://polifrogblog.blogspot.com/2009/0 ... -2009.html

The Constitution was ratified, not an interpretation thereof...

Penomeli ikibobo
john
User avatar
john
500 Club

Posts: 662
Images: 261
Joined: Tue Oct 05, 2004 6:26 pm
Location: eden nc

Postby Miriam C. » Sat May 02, 2009 12:10 pm

:thumbsup: :thumbsup: :applause: Great progress. I like the windows. The kids should love that! Are they arguing about who gets the top yet. :D
“Forgiveness means giving up all hope for a better past.â€
User avatar
Miriam C.
our Aunti M

Posts: 19673
Images: 149
Joined: Wed Feb 15, 2006 3:14 pm
Location: Southwest MO

Postby john » Sat May 02, 2009 12:20 pm

Two pushing for the bottom! :shock:
Build I -- Scenic ---
http://www.flickr.com/photos/8121727@N04/
Goto the Tear Build file

Build II -- Scenic II ---
viewtopic.php?t=29603

Build III -- Scenic Solo---
viewtopic.php?f=50&t=50324

Travel Blog----Now without Political Commentary
http://polifrogblog.blogspot.com/2009/0 ... -2009.html

The Constitution was ratified, not an interpretation thereof...

Penomeli ikibobo
john
User avatar
john
500 Club

Posts: 662
Images: 261
Joined: Tue Oct 05, 2004 6:26 pm
Location: eden nc
Top

Postby teardrop_focus » Sat May 02, 2009 12:33 pm

I viewed with intense interest, my good man, the pics of your tear build. The tear turned out nicely; it's a beautiful little trailer.

This, though... this is OFF THE HOOK. :applause:

Love the grooved paneling, too. Very nice! :thumbsup:
.

"There is something about these little trailers that brings out the best in people." - BigAl, Scotland, 2010

"Climb the mountains and get their good tidings. Nature's peace will flow into you as sunshine flows into the trees...
The winds will blow their own freshness into you and the storms their energy, while cares will drop away like autumn leaves..." - John Muir, 1898


Chris Squier / teardrop_focus :-)~
User avatar
teardrop_focus
Donating Member

Posts: 5975
Images: 127
Joined: Sat Apr 11, 2009 3:18 pm
Location: SoCal
Top

Postby northern_munkie » Sat May 02, 2009 3:35 pm

Ohhhh :o

Me like...... :applause:
Im not as think as you drunk i am!!!
User avatar
northern_munkie
Teardrop Master

Posts: 233
Joined: Mon Jul 30, 2007 2:09 pm
Top

Postby caseydog » Sat May 02, 2009 3:40 pm

Very Nice. I'd like to do a standie, but I need to keep it low enough to go in my garage.

It looks like yours will be good looking. :thumbsup:

My build journal is HERE
User avatar
caseydog
Platinum Donating Member

Posts: 12408
Images: 515
Joined: Tue Jan 16, 2007 1:44 pm
Top

Postby john » Sat May 02, 2009 5:08 pm

Thanks guys.

How high is a standard garage? 7'?

I'm a shade over 7' now with the bow in the roof and the stabilizers nearly lifting the camper off the ground. If I try I can rotate the tires. I had intended lowering the swing arms but after the weight is on the suspension I may not need to. Also I had initially intended to build a slouchie (spelling?) but it became clear while laying out the sides that I needed the 6" for the triple bunk in the front. I'm trying to avoid submarine "bunks".

There was no flow in the building process today, but by picking up a little frustration in exchange I pushed through it . I got a little done but all in all it was not a productive day. Picks later.
Build I -- Scenic ---
http://www.flickr.com/photos/8121727@N04/
Goto the Tear Build file

Build II -- Scenic II ---
viewtopic.php?t=29603

Build III -- Scenic Solo---
viewtopic.php?f=50&t=50324

Travel Blog----Now without Political Commentary
http://polifrogblog.blogspot.com/2009/0 ... -2009.html

The Constitution was ratified, not an interpretation thereof...

Penomeli ikibobo
john
User avatar
john
500 Club

Posts: 662
Images: 261
Joined: Tue Oct 05, 2004 6:26 pm
Location: eden nc
Top

Postby mikeschn » Sat May 02, 2009 5:10 pm

Looking good. I like the interior wood...

What is the exterior going to be?

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19128
Images: 468
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby Senior Ninja » Sat May 02, 2009 5:36 pm

:applause: :twisted: :applause: :twisted: :applause: :twisted: :applause: :twisted: :applause: :twisted: :applause: :twisted:

Nicely done! The memories your family are making are priceless.
Steve

8)
Building the TD was the best thing I ever made.
Senior Ninja
Donating Member

Posts: 608
Joined: Fri Apr 28, 2006 4:16 pm
Location: Bakersfield, Kahlifornia
Top

Postby john » Sat May 02, 2009 5:36 pm

Looking good. I like the interior wood...

What is the exterior going to be?

Mike...



Fiberglass on the edges and resin elsewhere.... painted.

Still working on the color with the wifey.
Build I -- Scenic ---
http://www.flickr.com/photos/8121727@N04/
Goto the Tear Build file

Build II -- Scenic II ---
viewtopic.php?t=29603

Build III -- Scenic Solo---
viewtopic.php?f=50&t=50324

Travel Blog----Now without Political Commentary
http://polifrogblog.blogspot.com/2009/0 ... -2009.html

The Constitution was ratified, not an interpretation thereof...

Penomeli ikibobo
john
User avatar
john
500 Club

Posts: 662
Images: 261
Joined: Tue Oct 05, 2004 6:26 pm
Location: eden nc
Top

Postby b.bodemer » Sat May 02, 2009 5:53 pm

What a start!

Profile and everything looks great................... :thumbsup: :thumbsup:

Barb
User avatar
b.bodemer
1000 Club
1000 Club

Posts: 1585
Images: 290
Joined: Mon May 08, 2006 5:43 pm
Location: Lakewood OH
Top

Postby john » Sat May 02, 2009 7:40 pm

I was more in the mood for working wood. No dice...wiring had to be done first. ... that made for a frustrating day. Where is that tool? What was the plan? Not knowing what I would ultimately do with outlets, switches, and lights I just kind of wound the wires around inside the wall. Hopefully I will find the wires again once I stumble into that plan.


Today's pics.

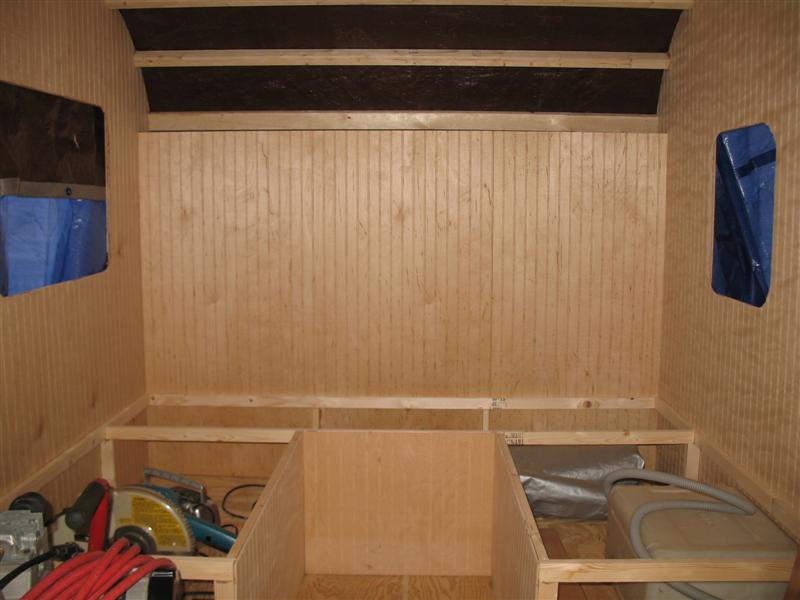

Wiring???

Galley side of bulkhead skinned


Starting the counter
Build I -- Scenic ---
http://www.flickr.com/photos/8121727@N04/
Goto the Tear Build file

Build II -- Scenic II ---
viewtopic.php?t=29603

Build III -- Scenic Solo---
viewtopic.php?f=50&t=50324

Travel Blog----Now without Political Commentary
http://polifrogblog.blogspot.com/2009/0 ... -2009.html

The Constitution was ratified, not an interpretation thereof...

Penomeli ikibobo
john
User avatar
john
500 Club

Posts: 662
Images: 261
Joined: Tue Oct 05, 2004 6:26 pm
Location: eden nc
Top

Postby john » Sun May 03, 2009 8:40 pm

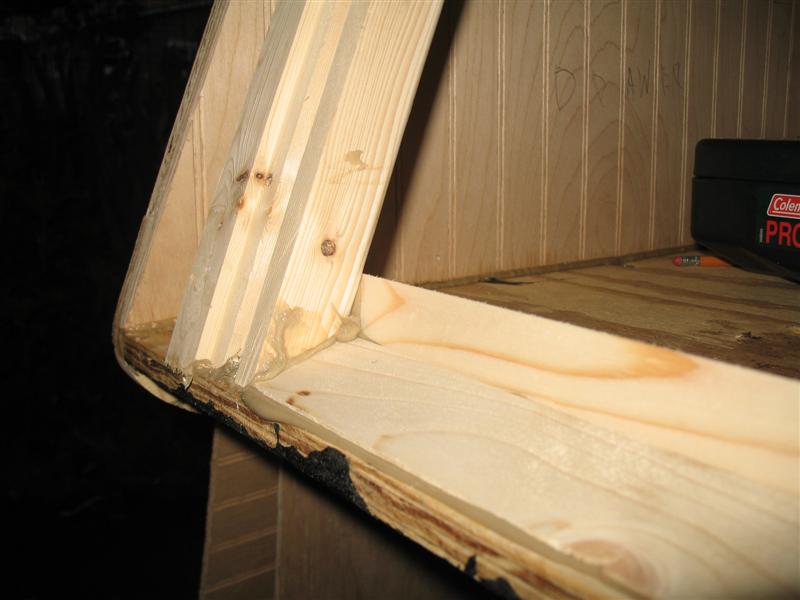

After church and after a supply run there was .....rain. After that I continued with the galley. I realized that when I ran the wires through the wall yesterday that I had neglected to run one for the tag light which I intend to mount to the hatch. Oh well. I little something to figure out later. Instead I focused on the area where the hatch meets the fixed skin. (you'll have to imagine the skin for now)

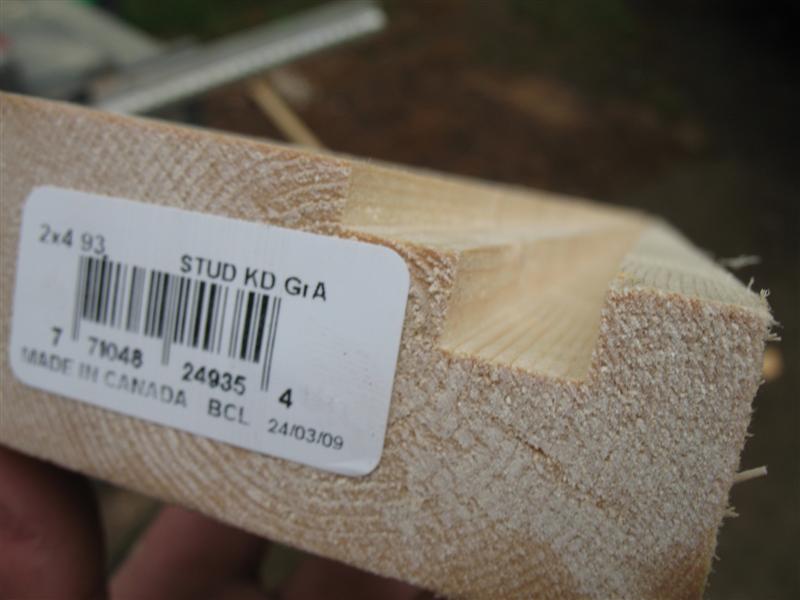

Initially I had planned to use strips of ply to get the cross section I wanted, but it occurred to me (while in church :oops: ) that my hatch was flat and would have no curve in either direction. A router with a grove bit would work just fine on a 2x4. So it was done so.
