Albuquerque teardrop

...ask your questions in the appropriate forums BUT document your build here...preferably in a single thread...dates for updates, are appreciated....

Albuquerque teardrop

Postby ChasCABQ » Mon Oct 06, 2014 6:29 pm

Well, after browsing the forum and talking with local teardrop builder, Capt. Bob, I pulled the trigger and just ordered a 5x8 trailer from Northern Tool. I have a design done up in Sketchup and will refine it as soon as I get my wood.

Thanks to everybody who's posted here. I hope to avoid newbie mistakes and make a teardrop proud to call my own. Keep tuned for further posts.
Charles
Last edited by ChasCABQ on Wed May 27, 2015 4:01 pm, edited 5 times in total.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM

First profile - modified Benroy

Postby ChasCABQ » Mon Oct 06, 2014 7:30 pm

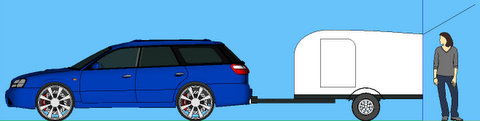

1-First Teardrop design.jpg
1-First Teardrop design.jpg (35.74 KiB) Viewed 3649 times

Note: I have gone through several profiles since this one.
Last edited by ChasCABQ on Sun Nov 23, 2014 11:28 pm, edited 3 times in total.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM

Next profile - flat or Kammback

Postby ChasCABQ » Fri Oct 10, 2014 9:21 am

See following posts for revised profile(s)
Last edited by ChasCABQ on Sun Nov 23, 2014 11:30 pm, edited 2 times in total.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby Ron Dickey » Mon Oct 13, 2014 11:31 pm

Good basic design you have room for addon's as you find more of what you need a front box might help with air flow and storage. what will you be pulling with?

Ron D.
121377.............134179.........134805
both side walls are up...cabinet needs stain.......ongoing 2.5 yr bld build as i find time..... Cross Bow in Build Journals....viewtopic.php?f=50&t=54108
User avatar
Ron Dickey
Silver Donating Member

Posts: 3013
Images: 707
Joined: Tue Apr 20, 2004 5:56 pm
Location: Central Coast, CA
Top

Albuquerque Kammback camper trailer

Postby ChasCABQ » Thu Oct 16, 2014 10:14 am

Ron Dickey wrote:Good basic design you have room for addon's as you find more of what you need a front box might help with air flow and storage. what will you be pulling with?

Ron D.

Yeah, my design is pretty basic to keep weight down (estimated weight about 750 lbs. not including furnishings and supplies). I'll be pulling with 2014 Subaru Outback 4-cylinder AWD with CVT. It's got lots of internal storage being it's a wagon and I'm a pretty minimalist camper: propane Coleman stove, cooler, kitchen box, etc. A front box may be added once I know tongue weight. As part of the build I'm going to get the platform done, load it up and see if axle should be moved. Subaru says to keep tongue weight no more than 100 lbs.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby ChasCABQ » Thu Oct 16, 2014 10:33 am

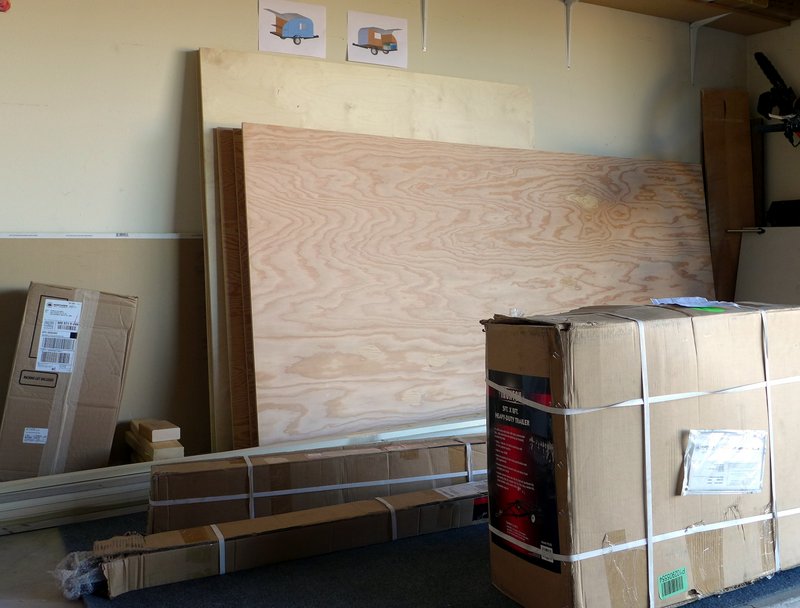

Yesterday I received 5x8 trailer kit from Northern Tool, and lumber from local supplier Hunter-Bower (they have quality materials and free delivery!).
Floor and walls: 1/2" marine plywood with reinforcing spars on top edges and at door openings.
Roof: 1/8" birch plywood over 1x2 poplar spars at about 12" spacing inset into 1/2" thick plywood reinforcing along edges (detail via Capt. Bob).
Galley divider and shelf: 3/4" birch plywood.
Cabinets and shelves: 1/2" birch plywood.

Estimated weight about 750 lbs. not including furnishings and camping supplies.

Estimated cost about $2000 including purchase of door hardware, etc. from Teardrop Parts supplier(s). Quality's not cheap but it's worth it!

Today I opened the trailer boxes and started reading the instructions. Will start putting it together later today. My wife is almost as excited as I am (since I finished all her "honey dos" this summer). Good thing I have a two-and-a-half car garage: I can build indoors and still park our cars!
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby ChasCABQ » Sat Oct 18, 2014 12:56 pm

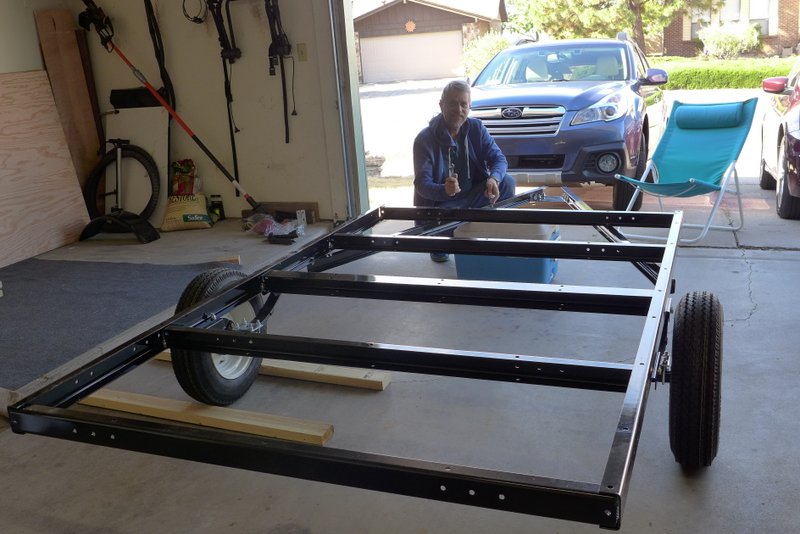

Trailer frame is bolted up except for top bolts which hold floor. Only wiring and fenders are left. I will square it up and start cutting floor pieces next.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Squared trailer frame

Postby ChasCABQ » Sun Oct 26, 2014 9:54 am

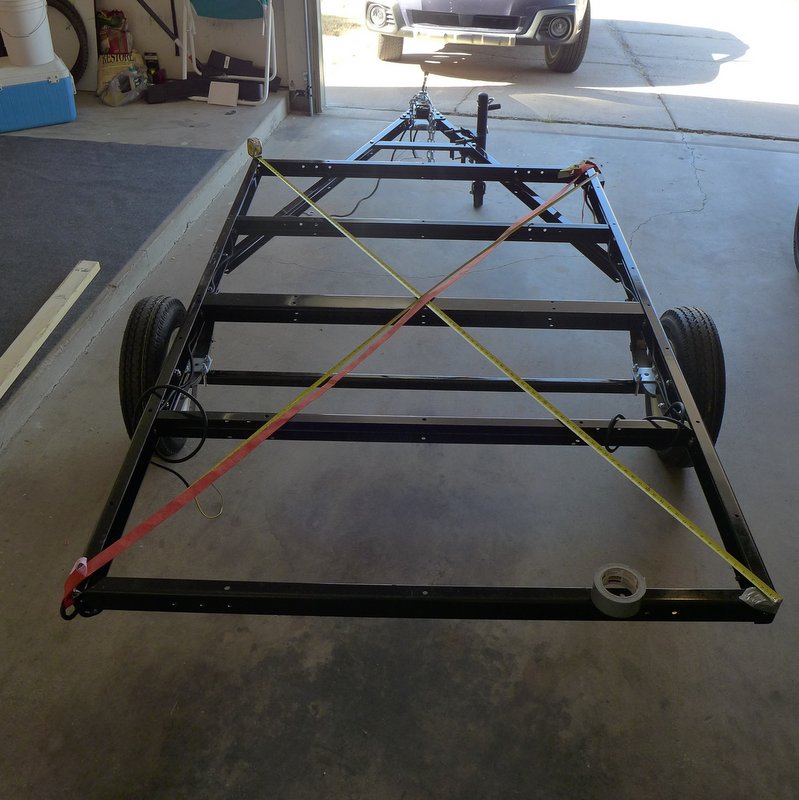

After watching my 4-year-old grandson this past week I got to work on my teardrop yesterday. I squared the trailer frame and cut floor panels. I put masking tape on the cut lines and it really helped make smooth cuts without ripping the plywood. Today I will glue strips of rubber stair tread on the frame cross-members to fill in the gap between the steel frame and plywood floor then start bolting the floor on.

Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby Vedette » Sun Oct 26, 2014 10:53 am

Looks like you are off to a flying start! :thumbsup:
At this rate you will be camping by spring........that is when the fun will really begin! :applause:
Good Roads
Brian & Sandi
Good Roads
Brian & Sandi
Here is a link to my Build Journal
viewtopic.php?f=50&t=50912
User avatar
Vedette
Silver Donating Member

Posts: 5140
Images: 443
Joined: Thu Dec 01, 2011 4:28 am
Location: Westbank B.C.
Top

Floor is down

Postby ChasCABQ » Mon Oct 27, 2014 6:09 pm

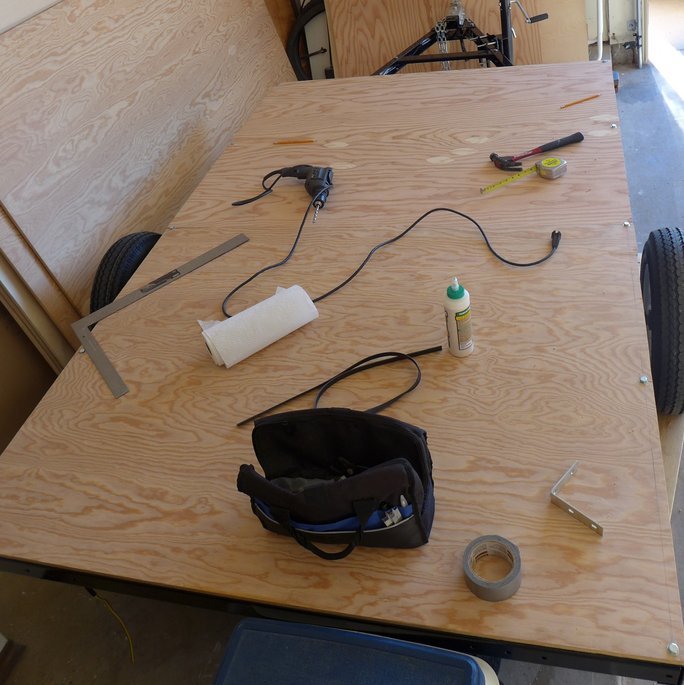

I installed the floor made of two 5'x4'x1/2" marine plywood panels. I used 1/2" longer bolts than those supplied and counter-sunk the flat washers on top of the wood.

Floor is down.JPG
Floor is down.JPG (91.33 KiB) Viewed 4131 times
The Northern Tool trailer frame cross-members are about 1/8" shorter in height than the inside of the long frame members so I had to loosen the bottom bolts so I could cinch up the cross-members against the top of the frame members. Before putting down the plywood, I cut and glued strips of rubber stair tread to each cross-member to fill the gap under the plywood.

I was a little off in my drill holes and have about a 1/8" gap between the panels that I will fill with sealant before installing walls. Next to do: fit check wall profile and door location then start cutting those panels.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Latest design profile - Kamm back

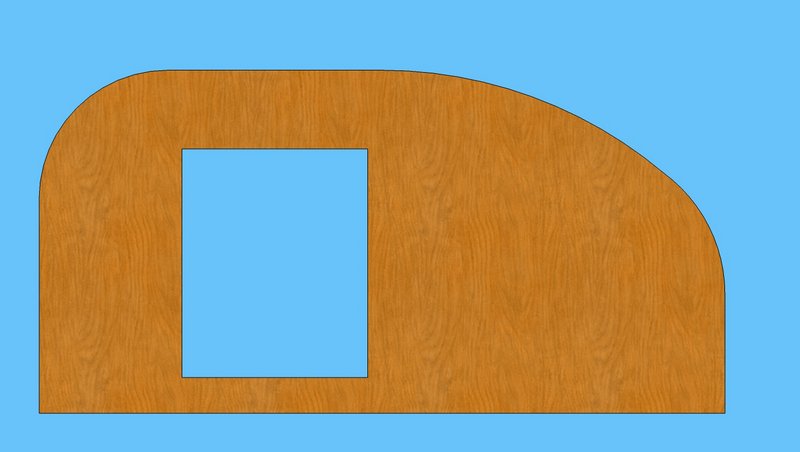

Postby ChasCABQ » Wed Oct 29, 2014 6:18 pm

I've been browsing the aerodynamics discussion here and looking at other sites about aerodynamics and I think I will build a flat or "Kamm" back trailer similar to those by SignaTour Campers. http://www.signatourcampers.com
Teardrop flatback.jpg
Teardrop flatback.jpg (84.96 KiB) Viewed 4040 times
I will use a slight slope on the roof (about 5 degrees) and a vertical galley hatch. I may even rethink the galley and provide access through the back. I need to decide on door style: overhead or twin barn doors or a combination maybe even with receding side doors. A lot to ponder at this stage. In any case the hatch will be inset a few inches from the roof and side edges for a cleaner break in the air flow. This design has several advantages: more room inside, easier hatch build, hatch hinge and side seals will be out of the wind stream reducing water infiltration.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby rebapuck » Wed Oct 29, 2014 11:45 pm

Not that I'm a builder, mind you, but I lean towards flat vertical hatches. In pictures of sloping hatches, the counter looks to be too far back from the standing spot to be comfortable. I tend to lean on my counters when working in the kitchen.
Judy
1966 VW camper
1967 VW singlecab
User avatar
rebapuck
.

Posts: 2221
Images: 1
Joined: Thu May 14, 2009 1:55 pm
Location: Chapel Hill NC
Top

Both Sidewalls are Cut - sanding edges is next

Postby ChasCABQ » Thu Oct 30, 2014 10:47 am

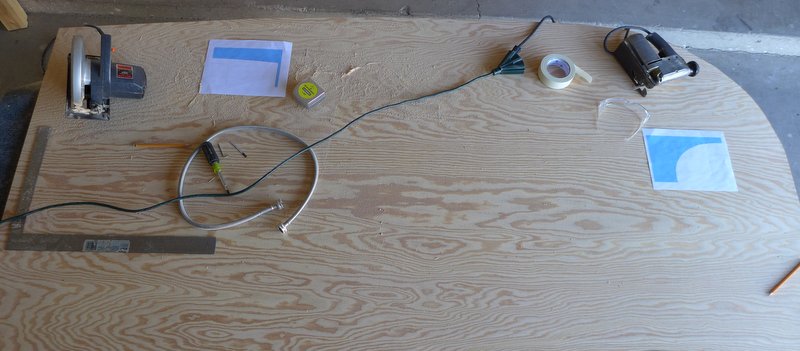

I created measuring templates in Sketchup and used a flexible water hose to draw the curves. Front curve is a quarter ellipse beginning with 19" radius. Rear is a long arc with straight tail at the back.

I put tape down for smoother cuts but the my jigsaw kept getting hung up on it. I have a new blade and a test cut shows that the tape is not needed. Next I need to sand the edge and use this one to mark the right side.

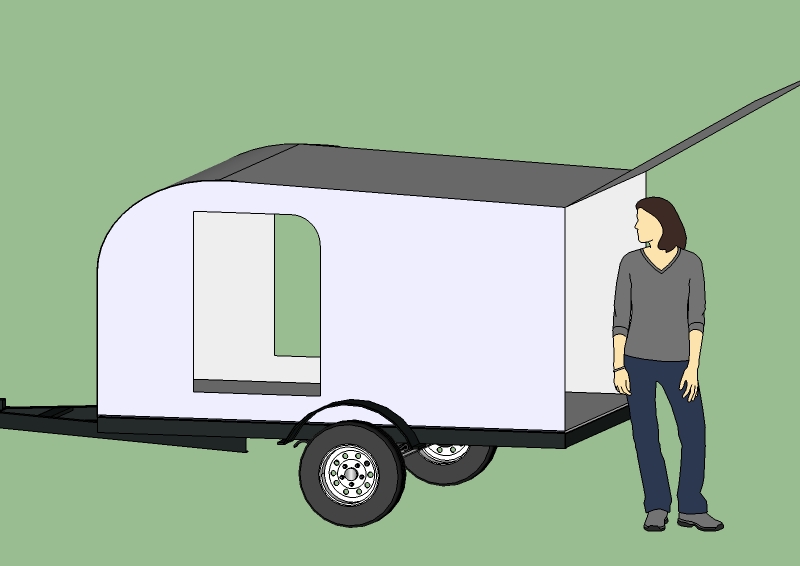

Here's what the finished trailer will look like:
1-Screen Shot 2014-10-30 at 9.35.27 AM.jpg
1-Screen Shot 2014-10-30 at 9.35.27 AM.jpg (22.13 KiB) Viewed 3975 times
Helper tightening bolts for tail lights
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Albuquerque Kammback camper trailer

Postby ChasCABQ » Thu Oct 30, 2014 2:42 pm

rebapuck wrote:Not that I'm a builder, mind you, but I lean towards flat vertical hatches. In pictures of sloping hatches, the counter looks to be too far back from the standing spot to be comfortable. I tend to lean on my counters when working in the kitchen.

Very good point about counter access! I appreciate your feedback. My research shows that the Kammback was developed in the 1930s by German aerodynamicist Wunibald Kamm [name corrected after seeing next post].
Last edited by ChasCABQ on Fri Oct 31, 2014 1:31 pm, edited 3 times in total.
Build journal: http://www.tnttt.com/viewtopic.php?t=61303
In 2016, I received a kidney transplant, finished my teardrop, and took it on the road! In 2017 I sold it and am back to car camping.
Thanks to all forum members who provided advice about my build and posted info to help me get started.
User avatar
ChasCABQ
Donating Member

Posts: 95
Images: 18
Joined: Sat Sep 27, 2014 3:54 pm
Location: Albuquerque, NM
Top

Re: Albuquerque Kammback camper trailer

Postby Vedette » Thu Oct 30, 2014 5:39 pm

Wuni bad Kamm? :lol: Are you sure! :?
Good roads
Brian
Good Roads
Brian & Sandi
Here is a link to my Build Journal
viewtopic.php?f=50&t=50912
User avatar
Vedette
Silver Donating Member

Posts: 5140
Images: 443
Joined: Thu Dec 01, 2011 4:28 am
Location: Westbank B.C.
Top
