Hello everyone,
i am Hartk1213 and i am 25y.o. and have been a member of this site for a little while and i have asked a few questions here and there but now i am finally starting to build my trailer
its going to be a Benroy i am using the Generic Benroy plans but mostly as a guideline for certain dimensions. this is my first build but i do have experience with woodworking as that is my main hobby
i am going to be building a 5 x 8 trailer and its going to be for my wife ,i and my dog Dory.
This is Dory shes a weirdo lol


to start off i couldnt decide on whether to use the Northern Tools trailer or have one welded up from scratch and after talking to some family friends who work at a fabrication shop i had them weld me up a 5x8 trailer that i designed my self it ended up being cheaper then the NT trailer anyway and alot stronger since welded and not bolted

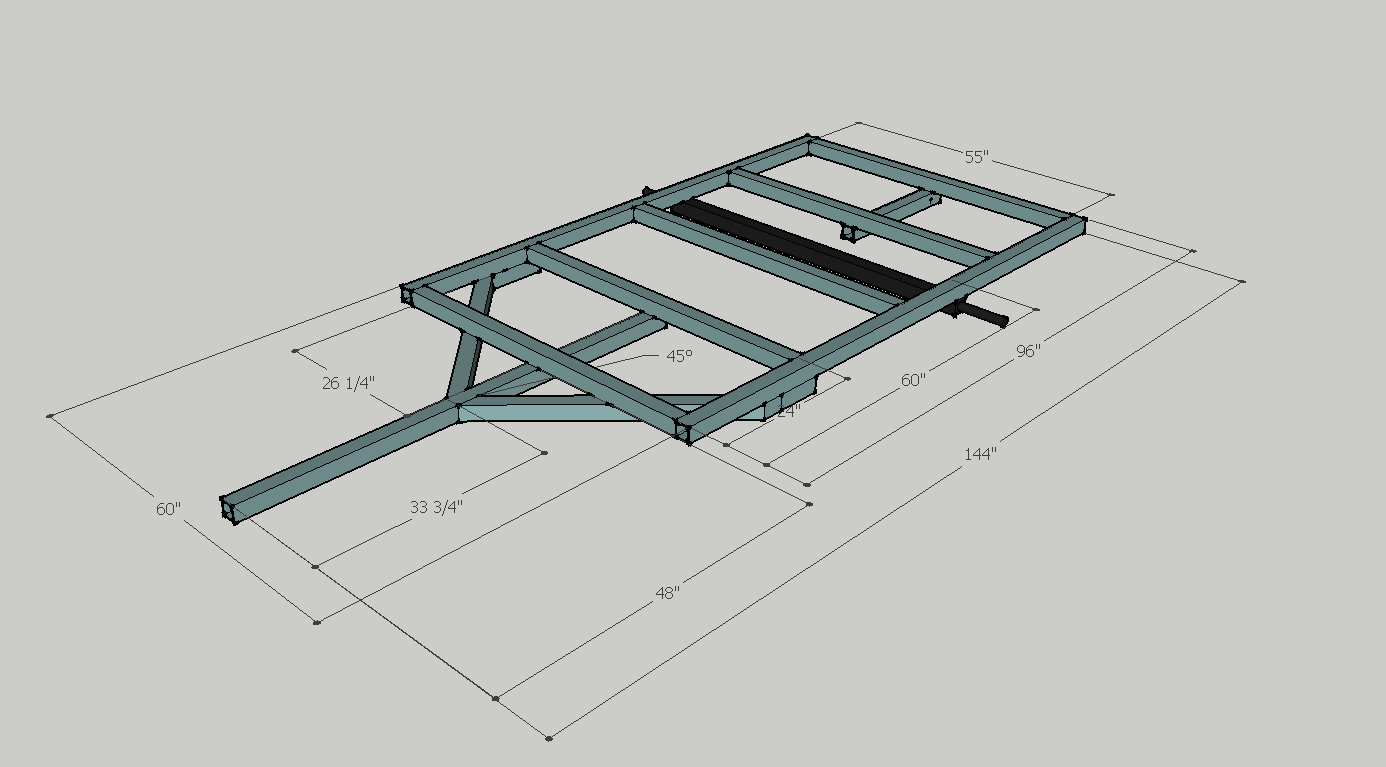

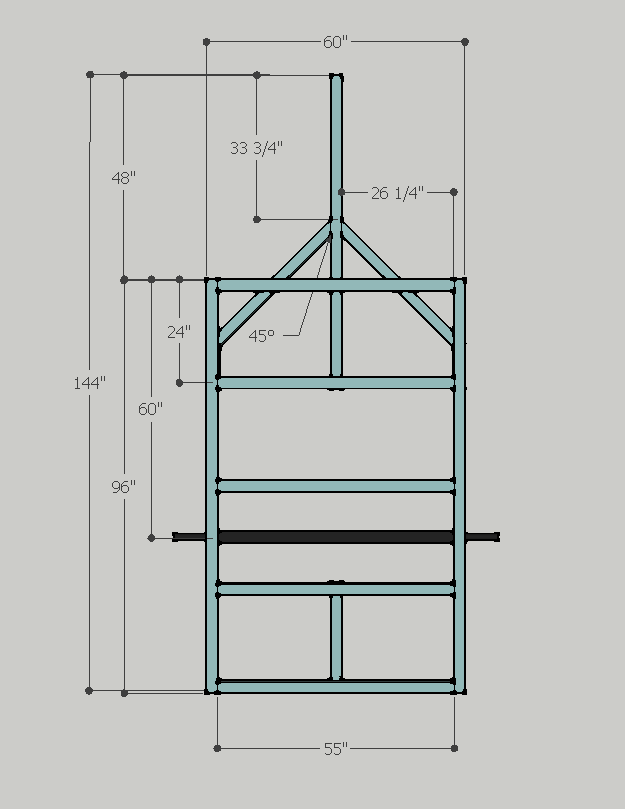

here are two images of the designs i did in google sketchup

if any of you want to use those designs for a trailer you are more than welcome to
Last edited by hartk1213 on Sun Jul 17, 2016 9:10 pm, edited 1 time in total.
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 14, 2016 11:37 pm

update #1
2-14-16

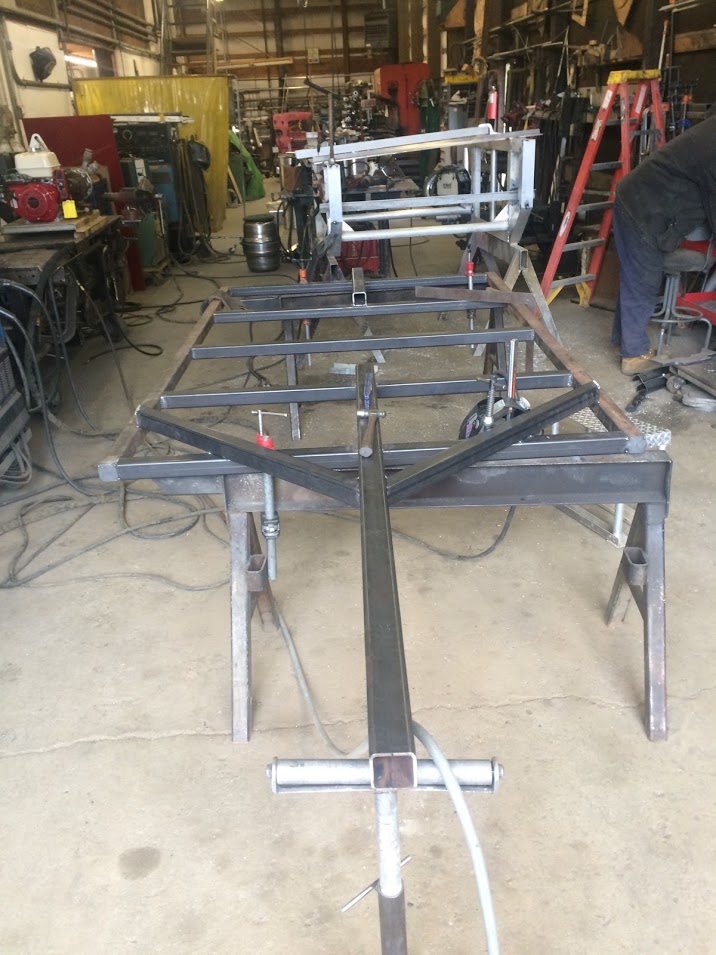

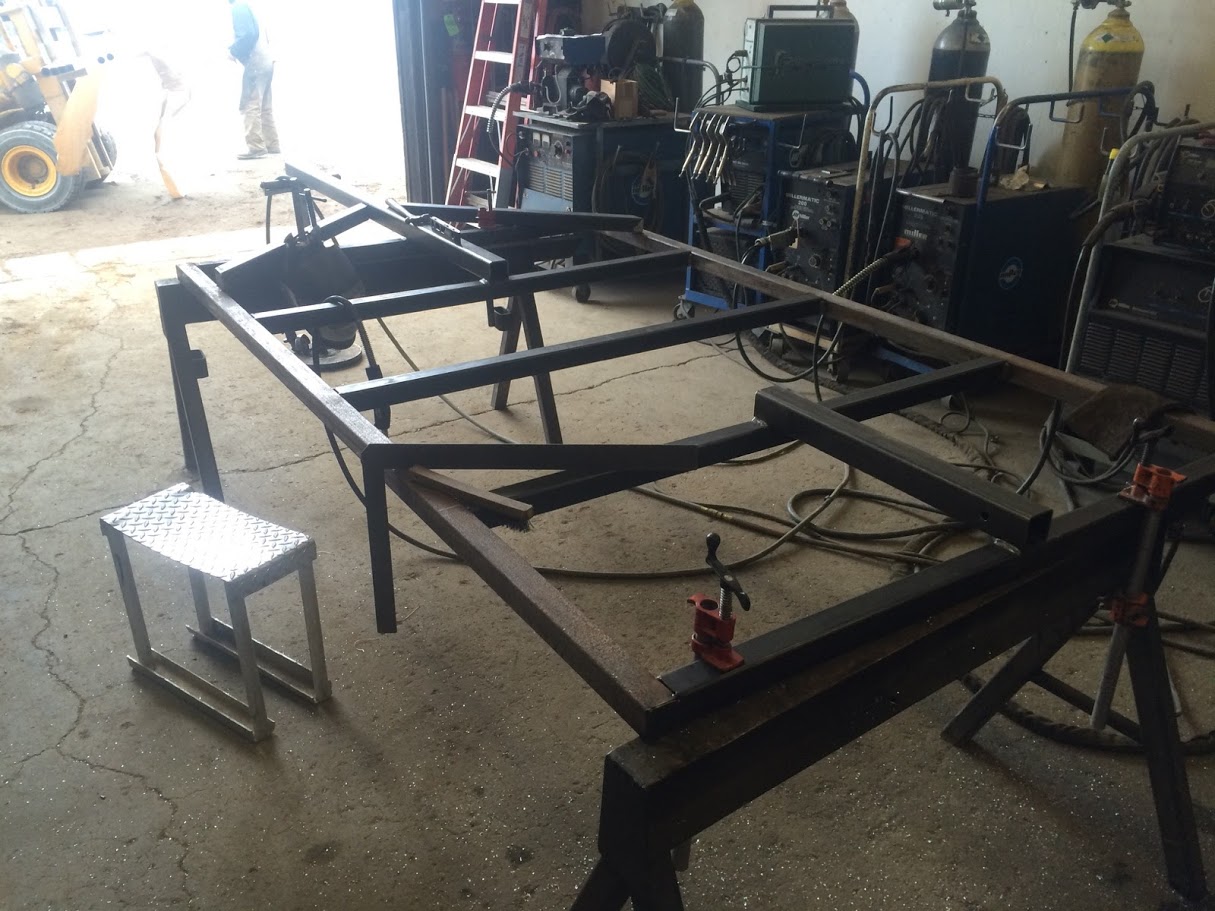

it took the shop about a month to the trailer all finished but i did get some progress pics as it went along


User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 14, 2016 11:39 pm

update #2
2-14-16

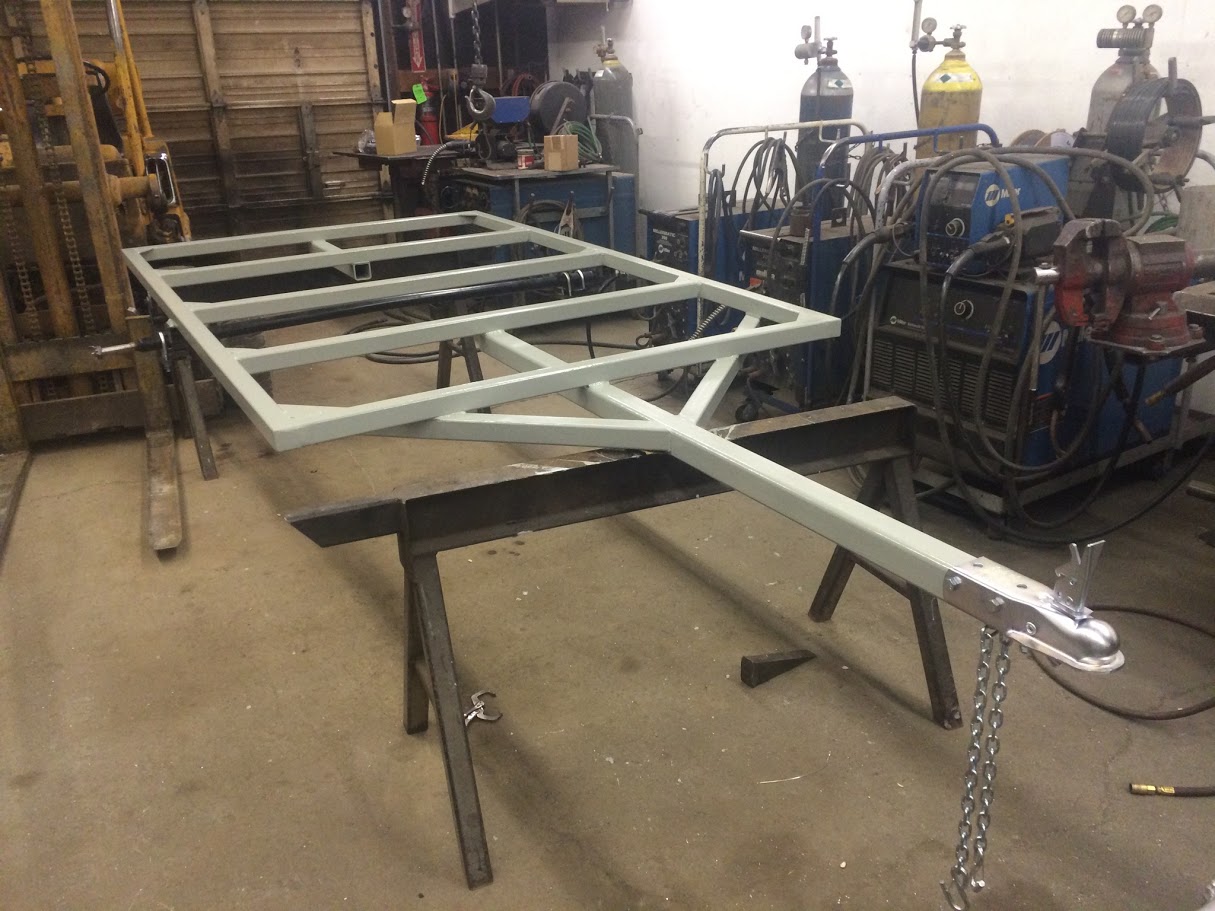

The trailer was finally painted today it was supposed to be black but they didnt have enough black on hand so they ended up with a light grey paint instead..i actually liked it better than black my self
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 14, 2016 11:43 pm

update #3
2-14-16

i dont have any pics of this but right before i picked up the trailer they attached temporary fenders and lights to the frame just so i could get it home the fenders were made of an old cut up big rig fuel tank lol

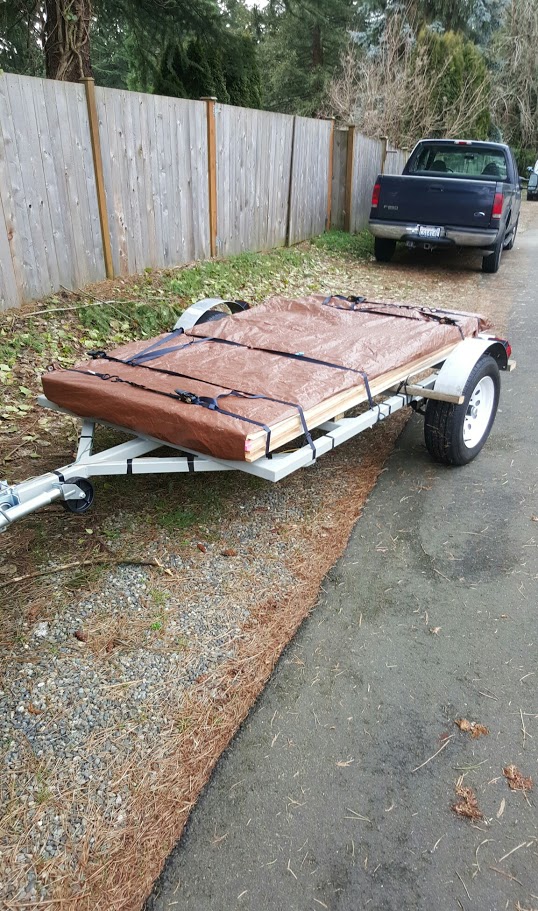

anyways on my way home i stopped by the local lumber yard and had them load me up with all the wood i would need for the floors, walls, ceiling and roof, as well as all the insulation for the walls. i still havent bought any wood for the hatch yet

after a trek over the mountains and back to my place i was finally able to get the trailer in my tiny single car garage and man is it a tight fit

next up i build the floor
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 14, 2016 11:48 pm

update #4
2-14-16

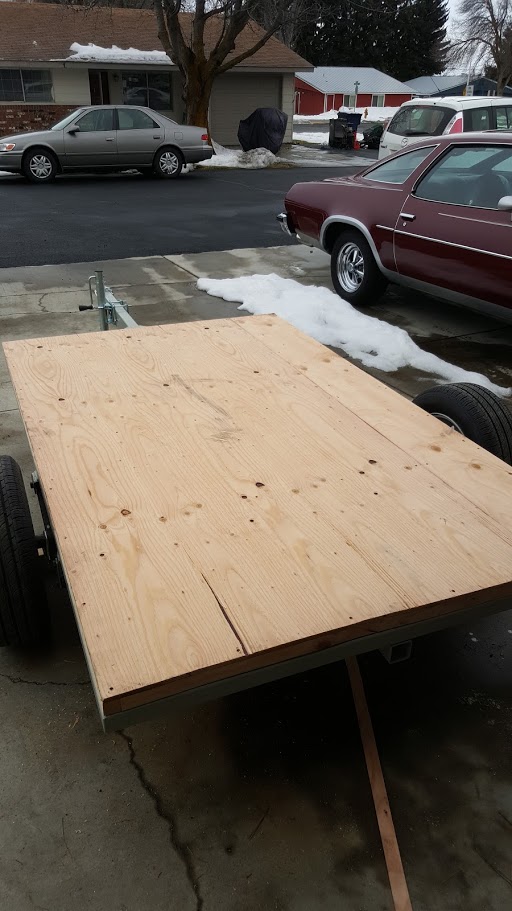

yesterday on 2-13-16 i decided i would start the framing for the floor it was pretty simple i just placed 2x2s over the metal frame and the completed my wooden frame

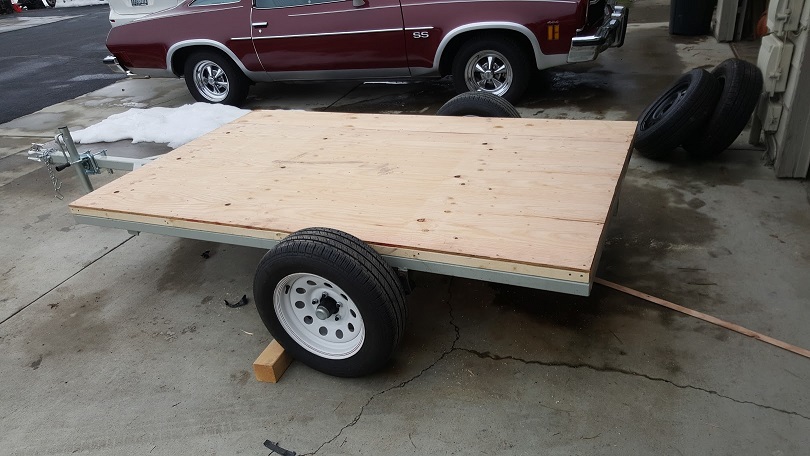

next i placed the plywood down and i had to rip an extra foot off one of my two sheets i got for the floor since they are 4x8 and the trailer is 5x8...i really love my table saw :lol:

User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 14, 2016 11:54 pm

update #5
2-14-16
today i was able to get all the wall pieces cut out today , the outer 1/4" ply skin, the middle 1/2" ply as well as the 1/4" inner skin

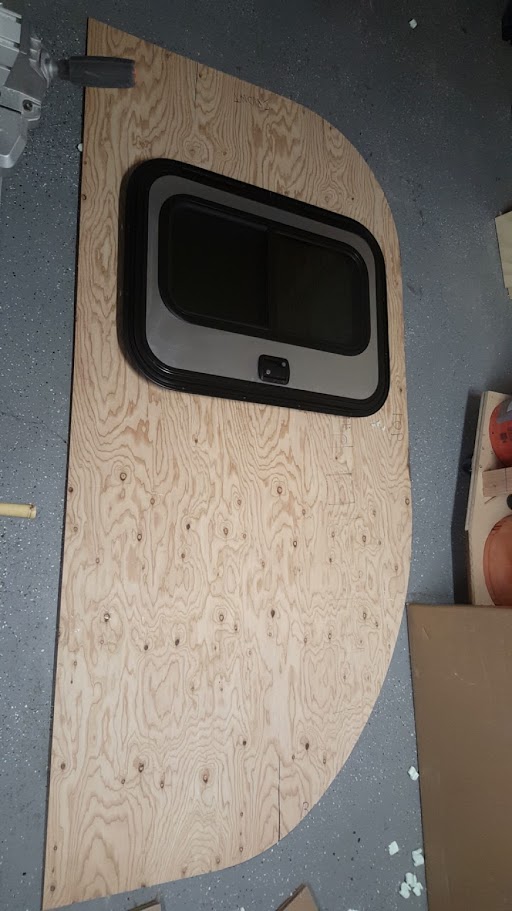

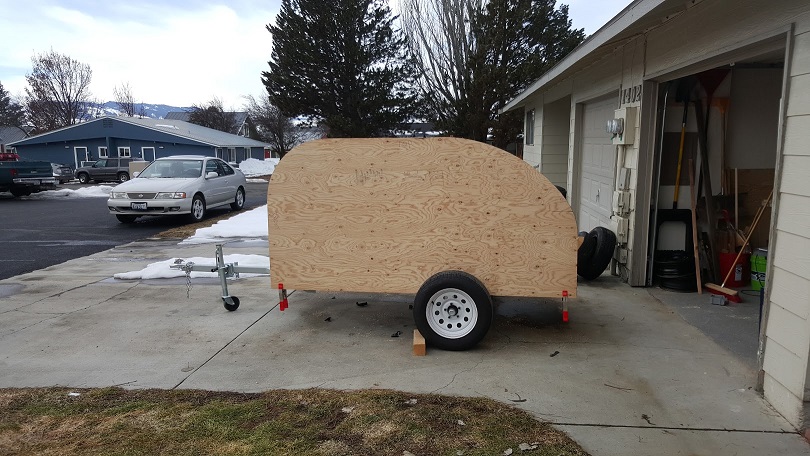

and of course i had to see what it is going to look like so i clamped one of the walls to the trailer to see how it looks

also my doors came in on friday (im using the VinTek doors and i really like them so far) so i wanted to see what they would look like

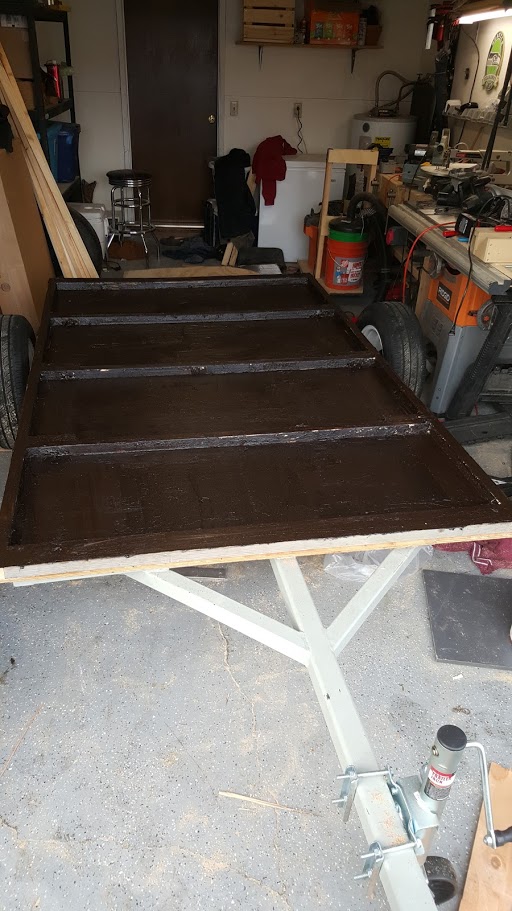

at last for this update is i painted the roof tar coating on the bottom of the floor it was raining outside so i had to cram in my tiny garage to do it but no big deal i was able to finish it
dont mind the messy garage..thats what happens when i dont wanna stop working on a project to clean up around me lol...but it gets clean every sunday night when im done working..."a clean shop is a safe shop"
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby dogscats » Mon Feb 15, 2016 1:03 am

Looking at your pictures that back spring hanger dose not look right . It should have at lest 15% to the rear it may just be the picture
TODAY IS THE OLDEST YOU'VE EVER BEEN,
YET AT THE SAME TIME, THE YOUNGEST YOU'LL EVER BE,,, SO MAKE THE BEST OF IT WHILE YOU CAN, AND ENJOY THIS DAY WHILE IT LASTS
User avatar
dogscats
Donating Member

Posts: 235
Images: 20
Joined: Wed Mar 26, 2014 5:05 pm
Top

Re: The Eburg Benroy

Postby hartk1213 » Mon Feb 15, 2016 1:16 am

dogscats wrote:Looking at your pictures that back spring hanger dose not look right . It should have at lest 15% to the rear it may just be the picture

It maybe the picture.. But what do you mean 15% to the rear?
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby dogscats » Mon Feb 15, 2016 12:36 pm

To get the best spring travel under load . You need to pre-load the spring hangers to move to the rear of the trailer 15 deg seam to be a good starting place . If there at a 90deg it very hard on the springs.
TODAY IS THE OLDEST YOU'VE EVER BEEN,
YET AT THE SAME TIME, THE YOUNGEST YOU'LL EVER BE,,, SO MAKE THE BEST OF IT WHILE YOU CAN, AND ENJOY THIS DAY WHILE IT LASTS
User avatar
dogscats
Donating Member

Posts: 235
Images: 20
Joined: Wed Mar 26, 2014 5:05 pm
Top

Re: The Eburg Benroy

Postby hartk1213 » Mon Feb 15, 2016 12:40 pm

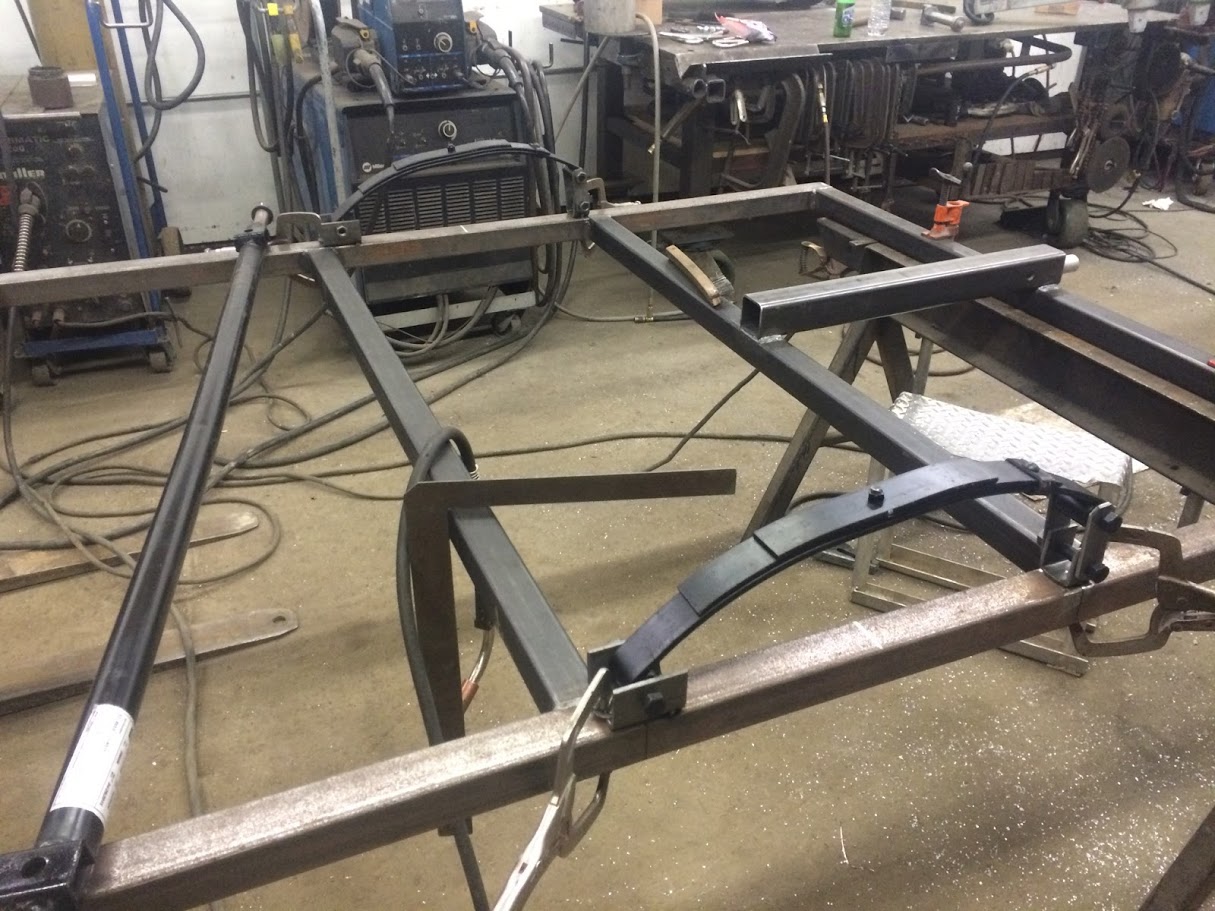

oh i gotcha yea that pic of the spring hangers were before he welded them on they are not at 90deg
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby azgreg » Mon Feb 15, 2016 12:56 pm

Great start! :thumbsup: At this rate you should have it finished in a week or two. :D
User avatar
azgreg
Donating Member

Posts: 128
Joined: Mon Jan 21, 2008 10:30 pm
Location: Phoenix, Arizona
Top

Re: The Eburg Benroy

Postby hartk1213 » Mon Feb 15, 2016 1:01 pm

azgreg wrote:Great start! :thumbsup: At this rate you should have it finished in a week or two. :D

hah one can only hope :lol: thanks
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby Mushin » Mon Feb 15, 2016 11:20 pm

Great progress so far, keep it up!
User avatar
Mushin
Teardrop Master

Posts: 119
Joined: Tue Dec 15, 2015 2:21 pm
Top

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 28, 2016 11:08 pm

Update #6
2-28-16

This weekend I wasn't able to get a whole lot done but I was able to work a little on a trailer

First thing I did was get the wall drawn up and layed out and cut out the hole for the door.

Next I cut out all the holes for the foam insulation

Next I cut out and installed the insulation temporarily ..there are a few gaps but I am going to fill those with expanding foam to seal the gaps
User avatar
hartk1213
Teardrop Master

Posts: 119
Images: 0
Joined: Mon Oct 19, 2015 3:25 pm
Location: Ellensburg
Top

Re: The Eburg Benroy

Postby hartk1213 » Sun Feb 28, 2016 11:19 pm

Update #6 Continued
2-28-16

To continue on with my last post since there are only 3 pics allowed per post

I glued the inner skin to the inner ply wall as well as glued the insulation in..I don't have a great way to clamp it so I used whatever I could find that was heavy and then strapped it down for more clamping pressure

While I waited for the glue to dry I mount this junction box in the tongue to connect all the trailer lights and charging circuit

Picture of the inside... I really like this box but I wish that the mounting bolts also doubled as grounding bolts but they don't so I had to run my own ground to the trailer with an eyelet around the mounting bolt
