'MINI-HOPPER' TRAILER
This is a 'square' teardrop design, loosely based on the Grasshopper and more closely based on Buford's original Mini-Hopper. One change is to make the whole rear a galley hatch, like a normal teardrop - this requires a crank on the rear to provide full headroom under the lifted hatch.
The trailer is designed to fit on the Harbor Freight utility trailer.
2-D Design

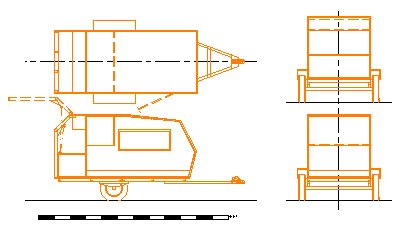

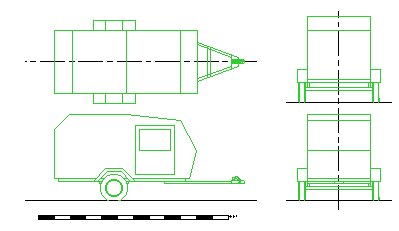

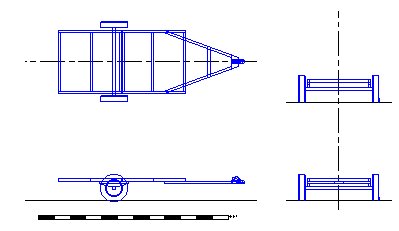

The design is in several layers of a single drawing file. The layers are shown below:
|
Exterior |
Chassis |
|
Interior |
|
|
2-D DESIGN |
Action |
|
All views in a zipped .dxf file. |
|
|
View all the drawings as a .pdf file |
