NEW CUB



Introduction

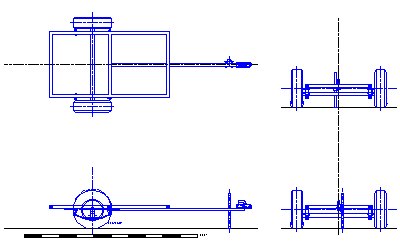

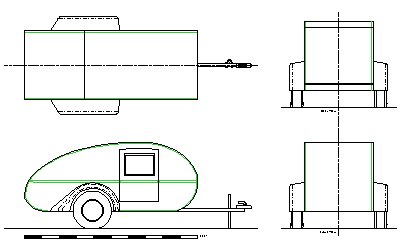

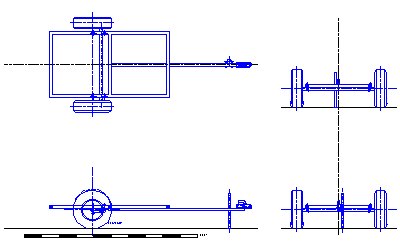

This is a new design: the shape, size and layout are based as closely as possible on the Cub/Modernaire/Modernistic designs, while the structure is a 'conventional' plywood body skinned with aluminium. The chassis is a new design in 2" square tube and is shown with Dexter axles of either leaf spring or torsion types.

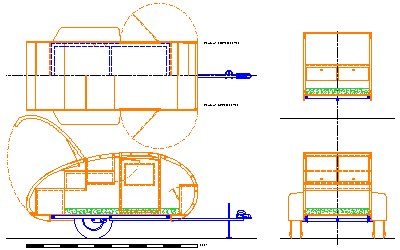

The Cub's 10ft body length allows a generous galley and internal cabinets, while still providing a 80" length bed. The hatch has been increased in size over the Cub original to provide easy access to lockers above and below the worktop.

2-D Design

The design is in several layers of a single drawing file, shown below:





2-D DESIGN	Action
These drawings contain all views in one zipped .dxf file.	Download
View all the layers of the drawing as a single .pdf file	View
