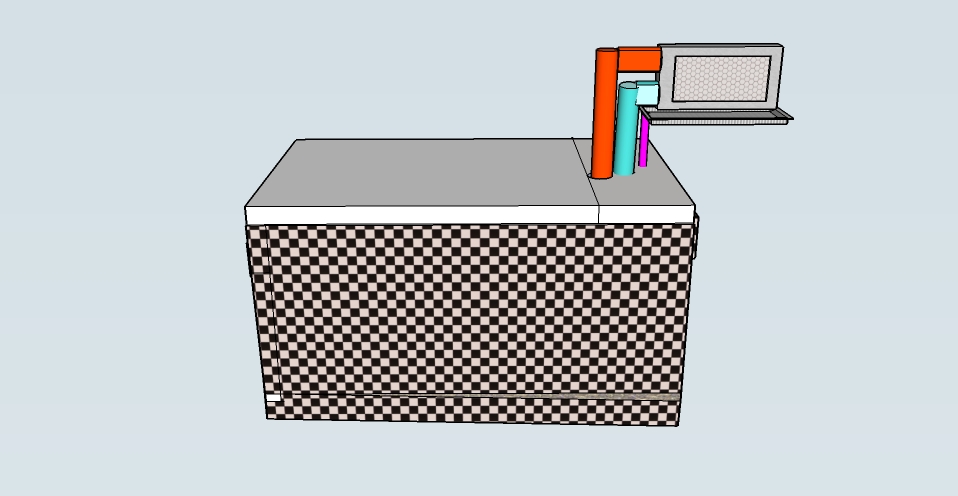

this is the view you would have with x ray vision from the bed in the TD, you are looking at the back of the cooler and the outlet side of the heater core. the pan under the heater core is to catch all of the condensation wrung out of the air by the cold heater core
