Teardrop Lofting with hatches

Teardrop Lofting with hatches


Tue Oct 25, 2016 11:08 pm
110
Xanthoman
Teardrop Advisor

Posts: 58
Images: 3
Joined: Sat Sep 24, 2016 2:02 pm
Location: Rexburg, Idaho

Image Description

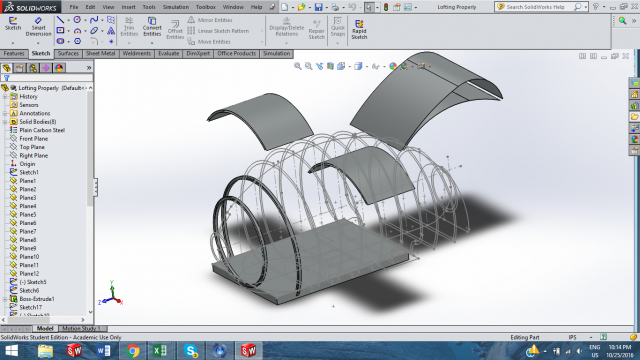

This is a view of the ribs and approximate locations for door hatches. This chose the ribs as being I-beams, but I decided to just do "T"s instead. The solid rectangle is the queen mattress.
