Drawing my curve

Uploaded:: Tue Oct 01, 2019 11:10 am

Image-URL:

Views:: 982

Image BBCode:

EXIF-Data

Image taken on:: Tue Sep 24, 2019 6:53 pm

Trip42: Teardrop Inspector; Posts: 14; Images: 43; Joined: Sun Sep 29, 2013 6:00 pm

Image Description

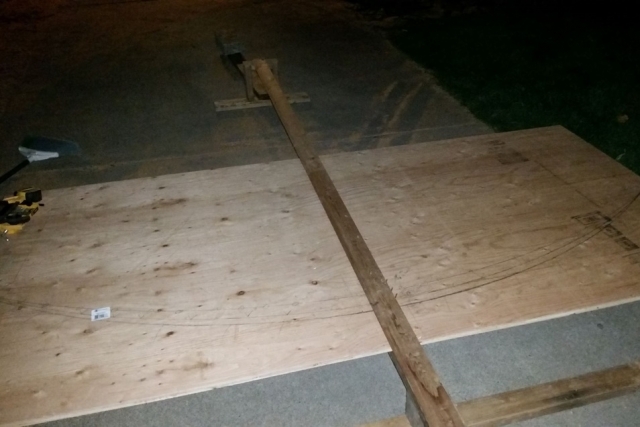

Getting my curved roof beam jig created and I worked on finding my arc and drawing my line. My roof beams will have a radius of 79 3/8" and give me an interior max height of about 81 1/2"
