Postby Carter » Sun Oct 04, 2009 2:23 pm

by the way, mine was heavier because I had the tongue running to the crossmember ahead of the axle. A little more support for the lightweight crossmembers you will be walking on. I'll send you the file. Frame on it is 52"
I need a new Avatar. I'd put my dog up there but she doesn't look much like me. She's the skinny one.
User avatar
Carter
Gold Donating Member

Posts: 319
Images: 32
Joined: Sun Aug 10, 2008 6:45 am
Location: Rochester Hills, MI
Top

Postby mikeschn » Sun Oct 04, 2009 3:13 pm

Jim,

I need to tweak the body to match the new dimension I have on the frame. Once I do that I'll post it here. If I recall, the step format worked for you, right?

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby Carter » Sun Oct 04, 2009 4:25 pm

Yeah, .step works. I thought you were going to keep this in the shadow of the tow vehicle? 80" is comfortable with stock mirrors on my full size pickup, I could go 84" but sides of the trailer would be outside of the PU box.
Last edited by Carter on Sun Oct 04, 2009 4:35 pm, edited 1 time in total.
I need a new Avatar. I'd put my dog up there but she doesn't look much like me. She's the skinny one.
User avatar
Carter
Gold Donating Member

Posts: 319
Images: 32
Joined: Sun Aug 10, 2008 6:45 am
Location: Rochester Hills, MI
Top

Postby Carter » Sun Oct 04, 2009 4:29 pm

Mike,

You said 54" to the outside of the frame. What's the hub face dimension and start angle on the axle?
I need a new Avatar. I'd put my dog up there but she doesn't look much like me. She's the skinny one.
User avatar
Carter
Gold Donating Member

Posts: 319
Images: 32
Joined: Sun Aug 10, 2008 6:45 am
Location: Rochester Hills, MI
Top

Postby mikeschn » Sun Oct 04, 2009 4:41 pm

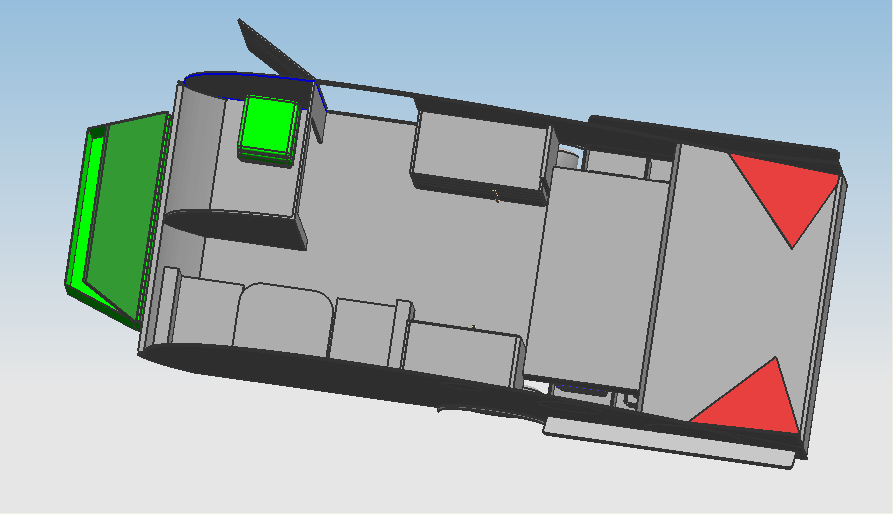

Regarding the floor plan, I think this is what you guys suggested...


Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby mikeschn » Sun Oct 04, 2009 4:58 pm

Jim,

To keep the TTT in the shadow of the tow vehicle would mean building at 66" wide. While that would have been nice, for an extended stay, I think that's not practical. So I made it the same width as the Giant Teardrop, which is 78".

The start angle is the default from Flexiride, 22 degrees up. But it has a splined shaft, so I can change it if need be.

Hubface dimension is 68"

Outside face of tire dimension is 78"

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby mikeschn » Sun Oct 04, 2009 6:13 pm

Opps, it appears I had the chassis turned off in the last export... Here's a new step file with the chassis turned on. Sorry about that...

Mike...

http://www.mikenchell.com/images/alto_ww4a.zip

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby rrawlings » Tue Oct 06, 2009 4:30 pm

I saw my friends with the CNC router today. They now have the files for the top and sides to start milling out my curved pieces from 3/4" inch baltic birch plywood. I now have a couple of cabinet makers surfing the site and thinking maybe I am not so crazy after all. Looks like about 1 hour on the mill to turn out the needed pieces and we will begin the assembly. I will start a build journal as soon as we start. :D
He who dies with the most "finished" toys wins. To bad I have so many "projects"
rrawlings
Teardrop Advisor

Posts: 57
Joined: Sun Aug 30, 2009 10:39 pm
Location: Salt Lake City
Top

Postby mikeschn » Tue Oct 06, 2009 4:33 pm

rrawlings wrote:I saw my friends with the CNC router today. They now have the files for the top and sides to start milling out my curved pieces from 3/4" inch baltic birch plywood. I now have a couple of cabinet makers surfing the site and thinking maybe I am not so crazy after all. Looks like about 1 hour on the mill to turn out the needed pieces and we will begin the assembly. I will start a build journal as soon as we start. :D


Did you grab the ww4a files in my last post. You'll definitely want those instead of the first one I posted. The new file lets the triangles lay down flat, and also modifies the overlap to 3". If you use the old file, and get the triangles to lay down, you won't have enough overlap.

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby rrawlings » Tue Oct 06, 2009 4:53 pm

Andrew forwarded his Aotocad files. The side curves are all that are being cut for me. The rest is up to me to do at home in the garage.
He who dies with the most "finished" toys wins. To bad I have so many "projects"
rrawlings
Teardrop Advisor

Posts: 57
Joined: Sun Aug 30, 2009 10:39 pm
Location: Salt Lake City
Top

Postby mikeschn » Tue Oct 06, 2009 7:05 pm

Okay, it's back to work on the floorplan.

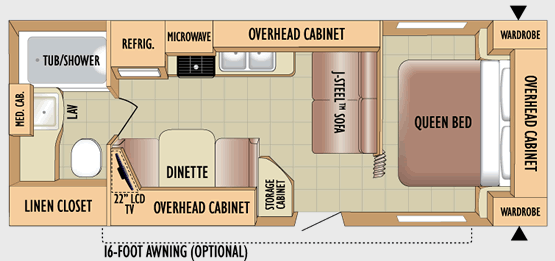

In my mind, I thought something like this would be comfortable living for 3 months for 2 people and 2 dogs.

But to get this to fit into the Alto WW, I've got some serious shrinking to do...


Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby mikeschn » Tue Oct 06, 2009 7:23 pm

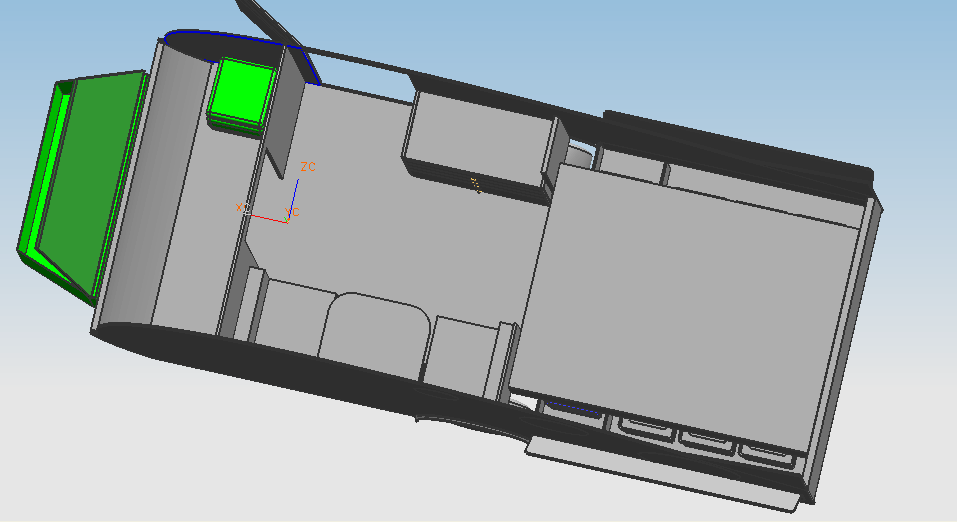

Okay, here's my first shot at the big shrink...


Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby RAYVILLIAN » Tue Oct 06, 2009 7:25 pm

Gee Mike that looks a lot like my sons 27 ft trailer that he has at the lake. good luck getting it into 16ft. :shock:

Gary
Where ever we raise the hatch is home.
Darn blank states keep getting further away and we keep traveling slower ain't never gona get this map full.
111961Image
User avatar
RAYVILLIAN
Lifetime member

Posts: 1434
Images: 109
Joined: Thu Aug 05, 2004 9:33 pm
Location: Rayville MO
Top

Postby mikeschn » Tue Oct 06, 2009 7:26 pm

RAYVILLIAN wrote:Gee Mike that looks a lot like my sons 27 ft trailer that he has at the lake. good luck getting it into 16ft. :shock:

Gary


Gary,

It's actually 22', and if you look again, you'll see I did shrink it to 16'!!! :lol:

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby mikeschn » Tue Oct 06, 2009 8:26 pm

Added some bathroom stuff, and got rid of the self levitating seats in the kitchen!!!



Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 475
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top
