Hurricane Hinge cutting question

Postby Mike Angeles » Sat Mar 17, 2007 12:00 pm

Hey all,
Im getting ready to cut the Hinge after pouring over the Sticky on the subject for the last 2 days. I’m going to take a guess that I have to remove the material listed below so the Hatch side will fit within the walls? That’s taking into account the 1/2" + on either side for the Roof side of the hinge, and the 1/4" for the hatch side per MJ's explicit instructions in the Sticky,
Any help would be greatly appreciated....no really



Anyone, Anyone?

Thanks,
Mike
Image Image

tact /takt/ –noun
1. a keen sense of what to say or do to avoid giving offense; including the ability to speak or act without offending.
2. a keen sense of what is appropriate, tasteful, or aesthetically pleasing; taste;
User avatar
Mike Angeles
Teardrop Master

Posts: 240
Images: 76
Joined: Sun Sep 03, 2006 3:40 pm
Location: Midlothian, VA
Top

Postby madjack » Sat Mar 17, 2007 12:05 pm

Mike, is your hatch gonna fit completely inside the walls...top skin and all...what method are you going to use to seal it...on our builds, the top skin(s) comeout over the side walls and seal against the top edge of the side walls......
madjack 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby toypusher » Sat Mar 17, 2007 12:42 pm

My hatch extends out over the sidewalls as well as down inside them. Therefore, I attached the hinge on the top of the hatch and it extends to the outer most edge on both sides. You may be able to see some pics in my 'Build and Camping Photos' under this post.
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby Mike Angeles » Sat Mar 17, 2007 12:59 pm

Jack, it’ll be like ToyPushers, over the edge, I do know Ill need to route the profile to accept the Weather stripping, 3/8"? There will also be weather striping where the Hatch rib/spar rests on the side body.
Just unsure if i need to have the hatch side hinge over the edge of the roof, and if so, do I remove the vertical piece in the Picture above? Just to the point it fits inside the galley wall?

Thanks again,
Mike
Image Image

tact /takt/ –noun
1. a keen sense of what to say or do to avoid giving offense; including the ability to speak or act without offending.
2. a keen sense of what is appropriate, tasteful, or aesthetically pleasing; taste;
User avatar
Mike Angeles
Teardrop Master

Posts: 240
Images: 76
Joined: Sun Sep 03, 2006 3:40 pm
Location: Midlothian, VA
Top

Postby madjack » Sat Mar 17, 2007 1:06 pm

Mike, from what you just said, I say to leave it as is pictured, remove no more of it at present...if for some reason you need to remove more, you can do so at a latter date easily...once cut it is gone forever...one of my favorite mantras to tell folks is to dryfitdryfitdryfitdryfit before you commit to anything that can't be undone....
madjack 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby madjack » Sat Mar 17, 2007 1:10 pm

...Mike, stupid me...D'OH I just looked at the pic a little closer and yes, that portion of the lower flange will have to be relieved(removed) so the hatch can close...we trimmed ours off even withe outside face of the spar, about a 1/4" inside the wall...my apologies...I'll blame it on the hayfever medication :D :lol: ;) ...
madjack 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby Mike Angeles » Sat Mar 17, 2007 1:25 pm

Hey MJ, Not a problem, Allergies are the pits!! Was actually thinking of leaving Lower hinge the whole length of the hatch to lend support and just remove that Flange which prevents it from closing. it would be flush To hatch roof,

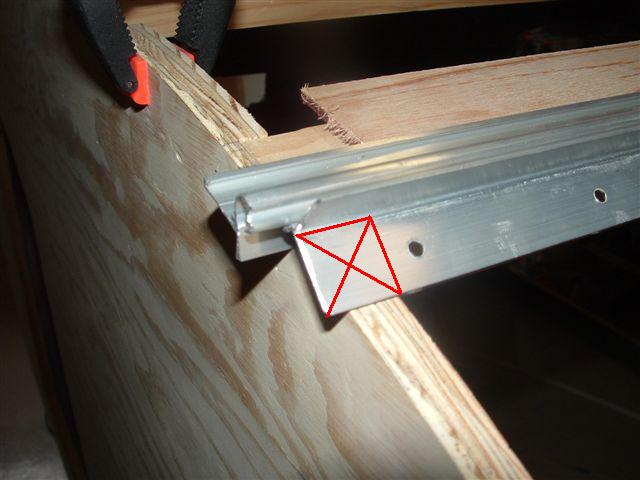

So to recap: remove hatch side flange (red X in picture above) to just inside Galley walls, leaving top portion.

Hope you feel better, Or take some more medication so you just dont care!
Image Image

tact /takt/ –noun
1. a keen sense of what to say or do to avoid giving offense; including the ability to speak or act without offending.
2. a keen sense of what is appropriate, tasteful, or aesthetically pleasing; taste;
User avatar
Mike Angeles
Teardrop Master

Posts: 240
Images: 76
Joined: Sun Sep 03, 2006 3:40 pm
Location: Midlothian, VA
Top

Postby madjack » Sat Mar 17, 2007 1:27 pm

Mike Angeles wrote:Hey MJ, Not a problem, Allergies are the pits!! Was actually thinking of leaving Lower hinge the whole length of the hatch to lend support and just remove that Flange which prevents it from closing. it would be flush To hatch roof,
So to recap: remove hatch side flange (red X in picture above) to just inside Galley walls, leaving top portion.

Hope you feel better, Or take some more medication so you just dont care!


...yep, that is what ya wanna do :thumbsup: ........................................ 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby critter » Mon Mar 19, 2007 1:52 pm

Hey Mike,
Just be doubble carefull and check 3 or 4 times before you cut the hinge.
i didnt and now i have to order a new hinge i cut about 2 in of both ends of my hinge only to relize that i cut the wrong side.Now i have to call and order another hinge.Another of the things i learned the hard way :cry:
critter

salad anit food... its what food eats!




critter
User avatar
critter
500 Club

Posts: 565
Images: 54
Joined: Fri Nov 04, 2005 2:39 pm
Location: greensboro nc
Top

Postby Joseph » Mon Mar 19, 2007 6:15 pm

critter wrote:Just be doubble carefull and check 3 or 4 times before you cut the hinge.

Measure twice, cut once.

Joseph
User avatar
Joseph
Teardrop Pirate

Posts: 1774
Joined: Fri Apr 16, 2004 5:21 am
Location: Excelsior Springs, MO
Top

Postby Arne » Mon Mar 19, 2007 7:05 pm

I'm thinking I'm confused... take a look at the 3rd pic down to see how my hatch is cut.... and why the hinge, both parts, extend outside the tear a bit....

http://www.freewebs.com/teardrop-stuff/
www.freewebs.com/aero-1
---
.
I hope I never get too old to play (Arne, Sept 11, 2010)
.
User avatar
Arne
Mr. Subject Line

Posts: 5383
Images: 96
Joined: Fri Aug 13, 2004 12:25 pm
Location: Middletown, CT
Top

Postby Micro469 » Mon Mar 19, 2007 7:12 pm

Arne wrote:I'm thinking I'm confused... take a look at the 3rd pic down to see how my hatch is cut.... and why the hinge, both parts, extend outside the tear a bit....

http://www.freewebs.com/teardrop-stuff/


Arne... first.. your tear is a hybred... :lol:
Second I think he's going to have his side on the inside of his wall, and the ply resting on his wall......(I hope, I hope, I hope....)
John
User avatar
Micro469
Super Lifetime Member

Posts: 3185
Images: 382
Joined: Mon Nov 07, 2005 10:46 pm
Location: Brampton,Ontario,Canada
Top

Postby Jiminsav » Mon Mar 19, 2007 8:02 pm

STOP!!!!!..HOLD IT!!!!when I say WHOA, i mean WHOA!!!
in this pic Image
you have the hatch part of the hinge installed upside down.
the leg of the hinge goes to the back side of the hatch, and the holes go on top of the hatch.
ps, here's how the hinge looks like when you install it.Image
Jim in Savannah
If you can read this bumper sticker, my camper fell off.
User avatar
Jiminsav
3000 Club
3000 Club

Posts: 3059
Images: 40
Joined: Sat Apr 17, 2004 8:49 pm
Location: Georgia, Savannah
Top

Postby Micro469 » Mon Mar 19, 2007 8:16 pm

No.. I think he's right... the piece that accepts the plastic cover goes on the body.. the other piece goes on the hatch....

I'm not using this hinge, so don't take my word as gospel.... :)
John
User avatar
Micro469
Super Lifetime Member

Posts: 3185
Images: 382
Joined: Mon Nov 07, 2005 10:46 pm
Location: Brampton,Ontario,Canada
Top

Postby Micro469 » Mon Mar 19, 2007 8:18 pm

Jeez... six beers later... and I can't spell worth a damn....... :lol:
John
User avatar
Micro469
Super Lifetime Member

Posts: 3185
Images: 382
Joined: Mon Nov 07, 2005 10:46 pm
Location: Brampton,Ontario,Canada
Top
