Removable A C. The way i did it

Postby JIML1943 » Tue May 08, 2007 10:00 am

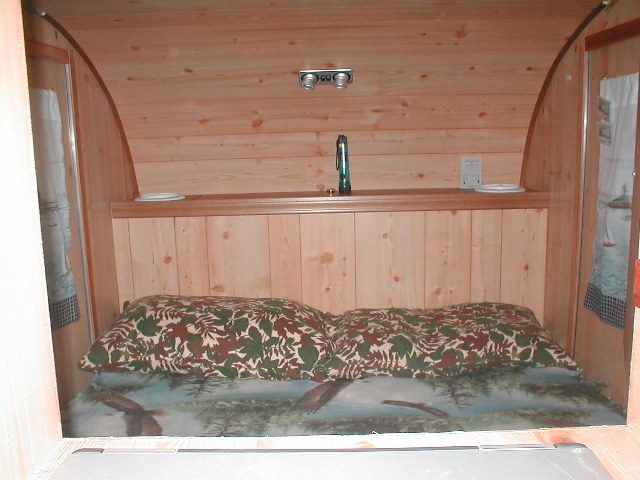

Supply air is on the left,return air right with low voltage RV t stat,
4"return duct runs across bottom of blanket storage.

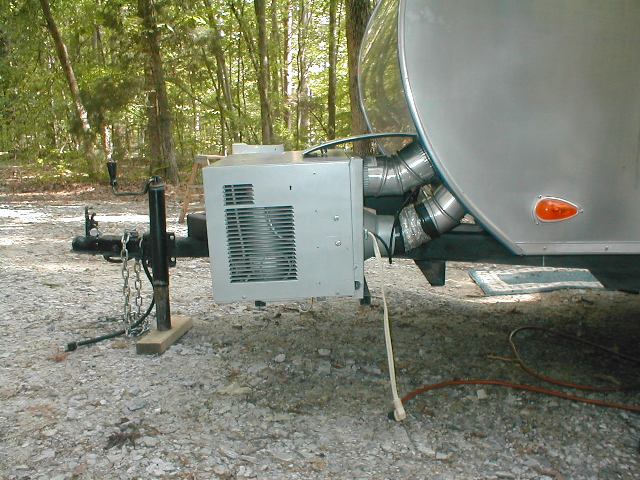

Side view of unit hooked up and running

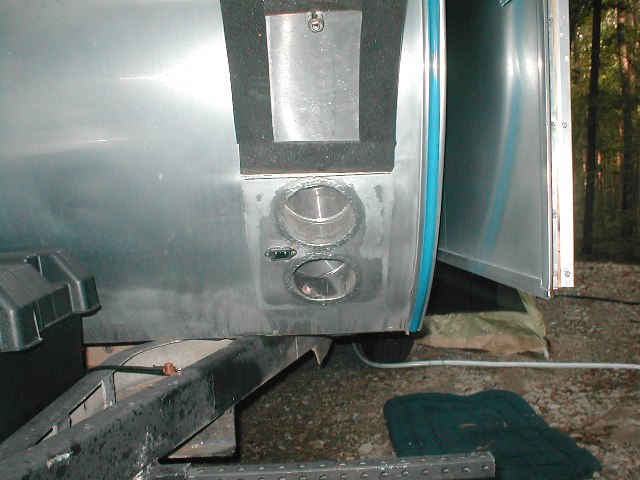

Duct openings are supply on top return on bottom black outlet in between is low voltage connection.

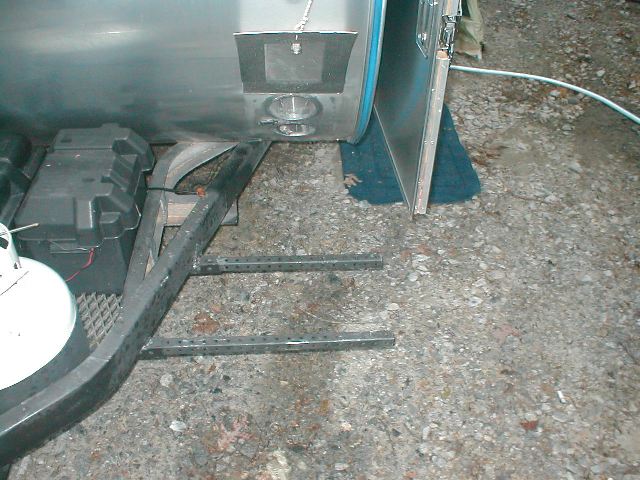

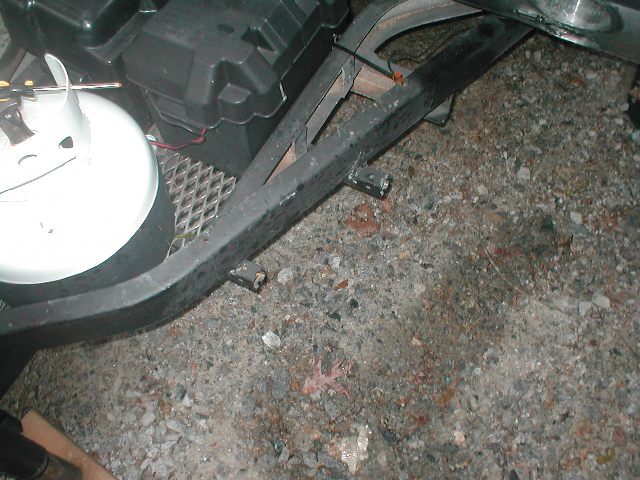

1"id square tube welded to frame.


1" od square slides in to support ac unit.

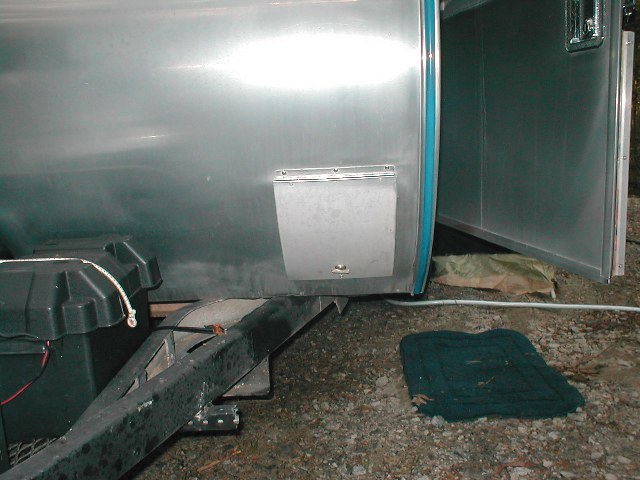

Closed up and ready for travel.

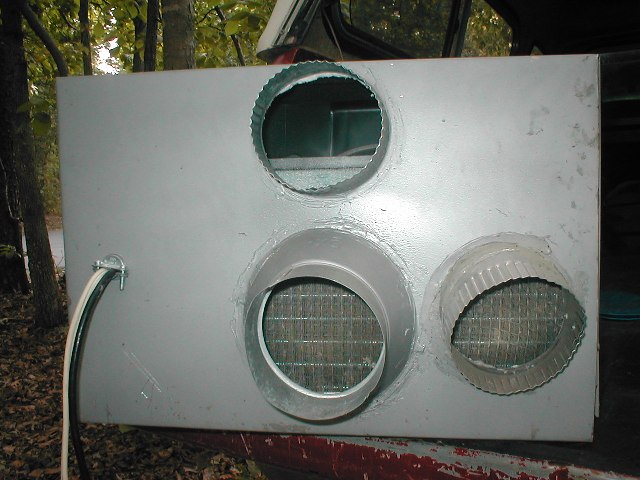

A view of the unit outlets top is supply bottom center return air bottom right is outside air. In the cabinet i installed a 12 volt relay to control A C unit
wired fan to turn off with compressor, might install another relay later to allow fan to run alone. Oh by the way it works great, used last week.
Last edited by JIML1943 on Tue May 08, 2007 12:23 pm, edited 1 time in total.
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby tonyj » Tue May 08, 2007 10:17 am

That's a nice departure from the other ducted installations. :thumbsup:
Still graced with two eyes and ten fingers (due in no small part to luck!).

Just when you think a problem is solved, an uglier result replaces it.

tony
User avatar
tonyj
Super Lifetime Member

Posts: 2468
Images: 160
Joined: Mon Sep 26, 2005 10:18 pm
Location: Texas, Corpus Christi
Top

Postby madjack » Tue May 08, 2007 1:04 pm

...nice setup :thumbsup: ........................................ 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby Ira » Tue May 08, 2007 2:04 pm

I'm confused:

Is that an extra enclosure that covers the entire unit?

And how do you adjust the settings?
Here we go again!
User avatar
Ira
Forum Storyteller

Posts: 5652
Images: 118
Joined: Tue Nov 29, 2005 2:16 pm
Location: South Florida
Top

Postby JIML1943 » Tue May 08, 2007 2:29 pm

Hey Ira i threw away the front cover and made one out of aluminium. it's controlled by the t stat in the cabin.
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby toypusher » Tue May 08, 2007 2:34 pm

Jim,
Very nice setup!! Great job!

BTW: Your Yahoo pics don't seem to be 'shared' or 'public' and I can not see them.
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby JIML1943 » Tue May 08, 2007 2:54 pm

They are shared now. Thanks toypusher
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby Ira » Tue May 08, 2007 3:20 pm

I still don't get it:

Aren't the unit controls exposed to the elements? They face the tongue, right? Not the cabin?

Or is was this not a window shaker to begin with?

My limited mind sees manual knobs and buttons, but I don't see them on the unit.

----------------

Edit:

Wait. I think I figured it out. Takes me long, because I'm a retard.

This was a window shaker, the on-unit controls face the CABIN, but are protected from the elements by your new enclosure.

Duh???
Here we go again!
User avatar
Ira
Forum Storyteller

Posts: 5652
Images: 118
Joined: Tue Nov 29, 2005 2:16 pm
Location: South Florida
Top

Postby JIML1943 » Tue May 08, 2007 3:28 pm

Hey again Ira The coils face the tongue the controls that used to be behind the cover with the sa & ra outlets are gone it is controled from inside cabin.via t stat.It is 5000 BTU window unit.
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby toypusher » Tue May 08, 2007 4:17 pm

JIML1943 wrote:They are shared now. Thanks toypusher


I'm still getting the 'login' screen.
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby JIML1943 » Tue May 08, 2007 4:30 pm

I don't know why you can't get them i went back and checked ane they are shared to public.Let me get on wifes pc and see if i can open them. From what i see you need to be logged on to yahoo.
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby toypusher » Tue May 08, 2007 5:20 pm

You don't have to be logged into Yahoo to see my photos that are on Yahoo!! Are you sure that they are shared with everyone??
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby JIML1943 » Tue May 08, 2007 5:45 pm

Public
Anyone can view it at: http://new.photos.yahoo.com/jim_l_1943/albums

kERRY Thisis what it says
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top

Postby toypusher » Tue May 08, 2007 7:15 pm

JIML1943 wrote:Public
Anyone can view it at: http://new.photos.yahoo.com/jim_l_1943/albums

kERRY Thisis what it says


OK! It's your 'tinyurl' link that does not work. Here is a new tinyurl http://tinyurl.com/25lvdk

BTW: I just realized that you were my neighbor at the N meets S event!!
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby JIML1943 » Tue May 08, 2007 8:59 pm

Was that your red truck across the street from Barb and i.


were on the left.
Some days all you can do is smile and wait for some kind soul to come along and pull your ass out the bind you've gotten yourself into.

Happy camping Jim & Barbara
User avatar
JIML1943
Teardrop Master

Posts: 230
Images: 71
Joined: Tue Sep 28, 2004 7:22 am
Location: Lexington,N.C.At highrock lake
Top
