Hatch help...Building hatch in place

[Juneaudave]

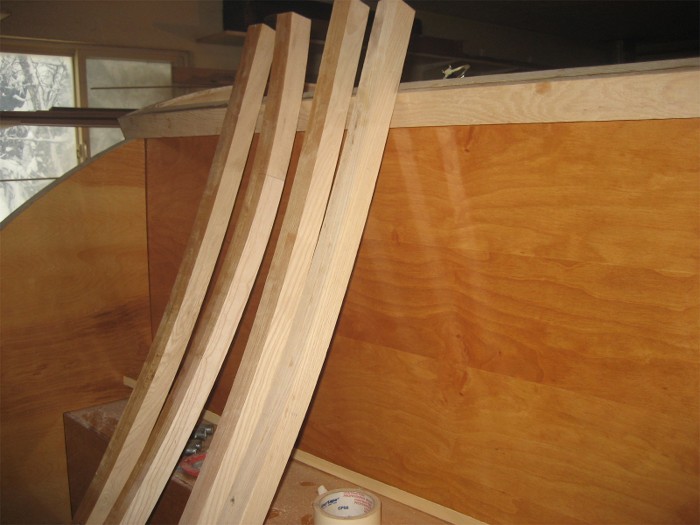

I've turned my attention to building my hatch, and want to do it in place. The spars and pieces are cut, ready for final fit and trimming. For what ever reason, I seem to remember that the space between the hatch and the header should be 1/4 inch to accomodate one of Grant's hinges. But as I look at the hinge...1/4 inch seems a little big. Do I need to figure in a gasket space? What am I missing?

[mikeschn]

Does this picture help?



Mike...

[prohandyman]

Dave
When the hinge/hatch is closed, there is a gap of approx. 1/4" between the verticle dividers. Hence the reason for allowing space in the top most hatch spar. I will see if I can find a pic.
oops...I'm too late...nice pic Mike.

[Dean_A]

Mike,
Thanks for the pic. I'm about at the same place in my build, so this was helpful. Good detail pics are always useful.

[Juneaudave]

Thanks Mike...that helps a lot!!!

[madjack]

Dave, it leaves about a 1/4" between the leaves when the hatch is shut...for additional sealing, I placed a piece of 1x3/16x2 foam weatherstrip on each side of the hinge...also be sure and leave at least a 1/2" of overhang on both sides as a diverter and for room to put a set screw on both sides to keep the hatch centered in place....
madjack
