Postby mikeschn » Mon Aug 16, 2004 4:00 am

You could build up the side movable panels so that they are insulated... but then you ought to make the side walls thicker so that it appears balanced!

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 479
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby ARKPAT » Wed Dec 21, 2005 1:24 am

Mike has anyone built one of these. The design looks simple enough and do - able. I'm a new member with some construction/welding skills. I'm also an ex-AudoCad draftsman (12 years ago ). Never did much 3D work except in tech. school. Look to see if there is any feed back form builders on this design.
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby madjack » Wed Dec 21, 2005 1:36 am

...take a look in the "hall of fame"...RayVillan's Winter Warrior............................................... 8)

p.s. also look here... http://tnttt.com/album_ ... ser_id=218
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby ARKPAT » Wed Dec 21, 2005 3:53 am

Thanks Madjack for the link to the gallery photos. Looks large enough inside to stand-up-in and table lowers to make a bed. The trailer built had rounded frontage ( lower drag but still high profile ??? ). It is not a Standard Tear Drop design. I'm still looking for the right combination. Four seasons Tear camping. As you might have guessed I work nights and need from time to time a quiet place to sleep during work days. Town gets noisy sometimes.
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby mikeschn » Wed Dec 21, 2005 3:54 am

4 seasons camping might call for something like a tab with inside cooking...

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 479
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby bledsoe3 » Wed Dec 21, 2005 4:09 am

mikeschn wrote:4 seasons camping might call for something like a tab with inside cooking...

Mike...

Did you ever sell your T@B?
If you do what you've always done, you'll get what you've always got.
User avatar
bledsoe3
3000 Club
3000 Club

Posts: 3694
Images: 112
Joined: Tue Jun 07, 2005 5:55 am
Location: Oregon, Portland
Top

Postby ARKPAT » Wed Dec 21, 2005 4:21 am

I thought about that also; but like the little Sigg muili-fuel stove and folding table I have. A/C and heat ( can be hauled in tow vehl. ) would be nice when I will have shore power available. Planning Solar backup power ( nice flat surface or Unisolar flex panels $$$ ). But I'm back to adding weight and size again. I woulds like to have it so I can pull-it with a Neon or small Nissan Frontier ( four cyl. ) I have a full-size Ford pickup; but would like to be able to pull it with the others too. I might be outer limits it on the Neon 100lbs max. on hitch???
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby mikeschn » Wed Dec 21, 2005 4:26 am

bledsoe3 wrote:
mikeschn wrote:4 seasons camping might call for something like a tab with inside cooking...

Mike...

Did you ever sell your T@B?


No I didn't sell the T@B yet... this isn't the right season... But once cabin fever starts building as spring draws closer, the buyer should surface!!! :lol:

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 479
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top

Postby ARKPAT » Wed Dec 21, 2005 4:36 am

Thanks Mike a T@B is nice but I want to build and customize-it to fit around my many other hobbies. The the knowledge I have made something myself ( mistakes and all ).
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby angib » Wed Dec 21, 2005 8:26 am

I have a fairly detailed design of the Mike's Winter Warrior, although it's built as light as possible (hence the 'Light Warrior') and is in metric measurements - but replacing the measurements with inches wouldn't take long and I think it's still really an inch design.

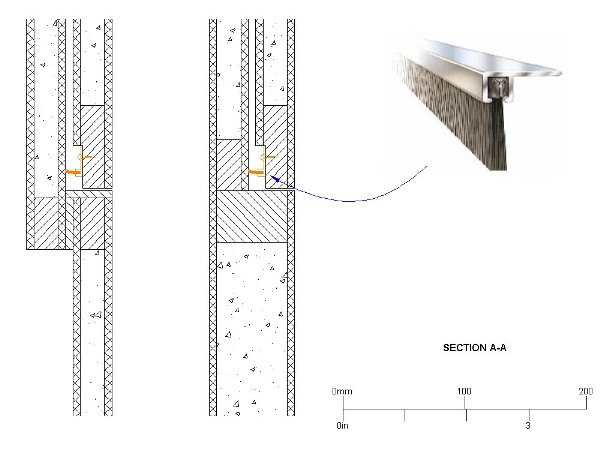

The wall and seal construction is shown in this detail:


That's a cut through the body side at the bottom edge of the moveable top (on the right side of each detail) and there are two versions, depending on whether the fixed wall goes double-thickness below the overlap or not.

Basic wall construction (fixed and moveable parts) is 1/4" outer ply + 3/4" framing/insulation + 1/8" inner ply with a 1/4" gap between the two parts.

Andrew
User avatar
angib
5000 Club
5000 Club

Posts: 5783
Images: 231
Joined: Fri Apr 30, 2004 2:04 pm
Location: (Olde) England
Top

Postby Ma3tt » Wed Dec 21, 2005 9:39 am

Doesn't that winter warrior need a hole in the floor for ice fishing?
Be Good
1967 Siesta del Sobrino "Standy"
If you lived here... you would be home by now.
http://www.Camp-Cook.com
User avatar
Ma3tt
Dutch Oven GURU

Posts: 1140
Images: 179
Joined: Tue Apr 19, 2005 10:19 am
Location: Noodleberry Park. Ca.
Top

Postby ARKPAT » Wed Dec 21, 2005 11:23 pm

Thanks Andrew a very well thought out detail on weather proofing the slip joint. A old commercial roofing contractor I knew many years ago said "water will and can run up hill and to always double your break with a air gap (water will leach up hill behind two surfaces [u]wicking action[/u] and add wind or pressure )".
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby ARKPAT » Thu Dec 22, 2005 12:00 am

Andrew a question about CAD software ( I know off subject ). Does TurboCAD the Deluxe V11 have plot to a H.P. plotter ability ( old HP7475A ) or to Just to inkjet printers. Don't have that extra $5,000 to spend. :-)
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby ARKPAT » Thu Dec 22, 2005 1:48 am

There is a reason I'm asking this; I can make full size patterns ( or a Screen projector will work borrowed from a friend ). This is to model full size drawing to look at in detail ( the old cut and paste routine ) sizes and feel for reference. I'm an old Arch. modeler in years past.
Life is to short always eat dessert first.
uÊ
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby mikeschn » Thu Dec 22, 2005 3:58 am

Turbocad uses the print drivers that are on your PC. So if you have a driver for that plotter installed, Turbocad can use it!

Mike...
The quality is remembered long after the price is forgotten, so build your teardrop with the best materials...
User avatar
mikeschn
Site Admin

Posts: 19202
Images: 479
Joined: Tue Apr 13, 2004 11:01 am
Location: MI
Top
