12 Volt DC to 9 Volt DC?

Anything electric, AC or DC

Postby ARKPAT » Sun May 24, 2009 8:11 pm


Just leave out the R1 and R2 resistors on a LM-7809 devise ( same place as LM-317 )and take the ADJUST line to Ground. It will work the same for LM-7805,LM-7812......etc.......fixed voltage circuits. Or you can use the table and the schematic shown above and use R1=100 ohms and R2=620 ohms to have a fixed voltage regulator circuit. Change the 17+ to 12+ and the 13.6 to +9 on the output side of the circuit. :oops:

:thumbsup:

Pat

Sorry; I do not have a capture program to modify the schematic above.

Check the application PDF file for circuits ( sorry, but you curious people here is the designer information stuff ).
Last edited by ARKPAT on Sun May 24, 2009 10:45 pm, edited 1 time in total.
Life is to short always eat dessert first.
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas

Postby bgeddes » Sun May 24, 2009 10:15 pm

I tried to post a schematic, it did not work.

Above post is correct.
bgeddes
Teardrop Inspector

Posts: 20
Joined: Wed Jul 25, 2007 10:10 pm

Postby ARKPAT » Sun May 24, 2009 10:39 pm

I had the same problem in posting this one but used the IMG with html in them as instructed in the post messages. But I do not have a screen capture program to modify the circuit. :cry: :oops: :thinking:



:thinking:

Pat
Life is to short always eat dessert first.
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby bg » Mon May 25, 2009 12:13 am

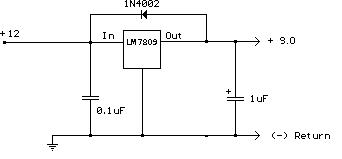

Somebody let me know if this isn't correct.

Bobby(, Kim & Wayne)
bg
500 Club

Posts: 985
Images: 8
Joined: Fri Aug 20, 2004 11:11 pm
Location: Saginaw, TX
Top

Postby bgeddes » Mon May 25, 2009 5:11 pm

If you are coming off a battery, skip the 22,000uf cap, it is in the other circuit to smooth the AC off the transformer.

Other than that, it's right. What kind of amperage on the 9v side?
bgeddes
Teardrop Inspector

Posts: 20
Joined: Wed Jul 25, 2007 10:10 pm
Top

Postby ARKPAT » Mon May 25, 2009 9:03 pm


I hope this comes out ok. Playing with Paint program. :oops:

:thumbsup:

Pat
Life is to short always eat dessert first.
User avatar
ARKPAT
1000 Club
1000 Club

Posts: 1549
Images: 77
Joined: Tue Dec 13, 2005 4:45 am
Location: Arkansas
Top

Postby bgeddes » Mon May 25, 2009 9:48 pm

That's it ARKPAT!! The 1uF might need adjustment based on current draw but that circuit should work for general purposes.

Note to builders: Don't go crazy looking for exact capacitors, their value is has a lot of 'fudge factor'. For the capacitor on the output side, make sure it is rated for at least 9 volts, (if I built it I would make sure it is rated for 12v, because things happen).
bgeddes
Teardrop Inspector

Posts: 20
Joined: Wed Jul 25, 2007 10:10 pm
Top

Postby bg » Thu May 28, 2009 11:43 am

I updated mine to be correct - I don't deal with circuits enough to have a vast knowledge of them - though I did wonder why there was a third capacitor involved.
Bobby(, Kim & Wayne)
bg
500 Club

Posts: 985
Images: 8
Joined: Fri Aug 20, 2004 11:11 pm
Location: Saginaw, TX
Top
