Elex Plan Review-Thank you!

Anything electric, AC or DC

Elex Plan Review-Thank you!

Postby Capebuild » Mon Mar 29, 2021 7:43 am

Hello. I'm beginning to understand how my electrical plan might come together. I've posted a few images below. I'd really appreciate
any thoughts people could share and confirm if this plan looks like I'm going about this the correct way. I still have questions about the
batt to batt charging (TV battery charging the trailer battery) as I don't want to compromise my Subaru's alternator, so still researching that.

There will also be a battery monitor and a solar charger monitor located in the galley section of the trailer.
I also realize the MPPT solar charger may be a bit larger than what's needed for the 200 watt panel configuration and I could probably go with a 100/20 instead of the 100/30.

I realize this may be a lot to look at and give your thoughts ....so know that I do appreciate your help.

Thank you.

John
Attachments

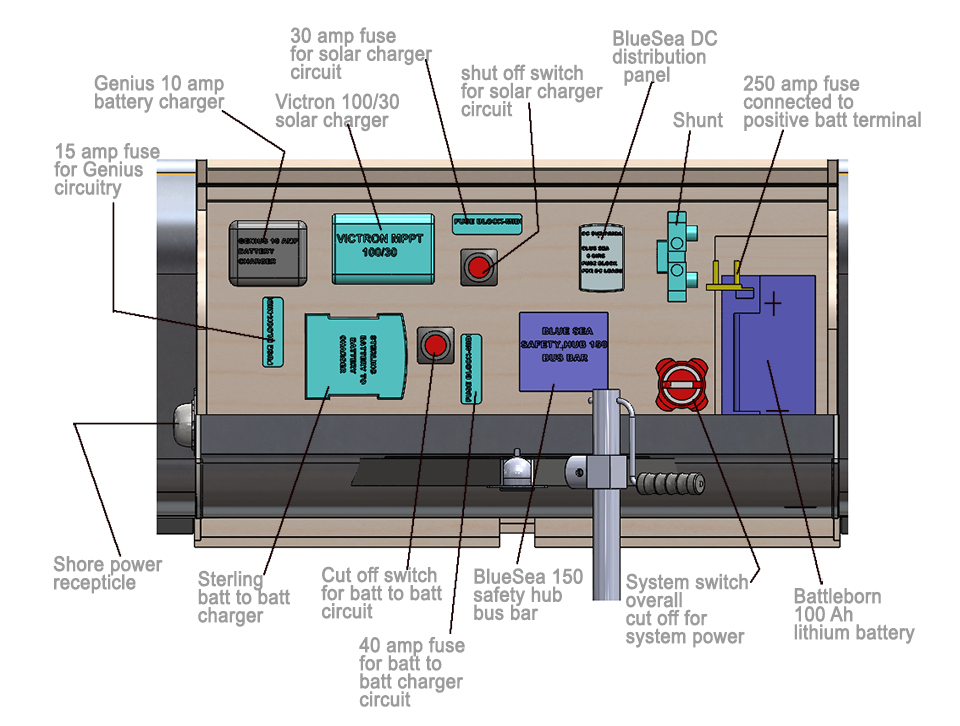

elex layout in placejpg.jpg
elex layout in placejpg.jpg (279.66 KiB) Viewed 1003 times

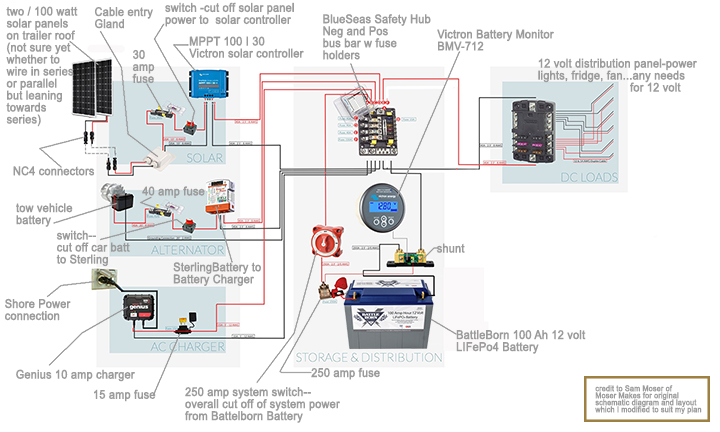

elex schematic_3.29.21.jpg
elex schematic_3.29.21.jpg (158.43 KiB) Viewed 1003 times

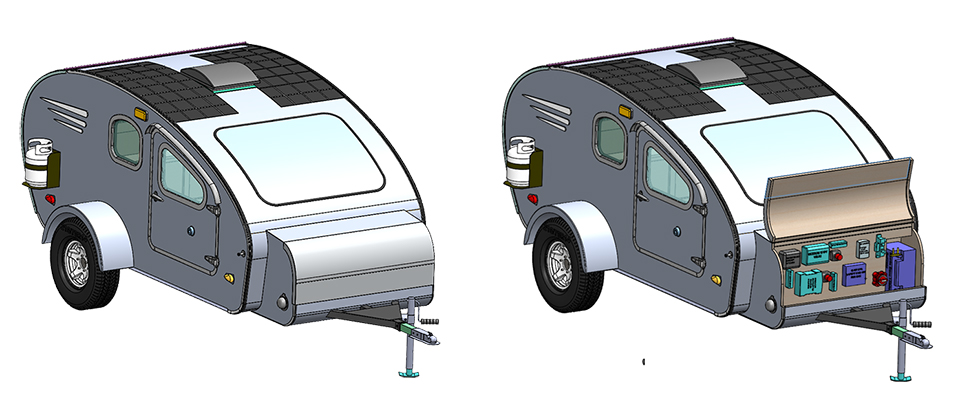

10 foot trailer assembly_3.29.21G.jpg
10 foot trailer assembly_3.29.21G.jpg (179.81 KiB) Viewed 1003 times
"Success can be defined as moving from failure to failure without loss of enthusiasm".... Churchill

Visit my Teardrop build here: viewtopic.php?f=50&t=73779
User avatar
Capebuild
Donating Member

Posts: 760
Images: 129
Joined: Sun Jan 31, 2021 6:50 am
Location: Massachusetts

Re: Elex Plan Review-Thank you!

Postby John61CT » Mon Mar 29, 2021 8:48 am

20A * actual Vcharge give max output from the SC

So 13.8 is 275W

14.9 is 298W

Going higher (overpanelling) gets more value out of the SC

Up to 10-15% will only affect very short & rare peak outputs, increasing the critical **average** daily output.

Ideal for shade handling is 1 panel per SC
John61CT
1000 Club
1000 Club

Posts: 1958
Joined: Thu Nov 17, 2016 4:36 pm

Re: Elex Plan Review-Thank you!

Postby saltydawg » Tue Mar 30, 2021 7:50 pm

Okay I would suggest instead of different fuses for every charging source, just take them to a fuse ( one each ) on the blue sea fuse panel. Same with the positve connection for the meter, just take it to the fuse block.

Also while I love voctron stuff, look at the renogy dual source charger. It combines the dc2dc and mppt solar into one unit. Less wiring, less things to fail, but less redundancy
https://www.renogy.com/dcc30s-12v-30a-d ... with-mppt/
Scott
Lost in Maryland
2021 just said to 2020, hold my beer and watch this.
saltydawg
500 Club

Posts: 647
Joined: Tue Apr 24, 2012 8:34 pm
Location: Maryland
