Step 0: Visualizing the design

[SteveH]

Mike,

This is what I have, but it wasn't finished completely when I took it.

[mikeschn]

Oh yea, that's nice. I like it...

Do you also have storage on the other side of those cabinets, in the cabin area? How deep are your galley cabinets and how deep are your cabin cabinets?

Mike...

[SteveH]

Mike,

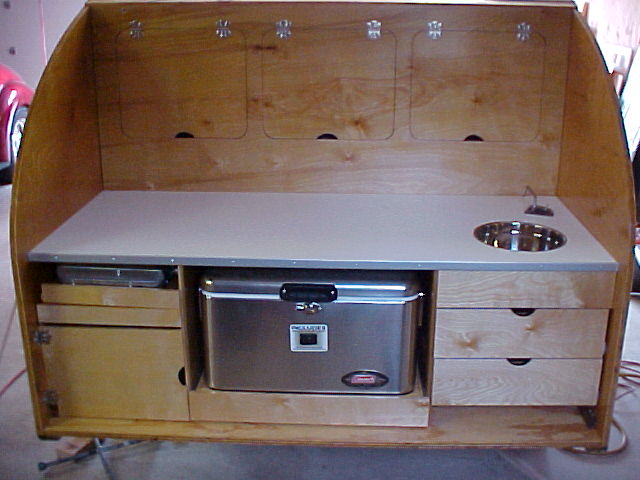

My galley cabinets are 9" deep, and my cabin cabinets are 14" deep. I'll get some better pictures soon as the ones I have are construction photos.

[toypusher]

Mike, (or anyone else)

I know this is designed for a 5x8, but was wondering if you think that a 5x9 would look strange without increasing the height. I tried playing around with this on paper and just can't see to get the visualization that I need to decide. Also, would the axle have to be moved to get the correct tongue weight (I'm talking a 5x9 frame also, so there would not be an overhang)?

The proportions just don't seem right to make it look good!

Help!

[SteveH]

but was wondering if you think that a 5x9 would look strange without increasing the height

Kerry,

My trailer, the one in my avitar above, is 5 X 9', so that will give you a refference about proportions.

[toypusher]

Steve,

Thanks for the information. Your avatar (and I looked at your build pics too) look alot better proportionaly than what I had one paper. I guess I must have gotten the scale wrong or something. How far from the back of the frame did you put your axle and what kind of tongue weight did it give you?

[mikeschn]

Mike, (or anyone else)

I know this is designed for a 5x8, but was wondering if you think that a 5x9 would look strange without increasing the height. I tried playing around with this on paper and just can't see to get the visualization that I need to decide. Also, would the axle have to be moved to get the correct tongue weight (I'm talking a 5x9 frame also, so there would not be an overhang)?

The proportions just don't seem right to make it look good!

Help!

A 5x9 trailer with a sidewall profile of 4x9 is still reasonable. I've done 2D plans for that in the past, and it just looks like a stretched benroy.

I don't have any of those plans handy any more, but I'll keep my eyes open. If push comes to shove, and I find I have a few minutes before work starts, I'll throw together a model for you some day!

Mike...

[toypusher]

Thanks, Mike. I would appreciate it. I thing that Steve's build gives me a real good idea of what it looks like compared to the 8 footer.

[SteveH]

Steve,

Thanks for the information. Your avatar (and I looked at your build pics too) look alot better proportionaly than what I had one paper. I guess I must have gotten the scale wrong or something. How far from the back of the frame did you put your axle and what kind of tongue weight did it give you?

Kerry,

My axle is mounted so the hubs are at 39" from the rear of the trailer, and with the tongue box loaded with chairs, an awning, carpet for the entrance door, 2 jack stands, extention cord, and blocks, the tongue weighs 165 pounds. The total weight is about 1250. As far as proportions are concerned, keep in mind that in apperance, the trailer is 50" tall because I put the walls on the top of the frame and then ran the aluminum down to cover the sides of the frame.

[backwoodsman]

Steve,

Thanks for the information. Your avatar (and I looked at your build pics too) look alot better proportionaly than what I had one paper. I guess I must have gotten the scale wrong or something. How far from the back of the frame did you put your axle and what kind of tongue weight did it give you?

Steve,
Have you rubbed the letters off of your keyboard answering the same questions over and over yet?:R
Greg

[SteveH]

Hey Greg,

Would you believe I have to keep going out to the garage and measure it because I forget? The sad thing is, it's true. Someone on here said they thought they had halfheimers...I must have it also.

[Chris C]

I haven't gotten to that point yet. I just have a bonifide case of CRS.


(Can't Remember Sh*t!)

[mikeschn]

Thanks, Mike. I would appreciate it. I thing that Steve's build gives me a real good idea of what it looks like compared to the 8 footer.

Okay, I did the model of the 5x9 this morning... where do you want me to send it?

Mike...

[toypusher]

Mike,

Send it to me, you have my email, and or post here for everybody?

PS: I cut out a cardboard of the 9 foot by 4 foot high profile and put it up on the side of my Cubby for a look. It still looks awful long and low. I think that making it 54" high or so would dramatically change that. I have to find another piece of 9 foot long cardboard to make it the 6 inches high before I can decide, I guess.

[mikeschn]

Okay Kerry,

Here's your idea for all the world to see!

http://www.mikenchell.com/generic_benro ... enroy1.wrl
http://www.mikenchell.com/generic_benro ... enroy2.wrl
http://www.mikenchell.com/generic_benro ... enroy3.wrl

Mike...

P.S. Large bandwidth is recommended... these are huge files...
