Hi everyone, I am new to the forum. I have referred to the forum many times thus far into my conversion.

Originally the trailer started out as a nothing fancy 2016 7x16 Carry-On Cargo Trailer. Originally I purchased it to move from Washington to California. Once I had it I decided the heck with it and tore into it.


So I started out and gutted the original paneling in the trailer. I did 1" rigid foam insulation throughout.


I got a good deal on some laminate flooring and installed that as well.


Then I moved on to install the wall paneling. I ran wires for a 110 outlet on one side and installed the roof paneling and LED lighting. Also I got the fantastic vent installed.




I ended up getting the cabinet configuration I wanted and went to work on that. Three drawers on the left side then a large cabinet at the front with two smaller cabinets to the right. The cabinet farthest right will end up being for my electrical power panel and associated equipment.




Underneath I got two 20 gallon water tanks and plumbed them together. I then made brackets to tuck them between the axles and between the frame rails. I installed a standard rv fill port along with a city water connection. I went inside and installed a shurflo water pump beneath the drawers. I plumbed all interior lines with PEX and installed the sink, faucet, and shower.









Now this is where I am starting to rack my brain. I want to build a shower that is portable and can be used indoors and something that is aesthetically pleasing both erected and stored away. Any ideas would be great.

So after the plumbing was knocked out I started to work the electrical. I got the power converter mounted up, the 30 amp outlet installed and ran the 120 to two outlets temporarily. I hooked up all the 12v systems and installed a LED light strip on the side of the trailer.



I then installed the cargo-buckle tie downs in the trailer. I am a big fan of these, flush mount design, integrated ratchets strap and good and strong.



So a little more backstory as to why I am going with a toy hauler design over a standard trailer with living quarters and a dedicated bathroom is so I can haul this guy out for desert trips.



So after I got all of the above installed it was time to take the trailer out for its maiden voyage and test out the systems and make notes for improvements. One thing I found is the floor gets good and cold, I have decided to install 2 inch rigid foam insulation under the trailer. Another issue is heating in general. I have a Mr. Buddy Portable Buddy heater but to be honest I have never felt comfortable running it. I felt like I should have brought a bird along that way I know when I need to get out of there! (I installed a carbon monoxide/ propane detector prior to the trip though). I think I want to go with this ducted heating system right here:

http://www.rockymountainwesty.com/Prope ... hs2211.htm

Should be sufficient for the size of the trailer and it has a low amp draw on the batteries.

One thing I forgot to mention was the water heater setup. I went with the ecotemp tankless water heater. I sourced quick disconnects for brewing beer and mounted the female end in the lower front end of the trailer. I hooked the male ends to the water heater. This allows me to easily connect the water heater during setup and just as easily disconnect and drain during teardown. I also made a jumper hose while trailering just in case the water pump switch gets turned on I'm not spewing water down the road and empty when we get to the campsite.

In the last few days I have been getting back into the flow of things. Built shelving for the helmets. I decided to do LED lighting in the shelves as well to give it a little bit nicer look. I also installed two more outlets and got them all wired up to the power converter. I got the HDMI/Coax ports installed to. The HDMI runs from the upper shelf to behind the TV. And the coax will run out and through a port in the exterior of the trailer just in case I ever want to do satellite.




Yesterday I got the sliding shelves installed adjacent to the power cabinet. This was a total fluke that they fit so well, it was never my intention but I saw them and did a little modification to fit the depth, but the width is spot on.



So far that where I am at. Still have quite a bit of work to do until it's complete. I have OCD so taking my time and doing it right is key at all points. Please provide feedback or any constructive criticism you may have.

[McDave]

Oh Boy! I like what I'm seeing there. I'm gonna have to go back a re-read all that, but she looks good, real good. You're doin it right. Keep that stuff up...

McDave

[hankaye]

pyramid, Howdy;

Welcome to the forum, hellofva first post! , !

Only thing I can see to point out is ya might want to cross the tie-down straps on the side-by-side.
That keeps slack from occurring should it shift any. Check out some equipment hauler's trailers next
time you find yourself near a truck stop. Other than that tid bit, I think everything you've done so far
is top notch. Lookin' forward to more.

hank

[Yukon Cornelius]

Off to a great start! Looks like it'll be a great build!

[CoventryKid]

Hi Pyramid and welcome!

Your conversion is looking really great!

Regarding an idea for your shower...

Now this is where I am starting to rack my brain. I want to build a shower that is portable and can be used indoors and something that is aesthetically pleasing both erected and stored away. Any ideas would be great.

I designed our small bathroom to have the shower in it, but over time, I realized doing so would mean a shower that was just going to be way too cramped. I was also concerned about how I could keep the whole thing watertight. So I scrapped that idea, but continued wondering how......

Over the course of our trips, It dawned on me that while it would be really nice to have a permanent shower, a "temporary " one could work just as well. And a temporary one wouldn't eat up valuable real estate inside our trailer, to be used for 5-10 minutes a day.

Our kitchen is in the middle of our trailer so I figured I'd put the shower right under our Maxxair fan in the kitchen. I started with bungee cords to hold the shower curtains - I used 2 of the plastic liners hooked together and connected a hand-held shower head to the kitchen faucet. My wife and I tried this for a few weeks (we were travelling so I couldn't do anything permanent anyway!). Admittedly it was a 2 person operation - me showering and my wife turning the water on and off, and vice versa.

When we got to friends in Nova Scotia last fall, I made the shower permanent. Because of the layout, I decided to place drapery I-beam track around our front skylight instead of around the Maxxair fan. I attached the shower curtains and placed them in a storage container we got from WMart. I mounted the holder for the shower head to the ceiling and installed an on/off fitting at the shower head.

Now it's just a matter of turning the water on at the faucet with the shower head valve in the off position, hop in and turn on the water and shower away - no help needed! And as it turned out, one of the two gaps between the 2 shower curtains is right at the corner closest to the kitchen counter - a great place for shampoo, soap, etc.

I took these pics with my old BlackBerry, but I hope you can see how it works. The shower curtain store in the corner out of the way, but unfortunately not out of sight.


This sure beats wandering up to the RV park's showers and paying to have a shower. By the way, the blue "tub" stores in the back of our van when not in use.

Hope this helps!

[pyramid]

Thank you all, this project has definitely been a learning experience but at the some time very fun . I have a good working knowledge of carpentry and electrical but all the other trades were somewhat a learn as I go thing.

[pyramid]

pyramid, Howdy;

Welcome to the forum, hellofva first post! , !

Only thing I can see to point out is ya might want to cross the tie-down straps on the side-by-side.
That keeps slack from occurring should it shift any. Check out some equipment hauler's trailers next
time you find yourself near a truck stop. Other than that tid bit, I think everything you've done so far
is top notch. Lookin' forward to more.

hank

I have been wantring to make that work, but to my surprise I can't find a halfway decent tiedown point on the side -by-side. It amazes me that they wouldn't manufacture some tiedowns into them.

[pyramid]

Hi Pyramid and welcome!

Your conversion is looking really great!

Regarding an idea for your shower...

Now this is where I am starting to rack my brain. I want to build a shower that is portable and can be used indoors and something that is aesthetically pleasing both erected and stored away. Any ideas would be great.

I designed our small bathroom to have the shower in it, but over time, I realized doing so would mean a shower that was just going to be way too cramped. I was also concerned about how I could keep the whole thing watertight. So I scrapped that idea, but continued wondering how......

Over the course of our trips, It dawned on me that while it would be really nice to have a permanent shower, a "temporary " one could work just as well. And a temporary one wouldn't eat up valuable real estate inside our trailer, to be used for 5-10 minutes a day.

Our kitchen is in the middle of our trailer so I figured I'd put the shower right under our Maxxair fan in the kitchen. I started with bungee cords to hold the shower curtains - I used 2 of the plastic liners hooked together and connected a hand-held shower head to the kitchen faucet. My wife and I tried this for a few weeks (we were travelling so I couldn't do anything permanent anyway!). Admittedly it was a 2 person operation - me showering and my wife turning the water on and off, and vice versa.

When we got to friends in Nova Scotia last fall, I made the shower permanent. Because of the layout, I decided to place drapery I-beam track around our front skylight instead of around the Maxxair fan. I attached the shower curtains and placed them in a storage container we got from WMart. I mounted the holder for the shower head to the ceiling and installed an on/off fitting at the shower head.

Now it's just a matter of turning the water on at the faucet with the shower head valve in the off position, hop in and turn on the water and shower away - no help needed! And as it turned out, one of the two gaps between the 2 shower curtains is right at the corner closest to the kitchen counter - a great place for shampoo, soap, etc.

I took these pics with my old BlackBerry, but I hope you can see how it works. The shower curtain store in the corner out of the way, but unfortunately not out of sight.


This sure beats wandering up to the RV park's showers and paying to have a shower. By the way, the blue "tub" stores in the back of our van when not in use.

Hope this helps!

That's exactly what I want to do, I don't have the space/need for a deification ahower. This is what I have been looking for .

I rigged up a really rough system simar to this but I found the shower pan was too small and that the frame for the curtain was too flimsy. it essentially collapsed into itself and then I put a little hook on the ceiling to hang it from. It was absolutely a two person job.

What did you end up using for the curtain rod?

Thanks again ,gives me some great ideas!!

[pyramid]

So for the bed system I want to go with a bed that raises all the way to the ceiling and slides down while in use. I also want to integrate a couch into it aswell. My. Iffy and I went out and measured the height of the side by side while backing it in. Measured at multiple different points and found that the highest point (where the bed would be) is around 12 inches and meandered 1ft off the wall and it was at 7 inches. This really gives me ample space to execute. I will first rig up a pvc frame and test the theory with the trailer ramp at different angles but it was pretty steep tonight so I don't forsee there being any major issues. Anyone have advice on building this? This is what I was looking at using for the channel:
http://openbuildspartstore.com/v-slot-linear-rail/

Then this for the slides, I would upgrade to steel wheels to decrease compression and increase stability.
http://openbuildspartstore.com/v-slot-gantry-set/

Still have to figure out the electrical portion. Don't know if I want use screws or create a belt/chain system. Either way I will wire in limit switches at both ends to ensure safe operation.

[pyramid]

Here is the hot water heater setup I spoke of in my first post. And the jumper also.

[CoventryKid]

Pyramid: re the shower "rod" I used....

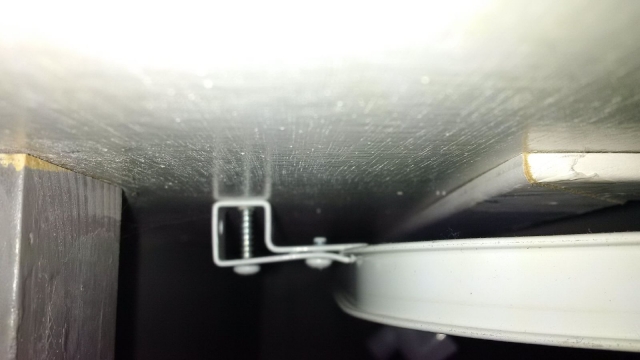

I purchased 2 of these: https://www.homedepot.ca/en/home/p.i-beam-track---8-ft.1000121942.html. Package here in Canada comes with mounting brackets, etc (see description below in link). Interestingly, this product is made in US, but I couldn't find (didn't look too long) anything similar on Home Depot.com. Hopefully you will be able to find it.
