My First teardrop "The Shiny Lima"

[rand_98201]

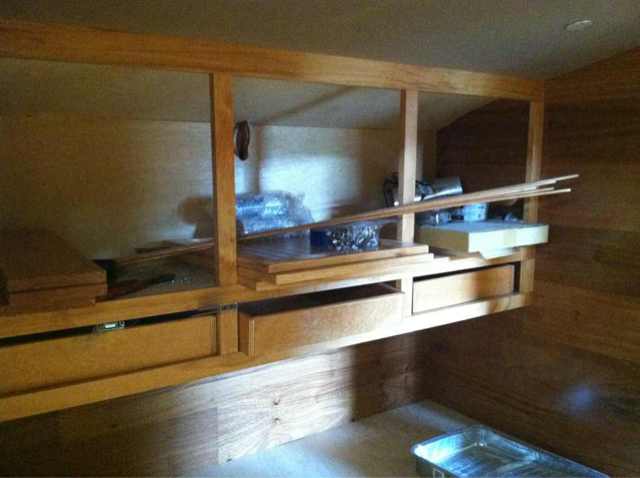

wow that is looking great.I like how your galley is turning out.

[Sputterputz]

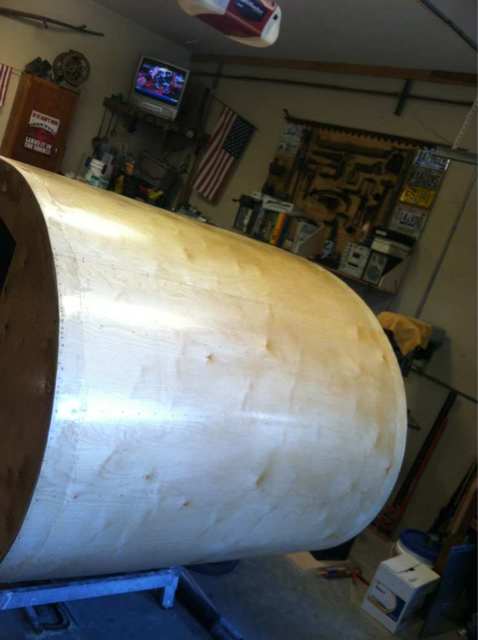

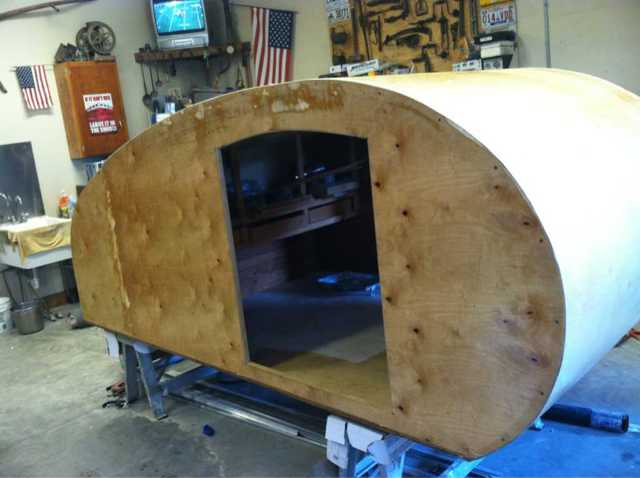

Thanks, got to spend a couple hours on it today. The only think worth mentioning is that my roof is insulated and skinned in birch, also my corners are fiberglassed and one coat of epoxy has been applied.




[Sputterputz]

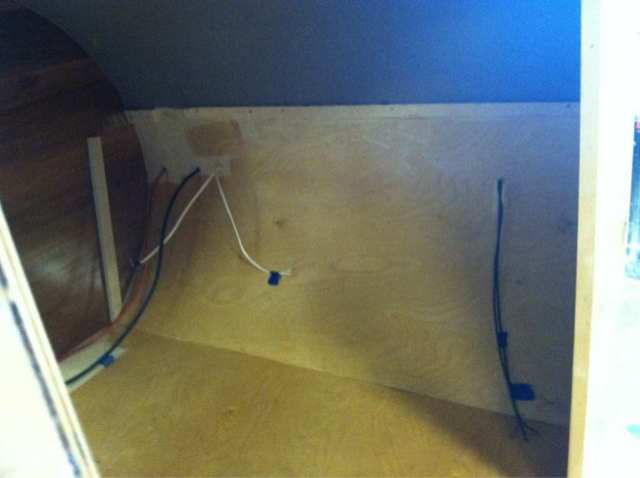

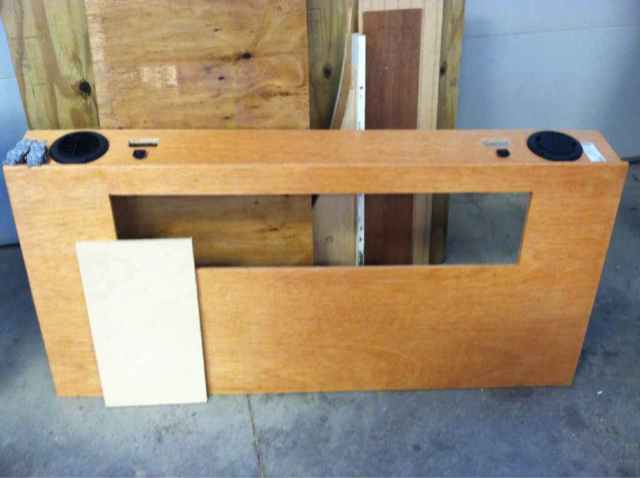

Headboard with AC vents and outlets cut. Still have to cut my return air holes.

Board goes here



That's all for now. Another coat of epoxy tomorrow and then again Tuesday and we should be ready for some trim metal by the weekend. Unless my axle shows up then I will be welding a trailer frame.

[drewh1]

Man you are really moving on that project - it looks great! Really like the cabinet work and the layout.

drew

[Sputterputz]

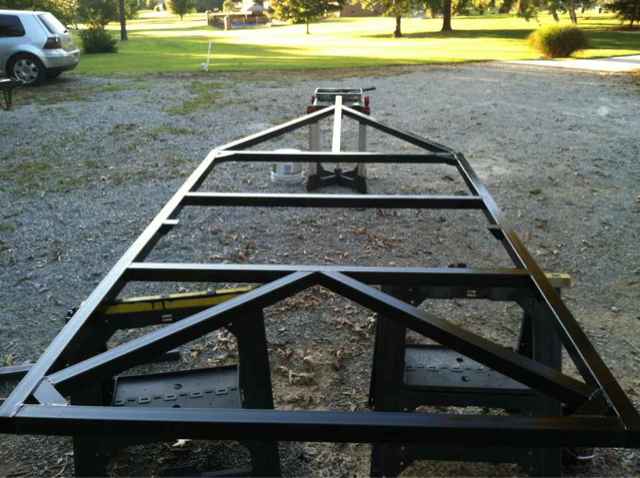

Welded and got a coat of paint on my trailer. Axle has shipped. Windows are here, trim is here. Made an AC plenum for the adaption to the tongue box. Still no metal shots.



[Sputterputz]

Well it's been a few days since I updated this post.

The wife has been calling it the shiny Lima (as in bean) so we will see If that sticks.


AC adapter plenum installed

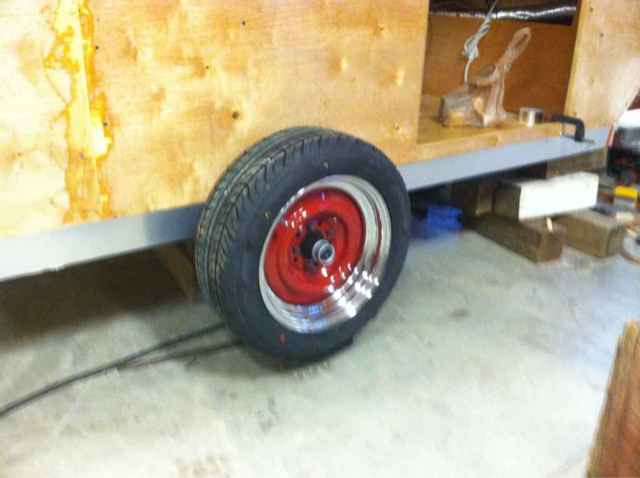

Lower skirt and a wheel test fit

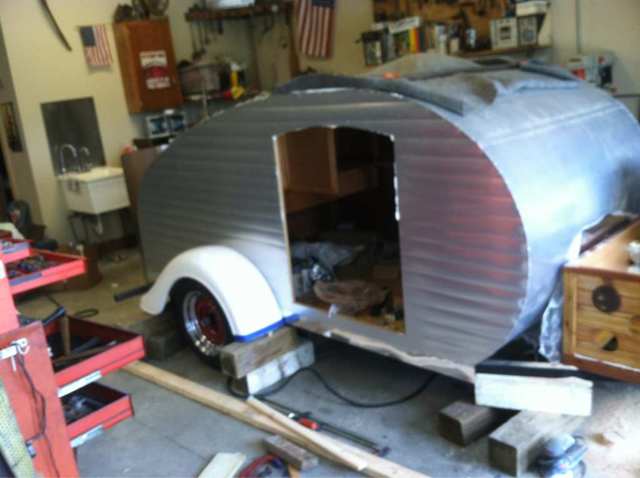

Curb side metal on we will get the other side today.

Made a tongue box but I'm not done w the epoxy coat on the lid,

Headboard is done and installed, all electrical is complete on the interior

Wired and fired the hatch lights to make sure the open/close switch was working

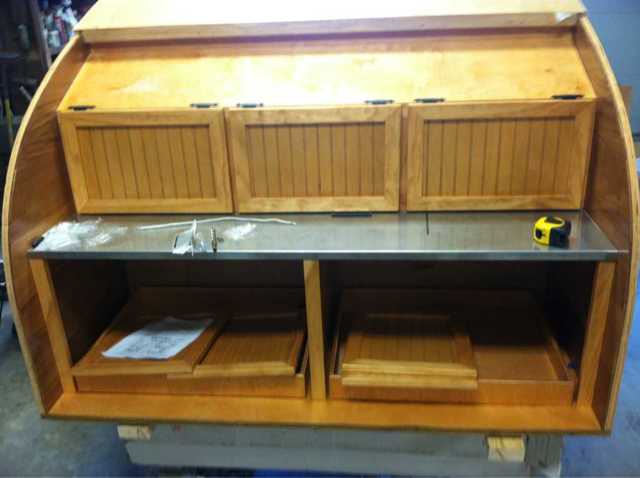

Drawers and doors are mounted on the cabinets

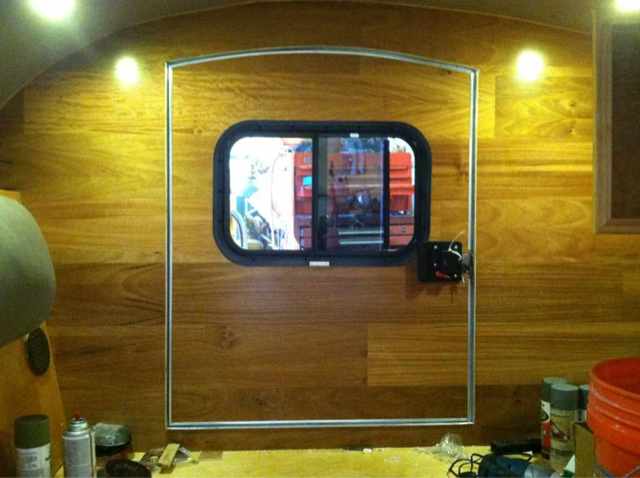

Doors are made w metal and windows, need to make a backer plate for the locks and stain seal the door jamb.

Fenders should be delivered today and I will try to paint them this weekend. Lights will be here tomorrow I might be able to drag this thing around by mid week.

[KCStudly]

Love the siding! Wheels and trim rings look good, too.

[grant whipp]

Hey, Sal!

The teardrop is looking really good ... ...! Anxious to see it when it's finished! Continued Good Luck, and as always ...

CHEERS!

[Sputterputz]

Hey, Sal!

The teardrop is looking really good ... ...! Anxious to see it when it's finished! Continued Good Luck, and as always ...

CHEERS!

Thanks for the accolades Grant!!

I have had alittle progress.

Fender test fit

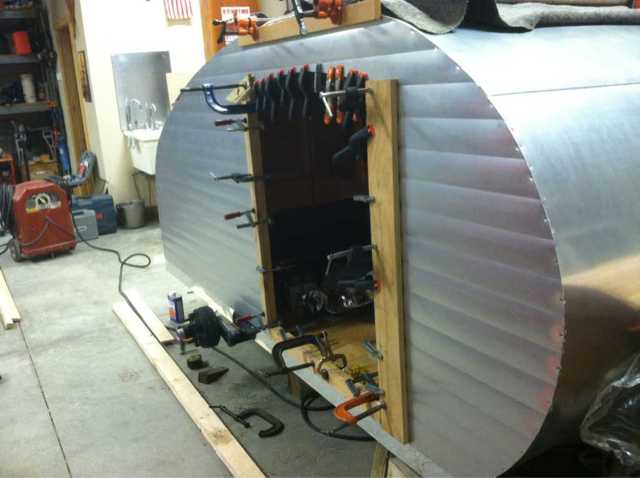

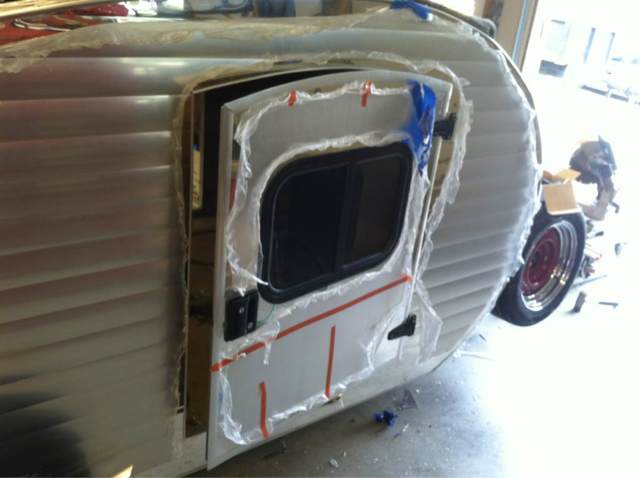

One door trimmed and hung w a latch,

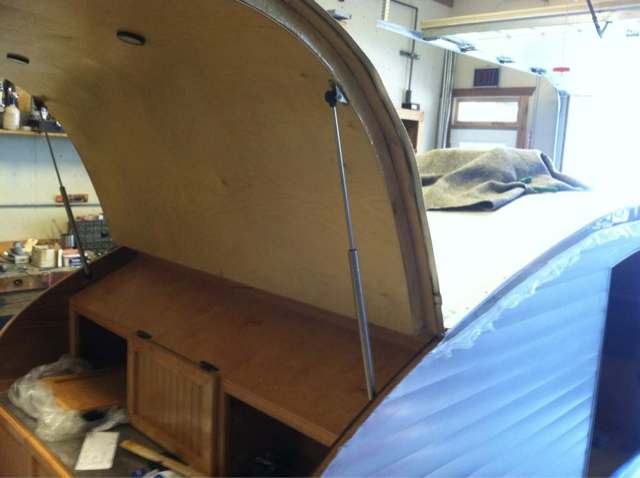

Hatch struts installed, rear roll pan made, a few other little nick nacks

Sal

[Sputterputz]

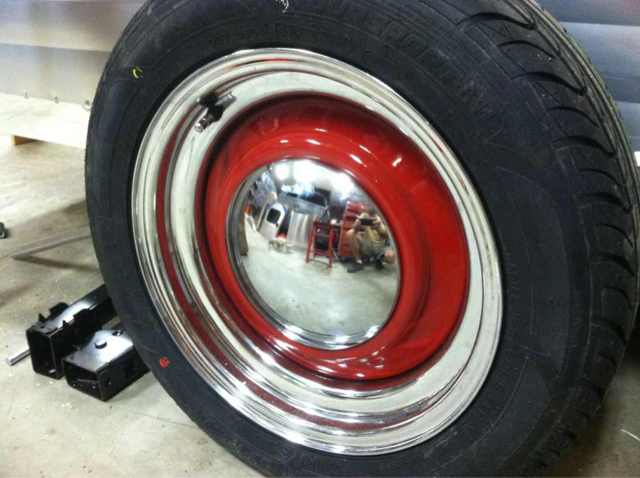

Found that cragar moons are deeper than the wheel vintiques and will clear the dexter easy lube hubs.

I bought the series 13 wheels and p/n a29113 from summit for the center caps


Welded the tongue jack and ball receiver the other day.. Ran all over town looking for stainless truss screws and only found them in slotted which I hate installing but they look nice. Found a used rivet squeezer on clist and picked it up for the solid rivets for the hatch trim. Still looking for a hatch handle and am missing a few pieces of edge trim. I am leaving for a camping trip a week from yesterday hopefully I will have everything ready to go....

[Sputterputz]

A short synopsis of my AC/heat unit.

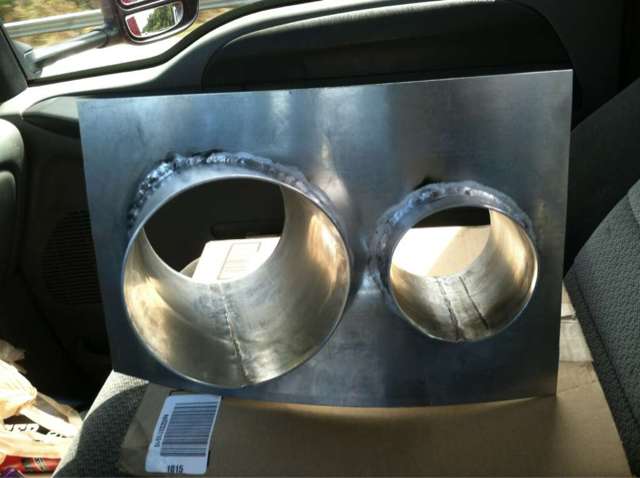

I bought an lg package unit 5k cooling 3.5k heat. I took the front panel off the unit and made a sheet metal panel to replace it w a 4" duct for the forced air and a 6" duct for the return.

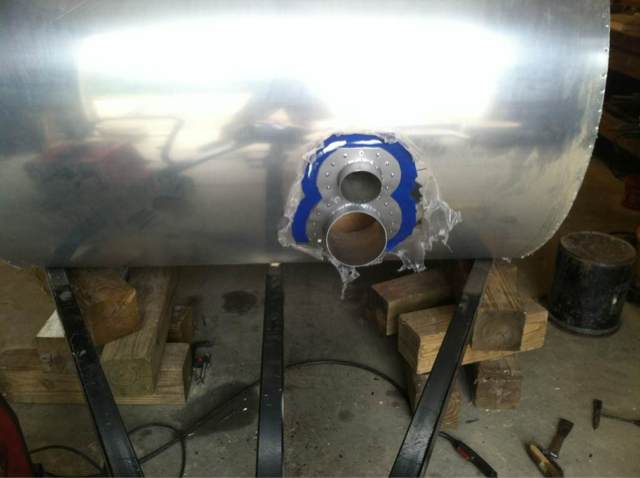

I made a tongue box to fit with a open port in the bottom covered by pet screen for ventilation and condensation drainage. 5 4" vents were drilled behind the spare tire and 4 on the td side of the box. This should allow me to just pop the lid alittle if its raining for venting. It has tested well at the shop.

Moving inside through a manifold


The 6" line carries my extended controls and the return air and the pipe stops flush w the Interior wall, this allows me to put a filter over it like it would have had if I had just installed it normally. The 4" line then tees and runs to my two vents in the top of my headboard allowing the air to run over the ceiling and down to me. There are 2 4" vent holes cut in the face of the headboard for the return air just alittle above mattress and pillow level.


The AC unit has a dedicated 120v run to my panel and does not share a circuit with anything else.

Hope this is useful for someone else. With the tongue box and unit I added 90lbs to my tongue weight. I may have been able to cut alittle out of the box but no more than 10-15lbs.


Sal

[Sputterputz]

Also, I have been thrilled with both grant whipp and vintage technologies as parts suppliers for my build..

Along with McMaster Carr (hatch struts and hardware, exterior hinges and hatch lower seal) the big orange box store, ace hardware, Hayward bolt co (fasteners, stainless supplies) and speedway motors (ford fenders) summit racing (wheels)

But hands down the best service and advise has been from Grant. I would have zero reservations recommending him for parts, service or purchase advise.

I started with a paper print of his rf10 and took alittle license here and there hopefully it is a acceptable representation of his own design.

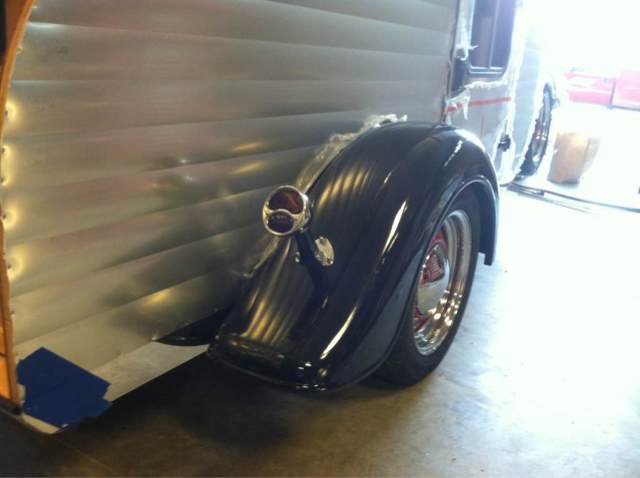

My 34 ford truck fenders from speedway motors painted after cutting 7" off the front edge.


Fender mounted lights from vintagetech

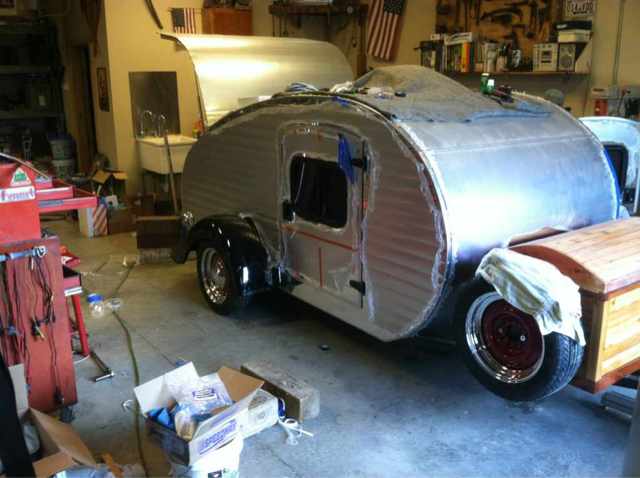

I am ready to take this thing out of the garage.

Sal

[Junkboy999]

Hey Sputterputz

I just tried to answer you question about pictures of lil Bear Teardrops. See this thread.

viewtopic.php?f=7&t=56835


But Hell you don’t need pictures You almost have the Completed Teardrop your self. I missed this build thread but will read the thread tonight. Look great.

[drewh1]

You are doing a tremendous job on your build. I really like the fenders and tail lights. I looked at the Speedway site after reading your post.

I am trying to figure out fenders for my build. Which fenders are those, width? ? thanks

drew.

[aggie79]

Very nice!

Your craftsmanship is impeccable. And your build speed is amazing. It took me three years to get to the point you're at now.
