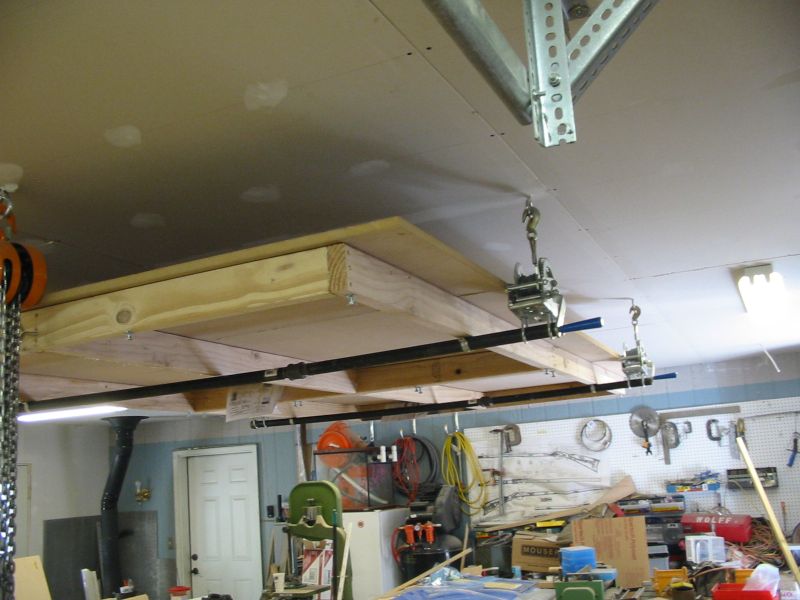

Here's a picture of the work bench lifted to the ceiling.
(going shopping right now, so more later)


Lee

[H-Balm]

I will not complain of the cold again.... for a few weeks (at least).

[RockyMountainTeardrops]

I will not complain of the cold again.... for a few weeks (at least).

Yea, it can get pretty brutal at my altitude...
But ask me what the weather is like in August!!


Now it's side wall framing time.
FYI, I used 1/2" birch plywood from HD for the sides.

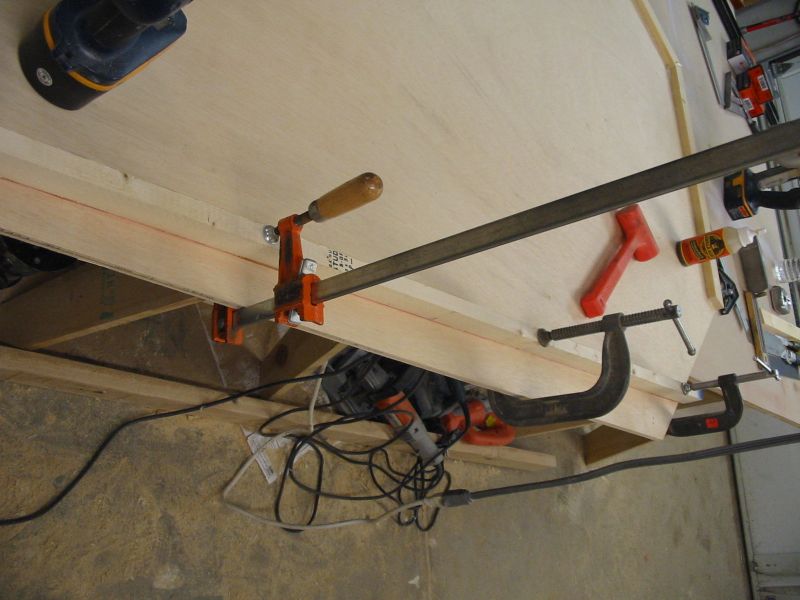

Glued and screwed 1x2's to "outline" the sides.
In hind sight...this was a wasted step. The roof doesn't need that much material to attach to. Could of used 1x1's (3/4" square) instead. (or maybe skip this all together?)
I did need to use 1x2's at the hatch area so it wasn't totally wasted.
(I'll show what I did at those areas in another post)

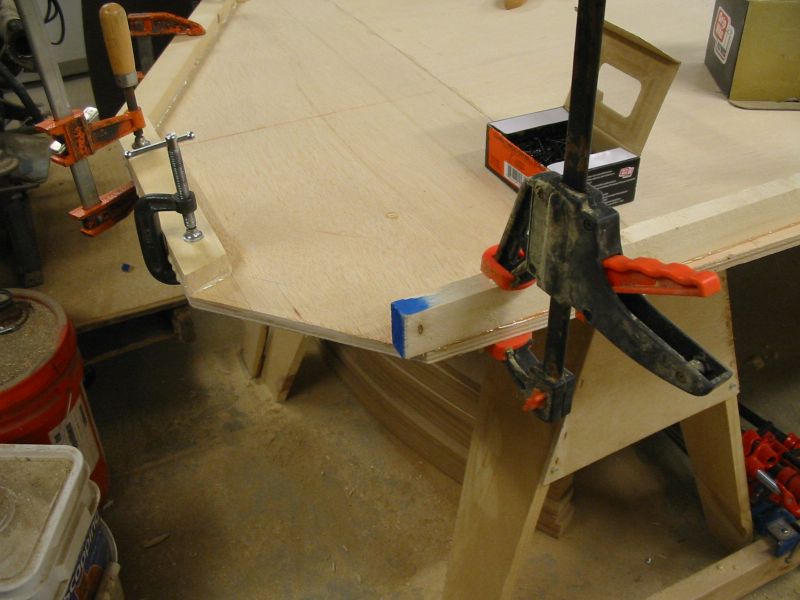

This is the back/bottom of the side, showing the floor cleat.
The 1x2 "on edge" will be setting directly on the trailer frame.


This is a front/bottom of the side, showing the floor cleat sloping along the sides.
This gives the tear a "raked" look.
The bottom and the top both slope from front to back to accent the tear shape (even though it's a "square" shape, I think it gives it a nice profile)
Sorry, but I HATE the look of tears with a flat bottom....they look like a big round pimple on top of the flat frame.


I just at myself....I see that I used whatever clamps I had at hand.

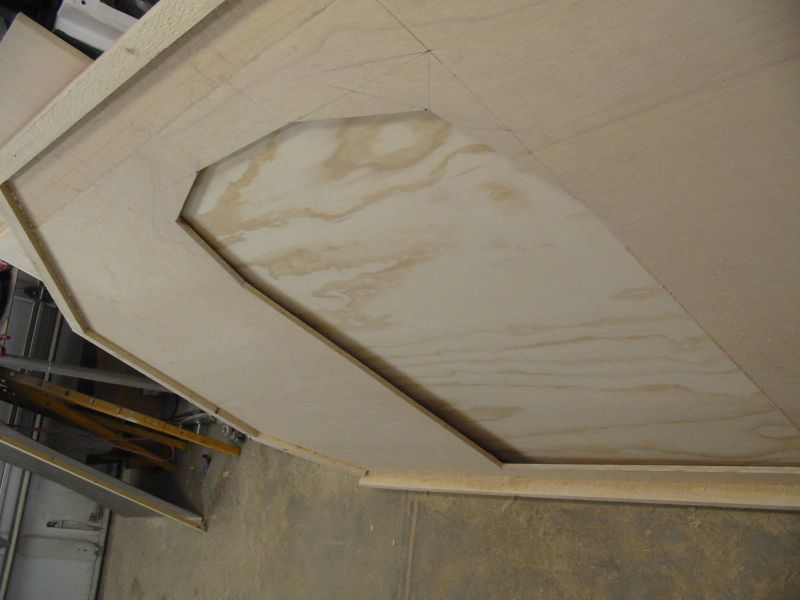

Finished side with door cutout.

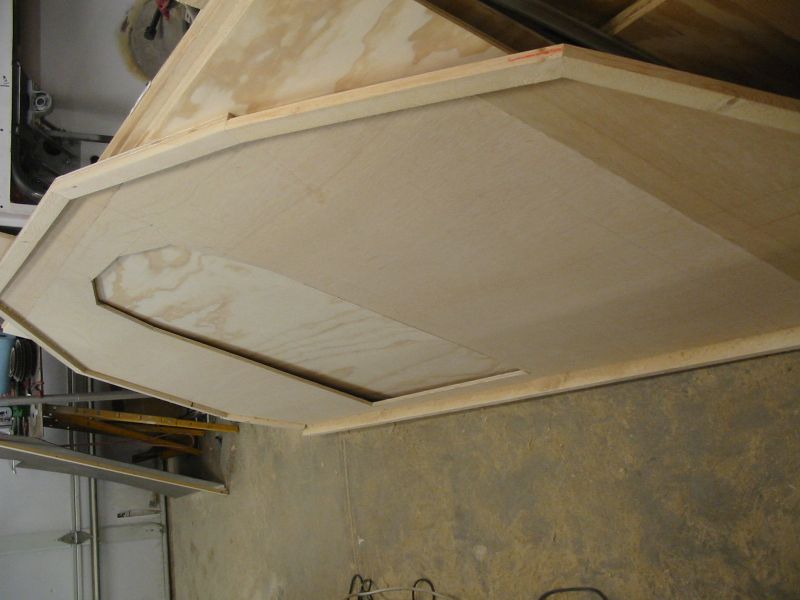

If you look close, you can see the rake in the plywood "adder" on the top of the side.


I struggled for hours (LITERALLY!) about the shape of the doors.
I don't like the sloped shape on the Benroy plans, but I really had a hard time deciding on the shape of these....but I think they came out pretty nice.

I'll show the rest of the wall "framing" in another post.



The plywood behind the wall is the 1/4" for the roof and all of the shelving and cabinets. Plain ol' A/C sanded.

Enough for tonight.
More later,
Lee

[S. Heisley]

You're doing good. The shape of the doors looks great with the shape of your tear. You'll be happy with them.

[RockyMountainTeardrops]

You're doing good. The shape of the doors looks great with the shape of your tear. You'll be happy with them.

Wait'll you see the final side profile, I'm very pleased with it.

Is that mdf ply wood in your pictures

I have MDF for the benchtop and the bucks for the future (and final) tear, but this build is all plywood.
Birch (five plys plus 2 veneers) for the walls and A/C sanded for everything else.
No MDF used in this build.

Lee

[RockyMountainTeardrops]

Okay,
Time for floors and walls.
Cut two sheets of the 1/2" plywood for the floors.
63" long, 48" wide makes a floor area of 61-1/2" x 96"
(outside width of tear is 64", less 1/2" X 2 for plywood, less 3/4" X 2 for the wall framing)

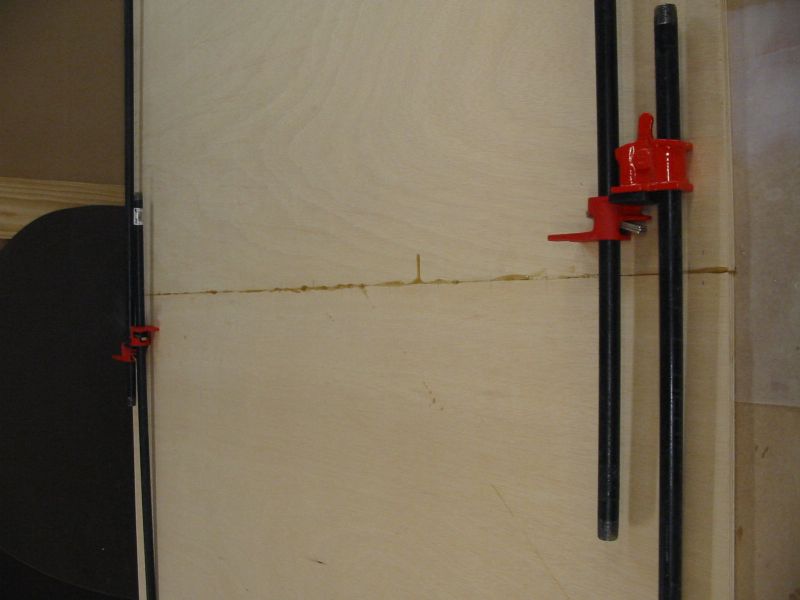

No fancy scarfing joint here, just a plain butt joint with lots of biscuits and glue to hold everything together.

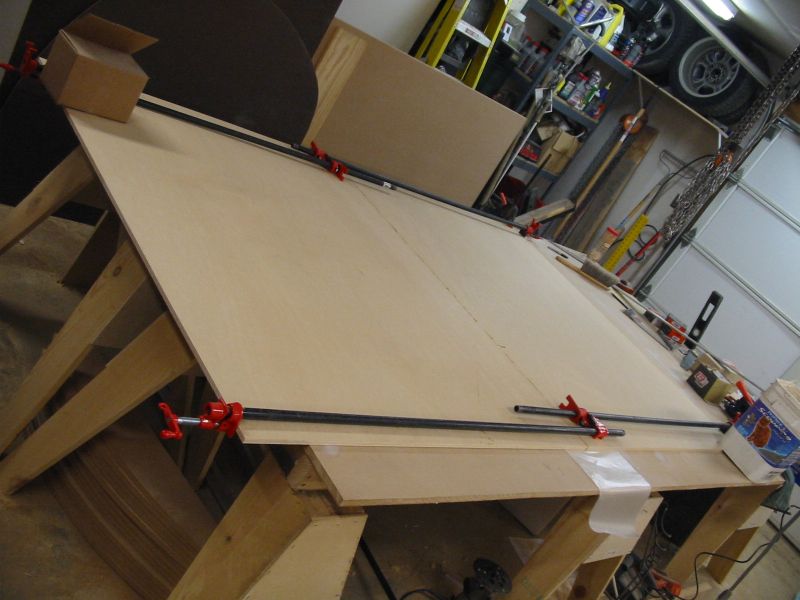

Waxed paper to keep from gluing it to the bench.

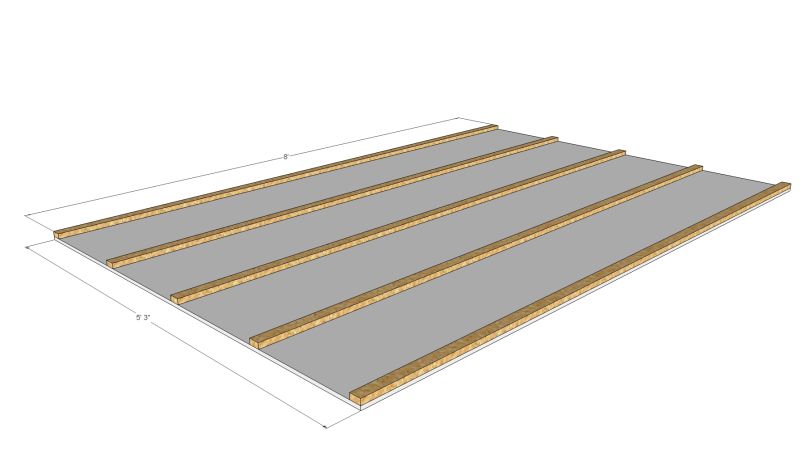

I didn't take any pictures of the floor before I turned it over and started to add the walls, but here's a Sketchup drawing of the floor (upside down)

Since the trailer frame is going to be around the four sides (carrying the load of the walls) and three cross members running across the width (carrying the load of the floor), I think that running the "floor joists" perpendicular to the trailer "beams" adds enough strength to the unit to do what is needed.
I can use fewer steel supports this way. In fact, all I am using is the two supports needed for the axle, and one more for the spare tire carrier. (plus the four sides)

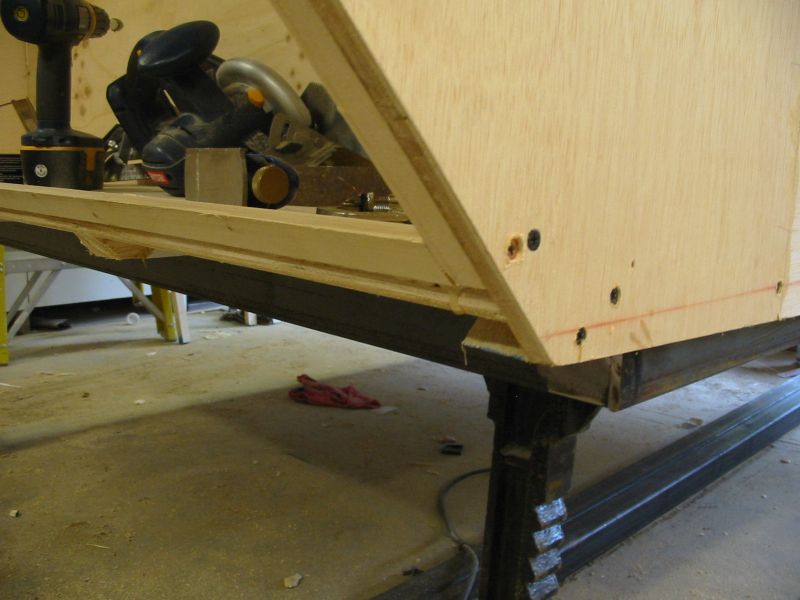

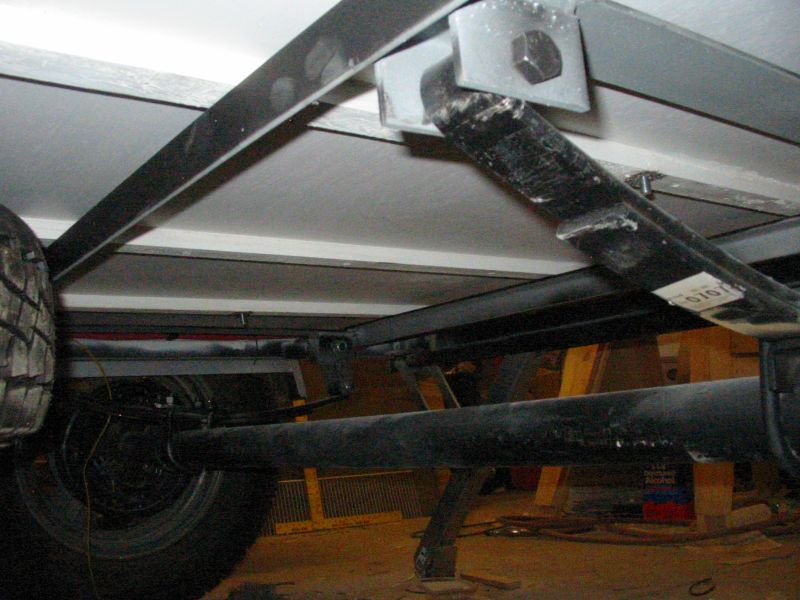

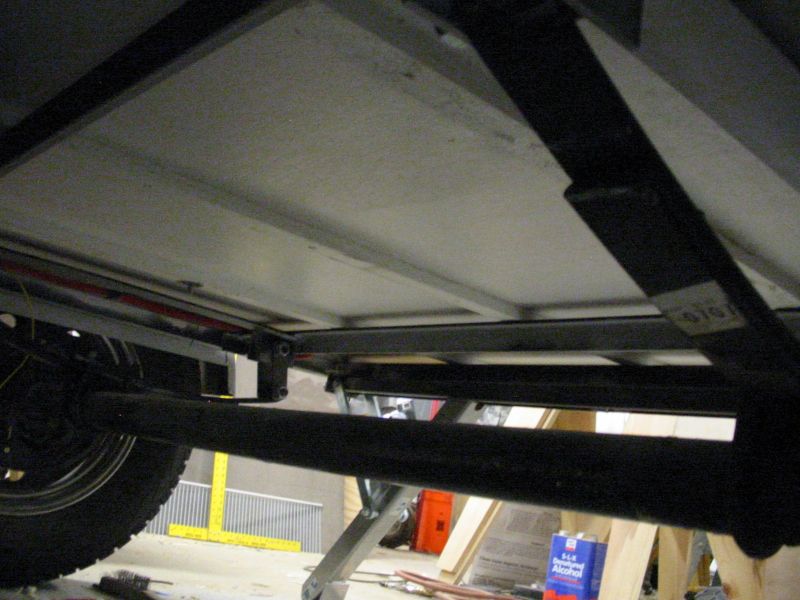

Here's a couple of pictures of the underside of the trailer showing this idea in action.


Oh, and I just used a good exterior primer for the bottom. I'm not "sold" on the idea that roofing tar on the bottom does any good.

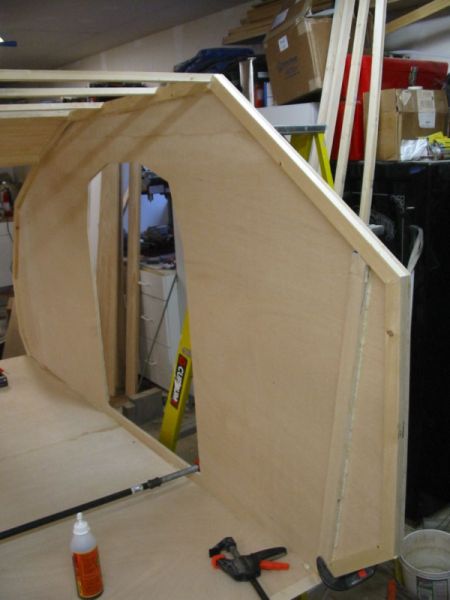

First wall going up.

You can really see the rake to the wall in this picture. The add-on piece of plywood at the top of the wall is parallel to the bottom that you can't see.
I had to be very careful to make the door square to the floor, not the bottom or top of the wall.
Since I attached the floor cleat to the sides & notched the wall "studs" at the front and back, I could just slip the wall onto the floor and it would hold it self up until I could get some fasteners into it.
The wall is not setting on the floor, it runs beside the floor on a slope and is glued and screwed together.

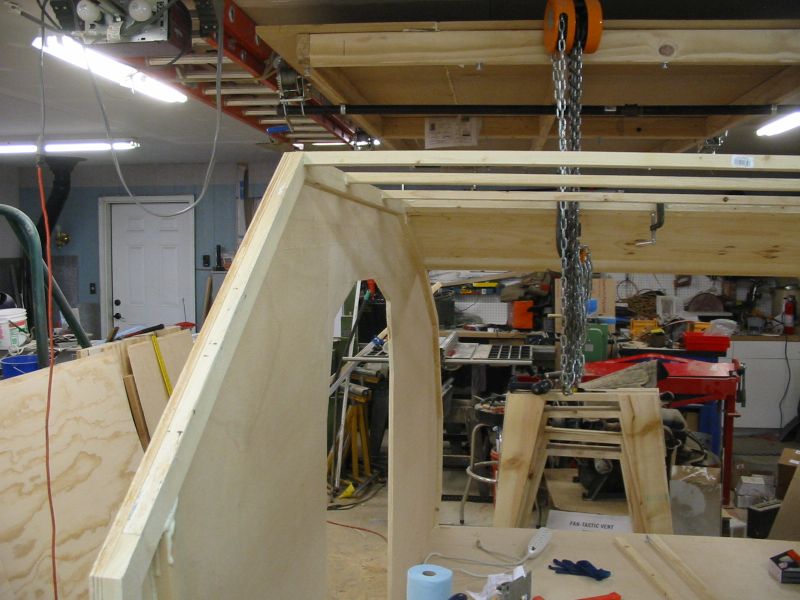

Roof spars going in.

This picture also shows the front wall of the cabin (attached cleat).
I want a little slope to the inside wall, and I had all sorts of ideas for the wasted space.

More later,
Lee

[aggie79]

Lee,

Your teardrop is coming along nicely! (You're almost caught up with me and I started two years before you.)

Keep up the good work and try to stay warm.

Tom

[RockyMountainTeardrops]

Lee,

Your teardrop is coming along nicely! (You're almost caught up with me and I started two years before you.)

Keep up the good work and try to stay warm.

Tom

Actually......This one is much further along than the build shows....All that I have left is 1/2 of the carpet on the inside walls, the counter top, a tiny bit of wiring, and new hatch props, and.....and ....and....

You gotta get moving! Summer is going to be here before you know it!
I'm so glad we pushed last summer to get this one "done enough" to use.

Lee

[RockyMountainTeardrops]

Okay,
Time for another update!

Noticed I didn't upload this picture of the roof spars.
All spars are 1x2 pine, nothing fancy, just "furring" strips from Lowes.
Attached to side walls with 2" deck screws. Didn't bother to notch the wall framing, I don't think it's needed.


Starting the galley shelving:




Couple of things going on in the next picture:

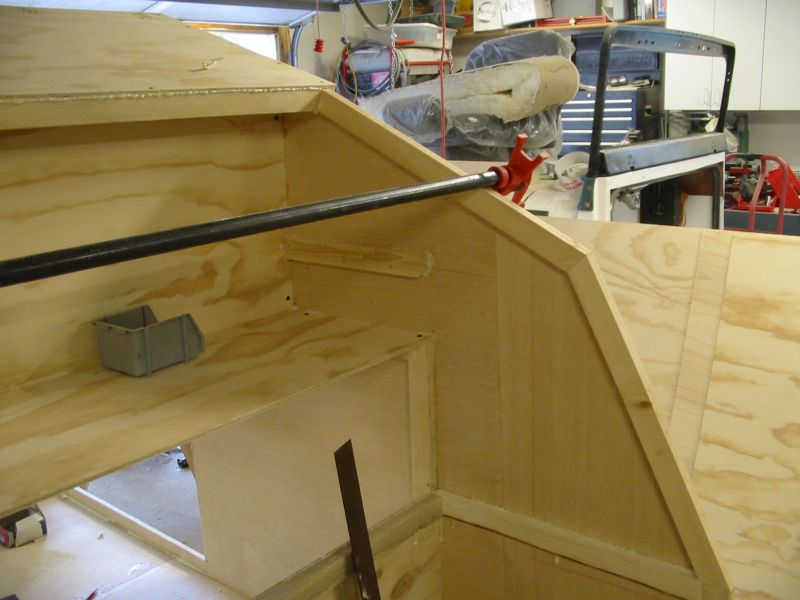

The hole in the galley is a removable panel to allow a real mattress to be put into the cabin, yet I can still take it out if it gets wet or dirty.
Remember from the first post? "Must have a real mattress"?

Well, this is how I got a full size, inner spring, pillow top mattress into the cabin without removing the roof or building the tear around it.

Next thing is the notch where the galley hatch will set.
I've noticed that most people just use a rubber seal on top of the walls to keep water out.....I have a lip on the side of the galley hatch and a "notch" on the side walls.
This, combined with a rubber seal, will go a long way to keeping water out. (and I think it looks better than the traditional method too)

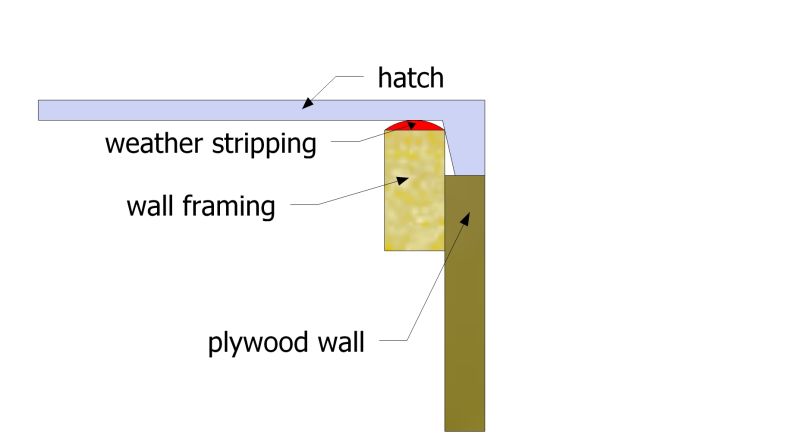

Here's a sketch of the detail.


First idea was to have a built in cooler under the galley counter-top, (but this has been abandoned as "unworkable")

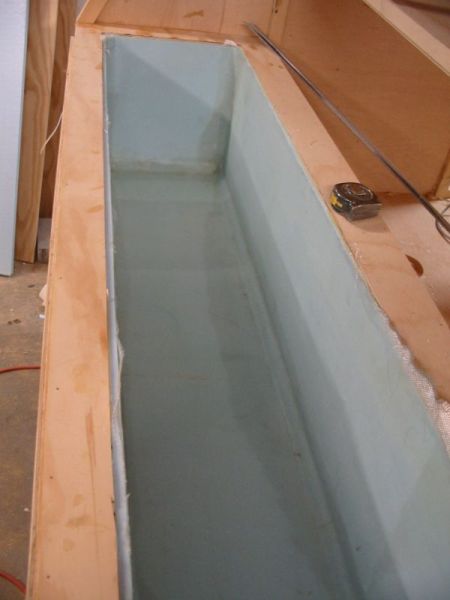

Here's a picture of the cooler (3" of blue foam, with two layers of 10oz fiberglass and epoxy).
I cannot tell you how hard it was to rip this back out after the first trip.

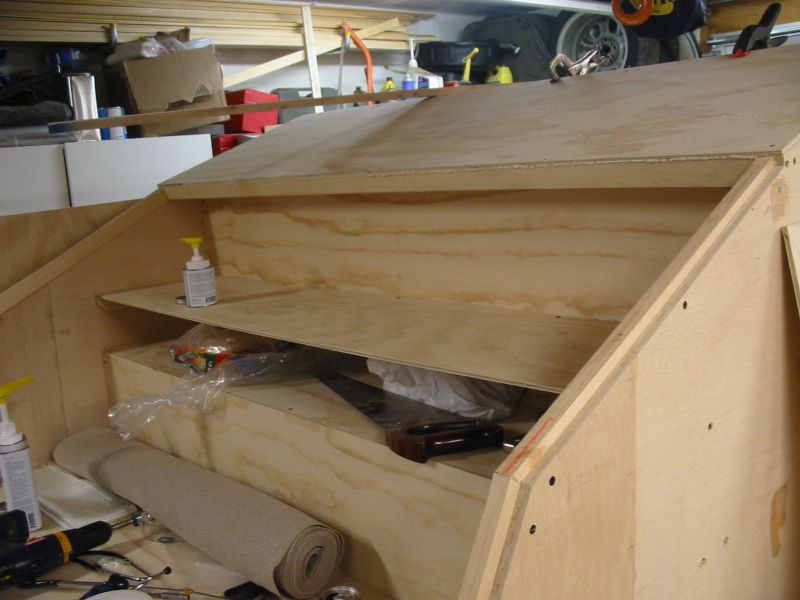

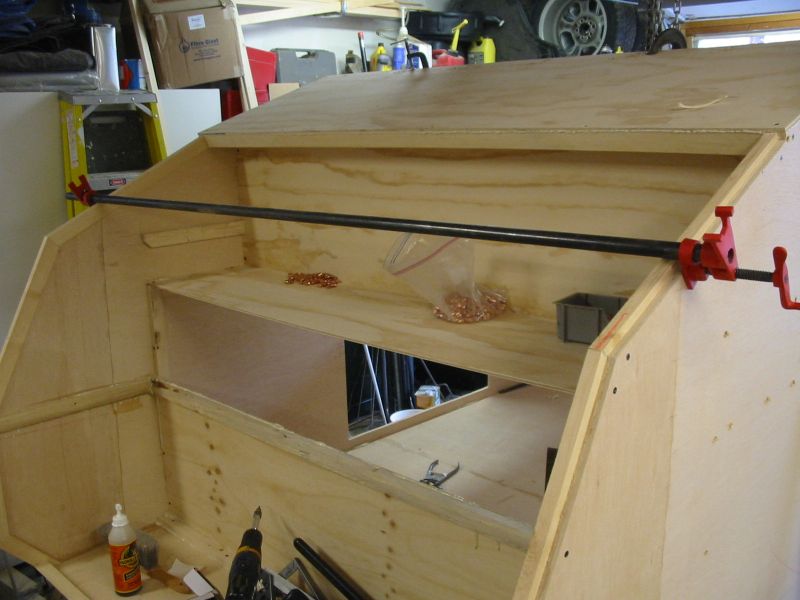

Here's a picture of the rear galley, showing the back panel and shelving.


More later,
Lee

[Miriam C.]

You are doing a great job of getting this done in time for camping. Looks GREAT!

[2bits]

I have seen a couple of other examples of the notched hatch design and they have worked great! I've has good luck with mine, but I've had as much good as bad luck, just in different areas and I am happy!

Good call on the mattress install! You might think about getting a plastic bed liner from the wally store to cover the mattress as you do the finish work. I kept mine out until I was pretty much done for fear of sawdust, and had to fold it through the door like a taco (by myself!). It was an inner spring mattress too. Lucky I did the wide door on mine, it took me a good 30 min to get it in!

[RockyMountainTeardrops]

:applause: You are doing a great job of getting this done in time for camping. Looks GREAT!

Thank you!

Good call on the mattress install! You might think about getting a plastic bed liner from the wally store to cover the mattress as you do the finish work. I kept mine out until I was pretty much done for fear of sawdust, and had to fold it through the door like a taco (by myself!). It was an inner spring mattress too. Lucky I did the wide door on mine, it took me a good 30 min to get it in!

The nice thing about the mattress hatch is it doesn't take any space from anything else. (The interior/cabin side is used as foot room, so I couldn't use it for galley shelves anyway.)
And the mattress can be put in at any time, even the morning right before you leave for camping!

Lee

[RockyMountainTeardrops]

Figured I'd do a quick post this morning while waiting for the garage to warm up some...

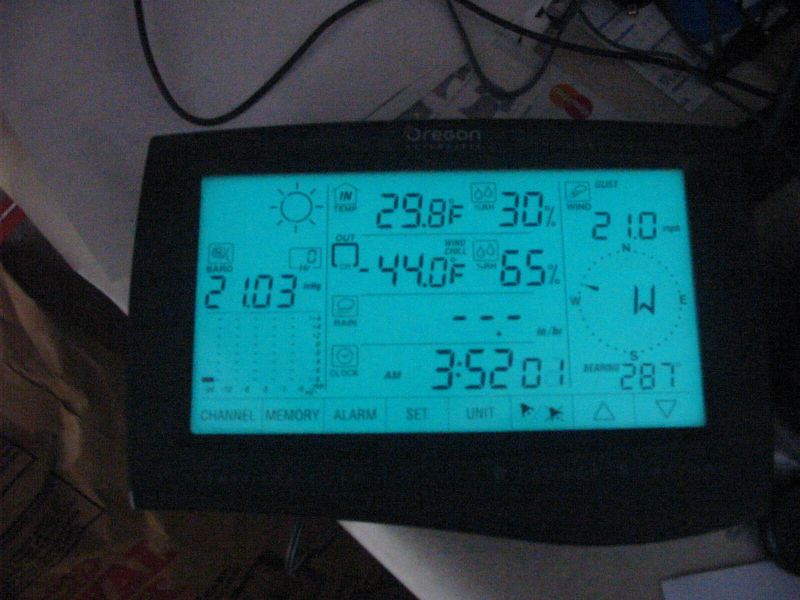

-44° with wind chill!!!!!! (29.8° inside the garage)



This picture shows the removable mattress access panel in place.

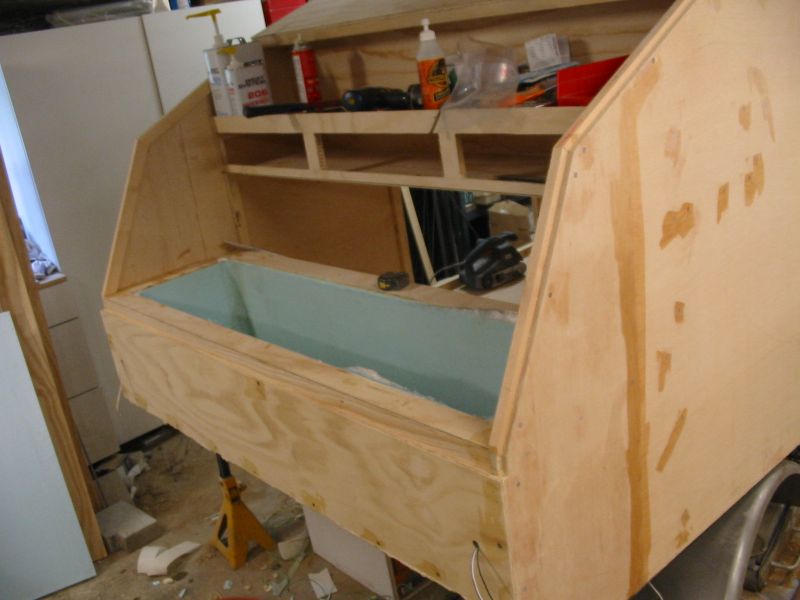

Here's a picture of the bottom structure at the rear-galley area.
For some reason I attached the side cleat upside down....the miter is backwards. No big deal.


This shows the double miter for the transition between the bottom angled "kick" panel and the vertical rear panel at the galley.
