Electrical almost done!!!

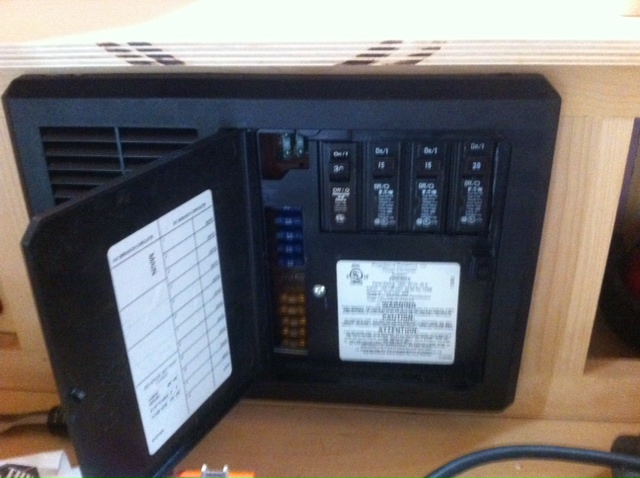

Power panel.JPG (109.23 KiB) Viewed 477 times

Power panel.JPG (109.23 KiB) Viewed 477 times

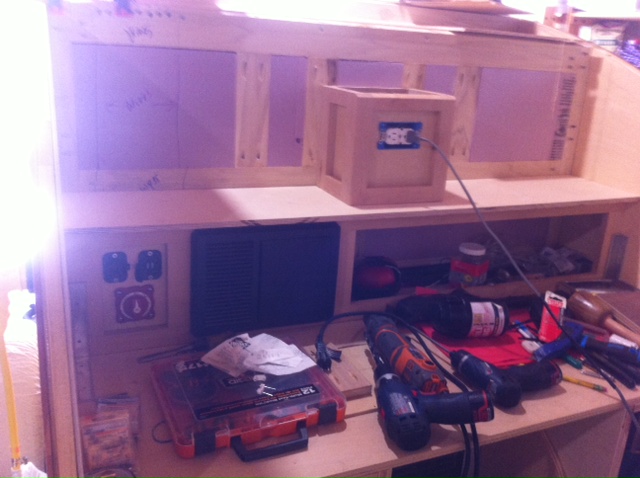

outlets in cabin.JPG (113.59 KiB) Viewed 477 times

[bjeppson]

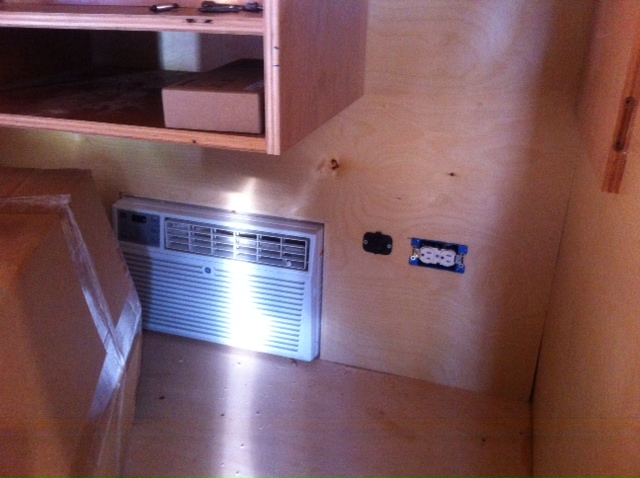

elec galley.JPG (104.07 KiB) Viewed 477 times

[bjeppson]

One DC power outlet and two 115v outlets in cabin, One DC outlet, 1 USB outlet, 1 115V outlet in galley; 1 20amp 115v outlet under counter for A/C. The 3 15amp 115v outlets are on one circuit; the 20amp 115v is one its own circuit. one circuit powers the DC side of the power control box plus one main. The DC side powers the porch lights, the fantastic fan, an overhead cabin light and reading lights at the head of the bed plus the 3 before mentioned DC outlets. The galley has a battery disconnect with the battery being located on the trailer tongue. The power control center also charges the coach battery when plugged into AC.

It took me awhile and the good news, it works!!!

[bjeppson]

The work is slow though progressing!!

This is at the rear of the cabin. The opposite side will be identical with the pull out basket. There will one adjustable shelf on each side.

cabin cab.JPG (97.46 KiB) Viewed 378 times

The top material is uv resistant acrylic marine fabric that is on 1/8" ply with contact cement.


[bjeppson]

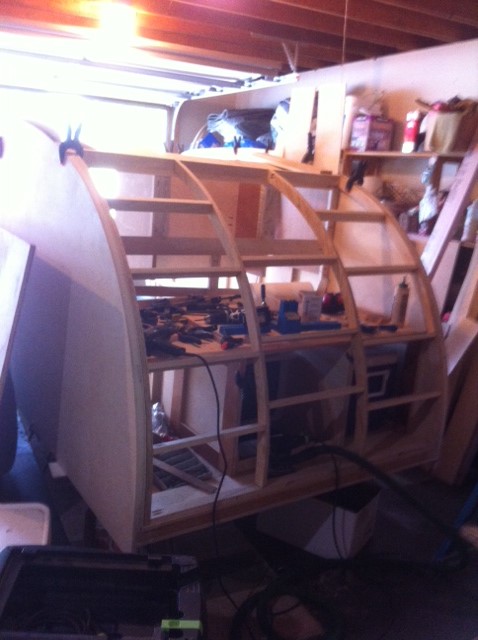

Full view toward rear of cabin

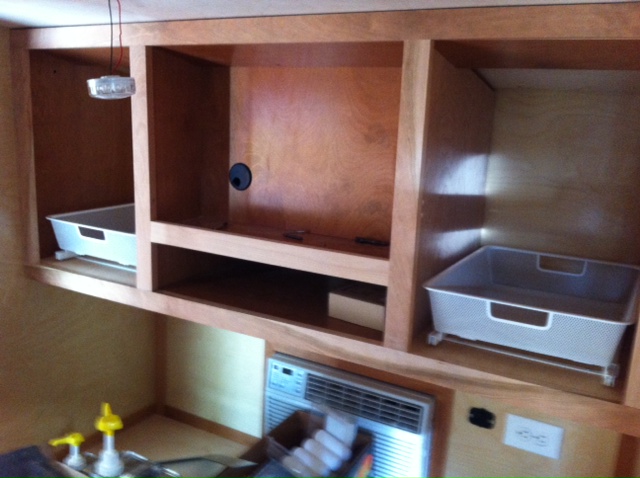

rear cab.JPG (110.41 KiB) Viewed 368 times
