Postby AeroDude » Sun Jan 05, 2014 2:21 am

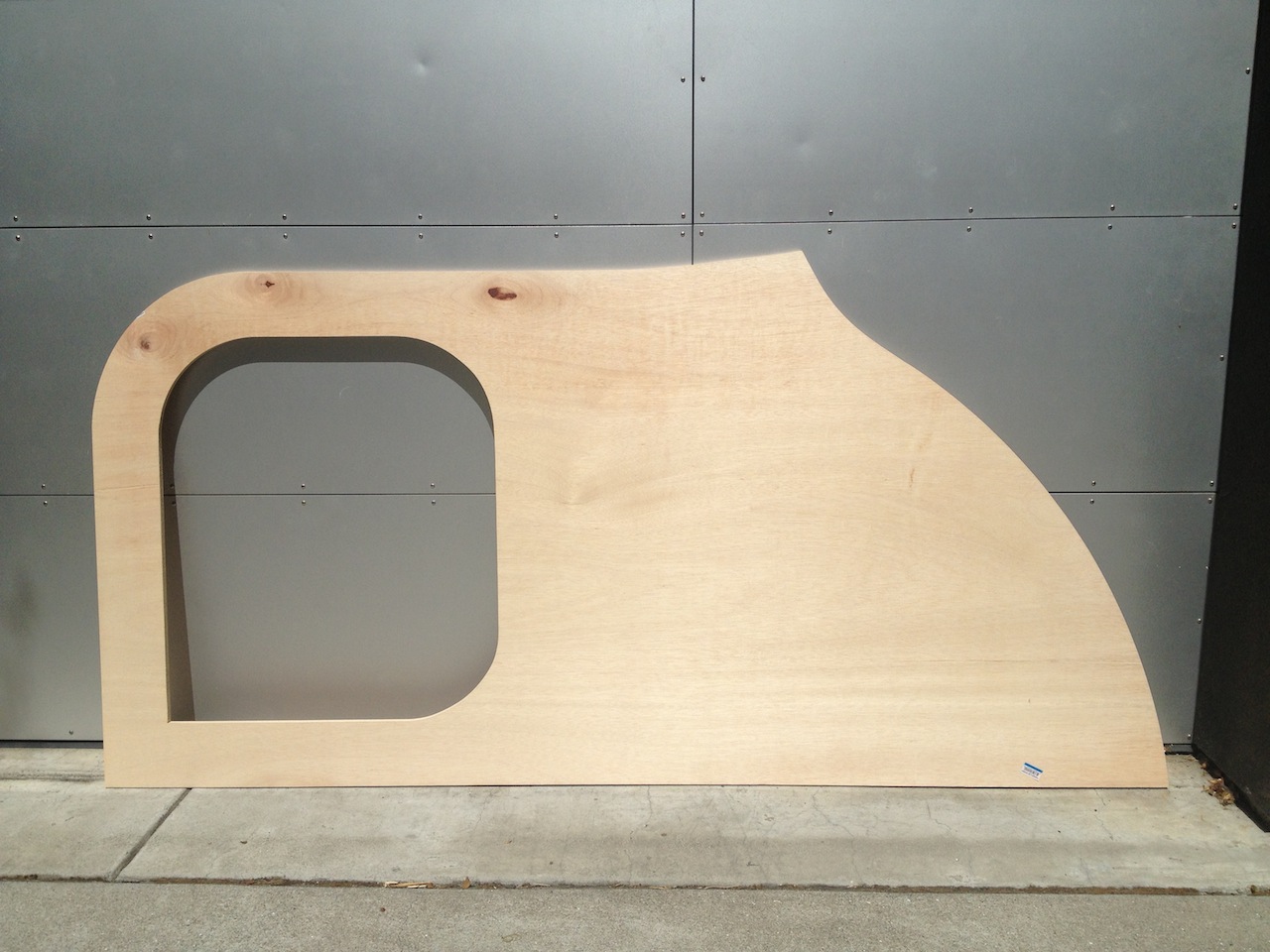

Here's yet another Teardrop build coming together in Berkeley, California. I'm going to build it in my un-heated garage, so the speed of how things will be coming together will be pretty much dependent on the outside temperature. I cut my side walls in September but didn't get around doing anything else until last week. This week my windows, Fantastic Fan and some other parts arrived and I used my time between Christmas and New Years' to cut some of the other wooden parts and build a frame that goes around the ceiling fan. Today I built my floor and test fit my side walls for the first time. As I have ordered a trailer that's not going to be here for a little while, I'm going to put the Teardrop's floor on caster "shopping cart" wheels so I can move it around and in and out of my garage. Will keep y'all posted!
Attachments
Teardrop profile.JPG
This is what the Tear is going to look like
Teardrop profile.JPG (255.75 KiB) Viewed 4180 times
Teardrop fit check.jpg

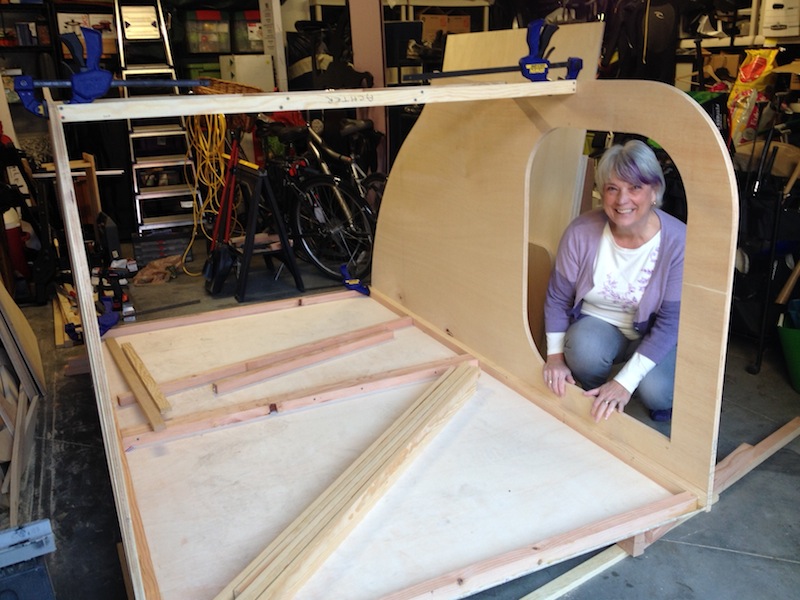

Results so far approved by my wife ;-)
Teardrop fit check.jpg (148.44 KiB) Viewed 4180 times
Teardrop frame.jpg
This frame is going to be the backbone of the Tear
Teardrop frame.jpg (142.2 KiB) Viewed 4180 times
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

My 5x8 TD build getting somewhere!

Postby AeroDude » Mon Jan 27, 2014 12:44 am

Now we're getting somewhere. Picked up my trailer this weekend and spent quite some effort on the door frames, including 'artwork' in the form of the Tear's silhouette.
Attachments

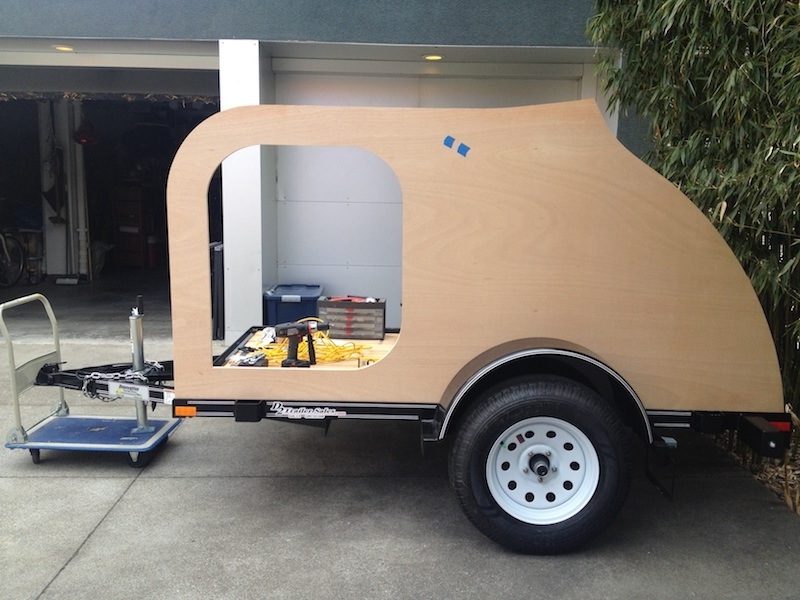

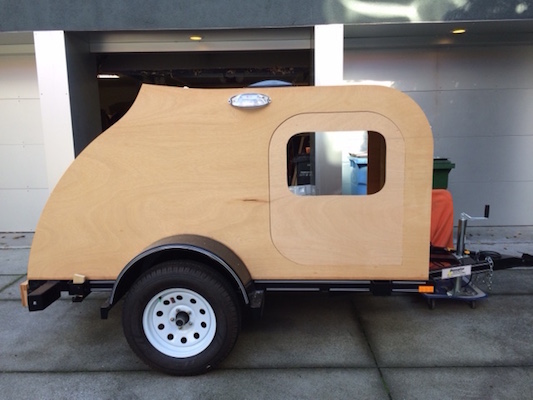

Teardrop trial fit on trailer - small.jpg
Teardrop trial fit on trailer - small.jpg (143.82 KiB) Viewed 3970 times

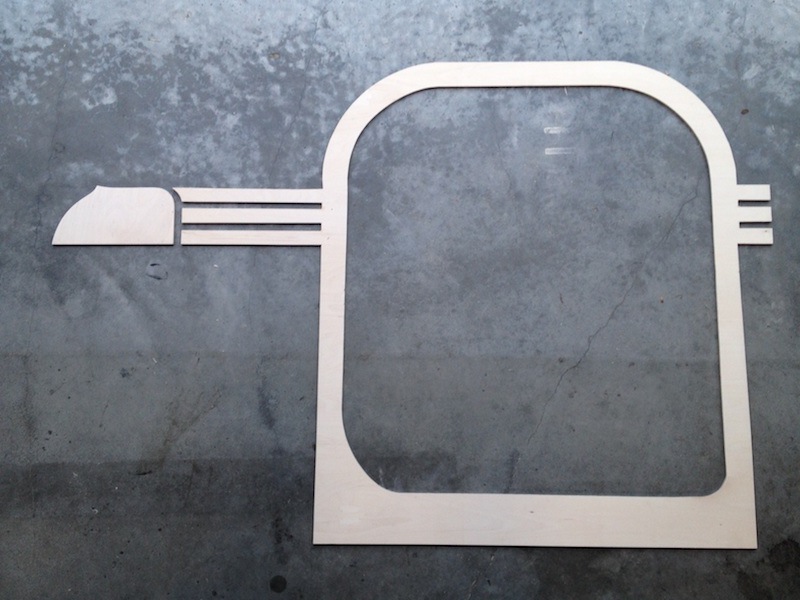

Teardrop Artwork - close-up - small.jpg
Teardrop Artwork - close-up - small.jpg (144.06 KiB) Viewed 3970 times
Teardrop artwork - small.jpg
Teardrop artwork - small.jpg (122.83 KiB) Viewed 3970 times
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby Ron Dickey » Tue Jan 28, 2014 10:18 pm

looks like you have a good start, I am seeing a hump back mini whale. Side view!! :thumbsup:

You have the artistic touch looking forward to more!!

Ron Dickey
Los Osos, CA
173882......173887
Inside almost done--Trolly top has opening windows & roof.doors need assembling--pictured above waley windows..galley 1/3 done
Cross Bow in Build Journals....http://www.tnttt.com/viewtopic.php?f=50&t=54108
User avatar
Ron Dickey
Silver Donating Member

Posts: 3109
Images: 787
Joined: Tue Apr 20, 2004 5:56 pm
Location: Central Coast, CA
Top

Re: My 5x8 TD build

Postby AeroDude » Tue Jan 28, 2014 10:42 pm

Thank you Ron. I'm having a blast putting my Tear together!
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby jeporter25 » Mon Sep 29, 2014 12:19 pm

It was great to see you and your progress this weekend. You are going to have a great and unique little trailer when your done...
jeporter25
Teardrop Master

Posts: 102
Joined: Sun May 20, 2012 6:41 pm
Top

Re: My 5x8 TD build

Postby AeroDude » Mon Sep 29, 2014 9:07 pm

Thank you Jamie! Likewise. Just noticed that I haven't been posting pictures of my build for a while. Treasure Island was great. Hope to see you sometime soon at another meet. :D
Last edited by AeroDude on Mon Sep 29, 2014 10:12 pm, edited 1 time in total.
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby AeroDude » Mon Sep 29, 2014 9:19 pm

Time for a few pics! Took the tear out to Treasure Island this weekend. It isn't quite ready yet, just perfect for show 'n tell.
Attachments

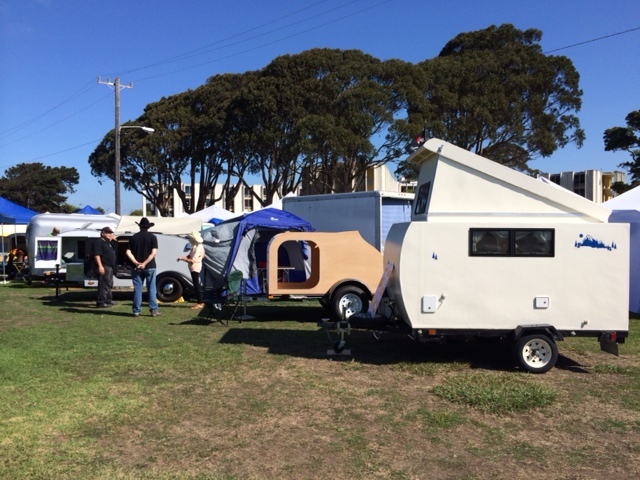

Great teardrop gathering at Treasure Island Flea Market, San Francisco

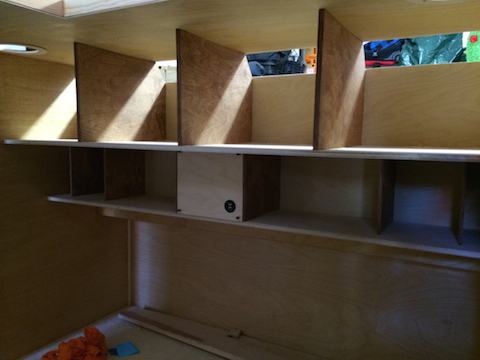

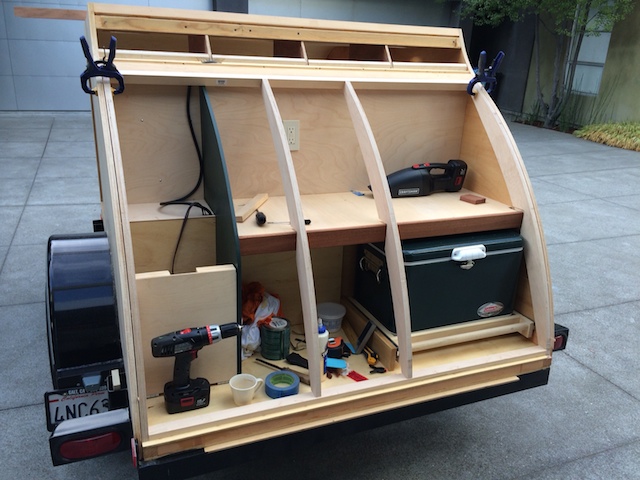

Galley -1.jpg
A router is your best friend! the galley frames were copied of the tear's side panel contour
Galley -1.jpg (131.41 KiB) Viewed 3615 times

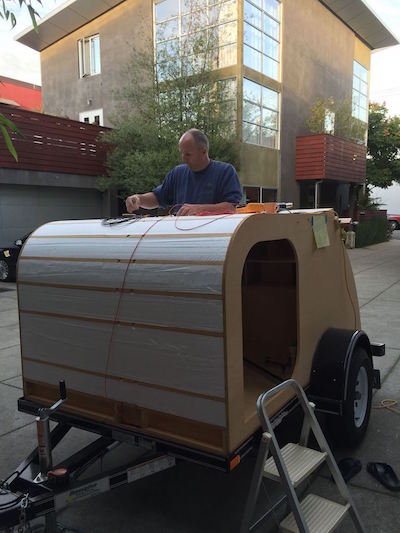

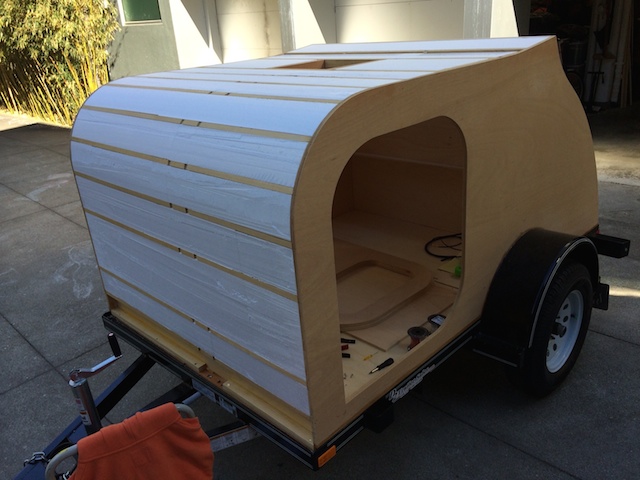

Tear front - small.jpg
Foam insulation, trimmed with a 6 foot hot wire. After the wiring goes in, it's ready to for ply & aluminum sheeting
Tear front - small.jpg (112.49 KiB) Viewed 3615 times
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby rebapuck » Mon Sep 29, 2014 10:00 pm

I like the swoop. Is it purely a design element or are there aerodynamics involved?

And the design around the door is great.
Judy
1966 VW camper
1967 VW singlecab
User avatar
rebapuck
.

Posts: 2243
Images: 1
Joined: Thu May 14, 2009 1:55 pm
Location: Chapel Hill NC
Top

Re: My 5x8 TD build

Postby AeroDude » Mon Sep 29, 2014 10:27 pm

Thanks! I'd like to think it helps.... oh well, it's just a design feature 8)
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby AeroDude » Mon Sep 29, 2014 10:39 pm

And while we're at it, here are a couple of interior pictures
Attachments

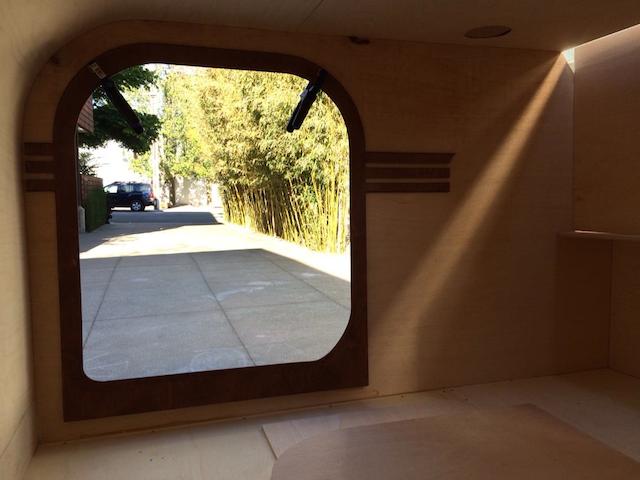

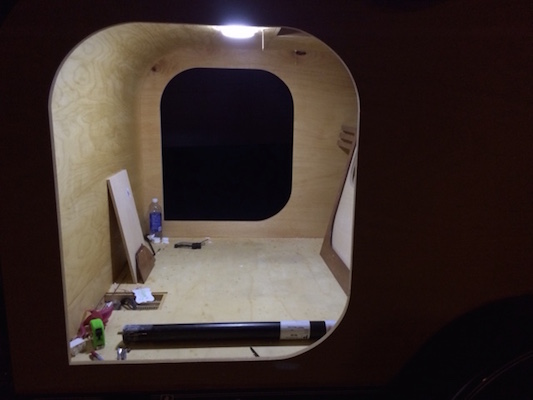

Teardrop interior - small.jpg
Teardrop interior - small.jpg (179.49 KiB) Viewed 3593 times
Door frame.jpg
Door frame.jpg (36.6 KiB) Viewed 3593 times
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby SLUG36 » Mon Sep 29, 2014 11:43 pm

great looking profile you havethere. and great detail work on the door trim :applause:
Making big pieces of wood into the wrong size..... for over 30 years....
User avatar
SLUG36
Teardrop Master

Posts: 212
Images: 137
Joined: Wed Mar 28, 2012 6:51 am
Location: Sabine/Neches river Delta
Top

Re: My 5x8 TD build

Postby S. Heisley » Tue Sep 30, 2014 12:19 am

Glad to see you revive and update your build thread, John.

The people at Treasure Island really enjoyed seeing your in-process build. It was a good idea to bring it for show and tell. We're going to be having a bit more good weather, now; so, I hope to see more progress pictures soon! :thumbsup:
User avatar
S. Heisley
Super Lifetime Member

Posts: 8866
Images: 495
Joined: Mon Sep 17, 2007 10:02 am
Location: No. California
Top

Re: My 5x8 TD build

Postby AeroDude » Thu Jan 01, 2015 2:47 am

Still not done, but making good progress. The lights are on and I'm ready to fit the doors.
Happy New Year!

Lights are On.jpg
Lights are On.jpg (54.1 KiB) Viewed 3407 times

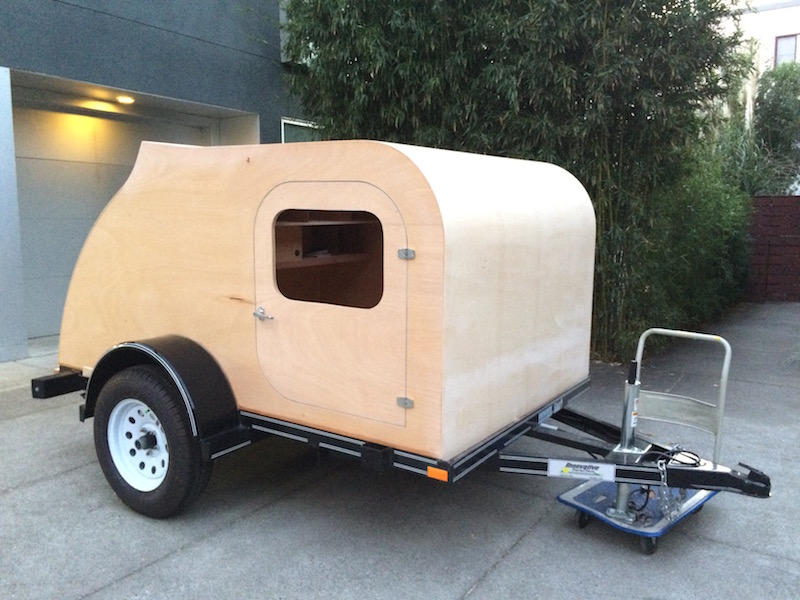

Door fit test_small.jpg
Door fit test_small.jpg (77.84 KiB) Viewed 3407 times
User avatar
AeroDude
Teardrop Builder

Posts: 49
Images: 0
Joined: Mon Jun 03, 2013 3:15 pm
Location: Seattle, WA
Top

Re: My 5x8 TD build

Postby dales133 » Thu Jan 01, 2015 3:43 am

Looking good, happy new year
User avatar
dales133
4000 Club
4000 Club

Posts: 4605
Images: 1
Joined: Mon Oct 13, 2014 5:26 pm
Top

Re: My 5x8 TD build

Postby AeroDude » Sun Feb 22, 2015 1:32 am

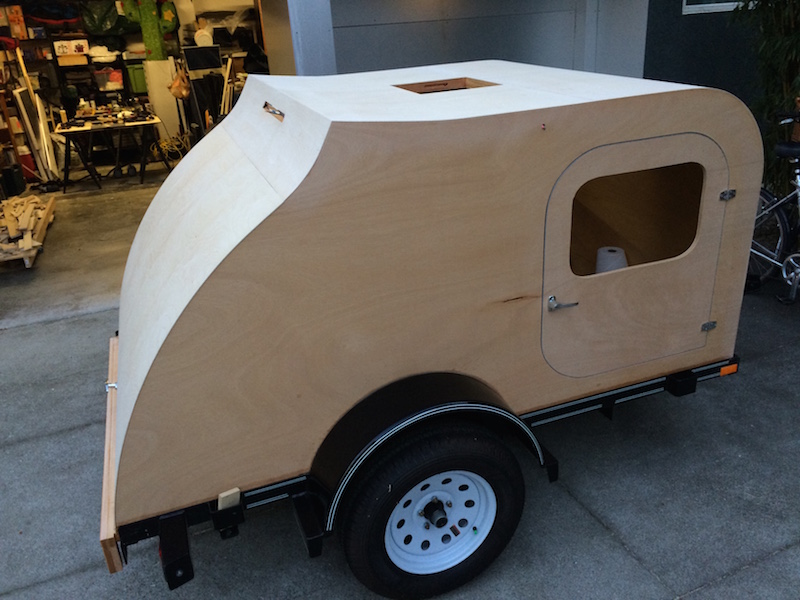

Reached another milestone today: the plywood skin is on, and the galley hatch fits. Ready to go find some good quality aluminum. If you happen to know a supplier for 60" wide aluminum in the Bay Area, please let me know.
