Sportsmans' Cub

Postby Bob Olszewski » Thu Mar 01, 2007 11:35 am

I decided to start a thread to keep interested parties up to date on my build. I will add to this as I get more done. I haven't worked on it much the last 2 months due to the holidays, me being a bit under the weather and some other responsibilities. I mentioned in an previous thread how I am making 2 of these with the intent of selling 1 for the cost of building the 2. So the extra parts you may see in the pics aren't my mistakes.

This is what I shooting for.

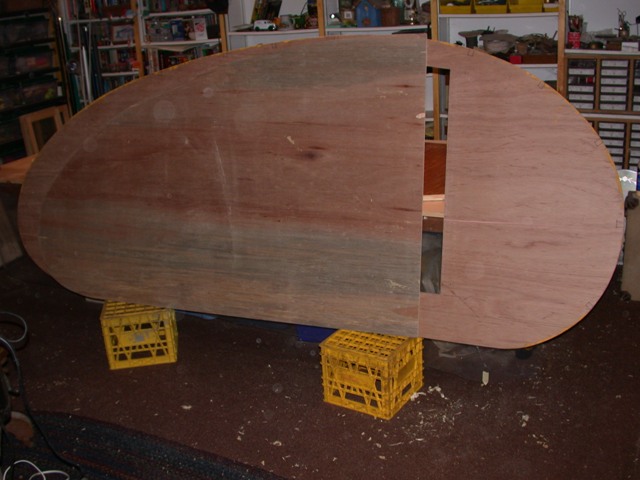

Patterns of the profile. One the full side, the other for cutting the hatch notch.
Gluing up the side frames.
Using the pattern to router the profile.

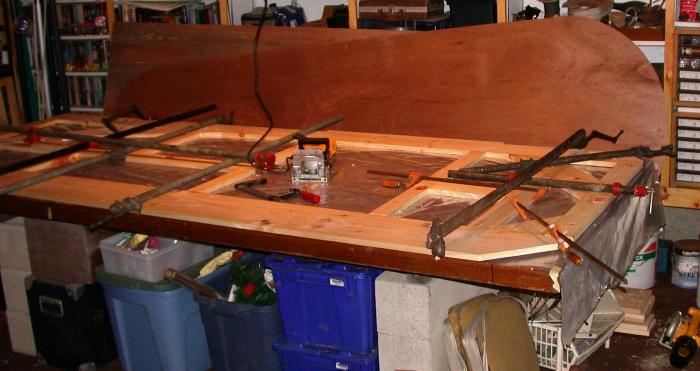

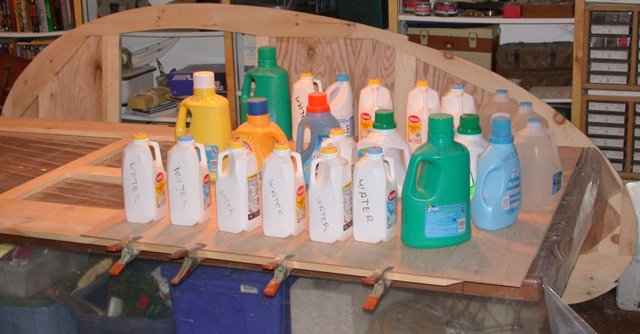

Gluing oak bead board panels for the inside walls.

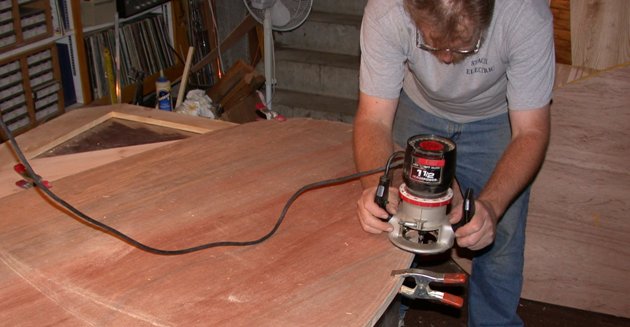

After I'll trim the paneling with a router using the frame as the guide.

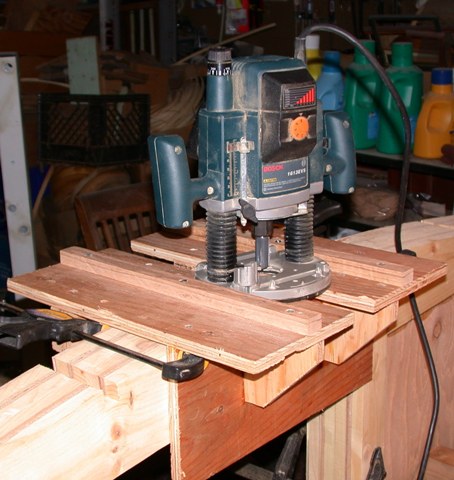

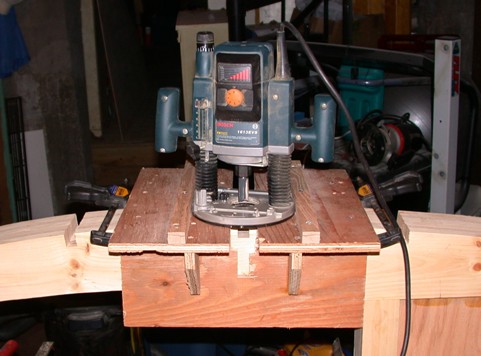

Using a fixture to mill the notches for the roof spars. Thanks Davel.

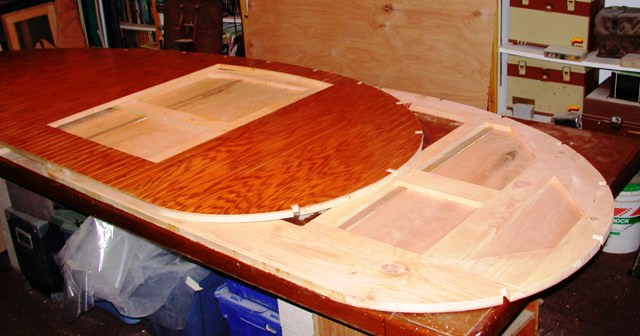

Finished sides with inside walls stained and spar urethaned.
I've just about finished the front bulkhead/headboard/cabinet assembly
Also, I guy I work with is finishing up school for his degree in mechanical engineering and needed a project. I gave him my welded chassis design to engineer for optimum strength/weight/cost. His professor thought it was a great project. I'll post the report when it's done.

Regards, Bob "O"
User avatar
Bob Olszewski
Teardrop Advisor

Posts: 54
Images: 59
Joined: Wed Oct 26, 2005 6:16 am
Location: Deerfield, MA

Postby Outlaw » Thu Mar 01, 2007 12:00 pm

Schweeeeeeeeeeeeeeeet! Is that your design at the top?

:thumbsup: :applause: :thumbsup: :applause: :thumbsup:
Eric
User avatar
Outlaw
Donating Member

Posts: 651
Images: 25
Joined: Mon Jan 23, 2006 9:18 pm
Location: South Central, PA

Postby madjack » Thu Mar 01, 2007 12:06 pm

...looking good Bob...will be looking for further installments of your build............................ 8)
...I have come to believe that, conflict resolution, through violence, is never acceptable.....................mj
User avatar
madjack
Site Admin

Posts: 15128
Images: 177
Joined: Thu Dec 02, 2004 5:27 pm
Location: Central Louisiana
Top

Postby toypusher » Thu Mar 01, 2007 1:18 pm

Yah! What they said and more!! Great job so far, can hardly wait to see the finished product!! :applause: :applause: :applause:
User avatar
toypusher
Site Admin

Posts: 43040
Images: 324
Joined: Fri Jan 28, 2005 12:21 pm
Location: York, PA Area
Top

Postby angib » Thu Mar 01, 2007 4:16 pm

That's looking good, Bob.

Is that a tennis racket or a snowshoe holding up your exterior table?

Andrew
User avatar
angib
5000 Club
5000 Club

Posts: 5783
Images: 231
Joined: Fri Apr 30, 2004 2:04 pm
Location: (Olde) England
Top

Postby alaska teardrop » Thu Mar 01, 2007 5:37 pm

    :thumbsup: Beautiful design & work, Bob!
    I guess the snowshoe fits, Andrew. Beaver Tail (or Teardrop) type. :)
    *Bear Paw
    Frame more oval in shape and lacking any long tail
    Very manoeuvrable, particularly in thick forest or bush and hilly regions
    Not good for deep, light snow and regarded as "slow"
    *Beaver-Tail (also known as Michigan or Maine style)
    Frame tear-drop shaped with upturned toe and long, narrow tail
    Best on trails or open plains
    Clumsy in thick woods or deep, powder snow
    *Alaskan (also known as Trail, Yukon, or Athabaskan)
    Extremely long and narrow with upturned toe and narrowing tail
    Designed for speed in open areas and deep snow, where it works best
    Poor manoeuvrability in tight areas
    Use the Bear Paws myself. :moom walk:
    Fred
    :peace:
Northern Lite Traveler design: viewtopic.php?f=27&t=51991
Minimalist torsion axle frame: viewtopic.php?f=35&t=12220
Alaska Teardrop photo gallery: http://tnttt.com/gallery/album.php?album_id=2014
Glampette photo gallery; gallery/album.php?album_id=2983&sk=t&sd=d&st=0
User avatar
alaska teardrop
Platinum Donating Member

Posts: 1112
Images: 177
Joined: Wed Aug 24, 2005 1:41 pm
Location: Greenville, Michigan
Top

Door Button

Postby Bob Olszewski » Tue Mar 06, 2007 2:17 pm

I should have included these shots with the rest. I was deciding how to keep the cabinet doors and drawers closed when traveling. I searched the forum and read what many of you have done, then while cleaning up around the shop one day I found a old door button and it hit me. Well they want $5 and up for quality ones in the marine catalogs so I decided to make my own.

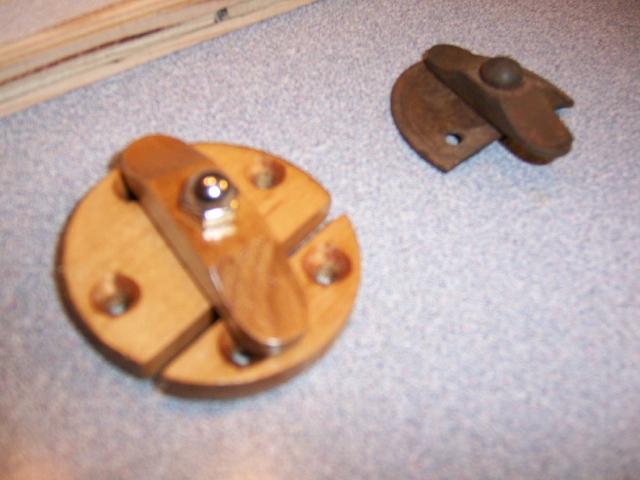

This pic shows the one I found and my version of it made of maple and stained golden oak to match my woodwork.

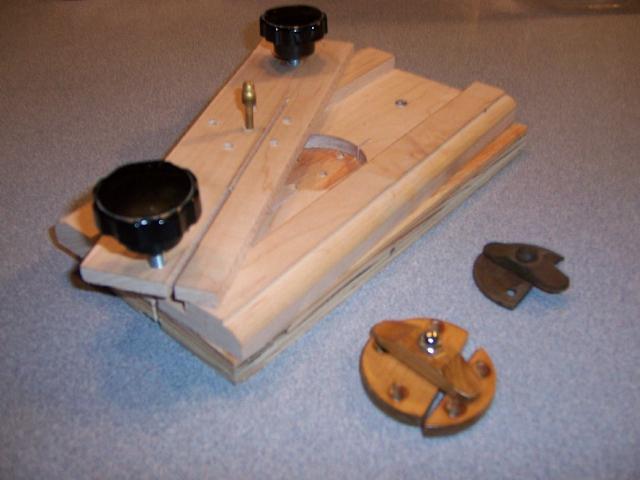

This pic shows the jig I made to drill the holes and cut off the part that acts as a pad on the door or drawer.
I made around 50 of these and found it took about 15 minutes each to make and assemble. the hardware ran me around $20.
User avatar
Bob Olszewski
Teardrop Advisor

Posts: 54
Images: 59
Joined: Wed Oct 26, 2005 6:16 am
Location: Deerfield, MA
Top

Postby prohandyman » Tue Mar 06, 2007 2:57 pm

Bob
Do I understand you correctly? Do these mount on the inside of the door/drawer?
I'm currently converting a cargo trailer, but when I start my tear, your's is exactly what I want it to look like. I won't copy everything!! :twisted:
Dan
155200 Facebook group 164774163701
User avatar
prohandyman
Super Lifetime Member

Posts: 1919
Images: 785
Joined: Fri Dec 22, 2006 3:21 pm
Location: Greenwood, IN
Top

Door Button

Postby Bob Olszewski » Fri Mar 09, 2007 10:11 am

Prohandyman, They are mounted on the outside with the part with the knob mounted to the stile or rail and the small cresent piece mounted to the door or drawer acting as a strike. These button as they are called will only work for flush mounted doors and drawers.

Regards, Bob "O"
User avatar
Bob Olszewski
Teardrop Advisor

Posts: 54
Images: 59
Joined: Wed Oct 26, 2005 6:16 am
Location: Deerfield, MA
Top

Postby Bob Olszewski » Thu Jun 28, 2007 6:40 am

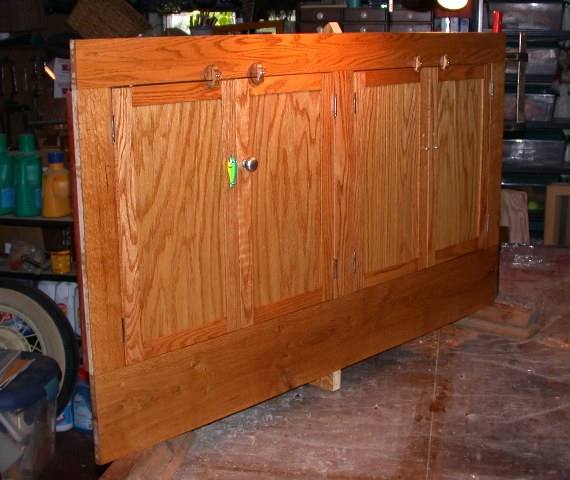

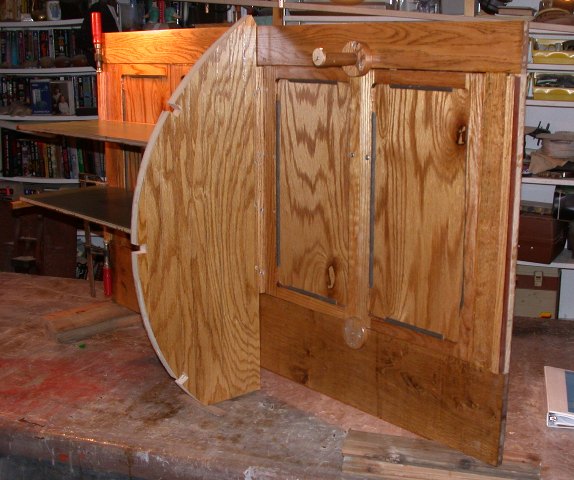

Working on teardrop time I accomplished a little more - the front bulhead.

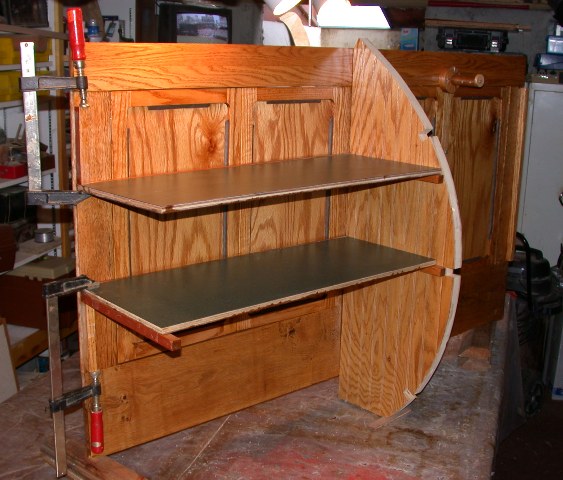

One side has shelves, the other for hanging. The bottom shelf will be hinged off a roof strut to allow for larger items to fit under it.
The doors are made picture frame style so the beadboard panels may be removed if one becomes damaged or to replace with something else.

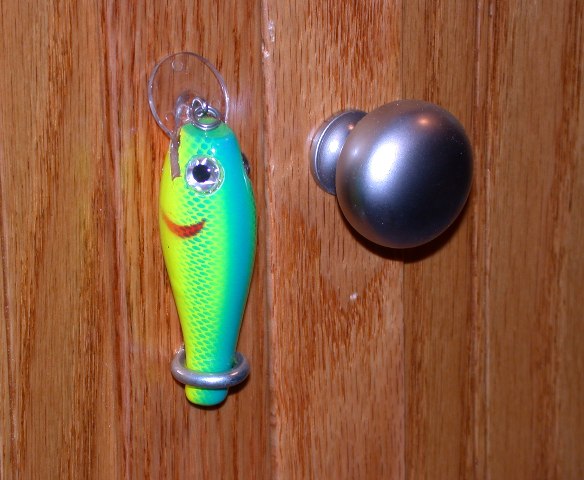

The teardrop I'm making for myself will have a fishing/sportsman theme so I thought I would use some fishing plugs for the door pulls. The teardrop I will be selling (if I ever finish these) will have the silver knobs.

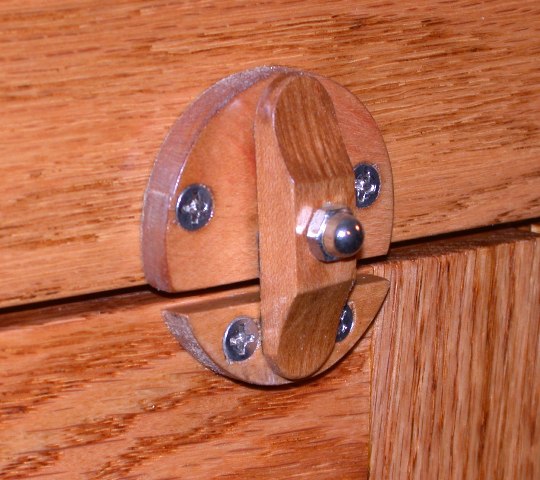

Here is a pic of the door buttom I mentioned earlier installed.

I have made progress on the next assembly - the main galley. I have the face frames and doors made. Have purchased the cooktops, water tanks, cooler and drawer slides, and have all the lumber, plywood and laminate to build them. Just need to find the time.
User avatar
Bob Olszewski
Teardrop Advisor

Posts: 54
Images: 59
Joined: Wed Oct 26, 2005 6:16 am
Location: Deerfield, MA
Top

Postby Laredo » Sun Jul 22, 2007 12:15 am

how goes this? beautiful work so far!
Mopar's what my busted knuckles bleed, working on my 318s...
User avatar
Laredo
Donating Member

Posts: 2017
Images: 0
Joined: Mon Jul 05, 2004 10:42 pm
Location: West Texas
Top

Postby Podunkfla » Sun Jul 22, 2007 1:24 am

Very nice Bob... You've obviously done some fine woodworking before. I love your design. Looks wonderful so far. I'll be watching for your updates. :thumbsup:
<B>~ Brick
<I>... I've done so much with so little for so long... Now I can do almost anything with nothing! </I></B>
Image...Lots more pix here!
User avatar
Podunkfla
ol' noodle haid

Posts: 2261
Images: 5
Joined: Fri Aug 04, 2006 9:25 pm
Location: North Florida near the Suwannee River
Top

Postby Seanie » Sat Jul 28, 2007 7:21 am

Beautifully done Bob- downright inspirational, which is why I joined this forum. :)
I can do this.....
User avatar
Seanie
Teardrop Inspector

Posts: 14
Images: 4
Joined: Sat Jul 28, 2007 5:10 am
Location: South East of South Australia
Top

Postby SaGR » Sat Jul 28, 2007 8:02 am

Looks awesome!

But as Ira would say - I hate you! :lol:
Building a small bowtop Vardo
Build thread: http://tinyurl.com/yk4hnmd

Generic Benroy: Sold to FIL/MIL
User avatar
SaGR
The 300 Club

Posts: 487
Images: 21
Joined: Fri May 25, 2007 9:29 am
Location: Illinois, Lisle
Top

Postby Joanne » Sat Jul 28, 2007 9:07 am

Bob!

I'm going to have to make another appointment with my therapist. All of that beautiful woodwork is making me insecure about my own handiwork. :?

I have watched a number of builders who have done a large portion of their assembly on the workbench and I can really see the advantage to that. As a beginning builder, I just didn't (and may still not) have enough foresight to be able to plan everything out so it would fit together when time comes for final assembly. As I mentioned in the Building Tears for a Living thread, it seems like preassembly would be the most efficient way to build.

I really like the overall design of your trailer. It looks like it should be on display inside the Yellowstone lodge. I just love the tear shaped windows. It really adds to the overall style of the trailer.

Please keep posting the photos! I especially like the ones where you show the various woodworking techniques and jigs you have used. I'm trying to learn woodworking and seeing the techniques "in action" really helps.

I wish I could afford your #2 trailer! :thumbsup:

Joanne
New! My Camp Cooking Forum

Project Desert Dawg website


Universal Health Care
Health care with the efficiency of the Department of Motor Vehicles
and the compassion of the Internal Revenue Service.
User avatar
Joanne
Queen of Cast Iron

Posts: 2111
Joined: Thu Jul 01, 2004 9:43 pm
Location: Las Vegas, NV
Top
